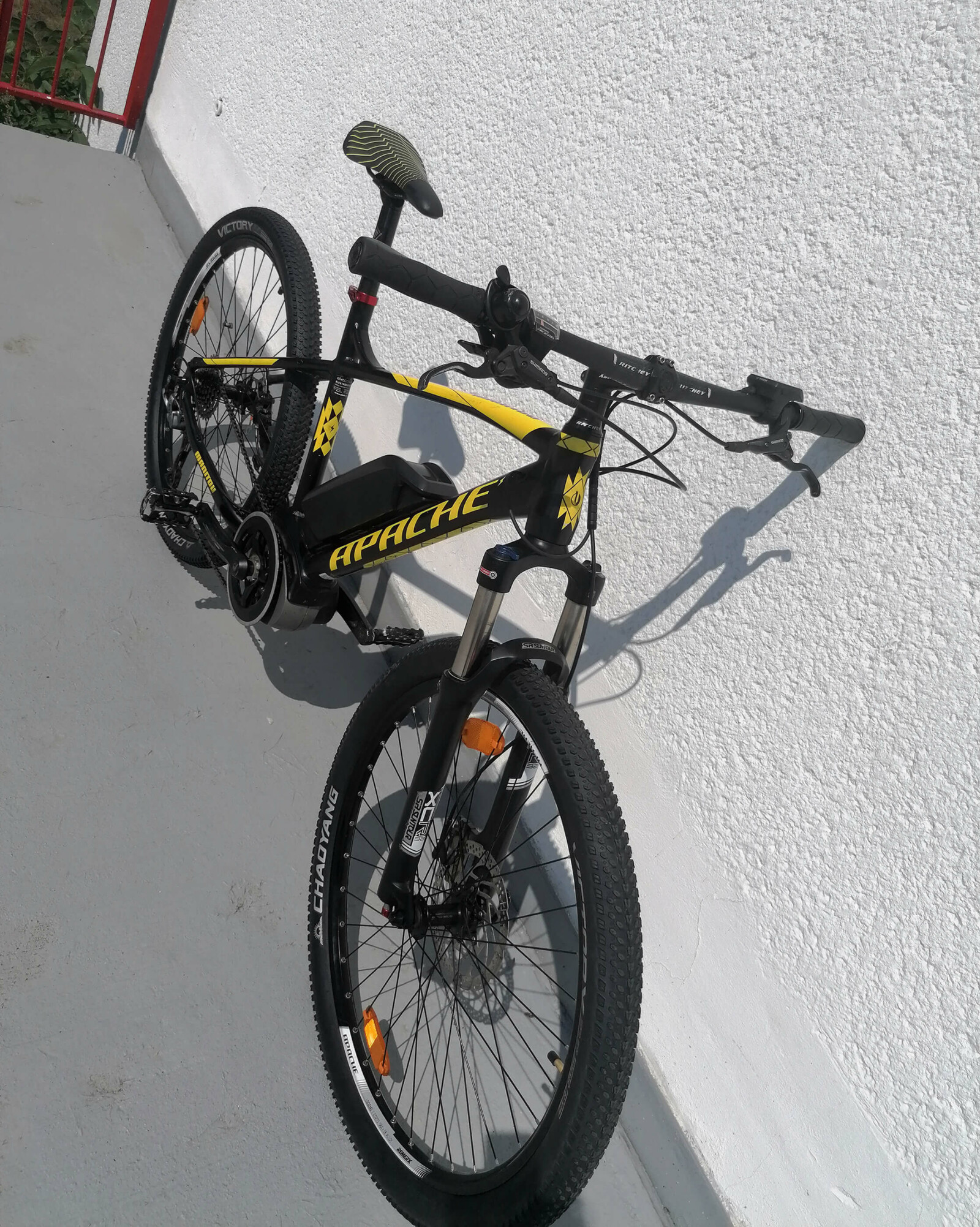

APACHE Manitou Bosch Active Plus

Exhibited in our Showroom Bosch -54 %

An eMTB with a Bosch active central motor, 420W of rated power and a torque up to 48Nm.

Found a better price?

E-bike range calculator

Battery capacity: 500 Wh

300 Wh 650 Wh 1000 Wh

Rider weight: 75 Kg

50 Kg 95 Kg 140 Kg

Dominant route profile:

Flat

Medium

Hills

The e-bike range is approximately

*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

Key properties:

high-quality 250W center motor of the new Bosch Active Line Plus series with a maximum torque up to 50 Nm
Bosch lithium ion frame battery with 500Wh capacity
lightweight aluminum frame with sporty geometry
air suspension fork SR Suntour XCR 32 Air LO-R

Detailed description:

Bosch Intuvia LCD display with remote control located on the left side of the handlebars
quality Shimano brand components, including hydraulic disc brakes
rigid 27.5" laced wheels

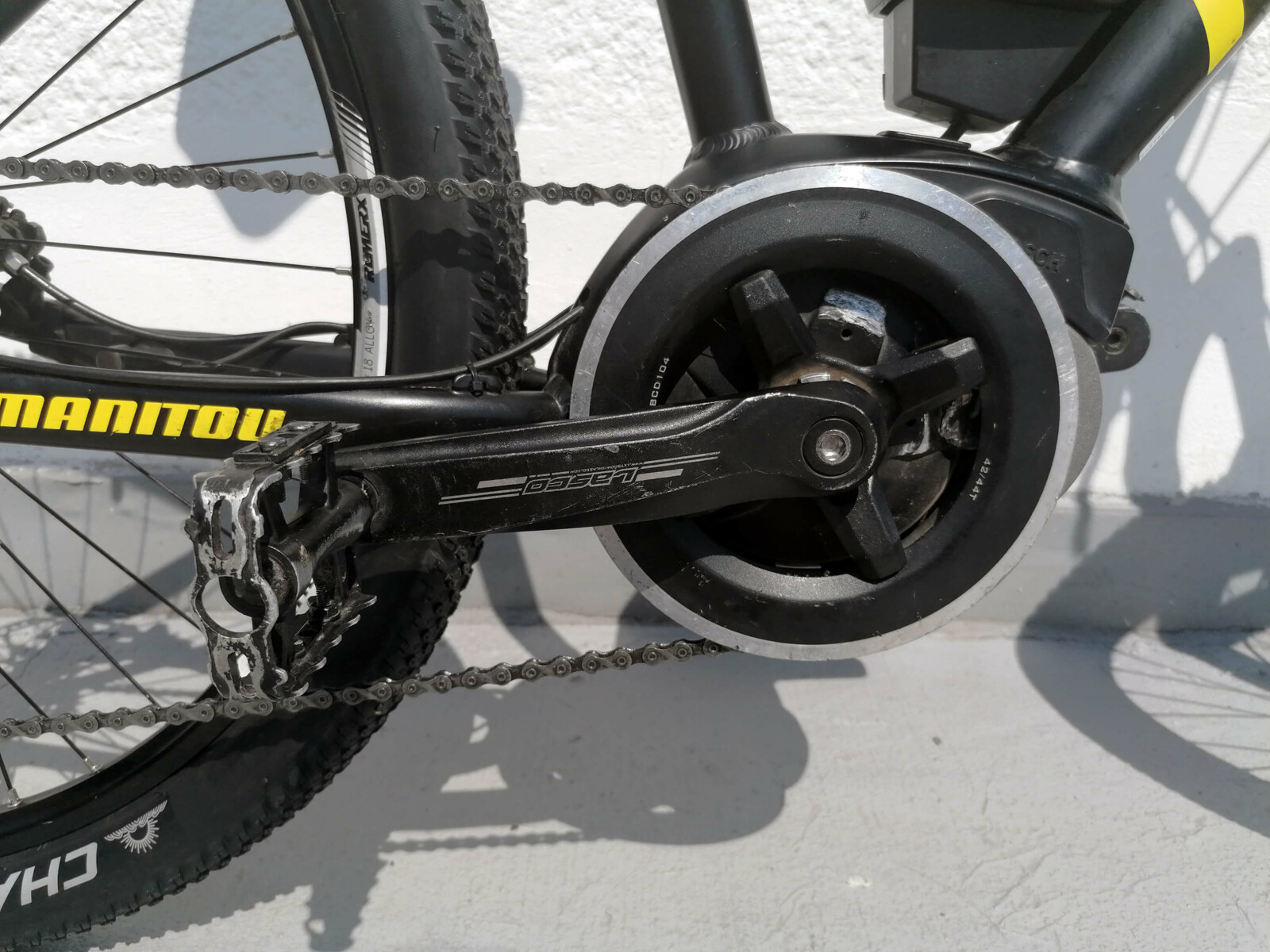

Crank drive motor

Bosch Active

Affordable model of branded crank drive motor with smoother and less agressive assistance character and nominal output of 250W maximum torque of 40Nm provides enough power to cope with all terrain and roads. The motor construction without internal flywheel allows for use of standard crank.

Maximum torque

40 Nm Maximum torque of 40 Nm provides smooth assistance during acceleration

Assistance

250 Light assistance is excellent for trips around town

Centre motor

25 km/h Everyday use of assistance up to 25 km/h

Breaking assistance

Backpedal Breaking by pushing the pedals back is a new function in Bosch Active Line and it is already implemented on many new bikes

Bosch Active Line Plus

Affordable model of branded crank drive motor with smoother and less agressive assistance character and nominal output of 250W maximum torque of 50Nm provides enough power to cope with all terrain and roads. The motor construction without internal flywheel allows for use of standard crank.

Maximum torque

50 Nm Maximum torque of 50 Nm provides smooth assistance during acceleration

Asistence

270 Light assistance is excellent for trips around town

Centre motor

25 km/h Everyday use of assistance up to 25 km/h

Breaking assistance

Back padel Breaking by pushing the pedals back is a new function in Bosch Active Line and it is already implemented on many new bikes

	Bosch Active Line	Bosch Active Line Plus
Motor type	centre	centre
Nominal Power Output	250 W	250 W
Max. torque	40 Nm	50 Nm
Ride Assist modes	TURBO: 250 % SPORT: 170 % TOUR: 100 % ECO: 40 %	TURBO: 270 % SPORT: 180 % TOUR: 100 % ECO: 40 %
Maximum torque	TURBO: 40 Nm SPORT: 38 Nm TOUR: 35 Nm ECO: 30 Nm	TURBO: 50 Nm SPORT: 45 Nm TOUR: 40 Nm ECO: 35 Nm
Voltage	36 V	36 V
Sensors	Pedaling frequency torque speed	Pedaling frequency torque speed
Max. assisted speed	25 km/h	25 km/h
Weight	3.2 kg est.	3.2 kg est.

[page-325]

Compact and easy to read

Purion is a minimalist on-board computer for anyone who wishes to have an elegant look on the handlebars, whether for use in the city or in the terrain. All important information is conveniently reached at the touch of a button while driving, while both hands remain on the handlebars. Five different driving modes will give you the right support in every situation.

The new Bosch Purion display has been designed as an alternative to the Intuvia display with an emphasis on compactness and simple operation.

The smaller size of the display reduces the risk of damage when used in the terrain. Both the display and the controller are combined in one device, which is installed instead of the original controller.

Choice of 5 levels to help


Turbo	Sport / eMTB*	Tour	Eco	Off
Maximum performance support up to the highest cadence for sporty driving styles	Strong support for universal use for sports driving and fast crossings in city traffic	Even support for long distances	Effective support with maximum savings for the longest range	No support, but with access to all on-board computer functions

* Specially designed for Performance Line and Performance Line CX, the eMTB mode dynamically switches between Tour and Turbo modes and offers progressive engine support for maximum track performance.

Another function is a walk assistant and display of driving parameters (driving speed, distance traveled, range), battery status and selected levels of assistance, USB connector for diagnostics.

The display is supplied with cabling, handlebar holder and is available in two colors


dark Anthracite	light Platinum

NOTICE: When installing this display, the wheel motor must be removed and new cables routed through the frame. In some cases, it is also necessary to update the engine firmware

Full range of Bosch Purion display e-bikes

We are specialists and we have a complete range of medium- and high-class e-bikes from the Czech brand APACHE BICYCLES. With each APACHE e-bike we offer a premium frame warranty, the first year of after-sales service for free, and perfect diagnostics for all drive technologies used. We are the main repair shop partner for APACHE BICYCLES. APACHE has a wide range of e-bikes for various uses, with several possible motor types - Bosch, Bafang and AP Silent. We also offer rebuilding and installation of hub and central sets and drives of the Apache Power System brand, including batteries and accessories.
