E-BIKES MY 2021 ALREADY IN STOCK!  SEE THE LATEST MODELS RIGHT NOW

ELEKTROKOLA APACHE

APACHE Hawk Bosch Performance CX

An e-MTB with a Bosch Performance CX motor, 600W of rated power and torque up to 75Nm.

Discount for purchasing 2 or more e-bikes: 5%

Why this e-bike?

  • Bosch Performance CX central motor.
  • Bosch Power Pack 500 Li-ion battery with a capacity of 500Wh.
  • Aluminium frame with comfortable geometry.
  • The SUNTOUR suspension air fork will make the ride smoother.
  • 10 speeds.





The Bosch Performance CX motor is one of the most advanced central electric motors in the world, giving optimal performance. This makes it particularly well suited for rugged mountain terrain, but it works just as well on roads, cycling paths - anywhere you want to go. The fully integrated battery makes handling this e-bike easy. The LCD display, mounted on the left handlebar, is used to control the motor. Its compact size reduces the risk of off-road damage. The buttons are used to select the degree of battery assist and toggle between the functions of the computer. The display shows the degree of battery assist as well as speed, distance travelled, distance remaining and most importantly, the amount of charge remaining in the battery. This model's battery can hold a charge for up to 130 km.

Click to display the e-bike range calculator

E-bike range calculator

Total weight of rider (incl. equipment)
80
kg
Predominant route profile
Battery capacity
Range
For 80 kg riders, with a battery capacity of Wh when driving with average assistance after a predominantly , the range on this e-bike will be approximately
km
(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

E-MTB WITH A LOT OF STAMIPowerful motor and high-capacity batteries will help  you to catch up on the harshest hills. The high  performance e-bikes are characterized by its durable  frame, high-quality brakes and good suspension.

With a maximum torque of 75 Nm, the BOSCH performance CX  motor is the ideal drive for ambitious and demanding e-bikers.  In eMTB mode you always get the desired energy-from the Tour to  Turbo. With Up to 300% of perfect assistance, incredible dynamics and  unique adhesion, the motor provides the best possible support in all  terrains, as well as faster start assistance. Gradual motor support  automatically adapts to the individual style of your ride.


Compact and easy to read

Purion is a minimalist on-board computer for anyone who wishes to have an elegant look on the handlebars, whether for use in the city or in the terrain. All important information is conveniently reached at the touch of a button while driving, while both hands remain on the handlebars. Five different driving modes will give you the right support in every situation.

The new Bosch Purion display has been designed as an alternative to the Intuvia display with an emphasis on compactness and simple operation.

The smaller size of the display reduces the risk of damage when used in the terrain. Both the display and the controller are combined in one device, which is installed instead of the original controller.

Choice of 5 levels to help

Turbo Sport / eMTB* Tour Eco Off
Maximum performance support up to the highest cadence for sporty driving styles Strong support for universal use for sports driving and fast crossings in city traffic Even support for long distances Effective support with maximum savings for the longest range No support, but with access to all on-board computer functions

* Specially designed for Performance Line and Performance Line CX, the eMTB mode dynamically switches between Tour and Turbo modes and offers progressive engine support for maximum track performance.



Another function is a walk assistant and display of driving parameters (driving speed, distance traveled, range), battery status and selected levels of assistance, USB connector for diagnostics.





The display is supplied with cabling, handlebar holder and is available in two colors



dark Anthracite light Platinum



NOTICE: When installing this display, the wheel motor must be removed and new cables routed through the frame. In some cases, it is also necessary to update the engine firmware


Complete range of e-bike with Bosch Purion display





We are specialists and we have a complete range of medium- and high-class e-bikes from the Czech brand APACHE BICYCLES. With each APACHE e-bike we offer a premium frame warranty, the first year of after-sales service for free, and perfect diagnostics for all drive technologies used. We are the main repair shop partner for APACHE BICYCLES. APACHE has a wide range of e-bikes for various uses, with several possible motor types - Bosch, Bafang and AP Silent. We also offer rebuilding and installation of hub and central sets and drives of the Apache Power System brand, including batteries and accessories.





These might interest you:



                      E-Bike Buyer's Guide    Everything about batteries

                      Delivery of your e-bike    Everything about e-bike motors









Parameters

Drive type Bosch Performance CX, 90 Nm, max. 630 W
Control Bosch purion
Capacity and battery type 500 Wh, Li-Ion Bosch Power Tube

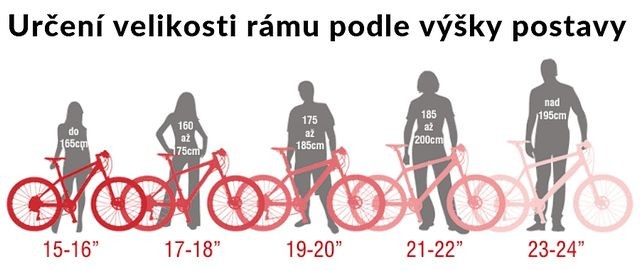

Frame sizes 17,7", 19,5", 21,5"
Frame type and material Alloy 6061
Front fork SR Suntour XCR 34 AIR Boost LOR
Number of gears 1 x 10
Shifters and derailleur Shimano Deore M6000, 10 gears
Type and brand of brakes Shimano MT400 (disc 180 mm)
Crankset Miranda delta
Cassette Shimano Deore HG500 (11 - 42 T)
The stem Spec 60 mm
Chain Shimano E6090
Handlebars Spec 740 x 31,8 mm
Load capacity 120 kg
Saddle and seat post Spec Sport / Spec (30,9 / 400 mm)
Rims and hubs Remerx Rocky Disc 21 mm, Shimano MT400 Boost
Tyres Schwalbe Smart Sam (29 x 2,25")
Sensor Torque
Weight including battery 22,8 kg
