CRUSSIS ONE Largo 9.6-S
PRE-ORDER for discounted price now!
Expected availability: July 2021.

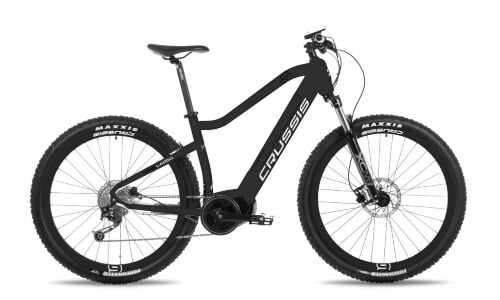

The ONE-Largo 9.6-S men's mountain e-bike with a stronger battery is designed for off-road riding, but it can also handle a road or cycle path without any problems. It's up to you. It differs from its colleague e-Largo 9.6-S in design and is presented in more neutral colours.
Why this e-bike?
- motor: Bafang M500 250W, 95 Nm
- battery: Panasonic 630 Wh
- frame size: 18", 20"
- number of gears: 12
- display: BAFANG LCD panel
- fork stroke: 100 mm
Eagle™ technology brings in new more accurate and smooth gear changes with excellent reliability, It offers a single-gear drive and features high endurance easy control and low weight. The new derailleur X Eagle™ is designed using famous SRAM 1x system code named X-HORIZON™

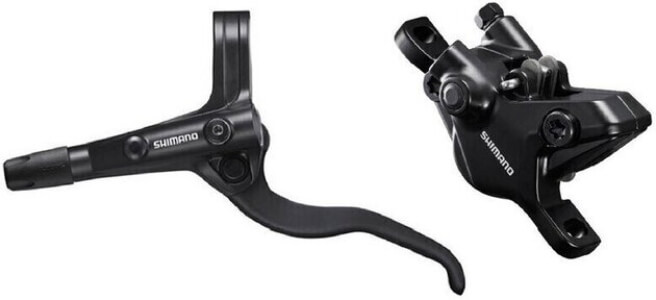

Hydraulic disc brakes SHIMANO BR-MT410 offer excellent performance at reasonable cost. MT410 discs deliver great endurance, quick and easy installation and low noise levels. Pads on this module are attached to 2 piston calipers with quick piston retraction design.
E-bike range calculator
Our ONE-Largo 9.6-S model is a very popular mens e-bike for its good battery perfect for demanding trips across countryside as well as on country roads. It does feature 29" wheels but should there be a preference for 27.5" wheels then please consider our e-Atland 9.6-S model too or for more striking colour scheme there is e-Largo 9.6-S
The aluminium frame has been specificaly designed to provide excellent handling and stability on a road further enhanced by a complete integration of the powerful Li-Ion cells Panasonic 36V / 630 Wh (17.5 Ah) battery.
There is no question about this models capabilities while there is also a great focus on reliability. M500 is a centre motor from well knows brand BAFANG and while its nominal power output is rated at 250W (500W peak) the torque is 95 Nm. Being a crank drive further helps with weight distribution turning the e-bike into a perfect tool for any trip.
CRUSSIS ONE-Largo 9.6-S is a very popular bike for its sleek design and range of up to 150km but please do bear in mind that actual range will always depend on riding style, level of boost, terrain and load / overall weight.
Frame range is from 18" to 20" and standing on 29" wheels we find SRAM Eagle SX 12s gear changer and SHIMANO Deore BR-MT410 hydraulic disc brakes. There is a ROCKSHOX FS Judy Silver TK R Solo Air 29" (100mm) suspension above front tyre which is known for its grat balance of comfort while maintaning good handling abilities.
MAXXIS ARDENT 29 X 2,40 tyres provide good grip regardless of weather conditions and there is a USB port for charging mobile devices on a go also included but this being a mountain bike there is no mudguards, support stand or lights fitted although these can be purchased seperately.
BAFANG M500 is a super-powerful central motor with nominal power output 250W (500W Peak)
It is known for it's perfect balance between peak torque and efficiency, which is always critical for the e-bike. Torque is essential for dynamic driving, which in the case of this engine is really strong, up to 95 Nm so no terrain is an obstacle for e-bikes equipped in this way. The engine with the pedal sensor and the torsional pedal force sensor constantly monitors the force of the rider pedaling and regulates the output power.
Li-Ion based cells in Panasonic 630 Wh / 17,5 Ah battery are the heart of electric bike. The battery is integrated within e-bikes frame and when combined with centre drive motor it is a perfect harmony for great balance and handling while contributing to a very sleek look overall.
This battery is capable of delivering up to 150km of range although it does depend on riding style and level of assistance enabled.
Display for central drive motor Bafang M500
On top of everything else the colour LCD screen also clearly displayes many functions such as speed distance covered battery status and current gear.
The display is further equiped with USB port to charge mobile devices such as mobile phones, lights and sat nav so there is no need to worry about running out of juice on a go.
CRUSSIS Electrobikes has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
These might interest you:
Parameters
| Drive type | BAFANG M500, 250W (max 500W), 95 Nm |
|---|---|
| Control | BAFANG LCD panel, 5 modes, colour display |
| Capacity and battery type | PANASONIC Li-Ion 36V / 630 Wh (17,5 Ah) |
| Frame sizes | Alu 6061, frame size 18" / 20" |
| Front fork | ROCKSHOX FS Judy Silver TK Solo Air 29", 100 mm with lock |
| Number of gears | 1 x 12 |
| Shifters | SRAM SX Eagle |
| Derailleur | SRAM SX Eagle |
| Shifters and derailleur | SRAM SX Eagle |
| Front brakes | SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm |
| Rear brakes | SHIMANO Deore BR-MT410, hydraulic, rotor 160 mm |
| The stem | CRUSSIS Al, 60 mm, fixed |
| Chain | SRAM Eagle SX 12s |
| Handlebars | CRUSSIS Al, 740 mm |
| Saddle | Selle ROYAL |
| Seat post | CRUSSIS with lock, 31,6 / 350 mm |
| Load capacity | 120 kg |
| Rims | CRUSSIS 29", dual layer with insert, 25mm |
| Front hub | CRUSSIS disc, industrial bearings, 32D |
| Rear hub | CRUSSIS disc, industrial bearings, 32D |
| Tyres | MAXXIS Ardent 29 x 2,40 |
| Grips | CRUSSIS silicon |
