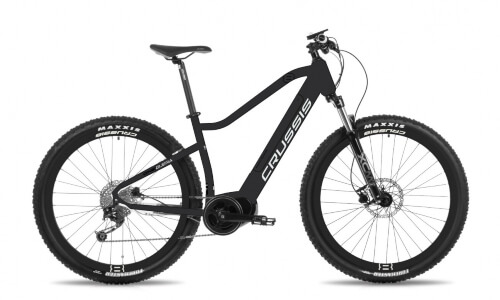

CRUSSIS ONE-Guera 9.6-S
Women's mountain e-bike designed mainly for off-road riding with neutral color schemeand Bafang M500 electric motor. The 630 Wh Panasonic battery and the Shimano brakes ensure really great stability, handling and range.
- motor: Bafang M500 (95Nm)
- battery: Panasonic 630Wh
- frame size: 17", 19"
- number of gears: 12
- display: Bafang M500 LCD

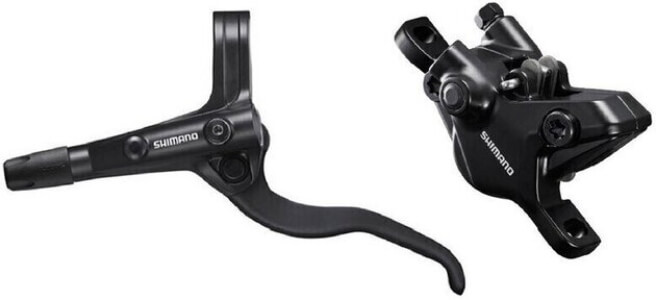

Hydraulic disc brakes SHIMANO BR-MT410 offer excellent performance at reasonable cost. MT410 discs deliver great endurance, quick and easy installation and low noise levels. Pads on this module are attached to 2 piston calipers with quick piston retraction design.

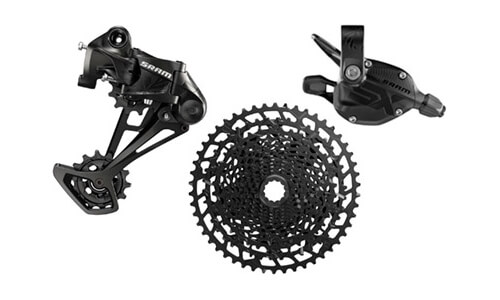

Eagle™ technology brings in new more accurate and smooth gear changes with excellent reliability, It offers a single-gear drive and features high endurance easy control and low weight. The new derailleur X Eagle™ is designed using famous SRAM 1x system code named X-HORIZON™
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
Female mountain bike ONE e-Guera 9.6-M comes in frame sizes ranging from 17" to 19" and the wheel size of 27.5" and the colour are the main differences from our e-Fionna 9.6-M model while there is also a more colouful e-Guera 9.6-S model available
Aluminium frame design has now been improved for even more comfort and better handling regardles of terrain. Central Drive motor and battery fully integrated within the low frame tube it all contributes to perfect weight distribution.
The aluminium frame has been specificaly designed to provide excellent handling and stability on a road further enhanced by a complete integration of the powerful Li-Ion cells Panasonic 36V / 630Wh (17.5 Ah) battery with up to 150km of range depending on usage, terrain, level of assistance and overall weight.
There is no question about this models capabilities and range while there is also a great focus on reliability. M500 is a centre motor from well knows brand BAFANG and while its nominal power output is rated at 250W (500W peak) the torque is 95 Nm. Being a crank drive further helps with weight distribution turning the e-bike into a perfect tool for any trip.
High end SRAM Eagle SX 12s gear changer needs no introduction and our front suspension SR-Suntour XCR32-AIR RLR DS 27,5" (100mm) with lock
The fully suspended aluminium frame is perfect in every detail and provides excellent handling and stability on any surface. The motor as well as a battery are fully integrated within. The performance is further enhanced by MAXXIS ARDENT 27.5" × 2,40 tyres and SHIMANO Deore BR-MT410 brakes.
BAFANG M500 (max 500W)
It is known for it's perfect balance between peak torque and efficiency, which is always critical for the e-bike. Torque is essential for dynamic driving, which in the case of this engine is really strong, up to 95 Nm so no terrain is an obstacle for e-bikes equipped in this way. The engine with the pedal sensor and the torsional pedal force sensor constantly monitors the force of the rider pedaling and regulates the output power.
Battery Panasonic 630 Wh / 17,5 Ah
Li-Ion based cells in Panasonic 630 Wh / 17,5 battery are the heart of electric bike. The battery is integrated within e-bikes frame and when combined with centre drive motor it is a perfect harmony for great balance and handling while contributing to a very sleek look overall. This battery is capable of delivering up to 150km of range although it does depend on riding style and level of assistance enabled.
Display for Bafang Max Drive central drive (M500)
On top of everything else the colour LCD screen also clearly displayes many functions such as speed distance covered battery status and current gear. The display is further equiped with USB port to charge mobile devices such as mobile phones, lights and sat nav so there is no need to worry about running out of juice on a go.
CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
Parameters
General
| Load capacity | 120 kg |
Motor
| Centre engine | Yes |
Suspension
| Front fork | ROCKSHOX FS Judy Silver TK Solo Air 27,5", 100 mm travel, fork lock |
Components
| Coats | Maxxis Ardent 27,5 x 2,40 |
Transmission
| Sorting | Sram SX Eagle |
| Shifter | SRAM SX Eagle |
| Number of gears | 1 x 12 |
Brakes
| Rear brakes | SHIMANO Deore BR-MT410, hydraulic, 160 mm rotor |
| Front brakes | SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm |
