CRUSSIS e-Fionna 11.6
Women's e-bike equipped with powerful modern e-bike technologies and a very strong battery, which will ensure long range. E-Fionna 11.6 is guaranteed to help you fulfil your riding dreams. .
- motor: BOSCH Performance CX 4. gen
- battery: BOSCH PowerTube 625 Wh
- frame size: 17", 19""
- number of gears: 12
- display: BOSCH Intuvia
ROCKSHOX FS Recon Silver RL R Solo Air 29" BOOST front suspension with 120mm of travel can adapt to riders of any weight. The pressure inside can be easily adjusted for best performance providing a much smoother ride over rough surfaces while still remaining unintrusive and firm on a road and pavements. Suspension travel can be locked from handlbar with OneLoc lever.
Eagle™ technology brings in new more accurate and smooth gear changes with excellent reliability, It offers a single-gear drive and features high endurance easy control and low weight. The new derailleur X Eagle™ is designed using famous SRAM 1x system code named X-HORIZON™
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
[page-29a453e7-36f0-4601-baca-4b64ba72260e]
[dojezd-160-[{"watth":"625"}]]
Female mountain bike e-Fionna 11.6 comes in frame sizes ranging from 17" to 19" and its wheel size of 29" and the colour are the main difference from our e-Guera 11.6 model.
Aluminium frame design has now been improved for even more comfort and better handling regardles of terrain. Central Drive motor and battery fully integrated within the low frame tube it all contributes to perfect weight distribution.

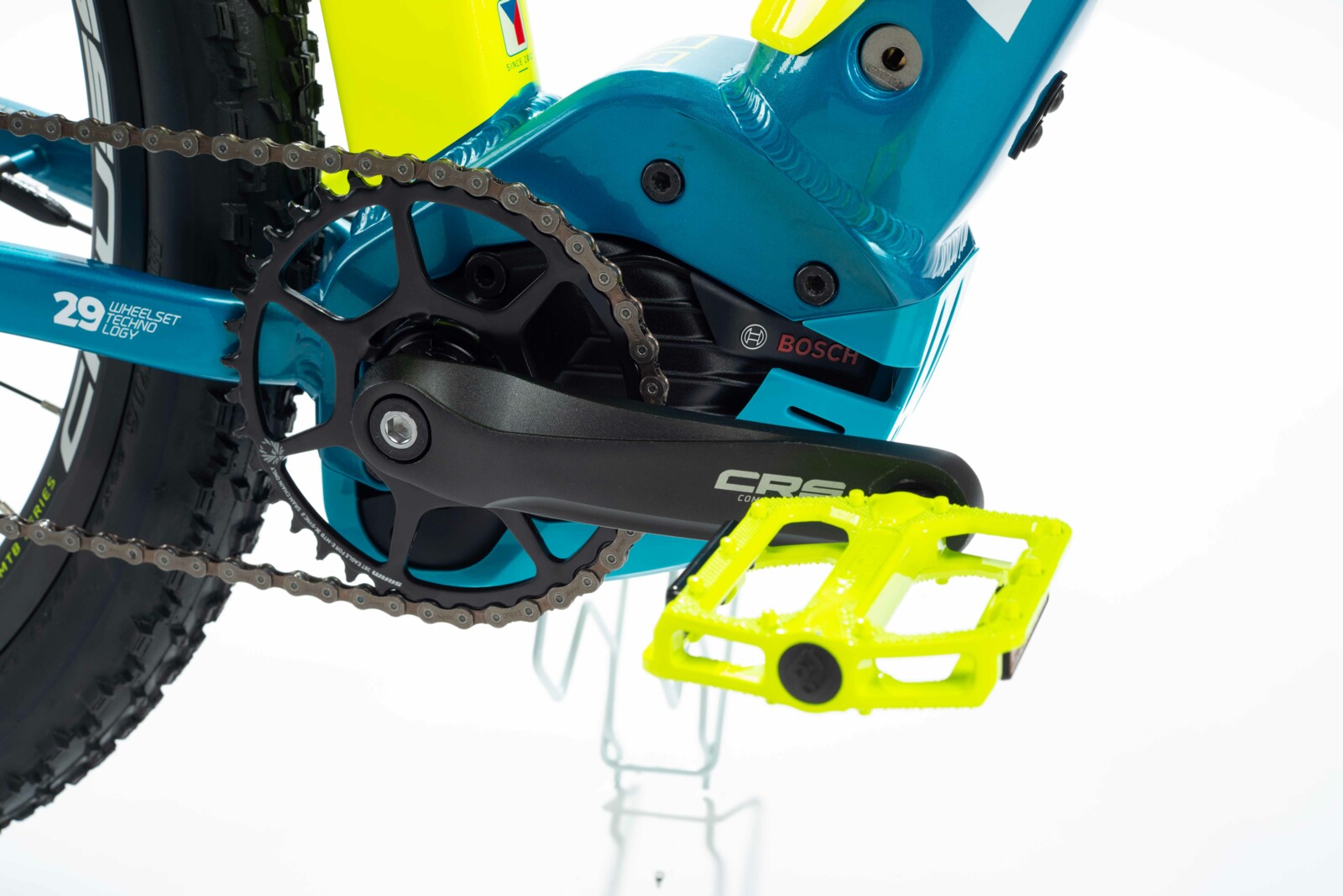

All models in our 11.x range feature excellent BOSCH Performance CX 4. gen with 85 Nm. This is complemented by Bosch PowerTube battery with 625 Wh of capacity delivering range of up to 150km depending on usage, level of assistance, terrain and overall weight. Everything can be easily controlled from multipurpose BOSCH Intuvia screen which can also displays battery status, current level of boost, speed and trip distance.
High end SRAM Eagle SX 12s gear changer needs no introduction and our front suspension ROCKSHOX FS Recon Silver RL R Solo Air 29" (120mm) with lock
The fully suspended aluminium frame is perfect in every detail and provides excellent handling and stability on any surface. The motor as well as a battery are fully integrated within. The performance is further enhanced by MAXXIS ARDENT 29 × 2,40 tyres and SHIMANO Deore BR-MT410 brakes.
BOSCH Performance Line CX 2020
BOSCH Central motors are currently the most used drives in e-bikes and even though they didn't arrive until 2014, they have very quickly became tremendously popular. Their central engines almost completely replaced hub engines and pushed their way through the market due to their unique properties and characteristics. CX 2020 Performance line sits on top of the range and there is no question about their position as a current market leader.
BOSCH POWER TUBE 625
The new PowerTube 625 battery allows trekking and mountain e-bikes to take them long distances. Thanks to its compact size and minimalist design, the battery can be integrated into the e-bike to achieve the optimal effect.
Display BOSCH Intuvia
The Intuvia display can be read under all lighting conditions and the eBike can be controlled easily and intuitively. Thanks to the separate control unit, your hands remain securely on the handlebar at all times, while the shift recommendation means you always pedal in the correct gear. This preserves the battery and increases your range. Intuvia means you always have all riding data clearly in sight.
CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
These might interest you:
Centre motor
Bosch Performance CX
With maximum torque of 75 Nm is Bosch Performance CX motor a perfect tool for ambitious and demanding e-bikers. In eMTB mode there is always support available from Tour to Turbo. Up to 300% of great support, unbelievable dynamics a exceptional grip provide the best possible boost across all kinds of terrain suplemented with more responsive ride assist. Gradual ride support auto-adjust to your own style
Maximum torque
Maximum peak torque of 75 Nm delivers soft boost for acceleration
Assistance
Power output for extreme sport style and performance
Centre motor
Supporting speeds of up to 25 km/h even during long mountain trips.
| Motor type | centre |
|---|---|
| Nominal Power Output | 250 W |
| Max. peak torque | 75 Nm |
| Ride Assist modes | TURBO: 340 % SPORT/ eMTB*: 140-340 TOUR: 140 % ECO: 60 % |
| Mode Max. torque | TURBO: 75 Nm eMTB*: 75 Nm TOUR: 50 Nm ECO: 40 Nm |
| Voltage | 36 V |
| sensors | Pedaling frequency torque speed |
| Max. assist. speed | 25 km/h |
| weight | 2.9 kg est. |
* eMTB mode can be replaced with Sport mode on Performance Line. It can be activated/deactivate by manufacture or specialist.
[page-325]
Intuitive control centre
The Intuvia display can be read under all lighting conditions and the eBike can be controlled easily and intuitively. Thanks to the separate control unit, your hands remain securely on the handlebar at all times, while the shift recommendation means you always pedal in the correct gear. This preserves the battery and increases your range. Intuvia means you always have all riding data clearly in sight.
Volba z 5 úrovní dopomoci
 |
 |
 |
 |
 |
| Turbo | Sport / eMTB* | Tour | Eco | Off |
| Maximum support delivered immediately - even up to the highest cadences for sporty riding | Powerful support for all types of riding, such as a sporty ride or for fast commuting in city traffic | Uniform support for rides with long ranges. | Low level support with maximum efficiency for the longest range | No support - all display functions are still available |
*Progressive support for a natural riding sensation and optimal control on demanding terrain.
Easy to use and clear to read display Bosch Intuvia for Bosch Active motors
Display Bosch Intuvia Active shows data about battery status and current power output of motor and its relation to efficiency. You can look up drive modes and gear slection impact on power consumption and adjust your riding style accordinly to maximase the range.
For the most efficient gear selection you can take advantage of gearchange recomendation that is displayed on a screen. On-board computer also features current average and maximum speed, trip counter, travel time and clock. It is equiped with USB port allowing mobile phone or sat nav charging.
Main features
- Large LCD Display with backlight that is very easy to read.
- Current ride mode (OFF, ECO, TOUR, SPORT, TURBO).
- Graphic representation of current power output in a column next to the mode selection
- Remaining range on a go. Circuit inside monitors and updates range every 2.5km
- Battery status
- MicroUSB port for charging mobile phones and mp3 players
- Button to control lights - when lights are installed by manufacture
Functions
- Current Speed
- Average speed
- Maximum speed
- Current distance covered
- Overall distance covered
- Travel time
- Clock
Full range of Bosch Intuvia e-bikes
CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
These might interest you:
Parameters
General
| Weight incl. battery | 25 kg |
| Load capacity | 120 kg |
Motor
| Centre engine | Yes |
Suspension
| Front fork | ROCKSHOX FS Recon Silver RL R Solo Air 29", 120 mm, uzamykatelná z řídítek POHON |
Components
| Grips | CRUSSIS silikonové |
| Rear hub | CRUSSIS disc, průmyslová ložiska, 32D, pevná osa 12x142 mm |
| Front hub | CRUSSIS disc, průmyslová ložiska, 32D, pevná osa 15x100mm |
| Saddlebag | CRUSSIS se zámkem, 31,6, 350 mm |
| Saddle | Selle Royal |
| Racks | CRUSSIS 29", double-walled, lined, 25 mm |
| Handlebars | CRUSSIS Al, 700 mm |
| Extender | CRUSSIS Al, 50 mm, pevný |
| Coats | MAXXIS Ardent 29 x 2,40 |
Transmission
| Sorting | SRAM SX Eagle |
| Cassette | SRAM CS-PG1210 Eagle, 11-50z |
| Shifter | SRAM SX Eagle, 12 speeds |
| Number of gears | 1 x 12 |
Brakes
| Rear brakes | SHIMANO Deore BR-MT410, hydraulic, 160 mm rotor |
| Front brakes | SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm |
