WHYTE Karve Evo RSX
A ride full of thrills and excitement. For the most demanding trails. A top-of-the-line bike featuring Avinox technology. 180 mm front + 180 mm rear, specially tuned suspension travel. Maximum performance, low weight, and precise handling. Shape.it Link V2 carbon frame with adjustable geometry. RideWrap frame protection (85% coverage).
EAN: 5032489088526, 5032489088533, 5032489088540, 5032489088557
Description
Avinox M2S
up to 150 Nm
800 Wh
12 speeds
29"/27.5"
180 / 180 mm

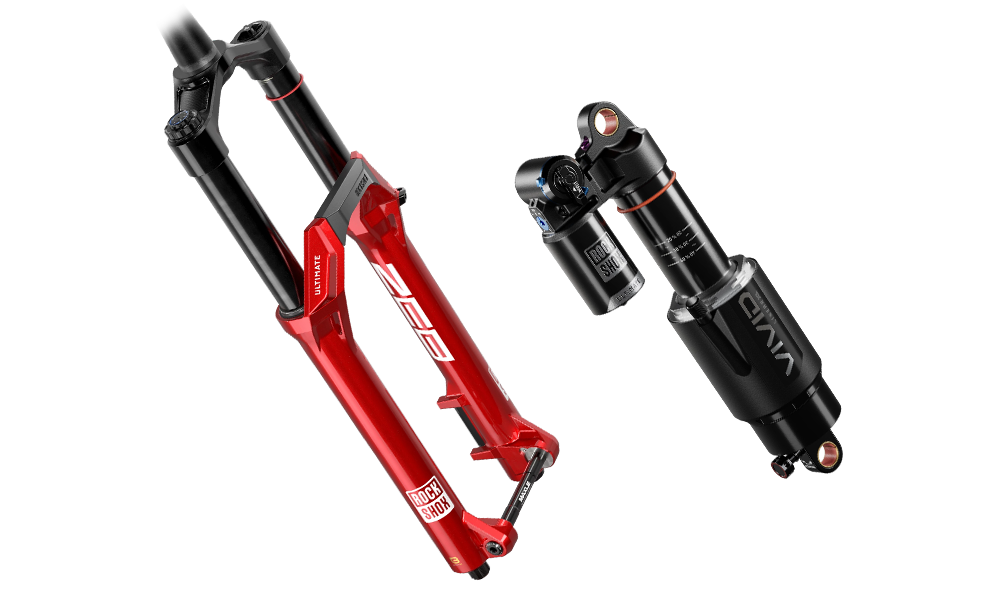

Top-of-the-line RockShox Ultimate suspension for the most demanding trails
The RockShox ZEB Ultimate fork ( 180 mm) with a Charger 3.2 cartridge and Linear XL spring delivers maximum stiffness and precise trail control. Combined with the Vivid Ultimate RC2T air shock, which is custom-tuned for Whyte’s kinematics, you’ll get uncompromising support, a smooth ride, and confidence on the steepest descents and big jumps.
Carbon frame with an aluminum rear triangle and RideWrap protection
The frame combines a lightweight front triangle made of unidirectional carbon with a durable aluminum rear triangle and adjustable geometry. It is lightweight, exceptionally stiff, features clean internal cable routing, and comes factory-protected with RideWrap film.
Category 4 - Enduro
This category of e-bikes is designed for all-mountain and enduro riding, where loss of contact between the tires and the ground is common. Elevation differences must not exceed 122 cm (48 inches). This e-bike category is suitable for bike parks featuring jumps, downhills, roots, rocks, and loose terrain. The maximum permissible weight, which includes the rider and luggage, is indicated on the CE marking on your bike.
Ultra-Fast Charger with GaN Technology, 12 A / 508 W
Using GaN fast-charging technology with a maximum power of 508 W, an 800 Wh battery can be charged from 0% to 75% in approximately 1.5 hours and from 0% to 100% in 2 hours and 25 minutes. The fast charger weighs 1.25 kg and measures 185 x 75 x 37 mm.
WHYTE Karve Evo RSX - The absolute top-of-the-line full-suspension enduro bike from the British brand Whyte
The WHYTE Karve EVO RSX is an uncompromising super enduro e-bike designed for the most demanding riders who require top-tier performance, maximum control, and uncompromising features. The full-carbon frame features the proven Quad-Link 4 suspension system, 180 mm of travel front and rear, and the ability to adjust the geometry using Shape.it Link V2, offersexceptional stability at high speeds, responsive suspension, and confidence on the toughest terrain. The 29"/27.5" mullet wheel configuration combines easy obstacle clearance with excellent agility in tight turns.
Extreme performance is delivered by the revolutionary Avinox M2S drive unit, which offers up to 150 Nm of torque and a peak power output of 1,300 W. Five riding modes, including Auto and Boost, provide instant response on steep climbs and maximum support on technical sections. The integrated 800 Wh Avinox battery ensures enough power for all-day riding, and thanks to the 12A fast charger, the battery can be charged to 80% in approximately 1 hour and 45 minutes. The Avinox DPC100 touchscreen OLED display, integrated into the top tube, allows for intuitive control and connectivity with the Avinox Ride app.
The top-of-the-line ROCK SHOX suspension system consists of a RockShox ZEB Ultimate fork with 180 mm of travel and 44 mm of offset, Linear XL , and a RockShox Vivid Ultimate RC2T rear shock (230 x 62.5 mm), which provide maximum sensitivity, support during hard impacts, and exceptional control on fast, rocky descents and in bike parks. The SRAM AXS Eagle Transmission 1×12 wireless electronic shifting system ensures fast and precise shifting even under full load, while the SRAM Maven Silver four-piston brakes with 220 mm rotors up front and 200 mm rotors in the rear offer exceptional braking power even on long alpine descents.
Durable DT Swiss Hybrid MX wheelsets with Maxxis Assegai tires up front and Maxxis Minion DHR II tires in the rear provide top-notch traction on rocks, roots, and wet surfaces. Of course, it comes equipped with a TranzX +RAD dropper post, factory-installed RideWrap frame protection, and premium components designed for maximum durability in both racing and everyday enduro riding.
The WHYTE Karve EVO RSX is designed for experienced enduro and gravity riders who want the best that modern e-MTBs have to offer. The combination of a carbon frame, next-generation Avinox drive, FOX Factory suspension, and SRAM Transmission electronic groupset creates an e-bike ready for the most demanding trails, bike parks, and high-altitude expeditions.
E-bike range calculator
Flat
Medium
Hills
The e-bike range is approximately
*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
Carbon fibre
E-bikes that use carbon fiber are a common choice among amateur and professional cyclists. Previously, it was mainly road e-bikes, but today you can enjoy the benefits of carbon on almost any type of e-bike. It remains an ideal choice among lovers of fast driving and off-road driving. The main advantage of e-bikes with a carbon frame is exceptional shock and vibration damping, they resist corrosion and wear very well and, compared to other materials, they excel in their low weight.
Avinox M2S
A high-performance motor with 130 Nm of torque (150 Nm in Boost mode), a peak power output of 1500 W, and a lightweight design (2.59 kg). The second generation features flat-wire winding for higher efficiency, quiet helical gearing, and Dual Gear Engagement technology, which eliminates rattling during descents without assistance. Internal resistance has been reduced by 41%, ensuring a natural ride even with a depleted battery. Integrated sensors enable adaptive power control based on cadence and riding conditions. Intelligent electronics ensure lightning-fast pedal response and smooth power delivery that will support you even on the most demanding terrain.
Avinox FS800 Battery
The Avinox Drive System battery with 800 Wh capacity offers long range and plenty of power. It is lightweight (3.74 kg), compact, and protected to IP56 standard. An intelligent health management system ensures long lifespan, retaining up to 80% capacity after 500 cycles. GaN fast charging recharges the 800 Wh battery to 75% in just 1.5 hours.
Avinox DPC100 Display
A smart 2" OLED touchscreen integrated into the frame with a high resolution of 326 ppi and 800 nits of brightness, which automatically adjusts to the surroundings. It is equipped with GPS sensors, a gyroscope, a barometer, and support for Bluetooth 5.1 and ANT+. The DPC100 model stands out with support for Apple Find My for easy bike tracking and allows you to adjust virtually all system functions directly on the screen without needing an app. It records your route, performance, and cadence in detail. Controls are complemented by wireless handlebar controls (right controller available only on select models) and a built-in 10W USB-C port for charging accessories while riding.
Whyte Lifetime Warranty
Whyte offers first owners an extended lifetime warranty on the frame (for models from 2025 purchased on or after November 1, 2024) and on the rear triangle pivot bearings. The standard warranty without registration is 2 years. E-bike drivetrains come with a standard 2-year warranty (for batteries, limited to 500 charge cycles). The paint, graphics, and other components are covered by a 1-year warranty.
To obtain the extended frame warranty, online registration is required within 28 days of purchase.
The warranty is non-transferable, and to be valid, the bike must be used in accordance with its designated category, professionally assembled by an authorized dealer, and maintained regularly. The warranty is void in the event of racing, modifications, accidents resulting from a fall, or repainting of the frame.
Whyte is an iconic British brand founded by former Formula 1 engineer Jon Whyte, who brought cutting-edge engineering expertise and the holistic Whyte Total Geometry concept to the world of cycling. This innovative approach to perfectly balancing angles, the center of gravity, and components gives Whyte e-bikes exceptional stability, precise handling, and a feeling of absolute confidence even on the most challenging terrain in any weather—a fact further underscored by the lifetime warranty on the frame and rear suspension bearings.
ASPIRE SPORTS, s.r.o. is the exclusive distributor of Whyte e-bikes, accessories, and replacement parts.
Contact: ASPIRE SPORTS, s.r.o., Jinacovice 514, 664 34 Kurim, Czech republic, e-mail: aspire@aspire.eu, phone: +420 532 199 550, web: www.aspire.eu
Parameters
General
| Model year | 2026 |
| Load capacity | 120 kg |
| Brand | Whyte |
| Colour | Blue |
| Frame size | Frame L, Frame S, Frame XL, Frame M |
Motor
| Centre engine | Yes |
| Engine manufacturer | Avinox |
| Engine type | Avinox M2S |
| Torque | 130 Nm (Boost 150 Nm) |
| Display | Avinox DPC100 with left and right controller |
Battery
| Battery capacity | 800 - 899 Wh |
| Precise capacity | 800 Wh |
| Charger | Avinox Charger 12 A |
Transmission
| Sort by | Sram AXS POD controller |
| Shifter | Sram S1000 Eagle AXS Transmission 12 speed |
| Cassette | Sram XS 1275 Eagle T-Type, 10-52t |
Components
| Extender | Whyte, length 35 mm, diameter 35 mm |
| Saddlebag | TranzX +RAD 34,9 mm, 150 mm (S), 170 mm (M), 200 mm (L&XL) |
| Saddle | Whyte Custom |
| Grips | Whyte Enduro lock-on |
| Řídítka | Whyte Custom 7050 alloy, 40 mm height, 35 mm diameter, 800 mm width |
| Rims and hubs | DT Swiss Hybrid HF1900, 29/27.5 / 110mm x 15mm, 12mm x 148mm, six bolt, SRAM XD |
Brakes
| Front brakes | Sram Maven Silver, 4-piston, hydraulic, 220 mm |
| Rear brakes | Sram Maven Silver, 4-piston, hydraulic, 200 mm |
Suspension
| Front fork | RockShox ZEB Ultimate |
| Fork travel | 180 mm |
| Shocks | RockShox Vivid Ultimate RC2T |
| Rear travel | 180 mm |
| Shock dimensions | 230 × 62,5 mm |
