AVINOX Drive System
When the first generation of the Avinox (M1) motor hit the market, it literally caused an uproar in the cycling world. It offered power that the competition had considered impossible until then. Now, the Avinox brand offers the second generation of this revolutionary drive – the M2 and M2S models. It is not just a minor evolution, but a technological attack on the position of the absolute market leader.
The Avinox Drive System, introduced at the Eurobike 2024 exhibition, won the "Winner" award in the components category – and it is no wonder. This system combines the experience of a technological giant with an innovative approach to the design of drive units for e-bikes.
What we will look at:
- Who is Avinox
- Avinox M1 Motor
- Avinox M2S and M2 Motor
- Assistance modes
- Smart features and sensors (M2S & M2)
- Batteries and charging
- Touch display and controls
- Avinox Ride App
- Our experience with Avinox
- Our Selection of Avinox E-Bikes
Who is Avinox?
Although Avinox presents itself as a solo driver, its history is closely tied to its parent company DJI, which brought it to the market. Therefore, it is worth mentioning that DJI is among the global leaders in drone technologies, and its products today are fundamentally changing how many industries operate, including e-cycling. DJI solutions are used by professionals in film, agriculture, nature conservation, search and rescue, energy, and other sectors, helping them work faster, safer, and with better results.
The company was founded in 2006, growing from a small office into a global company with branches in the United States, Germany, the Netherlands, Japan, South Korea, Beijing, Shanghai, and Hong Kong. As a privately owned company, DJI focuses on its own vision and supports the creative, commercial, and non-profit use of its technologies.
The company's headquarters are located in Shenzhen, China, often referred to as the Chinese Silicon Valley. This technologically advanced environment provides DJI with direct access to suppliers, manufacturing resources, and young innovative talents crucial for its long-term success.
Avinox M1 drive unit – compact with power
Technical specifications that surprise
The Avinox M1 drive unit is an example of how modern engineering can overcome traditional compromises between size, weight, and power. A palm-sized motor weighs only 2.52 kg, yet achieves:
What does this mean in practice? An e-bike with this motor is 5-7 kg lighter than comparable competitor models, even when using high-capacity batteries up to 800 Wh. The result is a bike that retains the agility and dynamics of a classic mountain bike, but with added electric assistance.
Innovative gearbox design
The secret of the compact dimensions lies in the advanced compound planetary gear unit. This design achieves a high gear ratio while minimizing space. Furthermore, Avinox utilizes polymer materials that are:
Thanks precisely to polymers, Avinox provides a surprisingly refined riding experience – the motor is noticeably quieter in operation than the traditional metal units of the competition.
Avinox M2S drive unit – uncompromising peak of performance
Technical specifications that define a new league
The Avinox M2S drive unit represents the technological peak of the current market. Thanks to the use of technologies from the automotive segment, it achieves parameters that were unimaginable for such a compact motor (2.59 kg) until recently:
What does this mean in practice? The M2S offers the highest torque density in the world (57.9 Nm/kg). Combined with new batteries utilizing 4680 cells, it delivers brutal pull even on the steepest technical climbs without the bike losing its lightness and maneuverability. It is a motor for those who want maximum performance without any limits.
Innovations for a quiet and efficient run
The second generation brings fundamental design changes that push the refinement of the ride to a new level:
Flat-wire winding
Avinox M2 drive unit – the golden standard of the middle class
Created for modern trail riding
The Avinox M2 model is designed as the ideal balance between high performance and efficiency. Although it is the "middle" model of the range, its parameters easily surpass most top-tier competitor motors:
What does this mean in practice? The Avinox M2 is a versatile workhorse. Compared to the M1 model, it offers higher torque, which you will appreciate especially on long climbs. Thanks to its improved internal design and lower pedaling resistance, it is ideal for all-day rides where the smoothness of assistance and a natural ride feel play a primary role.
Second-generation technologies
Just like the top model, the M2 also benefits from the latest Avinox design improvements:
Helical Gears
Assistance modes – from relaxation to adrenaline
The Avinox system offers five riding modes that cover all usage scenarios:
AUTO mode
An innovative mode utilizing multi-sensor fusion automatically and continuously adapts the assistance based on riding resistance. Ideal for riders who want to let the bike's "brain" do the work for them.
ECO mode
Focused on maximum range with a gradual start-up and lower assistance. Perfect for long trips on flat terrain.
TRAIL mode
A balanced mode for mixed technical trails with medium assistance and a moderate start-up. The universal choice for most riders.
TURBO mode
Aggressive start-up combined with maximum assistance for steep climbs and challenging terrain.
BOOST mode
A special mode providing up to 60 seconds of 120 Nm (M1), 150 Nm (M2S), and 125 Nm (M2) torque. This is the "panic button" for extremely demanding sections and obstacles where you need absolutely everything the motor can give.
Custom tailoring
All modes (M1 except Boost) can be completely customized in the Avinox Ride mobile app or on the Avinox display. You can set:
- Assistance level
- Maximum torque
- Starting sensitivity
- Ongoing assistance parameters
Changes sync instantly and the system remembers them.
Smart features and sensors (M2S & M2)
The motor contains a wide range of sensors – IMU, barometer, compass, and ambient light sensor. Thanks to them, it offers several useful functions:
Heart Rate Control
After connecting a heart rate monitor or chest strap, the system automatically regulates the assistance level to keep the rider in the specified heart rate zone. It works reliably on forest roads and during training, while in technically demanding terrain, manual mode selection is more practical.
Maintenance Mode
During service interventions, the motor is completely deactivated, and this setting remains saved even after a restart. It is an important safety feature that definitely should not be missing in such a powerful motor.
Navigation and connectivity
The system allows the import of GPX routes from third-party apps, including navigation instructions and automatic rerouting when deviating from the path. Furthermore, ride data is automatically synced with Strava (also for the 1st gen M1). DJI cameras (Avinox's parent company) can be controlled directly from the display, and current motor data can be projected into the recording.
Smart Walk Assist – 4 functions in 1
Thanks to the inertial measurement unit (IMU) and wheel speed sensor, Avinox offers an advanced Walk Assist function with several modes:
Walk Mode
High torque reduces the effort of pushing the bike uphill with minimal jerky movements.
Auto Hold
The bike automatically brakes on a slope while being pushed and doesn't roll back, increasing safety and allowing for one-handed control.
Hill Start Assist
When starting uphill, the motor provides additional torque against gravity.
Stationary shifting
Allows for gear shifting even while standing still without repeated operations.
Avinox Battery System – Energy of the new generation
Revolutionary 4680 cells: Tesla technology in e-bikes
The second-generation Avinox battery platform brings a major innovation – the FP700 model, which is the first in the industry to use large-format 4680-type cells. These cells, best known from Tesla electric vehicles, are changing the game:
- Higher current draw: They allow the M2S motor to reach full 1500 W power.
- Better thermal management: Larger cells heat up less under extreme load, extending their lifespan.
- Top energy density: The FP700 model achieves a ratio of 220 Wh/kg, making it one of the most efficient batteries on the market.
Complete portfolio for every type of ride
Avinox now offers a total of five battery variants divided by mounting method:
Integrated (FS/FP series): Firmly built into the frame for the lowest weight and a clean design.
Technological flagship
For maximum range
Lighter and more agile setup
Removable (RS series): User-removable batteries for easy charging off the bike.
Large capacity with removal option
Compact choice
Key synergy: The battery determines performance
For the Avinox system, it applies for the first time that the battery choice directly affects motor strength. For the M2S model to deliver its maximum continuous output of 1500 W, it must be paired with the FP700 battery. With other models, performance is software-limited to 1300 W (even with the RS800, you will still reach 1500 W in Boost mode), ensuring optimal system stability and safety.
Lightning-fast charging and smart features
GaN charger
Secondary battery
The RS600 model can also be used as an external "Range Extender" attached to the frame, allowing you to increase the total capacity up to 1400 Wh for extreme expeditions.
GaN fast charging – 3× faster than standard
One of the most significant innovations of the Avinox system. Thanks to GaN (gallium nitride) fast charging technology with a maximum power of 508 W, you can charge:
- The FP700 battery from 0 to 80% in an incredible 76 minutes
- The FS800 battery from 0% to 75% in about 1.5 hours
- That is 3× faster than standard 4A chargers (168W)
The fast charger is compact and portable, fitting into a frame bag. While you spend hours waiting with classic chargers, with Avinox you can recharge your battery during lunch and head out for another ride.

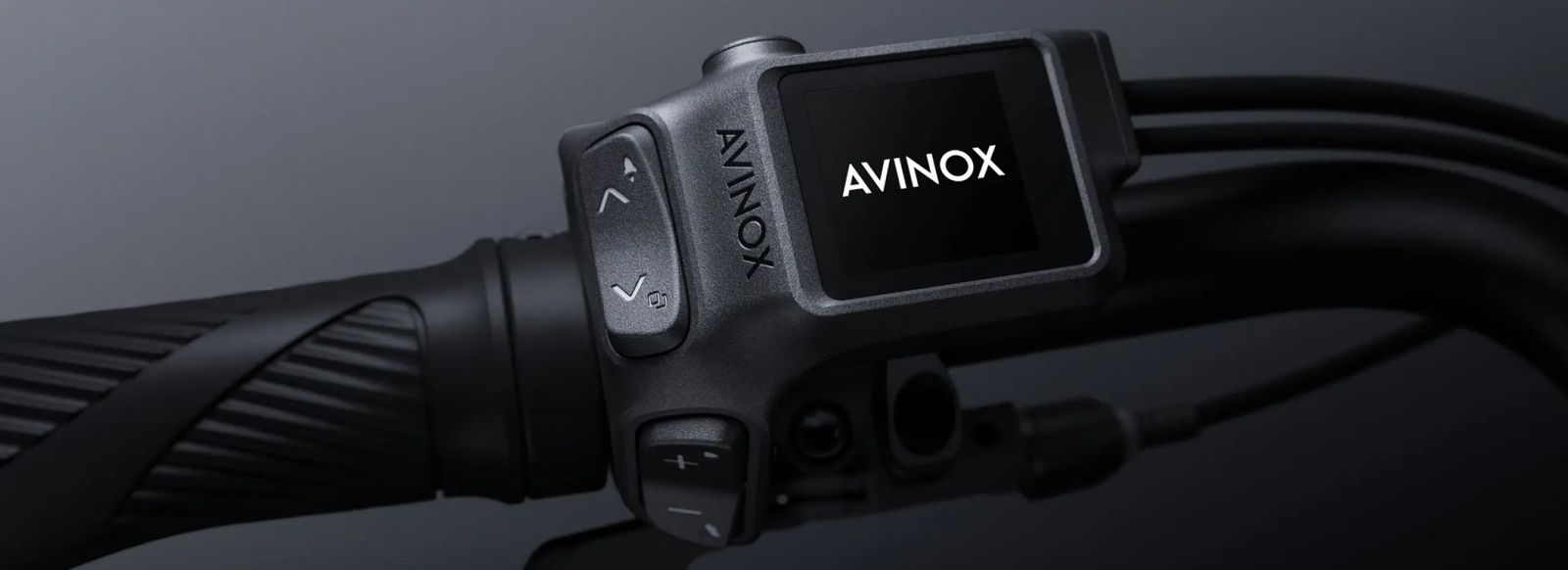

2" OLED touch display
System control center with impressive parameters:
- 800 nits max brightness with auto-adjustment
- 326 ppi resolution
- Dust, water, and glare resistant
- Works even with wet fingers/gloves
- Readable even in direct sunlight or rain
Two models are available:
DP100
Supports a 4G SIM card and offers a USB-C output with up to 65 W power. It allows you to adjust practically all features available in the app.
DPC100
Does not support a SIM card, but features Apple Find My support and a USB-C output with 10 W power. It also allows you to adjust practically all features available in the app.
More than 40 data points
The system records more than 40 different ride parameters that you can display and customize according to your preferences:
- Ride time
- Range
- Average speed
- Maximum speed
- Energy consumption
- Cadence
- Heart rate (with strap)
- And many more...
USB-C port in the display
Another practical feature for modern riders:
- Charging phone/GPS while riding
- Powering external lights and USB devices
- Fast diagnostics and software updates in the service shop
- Data transfer
Dual wireless controllers
Innovative solution that eliminates cables and simplifies maintenance:
- Bluetooth connection
- Clean and uncluttered cockpit
- Quick mode switching without taking hands off the handlebars
- Instant access to functions
- Integration with lights and other accessories

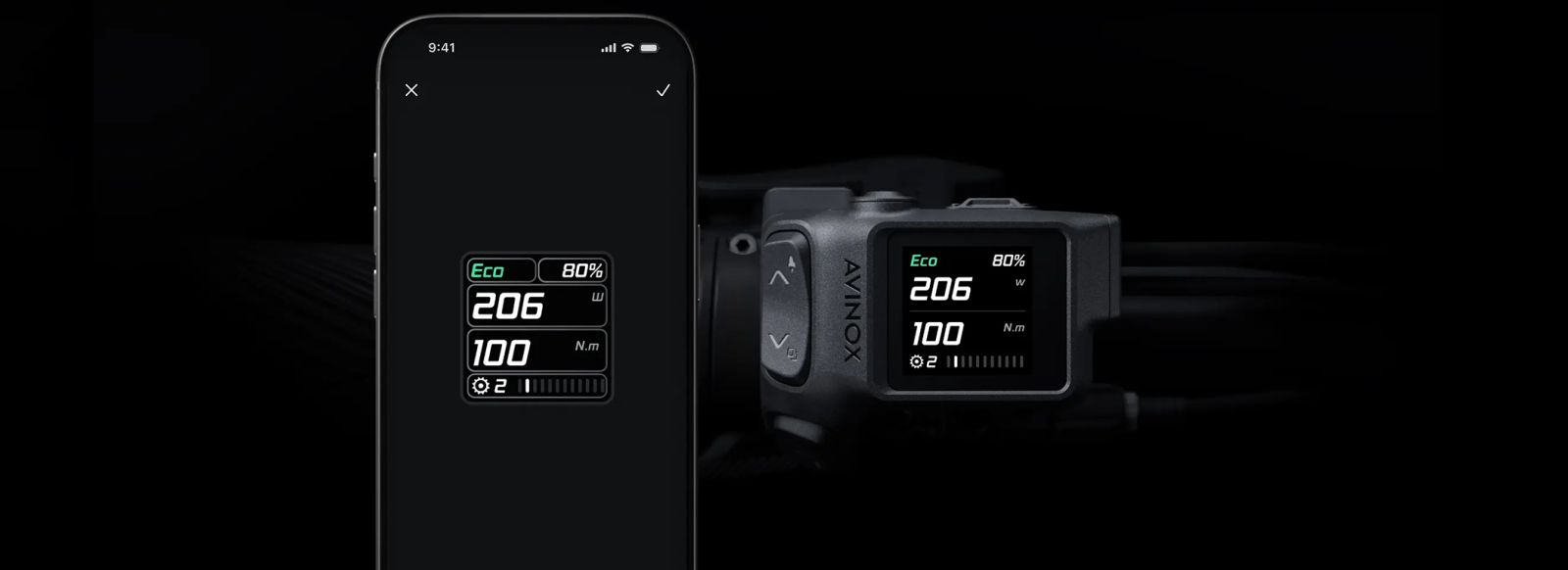

Avinox Ride mobile app – a brain in your pocket
The Avinox Ride app connects the e-bike with your smartphone primarily via Bluetooth, unlocking smart features:
Bike protection
- Bluetooth unlocking based on phone proximity
- PIN verification when turning the system on
- Theft detection – unauthorized handling of a locked e-bike immediately triggers a loud acoustic alarm, sends a Push notification to your phone, and collects intrusion info in real-time.
Data recording and sharing
- Comprehensive ride statistics
- Social media sharing capabilities
- Performance and trend analysis
- History of all rides
Health Management System (HMS)
- Real-time fault detection
- Error display on the screen with acoustic signaling
- Troubleshooting and problem resolution directly in the app
- Preventive maintenance
Built-in connectivity (nano-SIM)
The nano-SIM card slot integrated right into the control display allows:
- 4G bike connection to the internet
- Remote control and monitoring of battery status and location
- Active tracking for the Theft Detection feature
Avinox front light – compact power
The front light delivers exceptional performance in a compact design:
- Up to 1200 lumens of brightness
- High-efficiency LEDs
- Optimized inner reflective surface for even light dispersion
- IP56 waterproof rating
- Controlled via wireless controllers (on/off, switching between high/low beam)
Why is Avinox different?
Our experience with the Avinox motor? We are amazed!
Hundreds of bikes pass through our hands at greatebike.eu, but we are genuinely thrilled with Avinox. There are things you won't read in the spec sheets, but will amaze you when riding:
🥷 Smoothness and quiet performance. During actual off-road riding, we were thrilled by the quietness and natural feel. In Auto mode, the motor reacts intuitively – just lean into the pedals and you'll fly up even the steepest hill without jerking. And when you activate Boost mode? Then you will understand what true freedom means.
⚡ Lightning-fast response you have to experience. Another thing is the system's instant reaction. As soon as you press the wireless controller or touch the display, the system responds in milliseconds. No delays, no waiting – everything runs with the fluidity of the best modern smartphones.
🔋 Charged before you even get ready. The charging speed shocked us. Watching the capacity percentages jump up right before your eyes is unprecedented for such a powerful battery. This makes Avinox the ideal partner for those who don't want to waste time at the outlet.
🚗 Easy transport. Thanks to the compact dimensions of the battery, and therefore the down tube, a wide range of options opens up for transporting an e-bike with this drive – it even fits on roof racks. So it's no problem at all to drive closer to your favorite destination.
"The feeling when you activate Boost mode and the bike literally catapults you forward is addictive. Avinox isn't just a drive, it's a new dimension of freedom. You have a quiet, light, and playful e-bike under you, but it has the strength of a tank when it comes down to it." – the greatebike.eu team
