STEPPENWOLF Tundra 9.0 DJI
The high-quality e-MTB with a compact and powerful DJI Avinox 120 Nm motor, carbon frame, 160 mm suspension and 800 Wh battery offers long range, stable performance and comfort even in technically demanding terrain.
Expected delivery date 2/2026
Need help?
% Discount on purchase
DJI Avinox M1
105 Nm
800 Wh
12 speeds
29"
160 mm

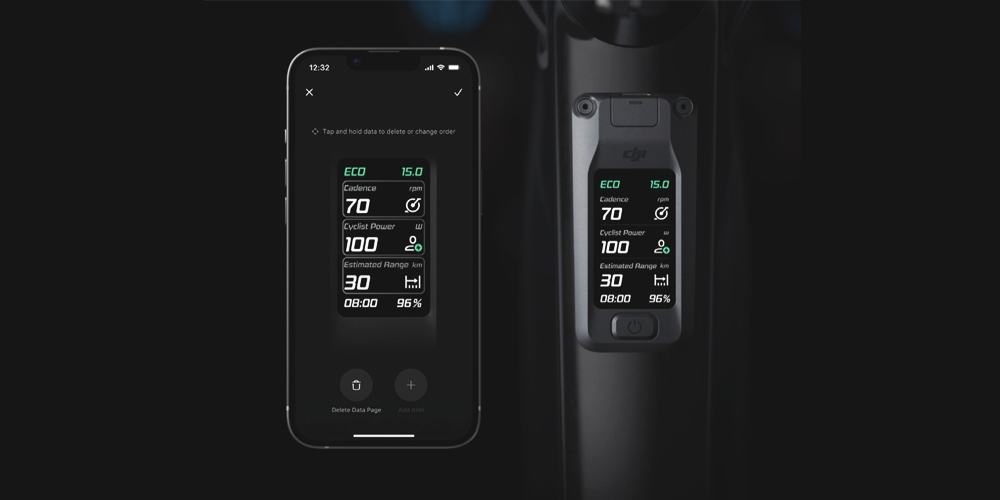

Wireless connection via Bluetooth
Dual wireless controllers allow easy switching of driving modes and minimise wiring. When paired with the Avinox App, you can access features such as bike protection, condition monitoring, detailed assistance settings, and recording or sharing of ride data.

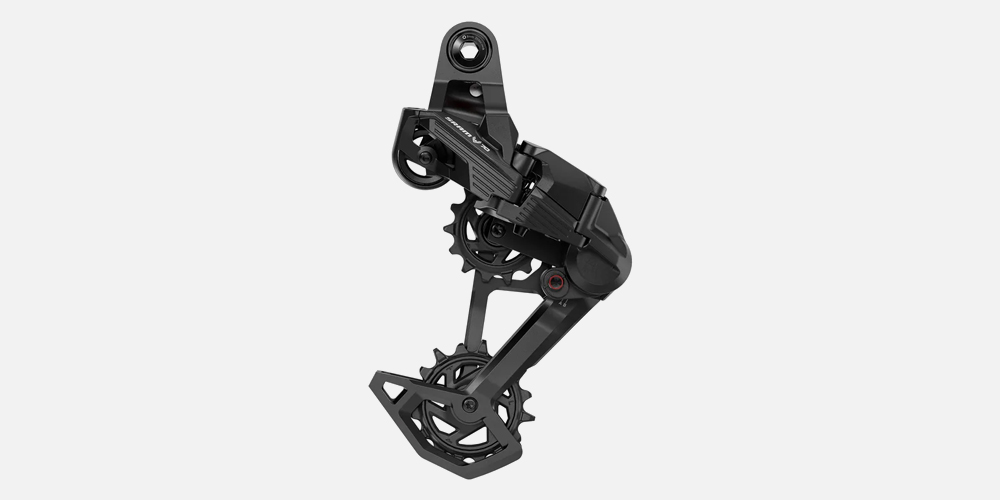

SRAM Eagle 70 Transmission
Reliable 12-speed drivetrain delivers smooth and precise shifting, high durability and optimal performance for demanding trail and downhill conditions.
STEPPENWOLF Tundra 9.0 DJI - a combination of performance, comfort and fun
An e-bike designed to combine performance, comfort and fun on challenging terrain. It is powered by a DJI Avinox M1 motor with 120 Nm of torque and is complemented by an 800 Wh battery.
The bike is built on a 29" Full-Suspension carbon frame in Moss Green (gloss/matt), available in sizes S, M and L. Suspension consists of an SR SUNTOUR Durolux 38-EVO-Boost front fork and SR SUNTOUR Edge-Evo rear shock (205x65 mm), both with 160 mm of travel, providing confidence and control even in technically demanding sections and comfort on longer rides.

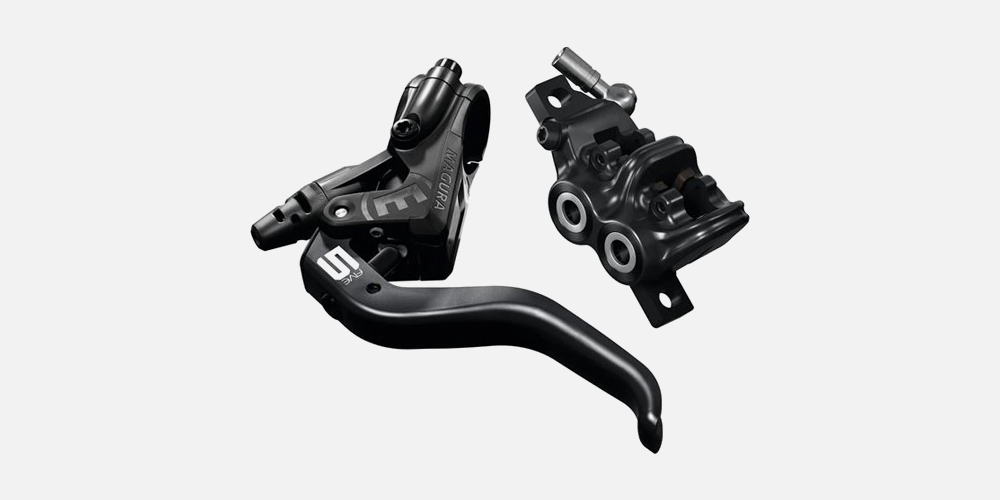

The drivetrain includes 1x12 gears, SRAM Eagle 70 Transmission, SRAM Eagle 70 shifters, Avinox 160 mm cranks, SRAM CSXS1275 cassette (10-52 z.) and SRAM CN Eagle T 70 chain. The braking system consists of MAGURA MT5 with 4-piston calipers and 203/203 mm discs for reliable and precise control.
Bike components include STW MTB 780 mm handlebars, STW MTB stem (40 x 31.8 mm), ACROS headset, STW MTB grips, STW MTB saddle, STW Dropper Post and STW pedals. The wheels are fitted with RODI TRYP30 black anodized rims with 110x15 mm front hub and 148x12 mm rear hub, complete with MAXXIS Forekaster TR tyres. The total weight of the wheel is 21,7 kg.
The integrated 2" OLED DJI Avinox Touch display provides an overview of speed, assistance modes and battery status and allows connection to the Avinox App for detailed assistance settings, bike status monitoring and ride data recording.
The STEPPENWOLF Tundra 9.0 DJI is the ideal choice for riders looking for a reliable, lightweight and technologically advanced machine for technical trails, descents and longer rides with maximum comfort and control.
Need help choosing the right e-bike? Use our e-bike selection guide or contact us directly.
E-bike range calculator
Flat
Medium
Hills
The e-bike range is approximately
*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
DJI Avinox M1
The DJI Avinox M1 is an innovative mid-drive motor for e-MTBs with an extremely low weight (approx. 2.5 kg). In standard mode, it delivers 105 Nm of torque and around 850 W of power, while in short-term boost mode it can reach up to 120 Nm and 1000 W. Thanks to its planetary gear system, it offers high performance in a small and lightweight package while maintaining quiet operation and smooth control. Integrated sensors enable adaptive power management based on cadence and riding conditions.
DJI Avinox 800 Wh Battery
The DJI Avinox Drive System battery with 800 Wh capacity offers long range and plenty of power. It is lightweight (3.74 kg), compact, and protected to IP56 standard. An intelligent health management system ensures long lifespan, retaining up to 80% capacity after 500 cycles. GaN fast charging recharges the 800 Wh battery to 75% in just 1.5 hours.
Display DJI Avinox DP100
The display is integrated into the frame of the e-bike. It has a 2" OLED touch panel with a resolution of 326 ppi and a brightness of up to 800 nits, which automatically adjusts to the ambient lighting. It features GPS sensors, a gyroscope, a barometer and support for Bluetooth 5.1, ANT+ and LTE-Cat.1. It allows you to track your route, speed, cadence and performance with 8 GB of internal memory and synchronisation via the app. Control is provided by one or two wireless controllers on the handlebars – the left one for setting the level of assistance and the right one for scrolling through the display (the right controller is only available on selected models). The USB-C port supports fast charging with a power output of up to 65 W.
Steppenwolf is a German brand of e-bikes with more than 30 years of tradition. It develops and manufactures its models in Bavaria, a region known for its world-class technology. The team of engineers and designers combines lightweight frame construction, integrated systems, and timeless design for a clean and reliable riding experience. Each bike undergoes thorough testing in real-world conditions. The brand boasts the Carbon Line series – ultra-light e-bikes with high-end drive technology developed in collaboration with DJI. Steppenwolf e-bikes are supplied by CYKLOMAX, spol. s r.o.
Contact: CYKLOMAX, spol. s r.o., Pardubicka 504, 533 52 Srch, Czech Republic, e-mail: cyklomax@cyklomax.cz, phone: +420 466 944 023, website: www.cyklomax.cz
Parameters
General
| Model year | 2026 |
| Weight incl. battery | 21,7 kg |
| Brand | Steppenwolf |
| Frame size | Frame S, Frame L, Frame M |
| Load capacity | 120 kg |
| Colour | Green, Red |
Motor
| Engine manufacturer | DJI Avinox |
| Engine type | DJI Avinox M1 |
| Torque | 105 Nm |
| Centre engine | Yes |
Battery
| Charger | DJI Avinox Charger 4 A |
| Battery capacity | 800 - 899 Wh |
| Precise capacity | 800 Wh |
Transmission
| Shifter | Sram Eagle 70 |
| Number of gears | 1x12 |
| Cassette | Sram CSXS 1275, 10-52 z |
| Sorting | Sram Eagle 70 |
Components
| Rear hub | STW 148x12 mm |
| Coats | Maxxis Forekaster TR |
| Extender | STW MTB (40 x 31,8 mm) |
| Handlebars | STW MTB 780 mm |
| Grips | STW MTB |
| Racks | Rodi Tryp30 |
| Saddle | STW MTB |
| Saddlebag | STW Dropper Post |
| Front hub | STW 110x15 mm |
Brakes
| Front brakes | Magura MT5, 4-piston, hydraulic, 203 mm |
| Rear brakes | Magura MT5, 4-piston, hydraulic, 203 mm |
Suspension
| Shocks | SR Suntour Edge-Evo (205x65 mm) |
| Front fork | SR Suntour Durolux 38-EVO-Boost, 160 mm |
