APACHE Eagle DJI 1

Apache Eagle DJI 1 - the ultimate carbon enduro e-bike

It combines the latest technology with precision craftsmanship and maximum emphasis on performance and reliability in demanding terrain. The lightweight and rigid carbon frame with UDH system is complemented by Rock Shox suspension - massive ZEB RC eMTB fork with 170 mm travel and DebonAir+ air cartridge at the front, Deluxe shock absorber with 160 mm travel at the rear. Thanks to this combination, the bike can handle technical descents and steep climbs.

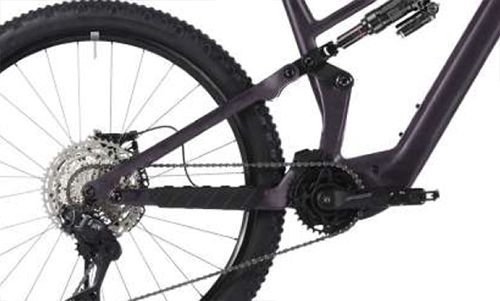

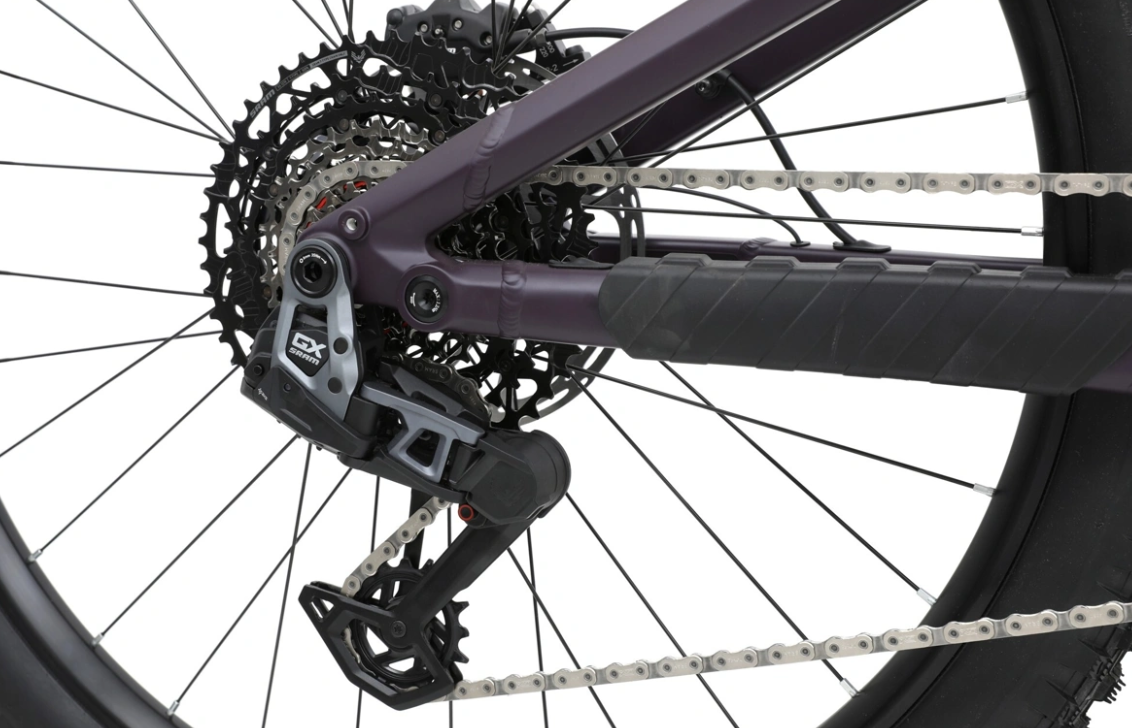

Power is provided by the innovative DJI Avinox M1 system located in the centre of the frame, powered by an integrated 800 Wh Avinox battery that guarantees long range even on demanding rides. Fast recharging is provided by the DJI Charger 12 A and motor control is made easy with the Avinox DP100's clear display. The power delivery is built on a Shimano Deore Di2 1x12 electronic shifting system combined with a Shimano XT Di2 derailleur, 10-51 tooth cassette and FSA MegaTooth fixed cranks.

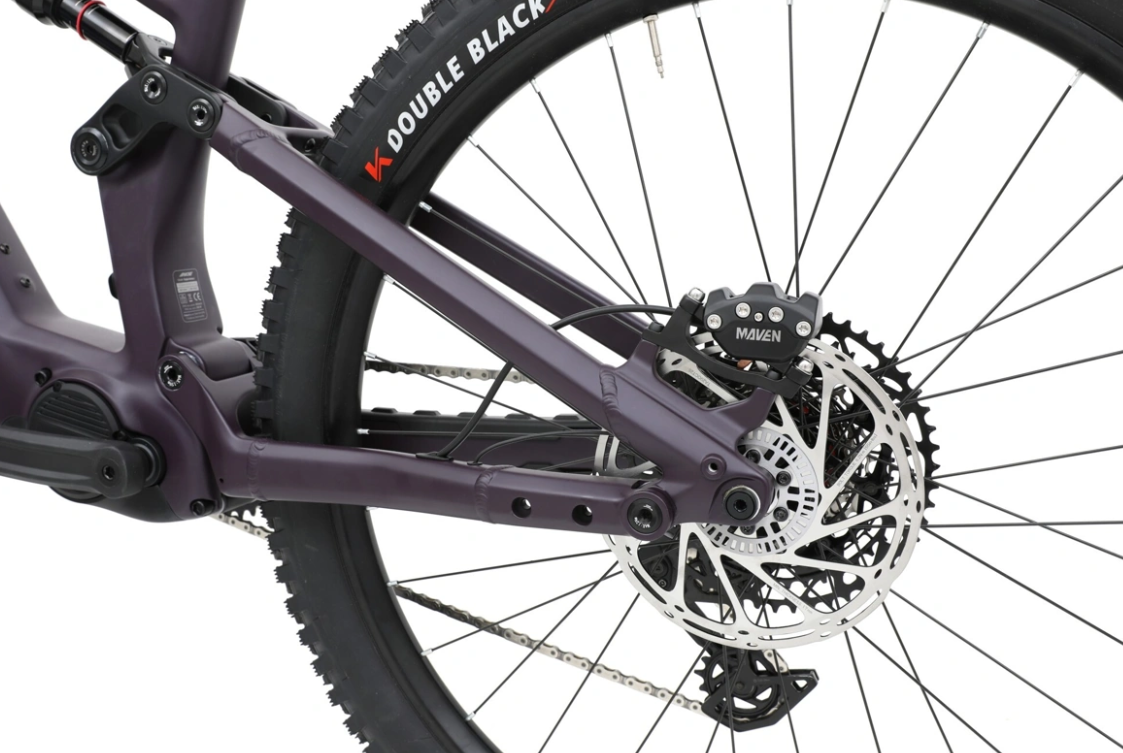

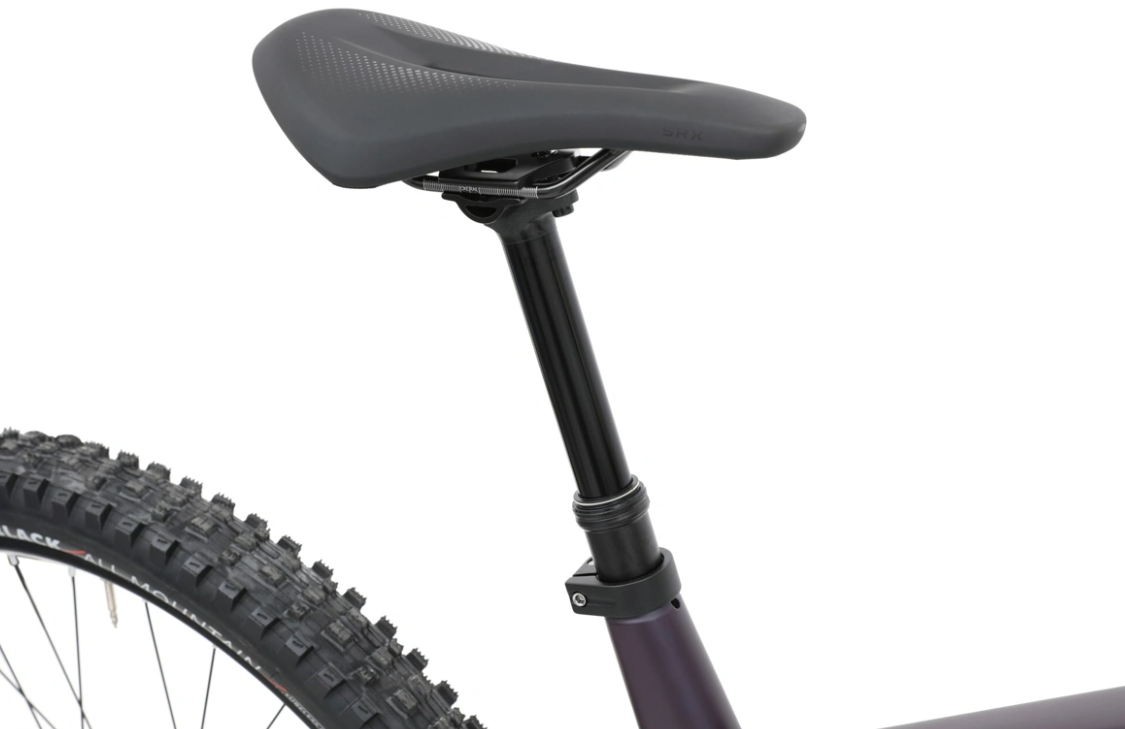

Stopping power is provided by Shimano four-piston hydraulic brakes with 203 mm discs, which provide confidence even on extreme descents. Handling is made more comfortable by the wide aluminium handlebar (780 mm), short stem, comfortable silicone grips and telescopic seatpost with handlebar controls. Comfort is supported by the Selle Royal SRX sports saddle.

The sturdy wheels on asymmetric Radiale X30 rims are wrapped on Shimano TC500B hubs and shod in Kenda Double Black 29 x 2.6" tyres, which provide great grip even on rough terrain. The overall handling is underlined by the modern frame geometry adapted to aggressive enduro riding.

The Apache Eagle DJI 1 is the ideal choice for riders looking for an uncompromising enduro e-bike with high performance, long range and top components, and who want to push their limits in the off-road without limits.

Need help choosing the right e-bike? Use our e-bike selection guide or contact us directly.

E-bike range calculator

Battery capacity: 500 Wh

300 Wh 600 Wh 900 Wh 1200 Wh

Rider weight: 75 kg

50 kg 80 kg 110 kg 140 kg

Assistance mode: 3

Min 2 3 4 Max

Route profile: Flat

Flat

Medium

Hills

The e-bike range is approximately

*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

Carbon fibre

E-bikes that use carbon fiber are a common choice among amateur and professional cyclists. Previously, it was mainly road e-bikes, but today you can enjoy the benefits of carbon on almost any type of e-bike. It remains an ideal choice among lovers of fast driving and off-road driving. The main advantage of e-bikes with a carbon frame is exceptional shock and vibration damping, they resist corrosion and wear very well and, compared to other materials, they excel in their low weight.

DJI Avinox M1

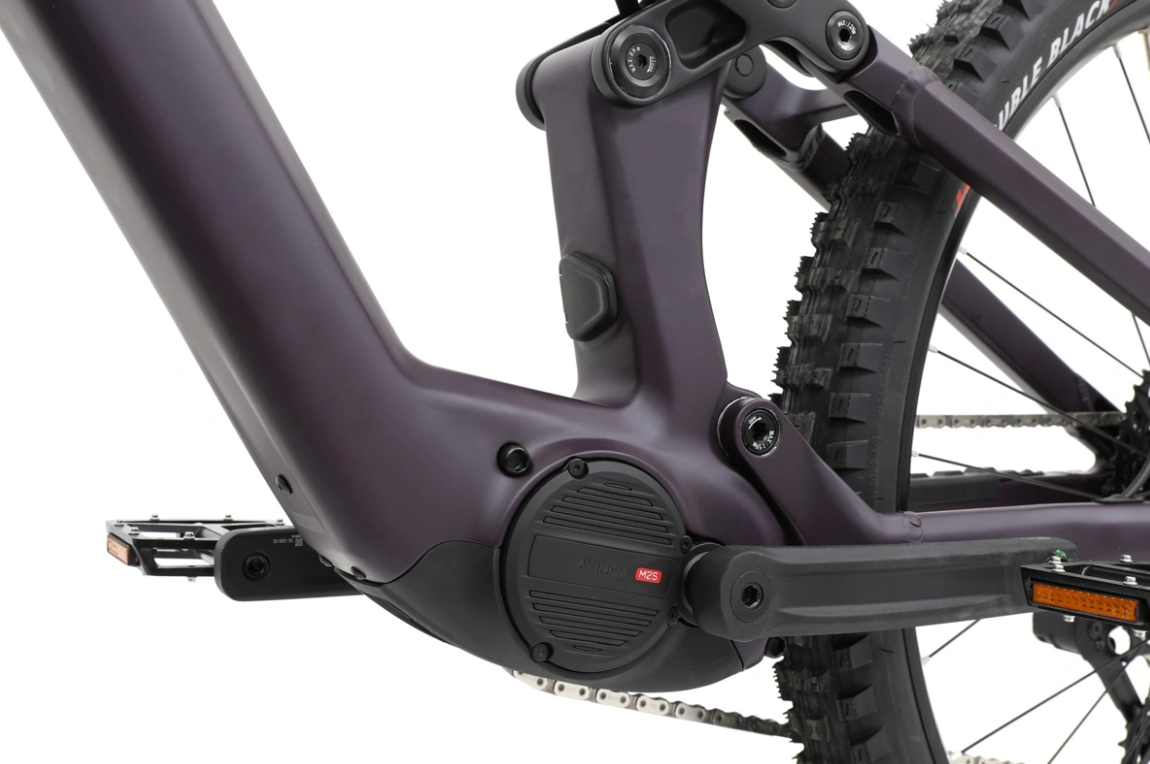

The DJI Avinox M1 is an innovative mid-drive motor for e-MTBs with an extremely low weight (approx. 2.5 kg). In standard mode, it delivers 105 Nm of torque and around 850 W of power, while in short-term boost mode it can reach up to 120 Nm and 1000 W. Thanks to its planetary gear system, it offers high performance in a small and lightweight package while maintaining quiet operation and smooth control. Integrated sensors enable adaptive power management based on cadence and riding conditions.

More information

DJI Avinox 800 Wh Battery

The DJI Avinox Drive System battery with 800 Wh capacity offers long range and plenty of power. It is lightweight (3.74 kg), compact, and protected to IP56 standard. An intelligent health management system ensures long lifespan, retaining up to 80% capacity after 500 cycles. GaN fast charging recharges the 800 Wh battery to 75% in just 1.5 hours.

More information

Display DJI Avinox DP100

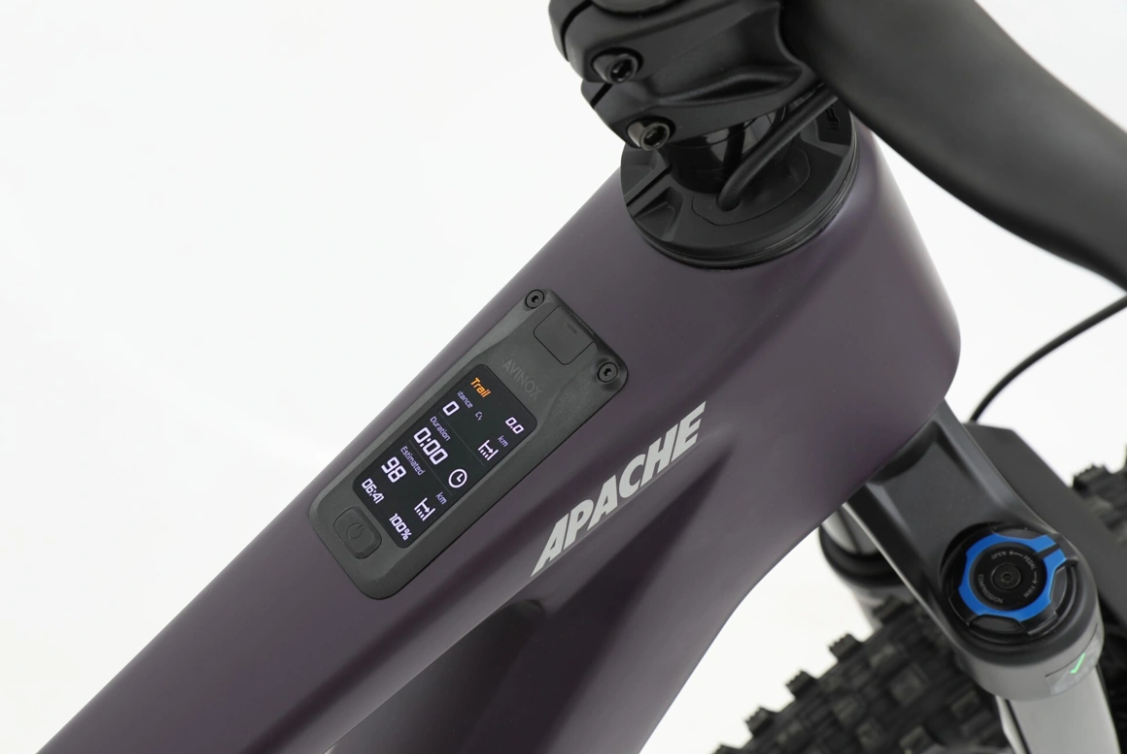

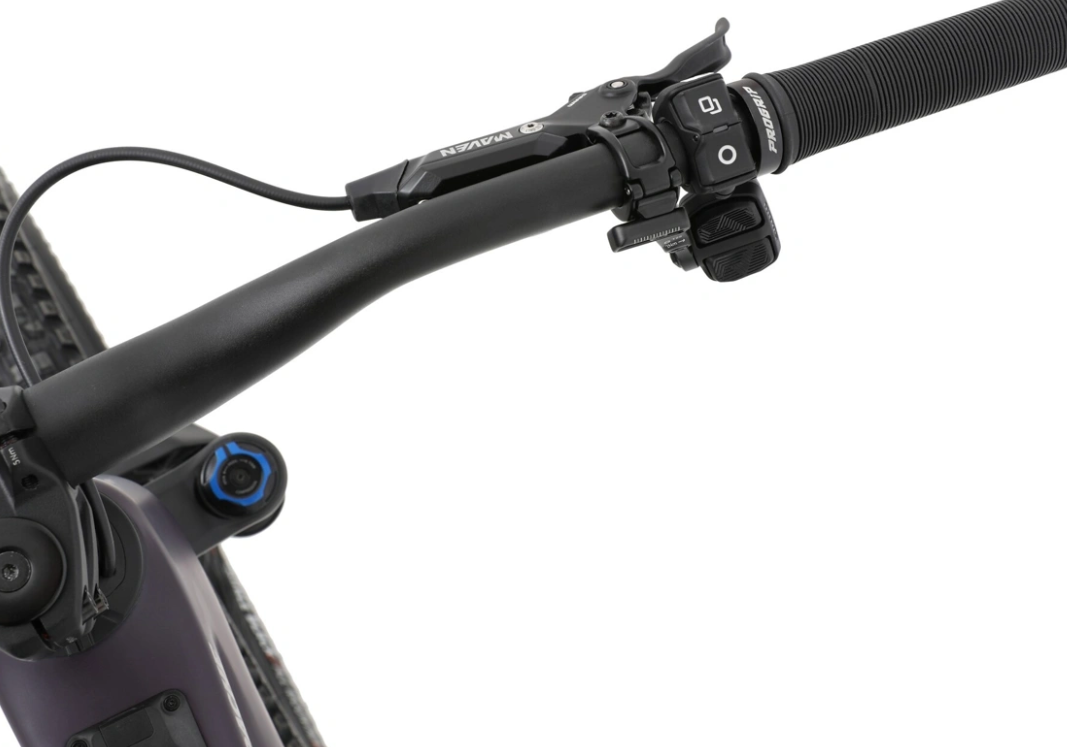

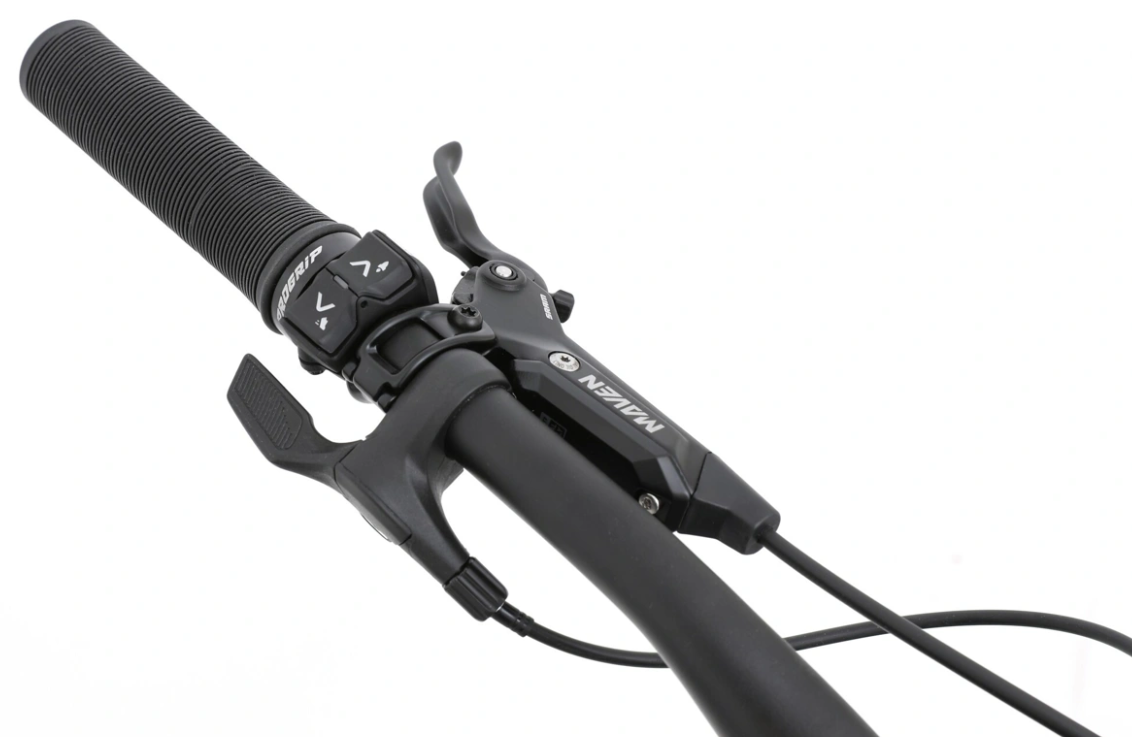

The display is integrated into the frame of the e-bike. It has a 2" OLED touch panel with a resolution of 326 ppi and a brightness of up to 800 nits, which automatically adjusts to the ambient lighting. It features GPS sensors, a gyroscope, a barometer and support for Bluetooth 5.1, ANT+ and LTE-Cat.1. It allows you to track your route, speed, cadence and performance with 8 GB of internal memory and synchronisation via the app. Control is provided by two wireless controllers on the handlebars - the left one for setting the level of assistance and the right one for scrolling through the display. The USB-C port supports fast charging with a power output of up to 65 W.
