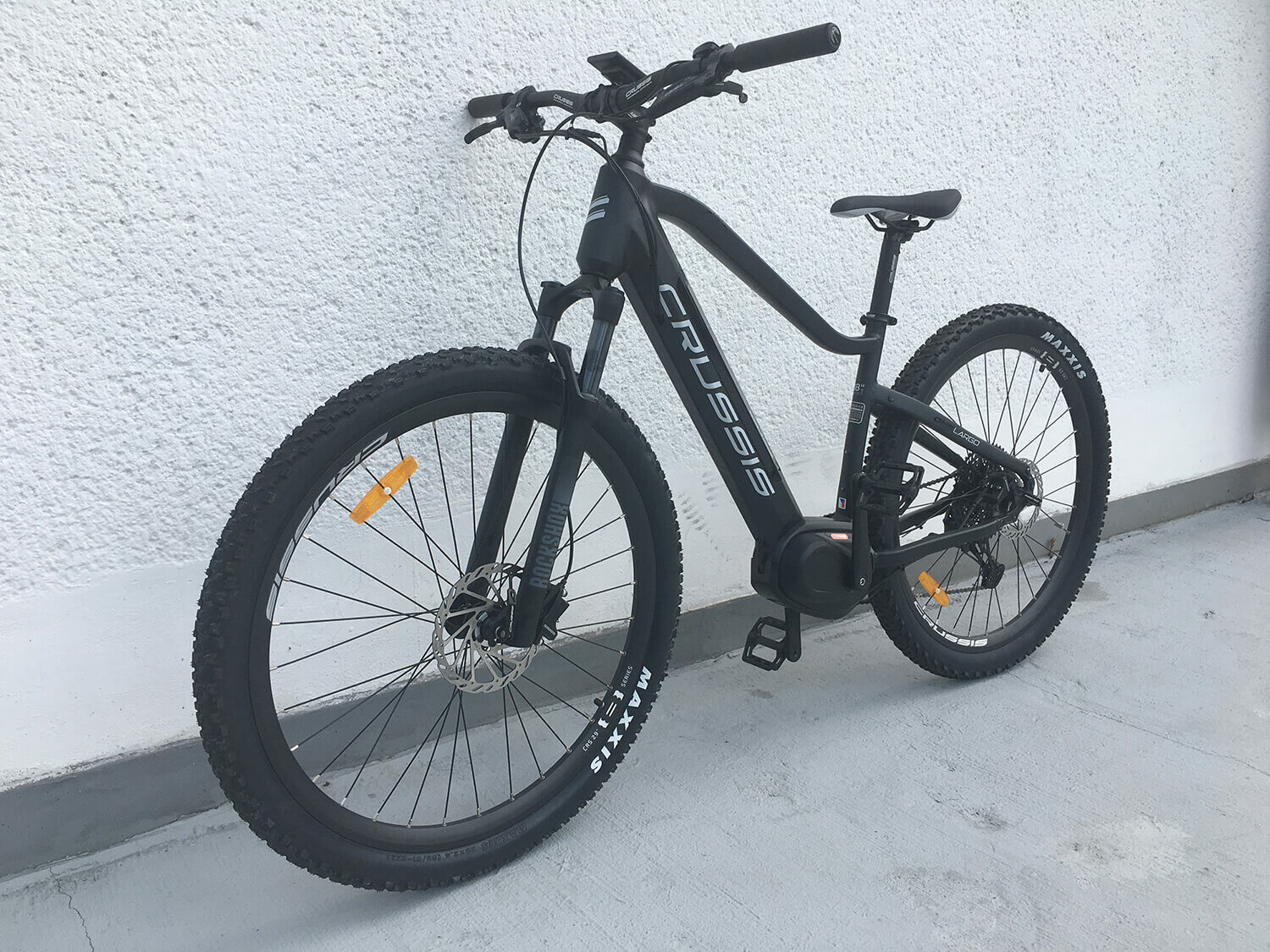

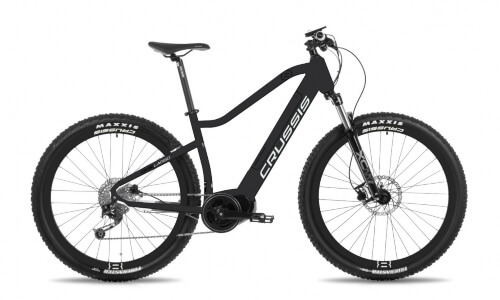

CRUSSIS ONE-Largo 8.6-S

Choose from the variants:

×

Volba velikosti rámu pro elektrokolo

Rider height in cm	Frame size in inches	Stated size
148 - 158	13 - 15	XS
158 - 165	15 - 17	S (SM)
160 - 175	17 - 18	M (MD)
175 - 185	19 - 20	L (LA)
185 - 200	21 - 22	XL

The frame size is given in inches. It is the distance between the centre of the pedal axis and the end of the seat tube.

For some models, manufacturers state another type of sizing similar to a clothing size chart:

As you can see, the e-bike assortment will satisfy primarily riders with a height of between 165 and 200 centimetres. But don't worry, we can customise any e-bike for you; just let us know!

• Info
• Parameters
• Range
• Manual

Why this e-bike?

In greatebike.eu, THE BATTERY AND CHARGER IS ALWAYS INCLUDED IN THE PRICE OF THE E-BIKE

Click to display the e-bike range calculator

E-bike range calculator

We are sorry :(

Because of a technical issue we were unable to calculate the range. Please, try it again later.

Total weight of rider (incl. equipment)

80

kg

Predominant route profile

•

  Plane
•

  Terrain
•

  Hill

Battery capacity

Range

For 80 kg riders, with a battery capacity of Wh when driving with maximum assistance after a predominantly , the range on this e-bike will be approximately

km

(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

Centre drive system

Bafang M400



Center motor BAFANG Max Drive M400 has a very high torque - up to 80 Nm.

The motor has a pedalling sensor and torque sensor of pedalling force. The higher effort you put into pedalling the more powerful assistance you get, thanks to the intelligent drive unit, which is integrated into the motor body.



Drive unit	Center
Rated power	250 W
Max. torque	80 Nm
Voltage	36/43/48 (DCV)
Motor efficiency	≥ 80%
Pedalling Sensor	cadence sensor
Max. support Speed	25 km/h
Weight	3.6 kg
Operating temperature	-20 - 45 ℃
Noise	< 55 dB



---



---

CRUSSIS Electrobikes has been an importer of its own brand of electric bicycles since 2012. Ekolo.cz offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.





These might interest you:















Parameters

Drive type	BAFANG MAX drive (M400), 250W (max 500W), 80 Nm
Control	BAFANG LCD panel
Capacity and battery type	PANASONIC Li-Ion 36V / 630 Wh (17,5 Ah)
Frame type and material	Alu 6061

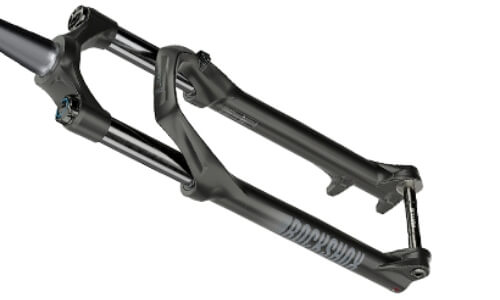

Front fork	ROCKSHOX FS Judy Silver TK Solo Air 27,5", zdvih 100 mm, uzamykatelná z vidlice
Number of gears	1 x 12

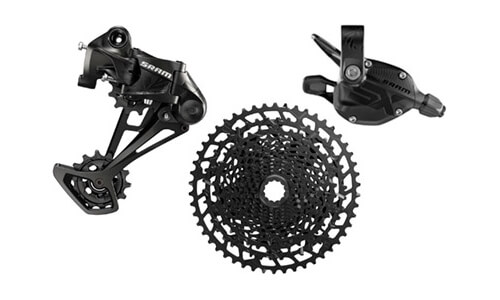

Shifters	SRAM SX Eagle
Derailleur	SRAM SX Eagle
Front brakes	SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm
Rear brakes	SHIMANO Deore BR-MT410, hydraulic, rotor 160 mm
Cassette	SRAM CS-PG1210 Eagle, 11-50z
The stem	CRUSSIS Al, 60 mm, pevný
Chain	SRAM Eagle SX 12s
Handlebars	CRUSSIS Al, 740 mm
Saddle	Selle ROYAL
Seat post	CRUSSIS lock, 31,6 / 350 mm
Load capacity	120 kg
Rims	CRUSSIS 29", 25mm
Front hub	CRUSSIS disc, 32D, fixed axis 15x100mm
Rear hub	CRUSSIS disc, 32D, fixed axis 12x142mm
Rims and hubs	RODI AIRLINE1 28” , 36H and Shimano Alivio/Deore
Tyres	MAXXIS Ardent 29 x 2,40
Grips	CRUSSIS silicon
