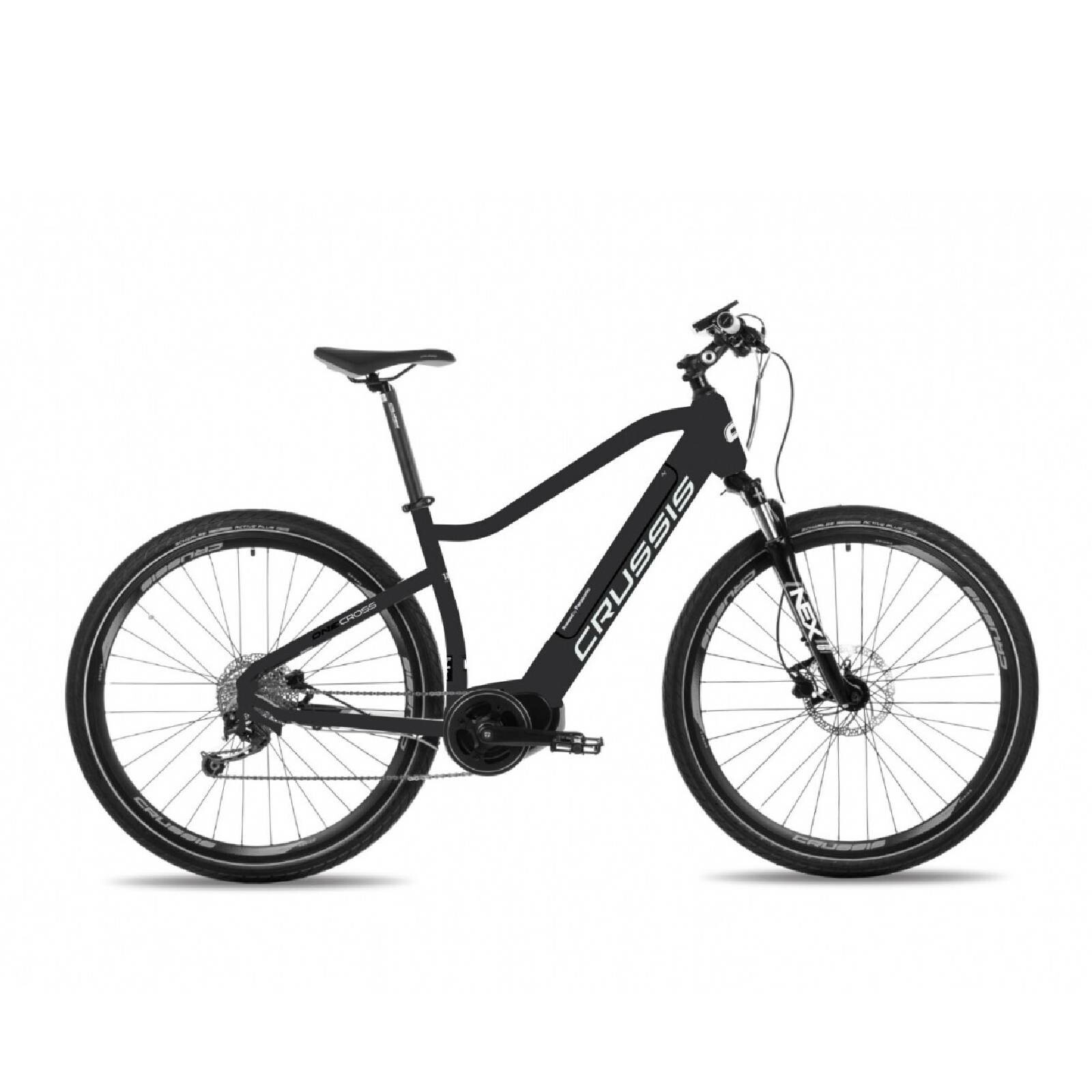

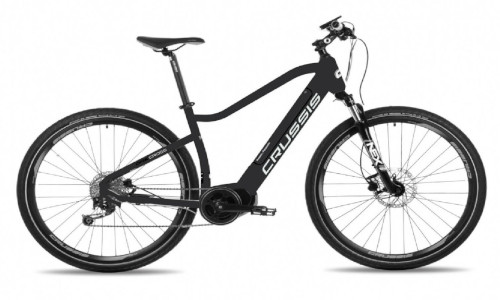

CRUSSIS ONE- Cross 9.6-S
Stable, comfortable and perfectly controllable e-bike with a fully integrated battery. Don't be limited by the length of the trip.
The Crussis ONE-Cross 9.6-S electric bike with a central electric motor and extra strong battery is ready for your awesome trip. The geometry of the aluminum frame of the ONE-Cross 9.6-S is fully adapted to men's needs. The e-bike is stable, comfortable, great handling, and very practical.
BAFANG M500 central electric motor with nominal power 250W (max 500W) and torque 95 Nm. The use of a central electric motor in this model contributes to the ideal balance of the e-bike - a modern solution used in the higher ranges of e-bikes around the world.
The powerful Panasonic 630 Wh / 36V (17.5 Ah) Li-Ion battery is fully integrated into the frame of the e-bike, which combined with the central electric motor means great balance, stability and easy handling. This battery also gives you a really long range - up to 150 km.
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
The Crussis One - Cross 9.6 trekking e-bike is manufactured on 28" wheels in two frame sizes 18" and 20". Shifting is handled by a top-of-the-line SRAM Eagle SX 12s 12-speed groupset and riding comfort is made more comfortable by SHIMANO Deore BR-MT410 hydraulic disc brakes, ROCKSHOX FS Paragon Gold RL R Solo Air 700c suspension fork, as the name suggests it is equipped with air damping, handlebar locking and has a travel of 65 mm.
The range of the e-bike is up to 150 km thanks to the use of a more powerful battery - here, of course, it always depends on the profile of the track and the use of the assistance, which in the case of this model is five-speed. And how do you actually operate the assistance? As with most electric bikes, via the LCD display on the handlebars. The colour display shows the battery level, the selected level of electric motor assistance, speed and distance travelled.
The e-bike is delivered without mudguards, lighting, stand and rack. However, these can be easily purchased and subsequently mounted to the e-bike. On the other hand, the equipment includes a USB connector for charging mobile devices.

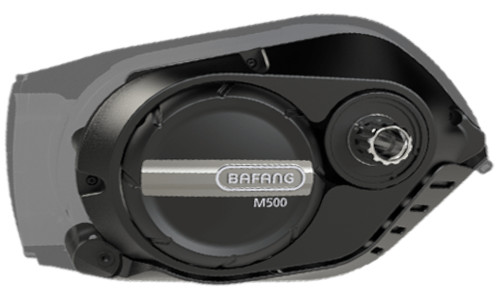

BAFANG M500 (max 500W)
It is known for it's perfect balance between peak torque and efficiency, which is always critical for the e-bike. Torque is essential for dynamic driving, which in the case of this engine is really strong, up to 95 Nm so no terrain is an obstacle for e-bikes equipped in this way. The engine with the pedal sensor and the torsional pedal force sensor constantly monitors the force of the rider pedaling and regulates the output power.

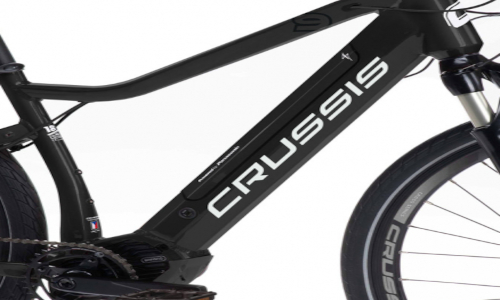

Battery Panasonic 630 Wh / 17,5 Ah
Li-Ion based cells in Panasonic 630 Wh / 17,5 battery are the heart of electric bike. The battery is integrated within e-bikes frame and when combined with centre drive motor it is a perfect harmony for great balance and handling while contributing to a very sleek look overall. This battery is capable of delivering up to 150km of range although it does depend on riding style and level of assistance enabled.
Display for Bafang Max Drive central drive (M500)
On top of everything else the colour LCD screen also clearly displayes many functions such as speed distance covered battery status and current gear. The display is further equiped with USB port to charge mobile devices such as mobile phones, lights and sat nav so there is no need to worry about running out of juice on a go.
CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
Parameters
General
| Load capacity | 120 kg |
Motor
| Centre engine | Yes |
Suspension
| Front fork | ROCKSHOX FS Paragon Gold RL R Solo Air 700c, zdvih 65 mm, uzamykatelná z řídítek |
Components
| Extender | CRUSSIS Al, 105mm |
| Grips | CRUSSIS, 100% silicone |
| Rear hub | CRUSSIS disc, wreath bearing, 32D |
| Front hub | CRUSSIS disc, wreath bearing, 32D |
| Saddlebag | CRUSSIS se zámkem, 31,6, 350 mm |
| Saddle | Selle Royal |
| Racks | CRUSSIS 28", dvoustěnné, vložkované, 19mm |
| Handlebars | CRUSSIS Al, 700 mm |
| Coats | SCHWALBE Energizer Active Plus |
Transmission
| Sorting | SRAM SX Eagle |
| Cassette | SRAM CS-PG1210 Eagle, 11-50z |
| Shifter | SRAM SX Eagle, 12 speeds |
| Number of gears | 1 x 12 |
Brakes
| Rear brakes | SHIMANO Deore BR-MT410, hydraulic, 160 mm rotor |
| Front brakes | SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm |
