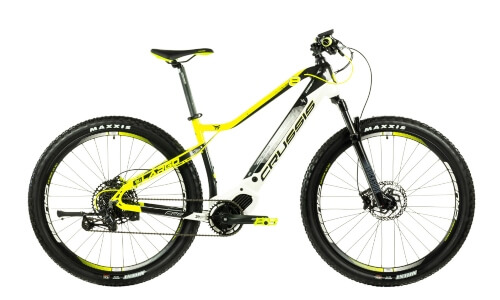

CRUSSIS OLI Largo 8.6-S
The mountain e-bike with the OLI SPORT center engine, integrated 630 Wh battery, 29" wheels, Shimano brakes and other high-quality components is designed and developed for trips of all kinds to places you have not yet explored with maximum enjoyment.
- motor: OLI SPORT, 250W (700W Peak), 83 Nm
- battery: Panasonic Li-Ion 630 Wh
- frame size: 18", 20", 20"
- number of gears: 12
- display: OLI colour LCD panel
- fork stroke: 65 mm

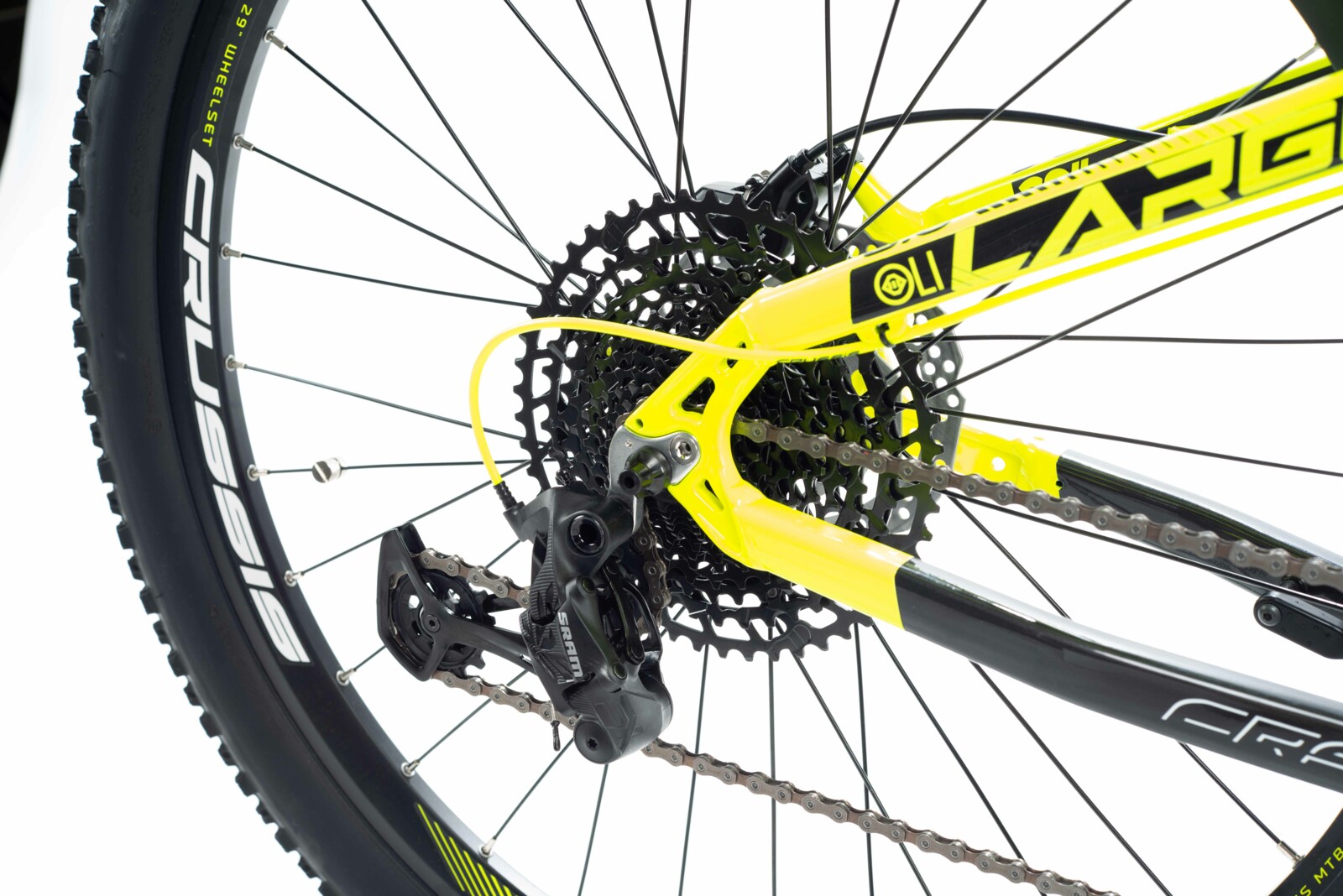

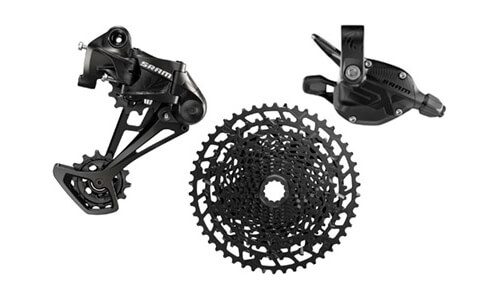

Eagle™ technology brings in new more accurate and smooth gear changes with excellent reliability, It offers a single-gear drive and features high endurance easy control and low weight. The new derailleur X Eagle™ is designed using famous SRAM 1x system code named X-HORIZON™

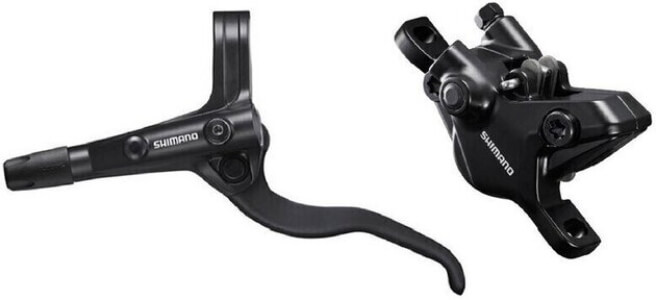

Hydraulic disc brakes SHIMANO BR-MT410 offer excellent performance at reasonable cost. MT410 discs deliver great endurance, quick and easy installation and low noise levels. Pads on this module are attached to 2 piston calipers with quick piston retraction design.
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
[page-29a453e7-36f0-4601-baca-4b64ba72260e]
[dojezd-150-[{"watth":"630"}]]
Electric bike CRUSSIS OLI Largo 8.6-S featuring central motor OLI SPORT with nominal power output of 250W (700W peak) and 83Nm of torque paired with fully integrated Li-Ion Panasonic 630 Wh battery.
Using the central drive motor on this model contributes to improved weight distribution
Range of this model can be up to 150km depending on terrain load and use of assistance which features 5 levels of boost. Assistance can be controlled by using LCD display located on handlebar. The included colour screen shows current boost loevel, speed and trip distance .
CRUSSIS OLI Largo 8.6-S is delivered on 29" wheels and frame sizes range from 18" to 22". Gear changes are taken care of by SRAM Eagle SX 12s and your comfort is provided by ROCKSHOX FS Paragon Silver RL Solo Air 700c (65mm) air suspension while SHIMANO Deore BR-MT410 hydraulic brakes ensure maximum safety
This electric bike is compatible with certain mudguards, lights, support stand or rack which can be purchased seperately.
Are you struggling to find the perfect e-bike for you or do you have any other questions? Please, don't hesitate to get in touch with us as we are always happy to help.
CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
OLI SPORT motor
The electric motor is equipped with a torsional pedal force sensor. The motor power is regulated by a control unit, which constantly evaluates the force with which the rider steps on the pedals. Simply put, everything works so that the more power you drive while pedaling, the more boost this engine provides.
Battery Panasonic 630 Wh / 17,5 Ah
Li-Ion based cells in Panasonic 630 Wh / 17,5 battery are the heart of electric bike. The battery is integrated within e-bikes frame and when combined with centre drive motor it is a perfect harmony for great balance and handling while contributing to a very sleek look overall. This battery is capable of delivering up to 150km of range although it does depend on riding style and level of assistance enabled.
Display for OLI SPORT motor
The clear color LCD display screen will always keep you up to date with informations such as battery status and level of assistance, also other data concerning driving (speed, distance traveled, etc.).
The electric motor itself (selection of the assistance rate) is then controlled via buttons plus, minus (on / off) located on the handlebars next to the front brake lever. How simple, convenient and safe.
These might interest you:
Parameters
General
| Weight incl. battery | 22,5 kg |
| Load capacity | 120 kg |
Motor
| Centre engine | Yes |
Suspension
| Front fork | ROCKSHOX FS Judy Silver TK Solo Air 29", stroke 100 mm, lockable from the fork |
Components
| Grips | CRUSSIS silikonové |
| Rear hub | Crussis disc, industrial bearings, 32D, fixed axle 12x142 mm |
| Front hub | Crussis disc, industrial bearings, 32D, fixed axle 15x100mm |
| Saddlebag | CRUSSIS with lock, 31,6, 350 mm |
| Saddle | Selle Royal |
| Racks | Crussis 29", dvoustěnné, vložkované, 25mm |
| Handlebars | CRUSSIS Al, 740 mm |
| Extender | CRUSSIS Al, 60 mm, fixed |
| Coats | Maxxis Ardent 29 x 2,40 |
Transmission
| Sorting | Sram SX Eagle |
| Cassette | Sram CS-PG1210 Eagle, 11-50z |
| Shifter | SRAM SX Eagle |
| Number of gears | 1 x 12 |
Brakes
| Rear brakes | SHIMANO Deore BR-MT410, hydraulic, 160 mm rotor |
| Front brakes | SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm |
