ELEKTROKOLA CRUSSIS

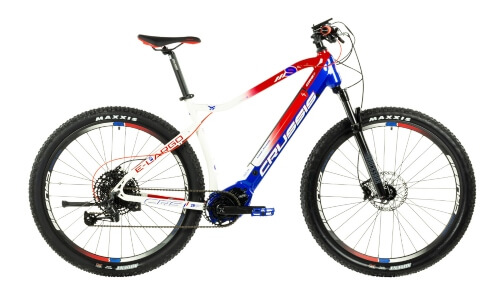

CRUSSIS e-Largo 9.6-L

A mountain e-bike on 29" wheels with extra large 900 Wh battery and great choice of equipment. The e-Largo 9.6 will take you on a journey along the road, on the plains, over any hills and to places you never knew existed.

PRE-ORDER to get discounted price now!
Expected availability: June 2021.

Choose your variant

Which frame to choose?

Rider height: 165 cm

150

210

Recommended size*:
17 - 18" (M)

*Suggested sizes are for guideline only.

Original price: € 2,645

E-bike price: € 2,645 Bonus for pre-order: € 132 Now you only pay 20% of deposit: € 529

Availability: DISCOUNTED PRE-ORDER info

Discount for purchasing 2 or more e-bikes: 5%

Why this e-bike?

CRUSSIS e-Largo 9.6-L
  • motor: Bafang M500 250W, 95 Nm
  • battery: Samsung Li-Ion 900 Wh
  • frame size: 18", 20", 22"
  • number of gears: 12
  • display: BAFANG LCD panel
  • fork stroke: 100 mm
CRUSSIS e-Largo 9.6-L

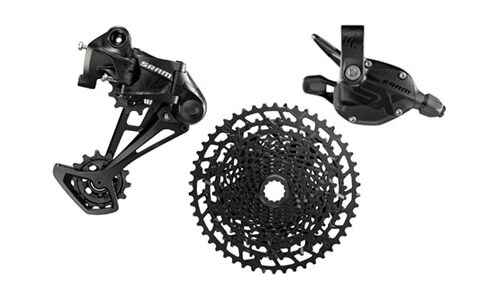

Eagle™ technology brings in new more accurate and smooth gear changes with excellent reliability, It offers a single-gear drive and features high endurance easy control and low weight. The new derailleur X Eagle™ is designed using famous SRAM 1x system code named X-HORIZON™

CRUSSIS e-Largo 9.6-L

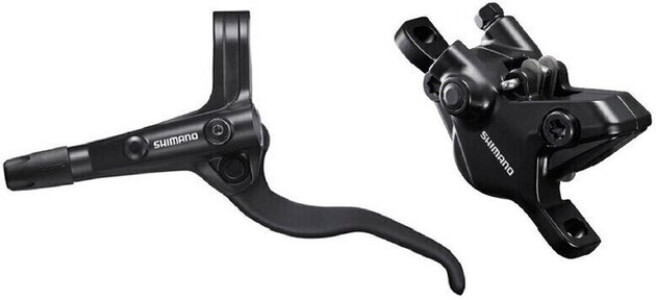

Hydraulic disc brakes SHIMANO BR-MT410 offer excellent performance at reasonable cost. MT410 discs deliver great endurance, quick and easy installation and low noise levels. Pads on this module are attached to 2 piston calipers with quick piston retraction design.





Click to display the e-bike range calculator

E-bike range calculator

Total weight of rider (incl. equipment)
80
kg
Predominant route profile
Battery capacity
Range
For 80 kg riders, with a battery capacity of Wh when driving with average assistance after a predominantly , the range on this e-bike will be approximately
km
(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

Our e-Largo 9.6-L model is a very popular mens e-bike for its extra large capacity battery perfect for long and demanding trips across countryside as well as on country roads. It does feature 29" wheels but should there be a preference for 27.5" wheels then please consider our e-Atland 9.6-L model too.

The aluminium frame has been specificaly designed to provide excellent handling and stability on a road further enhanced by a complete integration of the powerful Li-Ion cells Samsung 36V / 900 Wh (25 Ah) battery.

There is no question about this models capabilities and range while there is also a great focus on reliability. M500 is a centre motor from well knows brand BAFANG and while its nominal power output is rated at 250W (500W peak) the torque is 95 Nm. Being a crank drive further helps with weight distribution turning the e-bike into a perfect tool for any trip.

CRUSSIS e-Largo 9.6-L is one of the bikes proudly featured in our high range category and with up to 200km it sits among the best. But please do bear in mind that actual range will always depend on riding style, level of boost, terrain and load / overall weight.

Frame range is from 18" to 22" and standing on 29" wheels we find SRAM Eagle SX 12s gear changer and SHIMANO Deore BR-MT410 hydraulic disc brakes. There is a ROCKSHOX FS Judy Silver TK R Solo Air 27,5" (100mm) suspension above front tyre which is known for its grat balance of comfort while maintaning good handling abilities.

MAXXIS ARDENT 29 X 2,40 tyres provide good grip regardless of weather conditions and there is a USB port for charging mobile devices on a go also included but this being a mountain bike there is no mudguards, support stand or lights fitted although these can be purchased seperately.



Motor BAFANG M500

BAFANG M500 is a super-powerful central motor with nominal power output 250W (500W Peak)

It is known for it's perfect balance between peak torque and efficiency, which is always critical for the e-bike. Torque is essential for dynamic driving, which in the case of this engine is really strong, up to 95 Nm so no terrain is an obstacle for e-bikes equipped in this way. The engine with the pedal sensor and the torsional pedal force sensor constantly monitors the force of the rider pedaling and regulates the output power.

                                                                                                                                                                                                                             Read more ...

Displej ke středovému motoru BAFANG M500

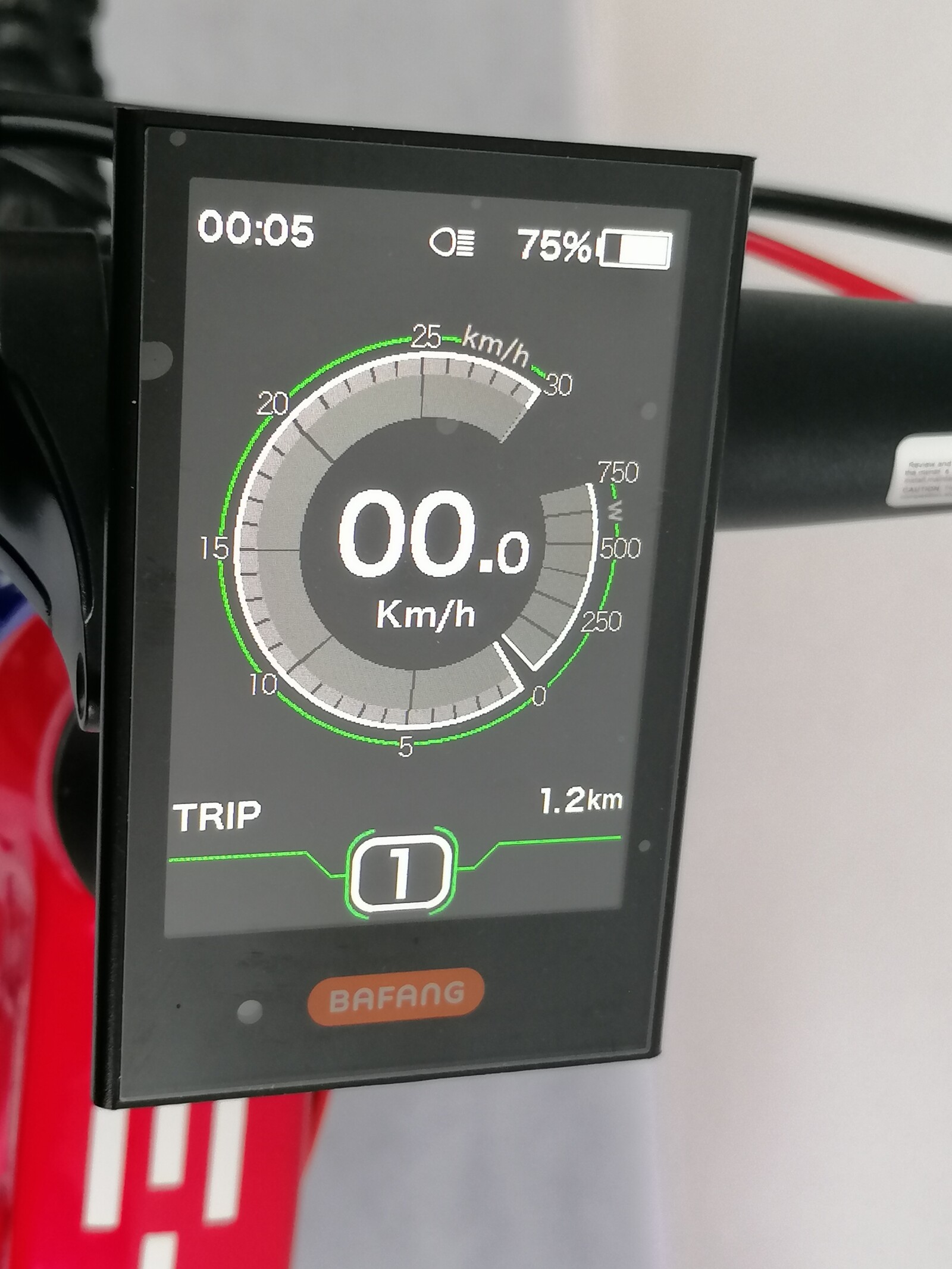

Display for central drive motor Bafang M500

On top of everything else the colour LCD screen also clearly displayes many functions such as speed distance covered battery status and current gear.

The display is further equiped with USB port to charge mobile devices such as mobile phones, lights and sat nav so there is no need to worry about running out of juice on a go.

Read more ...


CRUSSIS Electrobikes has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.



They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr





These might interest you:



                      E-Bike Buyer's Guide    Everything about batteries

                      Delivery of your e-bike    Everything about e-bike motors









Parameters

Drive type BAFANG M500, 250W (max 500W), 95 Nm
Control BAFANG LCD panel, 5 modes, colour screen
Capacity and battery type SAMSUNG Li-Ion 36V / 900 Wh (25 Ah)
Frame type and material Alu 6061
Front fork ROCKSHOX FS Judy Silver TK Solo Air 29", 100 mm with lock
Number of gears 1 x 12
Shifters and derailleur SRAM SX Eagle
Front brakes SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm
Rear brakes SHIMANO Deore BR-MT410, hydraulic, rotor 160 mm
Cassette SRAM CS-PG1210 Eagle, 11-50z
The stem CRUSSIS Al, 60 mm, fixed
Chain SRAM Eagle SX 12s
Handlebars CRUSSIS Al, 740 mm
Saddle Selle ROYAL
Seat post CRUSSIS with lock, 31,6 / 350 mm
Load capacity 120 kg
Rims CRUSSIS 29", dual layer with inserts, 25mm
Front hub CRUSSIS disc, industrial bearings, 32D, fixed axis 15x100mm
Rear hub CRUSSIS disc, industrial bearings, 32D, fixed axis 12x142mm
Tyres MAXXIS Ardent 29 x 2,40
Grips CRUSSIS silicon
