CRUSSIS e-Cross 9.6-S
Comfortable and perfectly controllable e-bike with a powerful Bafang M500 motor, fully adapted to men's needs.
- motor: Bafang M500 250W, 95 Nm
- battery: Panasonic Li-Ion 630 Wh
- frame size: 18", 20"
- number of gears: 12
- display: Bafang MX C18
- fork stroke: 65 mm
Air suspension ROCKSHOX FS Paragon Gold RL R Solo Air 700c with fork stroke of 65mm is very agile and adaptable making it suitable for all weight categories. Suspension can be locked using OneLoc remote lever.
Hydraulic disc brakes Shimano MT410 provide great long term performance and easy installation. There is 10 levels of angle setting for the shifter with I-SPEC EV technology and enhanced response of pistons.
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
Electric bike CRUSSIS e-Cross 9.6-M with central drive motor BAFANG M500 with nominal power output of 250W and 95Nm of torque with large 630Wh capacity provided by Li-Ion cell Panasonic battery. This is fully integrated in a bike frame.
CRUSSIS e-Cross 9.6-M is very easy to handle and control while provide great comfort. The aluminium frame geometry is designed for male riders.
Maximum range is improved due to 630Wh battery and can be up to 150km depending on ride style, tarrain and load. Motor assistance can be controled using LCD screen located on handlebar, The colour screen displays battery status boost level current speed and trip distance.
CRUSSIS e-Cross 9.6-M uses 28" wheels and frame size range from 18" to 20". Gears are changed using excellent 12 speed SRAM Eagle SX 12s with comfort providing ROCKSHOX FS Paragon Gold RL R Solo Air 700c suspension while SHIMANO Deore BR-MT410 ensure reliable great stopping power for peace of mind.
This electric bike comes with USB port that allows charging of mobile devices and the e-bike is compatible with certain mudguards, lights, support stand or rack and these accesories can be purchased seperately.
Are you struggling to find the perfect e-bike for you or do you have any other questions? Please, don't hesitate to get in touch with us as we are always happy to help.
BAFANG M500 (max 500W)
It is known for it's perfect balance between peak torque and efficiency, which is always critical for the e-bike. Torque is essential for dynamic driving, which in the case of this engine is really strong, up to 95 Nm so no terrain is an obstacle for e-bikes equipped in this way. The engine with the pedal sensor and the torsional pedal force sensor constantly monitors the force of the rider pedaling and regulates the output power.
Battery Panasonic 630 Wh / 17,5 Ah
Li-Ion based cells in Panasonic 630 Wh / 17,5 battery are the heart of electric bike. The battery is integrated within e-bikes frame and when combined with centre drive motor it is a perfect harmony for great balance and handling while contributing to a very sleek look overall. This battery is capable of delivering up to 150km of range although it does depend on riding style and level of assistance enabled.
Display for Bafang Max Drive central drive (M500)
On top of everything else the colour LCD screen also clearly displayes many functions such as speed distance covered battery status and current gear. The display is further equiped with USB port to charge mobile devices such as mobile phones, lights and sat nav so there is no need to worry about running out of juice on a go.
CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
Parameters
General
| Load capacity | 120 kg |
Motor
| Centre engine | Yes |
Suspension
| Front fork | ROCKSHOX FS Paragon Gold RL R Solo Air 700c, zdvih 65 mm, uzamykatelná z řídítek |
Components
| Extender | CRUSSIS Al, 105mm |
| Grips | Crussis, 100% silicone |
| Rear hub | Crussis disc, wreath bearing, 32D |
| Front hub | Crussis disc, wreath bearing, 32D |
| Saddlebag | CRUSSIS with lock, 31,6, 350 mm |

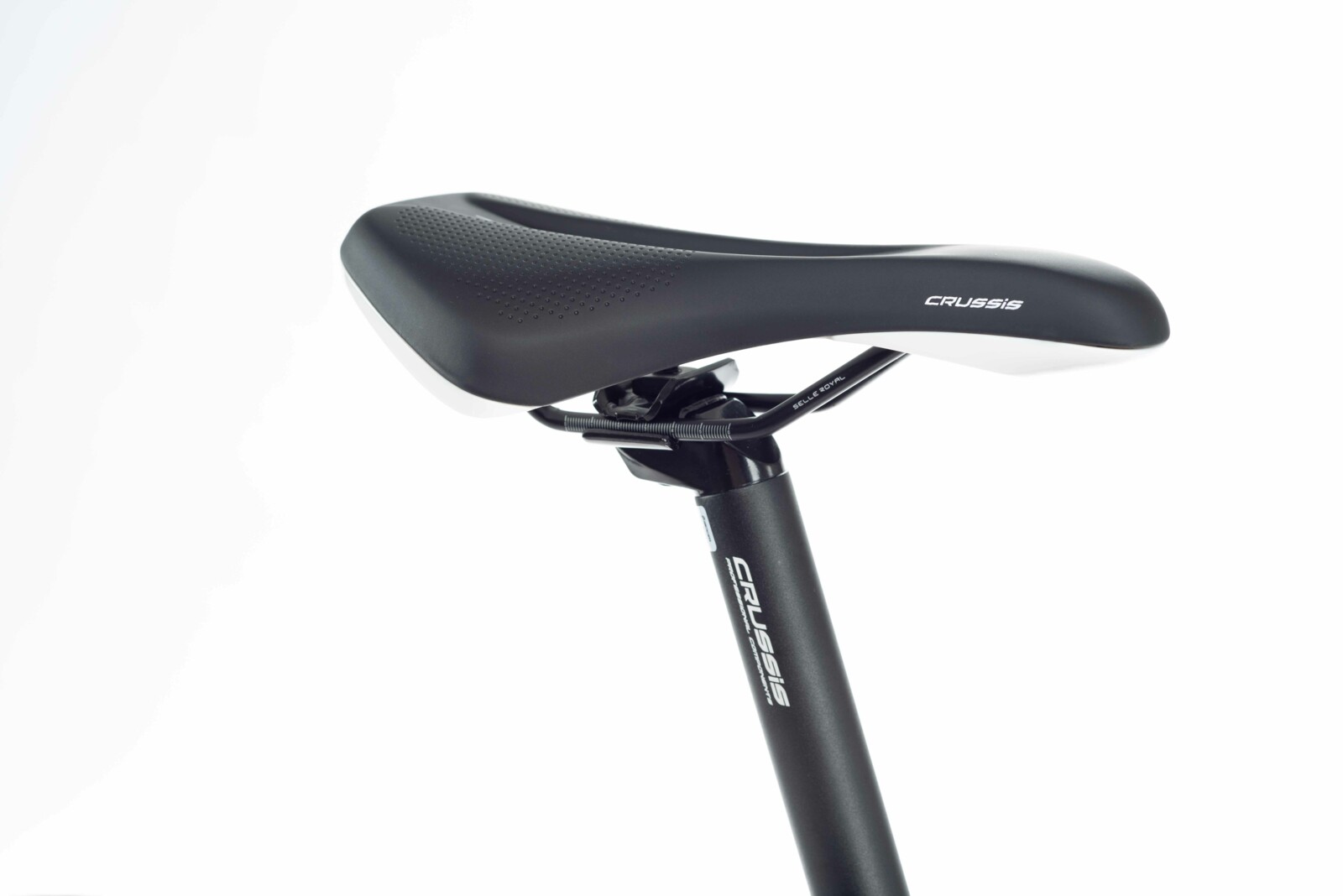

| Saddle | Selle Royal |
| Racks | Crussis 28", double walled, lined, 19 mm |
| Handlebars | CRUSSIS Al, 700 mm |
| Coats | SCHWALBE Energizer Active Plus |
Transmission
| Sorting | Sram SX Eagle |
| Cassette | Sram CS-PG1210 Eagle, 11-50z |
| Shifter | Sram SX Eagle, 12 speeds |
| Number of gears | 1 x 12 |
Brakes
| Rear brakes | SHIMANO Deore BR-MT410, hydraulic, 160 mm rotor |
| Front brakes | SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm |
