CRUSSIS e-Cross 9.6-M

Modern and well-equipped e-bike with a central motor and an extra strong battery. With an electric bike range of up to 170 km.

Choose your variant

Which frame to choose?

Rider height: 165 cm

150

210

Recommended size*:
17 - 18" (M)

*Suggested sizes are for guideline only.

€ 2,520

€ 2,083 excl. VAT

Availability: In stock

Discount for purchasing 2 or more e-bikes: 5%

Why this e-bike?

CRUSSIS e-Cross 9.6-M
  • motor: Bafang M500 250W, 95 Nm of torque
  • battery: Samsung Li-Ion 720 Wh
  • frame size: 18", 20"
  • number of gears: 12
  • display: BAFANG LCD panel
  • fork stroke: 65 mm
CRUSSIS e-Cross 9.6-M

Hydraulic disc brakes Shimano MT410 provide great long term performance and easy installation. There is 10 levels of angle setting for the shifter with I-SPEC EV technology and enhanced response of pistons.

CRUSSIS e-Cross 9.6-M

Air suspension ROCKSHOX FS Paragon Gold RL R Solo Air 700c with fork stroke of 65mm is very agile and adaptable making it suitable for all weight categories. Suspension can be locked using OneLoc remote lever.





Click to display the e-bike range calculator

E-bike range calculator

Total weight of rider (incl. equipment)
80
kg
Predominant route profile
Battery capacity
Range
For 80 kg riders, with a battery capacity of Wh when driving with average assistance after a predominantly , the range on this e-bike will be approximately
km
(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

Electric bike CRUSSIS e-Cross 9.6-M with central drive motor BAFANG M500 with nominal power output of 250W and 95Nm of torque with very large 720Wh capacity provided by Li-Ion cell Samsung battery. This is fully integrated in a bike frame.

CRUSSIS e-Cross 9.6-M is very easy to handle and control while provide great comfort. The aluminium frame geometry is designed for male riders.

Maximum range is improved due to 720Wh battery and can be up to 170km depending on ride style, tarrain and load. Motor assistance can be controled using LCD screen located on handlebar, The colour screen displays battery status boost level current speed and trip distance

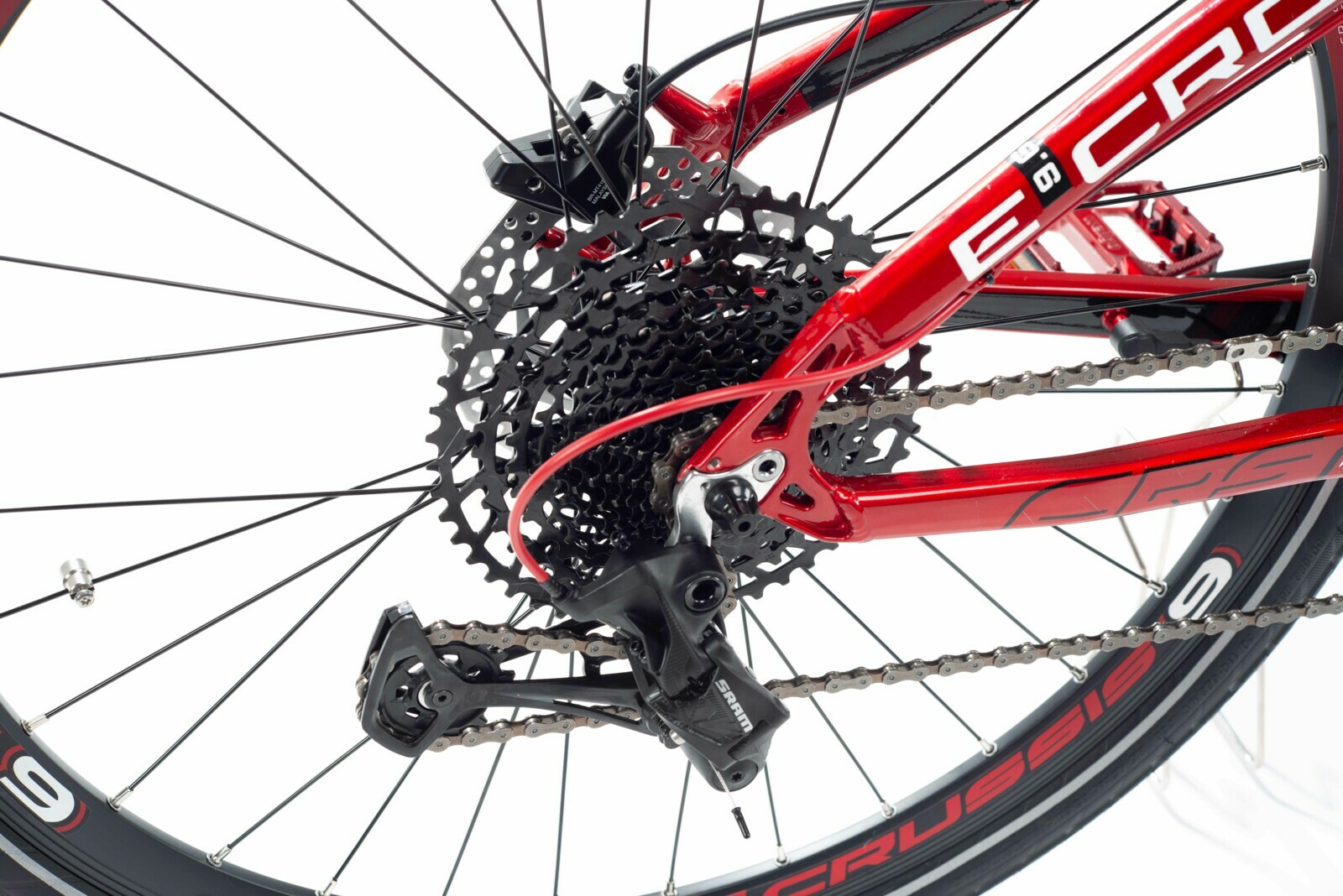

CRUSSIS e-Cross 9.6-M uses 28" wheels and frame size range from 18" to 20". Gears are changed using excellent 12 speed SRAM Eagle SX 12s with comfort providing ROCKSHOX FS Paragon Gold RL R Solo Air 700c suspension while SHIMANO Deore BR-MT410 ensure reliable great stopping power for peace of mind.

This electric bike comes with USB port that allows charging of mobile devices and the e-bike is compatible with certain mudguards, lights, support stand or rack and these accesories can be purchased seperately.

If you prefer more colourful design please take a look at OLI Cross lady 8.6-S.

Are you struggling to find the perfect e-bike for you or do you have any other questions? Please, don't hesitate to get in touch with us as we are always happy to help.



Cenral drive BAFANG M500

BAFANG M500 (max 500W)

It is known for it's perfect balance between peak torque and efficiency, which is always critical for the e-bike. Torque is essential for dynamic driving, which in the case of this engine is really strong, up to 95 Nm so no terrain is an obstacle for e-bikes equipped in this way. The engine with the pedal sensor and the torsional pedal force sensor constantly monitors the force of the rider pedaling and regulates the output power.

Read more

Display for Bafang Max Drive central drive (M500)

Display for Bafang Max Drive central drive (M500)

On top of everything else the colour LCD screen also clearly displayes many functions such as speed distance covered battery status and current gear. The display is further equiped with USB port to charge mobile devices such as mobile phones, lights and sat nav so there is no need to worry about running out of juice on a go.

]

Crussis Brand

CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.

They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr

Crussis E-bikes





These might interest you:



                      E-Bike Buyer's Guide    Everything about batteries

                      Delivery of your e-bike    Everything about e-bike motors









Parameters

Drive type BAFANG M500, central, 250W (max 500W), 95 Nm
Control BAFANG LCD panel, 5 modes, colour screen
Capacity and battery type SAMSUNG Li-Ion 36V / 720 Wh (20 Ah)
Frame type and material Alu 6061
Front fork ROCKSHOX FS Paragon Gold RL R Solo Air 700c, stroke 65 mm with lock
Number of gears 1 x 12
Shifters SRAM SX Eagle
Derailleur SRAM SX Eagle
Front brakes SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm
Rear brakes SHIMANO Deore BR-MT410, hydraulic, rotor 160 mm
Crankset SRAM X-SYNC 2 38Z / BAFANG 170 mm
Cassette SRAM CS-PG1210 Eagle, 11-50z
The stem CRUSSIS Al, 105mm
Chain SRAM Eagle SX 12s
Handlebars CRUSSIS Al, 700 mm
Saddle Selle ROYAL
Seat post CRUSSIS with lock, 31,6 / 350 mm
Load capacity 120 kg
Rims CRUSSIS 28", dual layer with inserts, 19mm
Front hub CRUSSIS disc, ring bearing, 32D
Rear hub CRUSSIS disc, ring bearing, 32D
Tyres SCHWALBE Energizer Active Plus 28 x 2,00
Pedály WELLGO, aluminium
Grips CRUSSIS, 100% silicon
Head composition Semi 1 1/8
