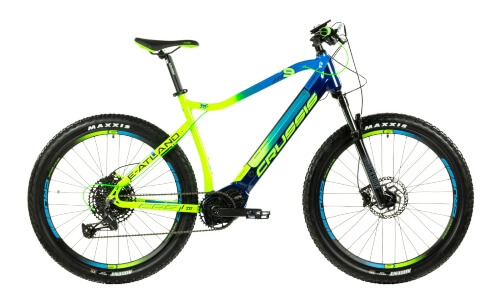

CRUSSIS e-Atland 9.6-M
Mountain e-bike with an extra strong 720 Wh battery with a range of up to 170 km. The modern processing of the aluminum frame and the high-quality Bafang M500 engine ensure excellent stability and controllability of the e-bike in both lighter and more demanding terrain.
Discount for purchasing 2 or more e-bikes: 5%
Choose from the variants:
Why this e-bike?
In greatebike.eu, THE BATTERY AND CHARGER IS ALWAYS INCLUDED IN THE PRICE OF THE E-BIKE
Click to display the e-bike range calculator
E-bike range calculator
(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)
Centre drive system
Bafang M500
For more than 10 years, Bafang has been one of the world's largest manufacturers of electric bicycle components. In Europe, its electric motors have become the de facto standard. In the last five years however, it has focussed intensively on the production of central motors. In 2014, it introduced an integrated centre drive with the official designation of MAX, which soon become generally known as MaxDrive. MaxDrive is used in many types of 250W / 36V electric bicycles. Bafang also manufactures hub (front and rear) motors, making it the long-term leader on the world market.
| Motor type | central |
|---|---|
| Power | 250W |
| Max. torque | 95Nm |
| Voltage | 36/43/48 (DCV) |
| Motor efficiency | ≥ 80% |
| Pedalling sensor | integrated pressure sensor |
| Max. speed of assist | 25 km/h |
| Weight | 3.6 kg |
| Operating temperature | -20 to 45 ℃ |
| Noise | < 55 dB |
It is useful especially in the segments of mountain e-bikes and speed e-bikes, which are fully consistent with its parameters. The m500 is equipped with a torsion (pressure) sensor, the control unit evaluates the force of the rider's pedalling and regulates the motor's power accordingly. The electric motor offers a power output of 250 watts and a torque of 95 newton metres. As with the M420, the maximum speed is 25 km/h or 45 km/h, depending on the application and the applicable legislation. The motor is characterised by smooth and quiet operation, especially when changing gears, even when going uphill. The motor supports a Gear Sensor.
CRUSSIS Electrobikes has been an importer of its own brand of electric bicycles since 2012. Ekolo.cz offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
These might interest you:
Parameters
| Drive type | BAFANG M500, 250W (max 500W), 95 Nm |
|---|---|
| Control | BAFANG LCD panel,color display |
| Capacity and battery type | SAMSUNG Li-Ion 36V / 720 Wh (20 Ah) |
| Frame type and material | Alu 6061 |
| Front fork | ROCKSHOX FS Judy Silver TK Solo Air 27,5", zdvih 100 mm, uzamykatelná z vidlice |
| Number of gears | 1 x 12 |
| Shifters and derailleur | SRAM SX Eagle |
| Front brakes | SHIMANO Deore BR-MT410, hydraulická, rotor 180 mm |
| Rear brakes | SHIMANO Deore BR-MT410, hydraulická, rotor 160 mm |
| Cassette | SRAM CS-PG1210 Eagle, 11-50z |
| The stem | CRUSSIS Al, 60 mm, pevný |
| Chain | SRAM Eagle SX 12s |
| Handlebars | CRUSSIS Al, 740 mm |
| Saddle | Selle ROYAL |
| Seat post | CRUSSIS lock, 31,6 / 350 mm |
| Load capacity | 120 kg |
| Rims | CRUSSIS 27,5", 25mm |
| Front hub | CRUSSIS disc, 32D, fixed axis 15x100mm |
| Rear hub | CRUSSIS disc, 32D, fixed axis 12x142mm |
| Tyres | MAXXIS Ardent 27,5 x 2,40 |
| Grips | CRUSSIS silicon |
