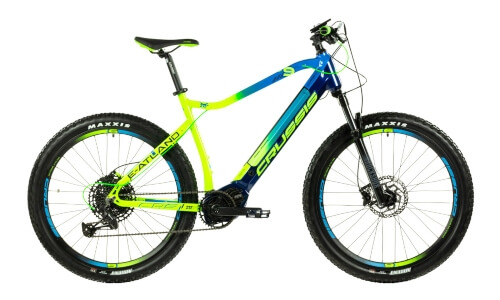

CRUSSIS e-Atland 9.6-L

Popular MTB e-bike with great equipment such as the Bafang M500 center engine and much more. E-Atland 9.6-L is designed and manufactured for countryside as well as to tackle any steep hills on a way. Get to know its magic.

Contact us for an alternative
  • motor: Bafang M500 250W, 95 Nm
  • battery: Samsung Li-Ion 900 Wh
  • frame size: 18", 20"
  • number of gears: 12
  • display: BAFANG LCD panel
  • fork stroke: 100 mm

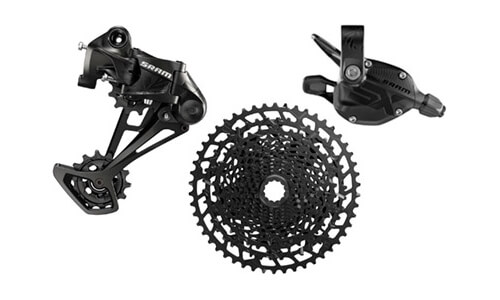

Eagle™ technology brings in new more accurate and smooth gear changes with excellent reliability, It offers a single-gear drive and features high endurance easy control and low weight. The new derailleur X Eagle™ is designed using famous SRAM 1x system code named X-HORIZON™

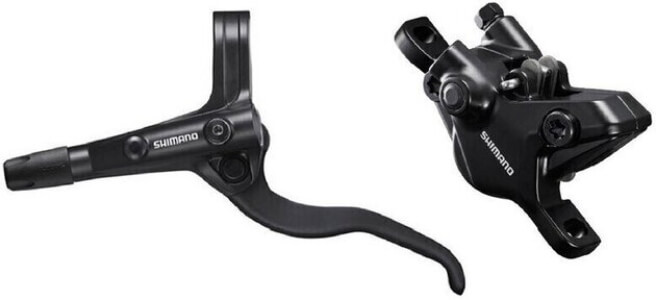

Hydraulic disc brakes SHIMANO BR-MT410 offer excellent performance at reasonable cost. MT410 discs deliver great endurance, quick and easy installation and low noise levels. Pads on this module are attached to 2 piston calipers with quick piston retraction design.

E-bike range calculator

500 Wh
300 Wh 650 Wh 1000 Wh
75 Kg
50 Kg 95 Kg 140 Kg

Dominant route profile:

Flat

Flat

Medium

Medium

Hills

Hills


The e-bike range is approximately

*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

[page-29a453e7-36f0-4601-baca-4b64ba72260e]

Our e-Atland 9.6-L model is a very popular mens e-bike for its extra large capacity battery perfect for long and demanding trips across countryside as well as on country roads. It does feature 27.5" wheels but should there be a preference for 29" wheels then please consider our e-Largo 9.6-L model too.



The aluminium frame has been specificaly designed to provide excellent handling and stability on a road further enhanced by a complete integration of the powerful Li-Ion cells Samsung 36V / 900 Wh (25 Ah) battery.



There is no question about this models capabilities and range while there is also a great focus on reliability. M500 is a centre motor from well knows brand BAFANG and while its nominal power output is rated at 250W (500W peak) the torque is 95 Nm. Being a crank drive further helps with weight distribution turning the e-bike into a perfect tool for any trip.

CRUSSIS e-Atland 9.6-L is one of the bikes proudly featured in our high range category and with up to 200km it sits among the best. But please do bear in mind that actual range will always depend on riding style, level of boost, terrain and load / overall weight.

Frame range is from 18" to 20" and standing on 27.5" wheels we find SRAM Eagle SX 12s gear changer and SHIMANO Deore BR-MT410 hydraulic disc brakes. There is a ROCKSHOX FS Judy Silver TK R Solo Air 27,5" (100mm) suspension above front tyre which is known for its grat balance of comfort while maintaning good handling abilities.

MAXXIS ARDENT 27,5 X 2,40 tyres provide good grip regardless of weather conditions and there is a USB port for charging mobile devices on a go also included but this being a mountain bike there is no mudguards, support stand or lights fitted although these can be purchased seperately.



Cenral drive BAFANG M500

BAFANG M500 (max 500W)

It is known for it's perfect balance between peak torque and efficiency, which is always critical for the e-bike. Torque is essential for dynamic driving, which in the case of this engine is really strong, up to 95 Nm so no terrain is an obstacle for e-bikes equipped in this way. The engine with the pedal sensor and the torsional pedal force sensor constantly monitors the force of the rider pedaling and regulates the output power.

Read more

Display for Bafang Max Drive central drive (M500)

Display for Bafang Max Drive central drive (M500)

On top of everything else the colour LCD screen also clearly displayes many functions such as speed distance covered battery status and current gear. The display is further equiped with USB port to charge mobile devices such as mobile phones, lights and sat nav so there is no need to worry about running out of juice on a go.

Crussis Brand

CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.

They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr

Crussis E-bikes





These might interest you:











Parameters

arrow

General

Brand Crussis
Load capacity 120 kg
arrow

Motor

Centre engine Yes
arrow

Suspension

Front fork ROCKSHOX FS Judy Silver TK Solo Air 27,5", 100 mm travel, fork lock
arrow

Components

Grips CRUSSIS silikonové
Rear hub CRUSSIS disc, průmyslová ložiska, 32D, pevná osa 12x142 mm
Front hub CRUSSIS disc, průmyslová ložiska, 32D, pevná osa 15x100mm
Saddlebag CRUSSIS with lock, 31,6, 350 mm
Saddle Selle Royal
Racks CRUSSIS 27,5", dvoustěnné, vložkované, 25mm
Handlebars CRUSSIS Al, 740 mm
Extender CRUSSIS Al, 60 mm, fixed
Coats MAXXIS Ardent 27,5 x 2,40
arrow

Transmission

Number of gears 1 x 12
Sorting SRAM SX Eagle
Cassette SRAM CS-PG1210 Eagle, 11-50z
Shifter SRAM SX Eagle
arrow

Brakes

Rear brakes SHIMANO Deore BR-MT410, hydraulic, 160 mm rotor
Front brakes SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm
