Why this e-bike?

- motor: SPORT DRIVE MD250S
- battery: SPORT DRIVE 504 Wh
- frame size: M, L
- gears: 1x9
- fork stroke: 100 mm

WTB Nineline 29x2.25" tyres with reflective stripe. A fast rolling MTB tire with repeating consistent micro-blocks that boast remarkable lateral traction and effortlessly fast riding. The rounded profile and unique tread pattern provide amazing predictability even at high speeds. The 2.25 version allows easy transition from short track to single track.

The Block Lock head assembly protects against damage to the frame by the handlebars in the event of a fall.


E-bike range calculator
ROCK MACHINE Storm INT e90-29 lady touring is hot news in women's e-bikes 2022. A new lightweight aluminum frame that has been refurbished and improved to make the e-bike easy and easy to handle. Storm INT e90-29 lady touring is a fully equipped e-bike for long trips on paved roads and in light terrain. With a powerful 90 Nm Sport Drive motor and a 504 Wh battery, you can drive far (depending on the terrain, natural conditions and driving characteristics). The central motor with a torsion sensor provides help depending on how hard you pedal - it helps significantly more in the hills than on the plain. The battery is fully integrated and fits perfectly into the overall design. The ONE 1 suspension seatpost will take care of a comfortable seat. The bike is fully equipped with fenders, a carrier, lights, a stand and a practical AXA lock.
- New women's Fun Ride geometry for greater comfort and control over the bike in the hills.
- Sport Drive with 90 Nm, battery with a capacity of 504 Wh.
- Block Lock head assembly against damage to the handlebar frame when falling.
- Shimano Altus 1x9 38 x 11-36, Shimano disc brakes.
- Nineline tires 29x2.25" with reflective stripe.

BONUS K TOMUTO E-KOLU: služba v ceně 2090 Kč nyní pouze za 490 Kč. U elektrokol nad 80.000 Kč doprava ZDARMA.
Elektrokolo vám expresně (cca do 3-5 dnů) dodáme a bude připravené k jízdě.
Kompletně seřízené a otestované elektrokolo doručí přepravní služba přímo až k Vám.
Zdarma od nás dostanete: Detailní předprodejní servis, zajetí kola mechanikem, kontrolu baterie a nabíječky.
Dopravu kompletně složeného elektrokola (vy si pouze našroubujete pedály) ve speciálním 5-ti vrstvém extra velikém kartónu. Tento doručovací box zasíláme výlučně spediční službou TOPTRANS. Kam si řeknete, v rámci Česka i Slovenska. I na dobírku.

Central motor DAPU MD250S
The MD250S excels with a high torque of up to 95Nm, thanks to which it offers a ride, with a sufficient reserve of power, even in the most difficult terrain. The compact dimensions and minimalist design of the MD250S motor allow elegant installation in the frame, which does not disturb the visual appearance of the entire e-bike.
It offers 250 W / 350 W power, an integrated well-tuned control unit and excellent efficiency (more than 80 %), thanks to which it achieves an exceptional range value on a single charge. When driving, you will appreciate not only the performance, but also the exceptionally quiet operation. Even on the steepest climbs, the DAPU motor will help in a very significant way.

Battery Sport Drive 504 Wh (14 Ah)
Fully integrated battery with the 4th generation Sport Drive system. The battery has a capacity of 504 Wh. At the same time, it's still easily removable so you can charge it separately if needed.
It is equipped with a BMS board (Battery Management System) that protects it from overheating, short-circuiting or overcharging. The battery can be charged directly in the frame of the e-bike, or it can be removed for charging. You can travel up to 100 km on a single charge (depending, of course, on the profile of the track and how the assistance is used). A fully discharged battery can be charged to full capacity in 6,5 hours.

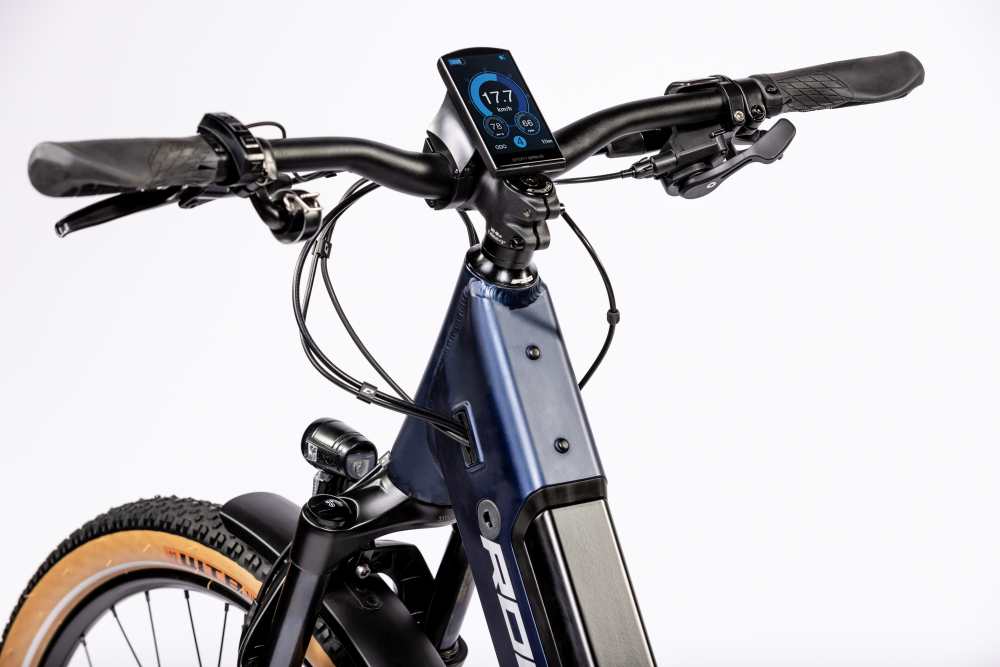

Displej SPORT DRIVE 4 generation
The SPORT DRIVE 4th generation display is perfectly legible in all light and weather conditions. Intuitive and very easy to use.
The display is supplied with external buttons for controlling support and function changes, a switch on a 22.2 mm sleeve and a 320 mm connection cable. Electrical wiring with a 70 cm long connector. 25.4 mm handlebar mounting sleeves + 22.2 mm reducer + 2 screws for mounting sleeves. Also included is a USB cable for charging external devices with cap (smartphone, flashlight, etc...).

The same great passion that led the early enthusiasts to build the first e-bike always leads them forward - to enjoy the joy of creating the best e-bikes and bring them to others.
Months driven over every detail of the new frames, thousands of hours of tests and many miles flown, this is the life of the designers of this company, and it is precisely these feelings that the Rock Machine e-bike ride will bring you.
Rock Machine is a lifelong passion and mission, as is riding their e-bikes. Everyone loves an active lifestyle, so it's no wonder that e-bikes have been involved since 1994.
Parameters
Drive type | SPORT DRIVE MD250S, 36V, 250W, 90Nm, torque/rotation sensor |
---|---|
Control | SPORT DRIVE Color display with USB port |
Capacity and battery type | SPORT DRIVE, 36V, 504Wh, in-frame mount |
Frame sizes | 17.0"(M), 19.0"(L) |
Frame type and material | Alloy Al-6061 T6 Custom MONO tubing |
Front fork | SR SR Suntour Mobie25 RLR, Tapered, Coil, QR Type, Remote Lockout, 100mm travel |
Number of gears | 1x9 |
Shifters | SHIMANO ALTUS SL-M2010-9R RapidFire Plus, 9-speed |
Front brakes | SHIMANO BL-MT200/BR-MT200, 160/160 rotor, hydraulic disc brake |
Rear brakes | SHIMANO BL-MT200/BR-MT200, 160/160 rotor, hydraulic disc brake |
Crankset | Wheel Top ED2L, 38T |
Cassette | SHIMANO ACERA CS-HG200-9, 11-36T |
The stem | ONE1 TDS-C342 Alloy, 31.8xE45mm, +3° |
Chain | KMC e9S |
Handlebars | ONE1 Alloy, MTB AL-325BT, 6° upsweep, 9° backsweep, 25mm rise, 680mm, 31.8mm |
Saddle | WTB Koda Sport |
Seat post | ONE1 Alloy, SPS 405, 30.9x350mm |
Load capacity | 120 kg |
Rims | WTB SX19, 32H |
Front hub | SHIMANO DEORE HB-M6010, 32H, CENTER LOCK, 15x100mm THRU Type AXLE |
Rear hub | SHIMANO ALIVIO FH-M4050, 32H, CENTER LOCK, M10x135mm, QR Type |
Tyres | WTB Nineline Comp, 29x2.25", Reflective Tape |
Pedály | Marwi SP-827 SANDBLOCK Non/slip pedal |
Grips | Velo VLG-1879D2, Ergo Grip |
Lighting | AXA Blueline 30 |
