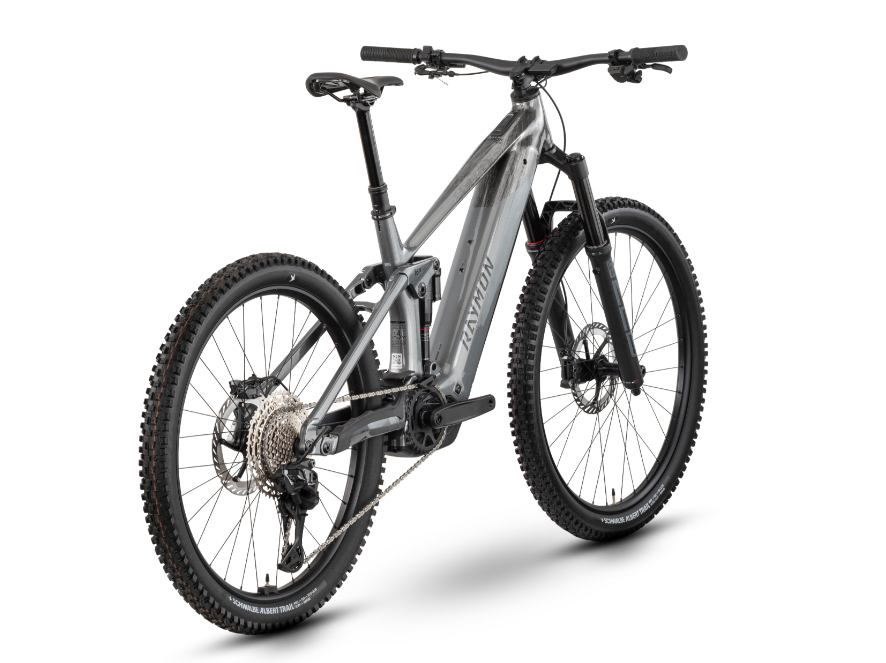

RAYMON Vamok Ultra
Full-suspension e-enduro / all-mountain e-bike. It is one of the higher-end models in the Vamok series and features 160 mm of travel, mullet wheels, and a powerful Bosch Performance Line CX motor. It is designed for trail and enduro riding, where you’ll appreciate its stability, performance, and modern electronic shifting.
Description
Bosch Performance Line CX 5th Gen
100 Nm
800 Wh
12 speeds
29"; 27.5"
160 mm
RockShox Super Deluxe 205×65 mm – a top-of-the-line air shock
It offers exceptionally responsive handling, high stability on rough terrain, and a wide range of adjustment options. The advanced damping system effectively absorbs both small and large bumps, ensures excellent traction, and keeps the rear wheel in contact with the ground even during technical sections. The air spring allows for easy adjustment of sag and progressivity. Consistent performance even under prolonged load.
SHIMANO Deore XT BR-M8220 - a high-performance 4-piston hydraulic brake system.
It offers high braking power, precise modulation, and excellent control when riding on challenging terrain. Precise modulation and responsive operation. Excellent performance on long descents. Robust construction for demanding use. Reliable operation in a variety of conditions. Shimano technologies contribute to smooth operation, precise modulation, and reliable control in a variety of conditions.
RAYMON Vamok Ultra – a powerful and well-equipped e-MTB
The RAYMON Vamok Ultra is a top-of-the-line full-suspension e-bike for demanding trail and enduro riders seeking maximum performance, stability, and high-quality components. The 6061 aluminum frame with 160 mm of travel, a modern 29" / 27.5" mullet configuration, and sporty geometry create a confident machine for technical climbs, fast descents, and challenging mountain trails.
At the heart of the bike is the Bosch Performance Line CX with up to 750 W of power and 100 Nm of torque. The powerful mid-drive motor provides significant assistance on steep climbs while allowing for precise power delivery on technical terrain. Control is handled by the Bosch Mini Remote in conjunction with the Bosch Purion 400 color display, which clearly shows important riding data.
The integrated 800 Wh Bosch PowerTube battery offers plenty of power even for long mountain rides. Thanks to its removable design, the battery can be conveniently charged outside the frame, and a Bosch Charger 4 A is included. The large capacity is ideal for all-day adventures when you don’t want to compromise between ride distance and the intensity of electric assistance.
Suspension is provided by a RockShox ZEB Base air fork with 160 mm of travel and a RockShox Super Deluxe Select 205 × 65 mm rear shock. This combination provides a responsive feel on small bumps, ample support during aggressive riding, and plenty of cushioning on hard impacts. The rear suspension also helps maintain traction on roots, rocks, and other technical sections.
A major highlight of this model is the Shimano Deore XT Di2 RD-M8260 1×12 electronic shifting system. The wireless system offers fast and precise gear changes and also supports **automatic shifting, so you can focus more on the ride itself. The 10–51-tooth cassette provides a wide range for steep climbs and fast descents.
Safe stopping power is provided by Shimano Deore XT BR-M8220 four-piston hydraulic brakes with 203 mm rotors front and rear. The brakes deliver high performance and precise modulation, which you’ll especially appreciate on long, steep descents.
The 29" front and 27.5" rear "mullet" configuration combines the stability of a large front wheel with the agility of a smaller rear wheel. Schwalbe Albert Evo tires in the Trail Pro version up front and Gravity Pro in the rear provide excellent traction and confidence on technical trails. Both tires are Tubeless Ready. The RAYMON dropper seatpost, with a 34.9 mm diameter, allows you to quickly lower the saddle before a challenging descent.
The RAYMON Vamok Ultra is the ideal choice for experienced riders who want a high-performance enduro e-bike with a Bosch Performance Line CX motor, a large 800 Wh battery, 160 mm of travel, and top-of-the-line Shimano Deore XT Di2 electronic shifting. The combination of mullet wheels, RockShox suspension, Shimano XT four-piston brakes, and a dropper seatpost makes it a confident machine for demanding mountain trails, technical descents, and all-day adventures.
E-bike range calculator
Flat
Medium
Hills
The e-bike range is approximately
*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
Bosch Performance Line CX 5th generation engine
The 5th generation motor offers 120 Nm and a peak power of 750 W. Thanks to the magnesium housing, it is lighter (2.8 kg) and quieter. The new mounting system makes installation easier. Improved sensors measure rider inputs more accurately, ensuring a more natural power transfer. The motor has hill-start and walk assist for added comfort. Lower weight improves maneuverability and component durability. Auto mode automatically adjusts terrain assistance. Compatibility with Bosch smart systems allows tracking of ride details, making planning and the ride itself easier.
Battery Bosch PowerTube 800 Wh
Maximum energy for long rides. Designed for riders who want maximum range, high reliability, and clean design. Modern technology and full compatibility with the Bosch Smart System. It uses advanced lithium-ion cells and a sophisticated Battery Management System (BMS) that protects the battery against overheating, overcharging, deep discharge, and short circuits. Weight around 3.9 kg.
Designed to be well protected against water, mud, and mechanical damage. With a standard 4A charger, it reaches approximately 50% capacity in about 2.5 hours and a full charge in less than 7 hours. It is gentle on the cells and promotes long battery life.
Raymon Lifetime Warranty
Starting with the 2025 model year, Raymon offers the RAYMON Care program, which provides a lifetime warranty on the frame for the first owner. This warranty covers structural defects in the frame, but does not apply to paint, bearings, or suspension components. Activation is subject to online registration within 90 days of purchase.
For selected e-bikes (Trailray, Tourray, Crossray, Hardray, and Select specification models from 2025), the RAYMON CarePlus program is available, which extends the warranty on the motor, controls, and battery to 3 years. For batteries, the limit is set at 800 charging cycles or a capacity drop below 70%.
The warranty is void in the event of racing or commercial use, improper tuning, or failure to have the bike serviced regularly by an authorized partner.
Raymon is a German brand of electric bikes led by the experienced duo Susanne and Felix Puello, pioneers of full suspension e-MTBs. With an emphasis on quality, innovation and top-of-the-line Bosch, Yamaha and DJI Avinox drivetrains, it is quickly making a name for itself across Europe. It offers precision-built models with excellent value for money - from the lightweight Airock to the trail-ready Tarok to the versatile Trailray. We are a dedicated Raymon e-bike shop and will be happy to advise you on your choice.
Contact: RAYMON Bicycles GmbH, Rudolf-Diesel-Straße 35, 97424 Schweinfurt Germany, e-mail: info@raymon.com, phone: +49 9721 539 35 96 20, website: www.raymon-bicycles.com
Parameters
General
| Model year | 2026 |
| Weight including battery | 27 kg |
| Brand | Raymon |
| Frame size | Frame M, Frame XL, Frame S, Frame L |
Motor
| Centre engine | Yes |
| Engine manufacturer | Bosch |
| Engine type | Bosch Performance Line CX Gen. 5 - Smart System |
| Torque | 100 Nm |
Battery
| Battery capacity | 800 - 899 Wh |
| Precise capacity | 800 Wh |
| Charger | 4 A |
