Bosch Performance Line CX Motor 5th Generation
Bosch Performance Line CX (5th Gen): The perfect symbiosis of power and feel
The Performance Line CX drive unit represents the current pinnacle in the evolution of e-MTB systems by Bosch eBike Systems. It is not just a motor; it is an intelligent system completely redesigned from the ground up to erase the difference between mechanical power and a natural riding feel. While it appears compact and quiet on the outside, inside it hides parameters that push the boundaries of what's possible off-road.
Technical pinnacle: 120 Nm and 600% support
Although in everyday use we often encounter values optimized for smoothness, the technical specification of the BDU384Y model reveals the hardware's true potential. In configurations with specific drivetrain types and settings, this system can offer:
- Maximum torque of 120 Nm: Brutal power that allows you to climb even the steepest sections without losing momentum.
- Maximum support of 600%: The system's ability to multiply the rider's effort up to six times, making even extreme climbs accessible.
- Peak power of 750 W: The maximum power the motor provides when it is needed most (e.g., when accelerating uphill).
- Outstanding power-to-weight ratio: Weighing just 2.8 kg, the motor achieves a specific power of approx. 268 W/kg, making it one of the most efficient drives in its class.
Silent revolution: No clicking, just the sound of nature
One of the main goals of the 5th generation was to achieve acoustic comfort. Bosch has redesigned the internal gearing to make it almost inaudible.
- Mechanical decoupling: During descents on rough terrain, the external drivetrain is mechanically decoupled from the internal motor mechanism. The result is the absence of the metallic "clanking" typical of older generations.
- Optimized gearbox: Noise reduction has been achieved without sacrificing power, allowing the rider to focus fully on the trail.
Intelligent sensors: A brain in a magnesium casing
The heart of the motor is an innovative sensor system. These measure cadence, torque, and tilt more than 1,000 times per second. Thanks to inertial measurement units (IMU), the motor knows exactly what angle the bike is at and what vibrations it is exposed to.
Key features benefit from this:
- eMTB+ mode, the best of both worlds: The hybrid character combines the precise handling of eMTB mode with the uncompromising thrust of Race mode. In technical sections, the motor is readable and smooth, but as soon as you need maximum ferocity, it is instantly available without switching modes.
- Hill Start Assist & Hill Hold: Intelligent assistants that prevent the bike from accidentally rolling backward on a hill and help with a controlled start in places where the rear wheel would otherwise slip.
- Extended Boost: A feature that helps you overcome technical obstacles (roots, rocks) by allowing the motor to maintain thrust for a fraction of a second even after briefly stopping pedaling.
Integration into the Smart System
The motor is fully integrated into the Bosch ecosystem, opening up new possibilities for riders through the eBike Flow app:
- Individual settings: The ability to customize the dynamics, support strength, and maximum speed for each riding mode separately.
- Digital protection: The eBike Lock and eBike Alarm features enhance the bike's security against theft.
- Over-the-Air updates: The system stays up-to-date thanks to wireless software updates.
Durability and construction
The motor casing is made of magnesium, ensuring not only low weight but also high impact resistance and efficient heat dissipation. The entire system is designed to withstand splashing water and mud, which is standard for e-MTBs.

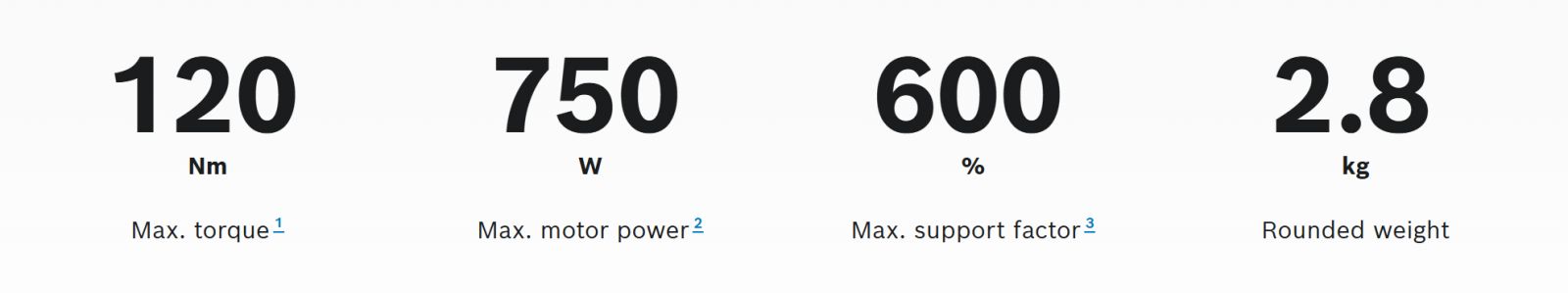

Technical specifications at a glance:
The 5th generation Bosch Performance Line CX thus defines the current standard of sports cycling: it is strong enough for the toughest challenges, yet so intelligent and quiet that you barely notice it while riding.
