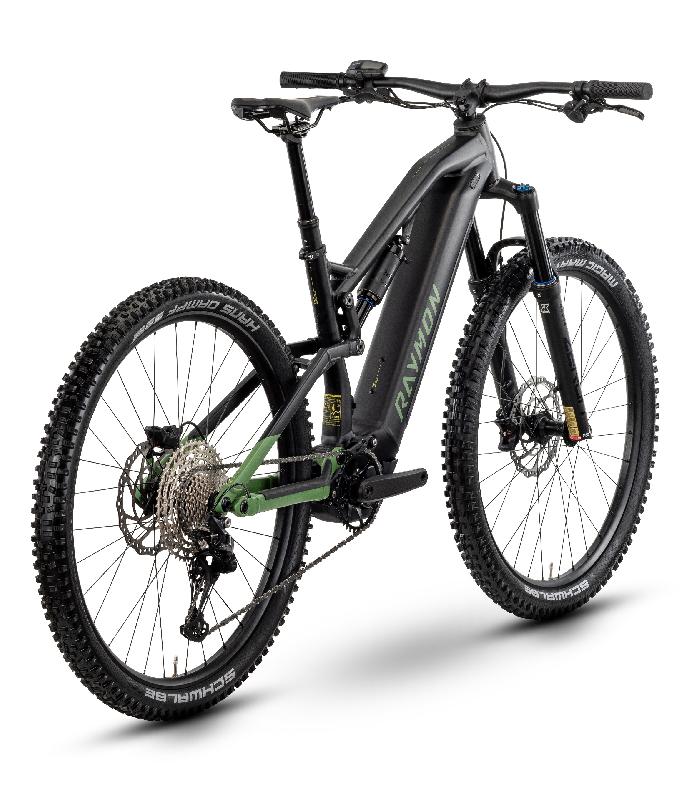

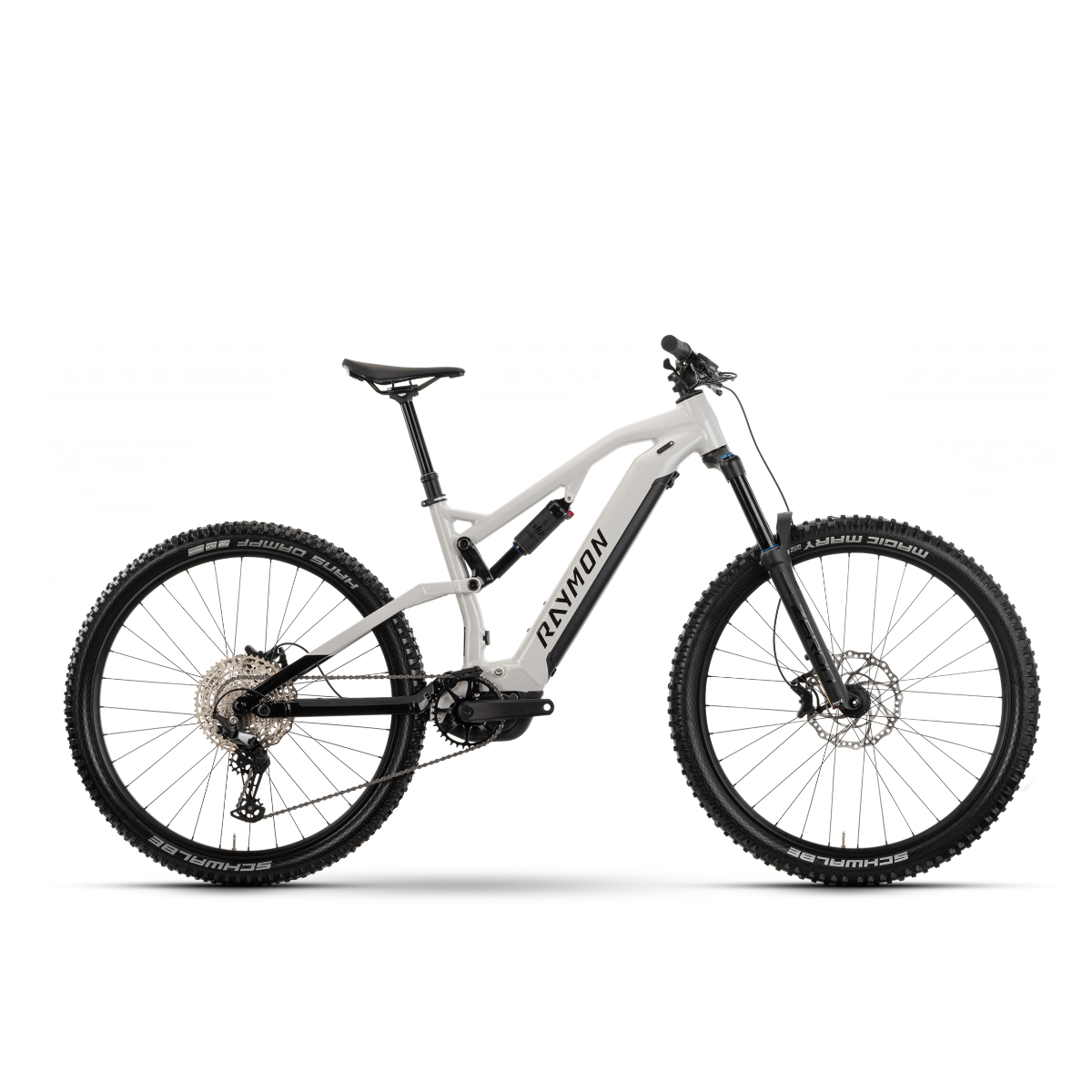

RAYMON Trailray 150

The RAYMON Trailray 150 is a mid to high-end electric bike that doesn't shy away from any terrain. The powerful Yamaha PW-X3 motor - the latest generation with a high torque of 85 Nm- forms the basis. Thanks to its fast response and natural power delivery, pedalling feels very natural, even when you're riding up steep climbs or technical passages. The engine is more compact than its predecessors, allowing the designers to make a shorter rear structure and thus more playful handling.

The integrated 720 Wh battery provides generous range. Charging is easy - you can charge directly in the frame or conveniently remove the battery. Combined with the motor, it's a set that will hold you up for longer rides as well as aggressive trail riding.

Frame and suspension

• Aluminum frame (Alloy 6061) with a well-integrated battery, boost standard and 140mm of travel ensures high stiffness and comfort on rough terrain
• SR Suntour Zeron36X RCfront fork (air, 150mm travel, taper bearing) for absorbing rough terrain.
• Rear shock: SR Suntour EdgeX R, air shock, 230×57.5 mm - both comfortable and agile.

Gears and shifting

• Shimano Deore, 12 speeds (RD-M6100 Shadow Plus derailleur, 10-51T cassette, Rapidfire Plus shifter)

Brakes and wheels

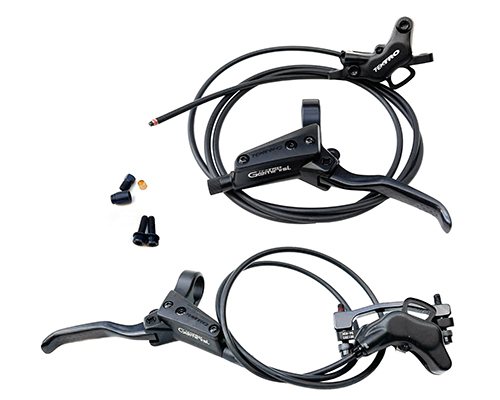

• Tektro Gemini SL hydraulic four-piston brakes with 203 mm discs (Tektro TR17) provide strong and reliable stopping power
• 29" wheels with Raymon VR23/DT210 rims (tubeless ready, Center Lock) and Schwalbe Magic Mary Perf tyres

Other equipment

• HandlebarsRaymonRiser 35 mm (sweep 9°, rise 20 mm)
• Telescopic seatpost (dropper post)
• Raymon 143 VM Fit saddle
• raymon 35 mm stem

Standard weight around 25.7 kg, maximum frame capacity 130 kg.

Need help choosing the right e-bike? Use our e-bike selection guide or contact us directly.

E-bike range calculator

Battery capacity: 500 Wh

300 Wh 600 Wh 900 Wh 1200 Wh

Rider weight: 75 kg

50 kg 80 kg 110 kg 140 kg

Assistance mode: 3

Min 2 3 4 Max

Route profile: Flat

Flat

Medium

Hills

The e-bike range is approximately

*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

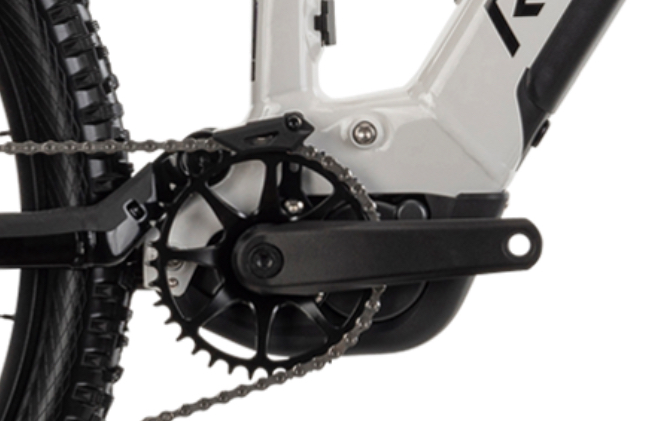

Centre motor Yamaha PW-X3

The Yamaha PW-X3 is the latest power unit for the e-MTB, featuring an ultra-compact design, low weight (2.75 kg) and high torque of 85 Nm. With instant pedaling response and intelligent auto-assist mode, it delivers a smooth and powerful riding experience even on challenging terrain.

The motor is approximately 20% smaller and 10% lighter than its predecessor, allowing bike manufacturers greater flexibility in frame design. With optimal Q-factor and natural power transfer, the PW-X3 creates the perfect connection between rider and bike - all summed up by Yamaha's Pure Ride philosophy.

More information

Battery Li-Ion 720 Wh

High-capacity Li-Ion battery 720 Wh / 20 Ah. It is partially integrated into the frame of the e-bike and supplies energy to the entire system. Thanks to the central mounting, the e-bike is perfectly balanced, stable and easy to handle.

The battery is able to deliver an e-bike on a single charge up to a distance of 170 km (depending on the circumstances).

Of course, it is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it. You can fully charge a fully discharged battery in 5 hours.

Display Yamaha A2

Easy, simple, and versatile. The main feature of the A2 display is its large LCD screen, which is ideal for use in low visibility conditions. For greater durability in mud or gravel, there is a special scratch-resistant coating on the screen, and the casing material is made of durable PC resin. It displays speed, battery status, and assist mode, as well as optional total distance, trip distance, and range data, enhancing every ride. Equipped with newly designed assist mode and walk assist switches.

Raymon is a German brand of electric bikes led by the experienced duo Susanne and Felix Puello, pioneers of full suspension e-MTBs. With an emphasis on quality, innovation and top-of-the-line Bosch, Yamaha and ZF CentriX drivetrains (made in the Czech Republic), it is quickly making a name for itself across Europe. It offers precision-built models with excellent value for money - from the lightweight Airock to the trail-ready Tarok to the versatile Trailray. We are a dedicated Raymon e-bike shop and will be happy to advise you on your choice.
