RAYMON Ravor Pro
Powerful full suspension e-MTB with Yamaha PW-X4 engine - the lightest and smallest engine in its class, 150mm travel and 29/27.5" mullet wheel combination. A machine for trail, bike park and mountain rides that will amplify your energy and bring pure riding pleasure. You'll literally feel yourself connecting with the terrain.
Delivery date May 2026
Need help?
% Discount on purchase
Yamaha PW-X4
100 Nm
840 Wh
12 speeds
MX - 27,5"/29"
150 mm
Cockpit without chaos = 100% concentration
Enjoy an undisturbed ride and perfect visibility thanks to a clean cockpit with integrated cable management.

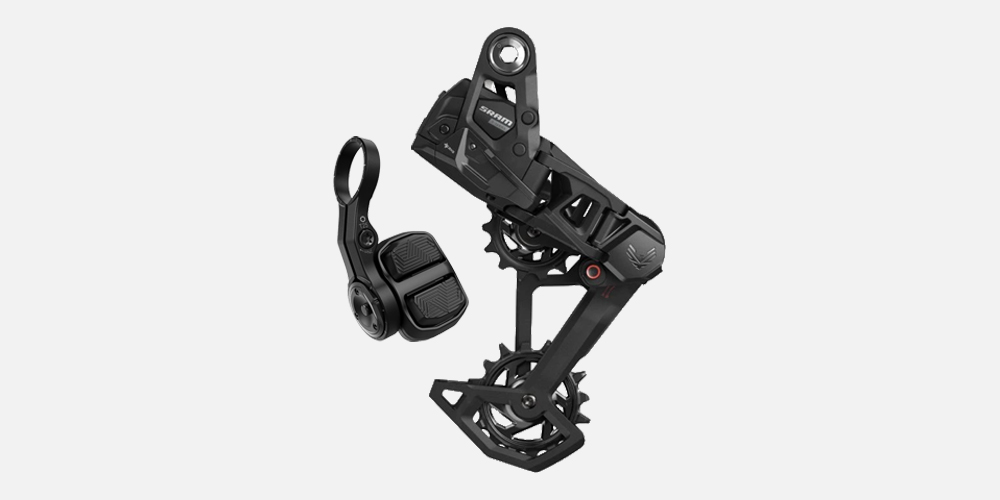

Sram GX Eagle Transmission
A reliable transmission system for the e-MTB that offers a wide 10-52z gear range and smooth, precise shifting even under heavy loads. With durable construction and T-Type chain technology, it can handle tough terrain and long trips while allowing for easy on-the-job maintenance.

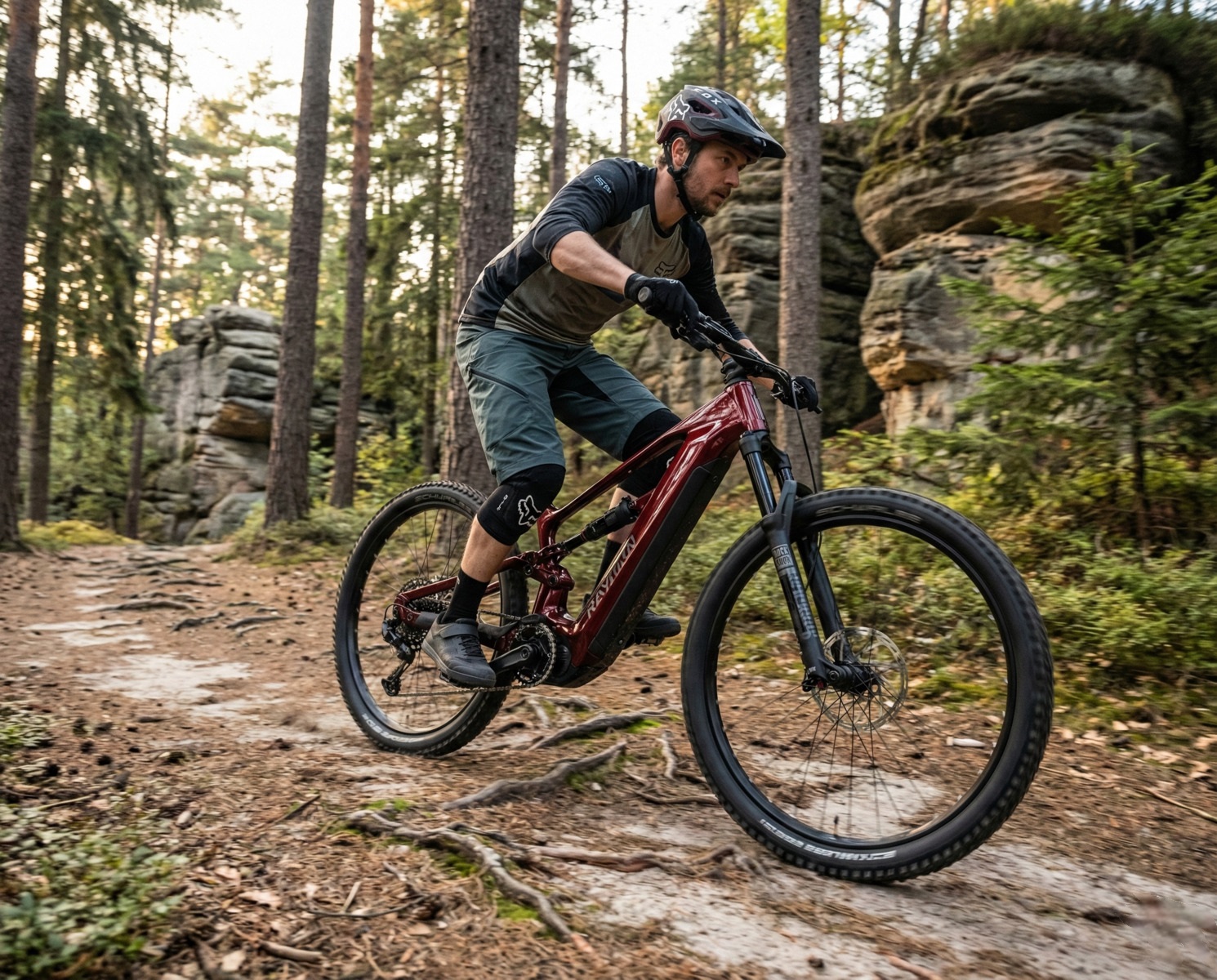

RAYMON Ravor Pro - energy, performance and adrenaline on every trail
The RAYMON Ravor Pro is an e-bike that was made for riding without compromise. It combines the power of a Yamaha PW-X4 engine, precise handling and modern trail geometry to offer you pure riding pleasure - whether you're heading to the bike park, mountain trails or wild terrain.
At the heart of the bike is a robust Alloy 6061 lightweight aluminium frame that excels in both stiffness and durability. Thanks to the mullet wheel combination - 29" front and 27.5" rear - you get the perfect balance between stability and playfulness. You have confidence and precision at the front and maximum control and agility at the rear.
Under the hood is a Yamaha PW-X4 engine with up to 100 Nm of power, which responds instantly to your every pedal stroke. It's light, powerful and behaves naturally thanks to optimised support - just like an extension of your own power. It's powered by an integrated 840Wh battery that can handle long mountain trips and all-day trail rides without worrying about range.
Comfort and confidence are ensured by the high-quality RockShox Psylo Gold RC suspension with 150 mm of travel at the front and RockShox Deluxe Select at the rear. This setup ensures that the Ravor Pro irons out even the roughest rocks, roots or impacts from jumps without losing efficiency on the descents.
Shifting is handled by SRAM's latest Eagle Transmission (1×12) - a wireless system with lightning-quick response. The ride is then secured by Magura Luise Elite powerful hydraulic brakes, which deliver stopping power with absolute confidence even in extreme conditions.
Thanks to the telescopic seatpost, wide handlebars and trail geometry, you're in full control of the bike even in challenging passages. Whether you're riding a flow trail or descending a rocky downhill, the Ravor Pro will hold you up and you'll literally feel yourself connecting with the terrain.
This e-bike is more than just a mode of transportation - it's an experience machine. Once you ride it for the first time, you'll understand why the Ravor Pro is not just an e-bike, but an extension of your trail self.
Need help choosing the right e-bike? Use our e-bike selection guide or contact us directly.
E-bike range calculator
Flat
Medium
Hills
The e-bike range is approximately
*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
Yamaha PW-X4 mid-drive motor
The PW-X4 mid-drive motor is designed for demanding off-road riders who want to maximize their performance. Weighing just 2.6 kg, with torque up to 100 Nm and power output of 800 W, it delivers outstanding power with minimal weight.
Its advanced 48V architecture increases efficiency and extends range, while Zero Cadence technology ensures instant response when pedaling. The result is natural, smooth, and quiet assistance that makes every ride a comfortable and enjoyable experience.
Yamaha PW-LINK 840 Wh integrated battery
The Yamaha PW-LINK 840 Wh integrated battery delivers top performance, maximum safety, and an elegant, compact design. With a capacity of 842 Wh, a voltage of 48 V, and a weight of 4.2 kg, it provides exceptional range and an outstanding power-to-weight ratio—the best in its class.
The battery is equipped with fire spread protection and offers the option of connecting a second battery, allowing riders to extend their range and freedom of movement. The PW-LINK 840 is the ideal choice for long journeys and demanding riders who expect uncompromising performance.
Yamaha PW-LINK Integrated Display
The Yamaha PW-LINK integrated display is an elegant solution for modern e-bikes. It is built directly into the frame, ensuring a clean and minimalist look without compromising on practicality. The 1.9" color display provides a clear overview of all key riding data and intuitive control via compact buttons.
When connected to the Yamaha PW-LINK mobile app, the display offers advanced features and personal settings according to the rider's preferences. The combination of modern design, durable construction, and smart connectivity makes it the ideal choice for high-end e-bikes.
Raymon is a German brand of electric bikes led by the experienced duo Susanne and Felix Puello, pioneers of full suspension e-MTBs. With an emphasis on quality, innovation and top-of-the-line Bosch, Yamaha and ZF CentriX drivetrains (made in the Czech Republic), it is quickly making a name for itself across Europe. It offers precision-built models with excellent value for money - from the lightweight Airock to the trail-ready Tarok to the versatile Trailray. We are a dedicated Raymon e-bike shop and will be happy to advise you on your choice.
Contact: RAYMON Bicycles GmbH, Rudolf-Diesel-Straße 35, 97424 Schweinfurt Germany, e-mail: info@raymon.com, phone: +49 9721 539 35 96 20, website: www.raymon-bicycles.com
Parameters
General
| Model year | 2026 |
| Weight incl. battery | 24,8 kg |
| Brand | Raymon |
| Frame size | Frame L, Frame S, Frame XL, Frame M |
| Colour | Red |
| Load capacity | 130 kg |
Motor
| Engine manufacturer | Yamaha |
| Engine type | Yamaha PW-X4 |
| Torque | 100 Nm |
| Centre engine | Yes |
Battery
| Battery capacity | 800 - 899 Wh |
| Precise capacity | 840 Wh |
Transmission
| Sorting | Sram AXS POD controller |
| Cassette | Sram XS-1270 Eagle T-Type 10-52Z |
| Shifter | Sram S1000 Eagle AXS Transmission 12 speed |
| Number of gears | 1x12 |
Components
| Saddle | Raymon 143 VM Fit |
| Saddlebag | Raymon, 34,9 mm, Dropper Post |
| Handlebars | Raymon Riser 35 mm, Sweep: 9°, Rise: 20 mm |
| Extender | Raymon 35, 0°, Ahead |
Brakes
| Rear brakes | Magura Luise Elite, 4-piston, hydraulic, 203 mm |
| Front brakes | Magura Luise Elite, 4-piston, hydraulic, 203 mm |
Suspension
| Shocks | RockShox Deluxe Select, air, 230x57,5 mm |
| Front fork | RockShox Psylo Gold RC, air, 150 mm, tapered |
