LEADER FOX Swan 27,5"
Mountain e-bike with Bafang M300 motor, integrated 540 Wh frame battery and 27.5" wheels. The Swan model stands out with its very smooth running and above-average performance. It is controlled by an LCD display located on the handlebars.
Discount
when buying 2 or more e-bikes:
5%
Motor
Bafang M300
Motor power
80 Nm
Battery capacity
540 Wh
Shifter
9 speed
Wheels
27,5"
Shock travel
100 mm
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
LEADER FOX Swan 27,5" mountain e-bike with aluminium frame, sporty design, suspension front fork, disc brakes and 27,5" wheels. The e-bike is equipped with a Bafang M300 mid-motor with a nominal power of 250W and a max power of 350W. This motor boasts, among other things, high torque that can reach up to 80 Nm and is equipped with an integrated speed sensor. The Bafang M300 electric motor has quickly established itself as one of the established centre drives thanks to its high quality workmanship. It also stands out for its very smooth and quiet operation and above-average performance on climbs.
Another plus is the fully integrated frame battery with powerful LG cells with a capacity of 540Wh / 15Ah and a fast charger with a charging current of 3A, which significantly reduces the battery charging time. The system is controlled via an LCD display and a push-button controller located on the handlebars.
Range on a fully charged battery:
- 70 km on average
- maximum up to 110 km
Are you struggling to find the perfect e-bike for you or have any other questions? Please, don't hesitate to get in touch with us as we are always happy to help.

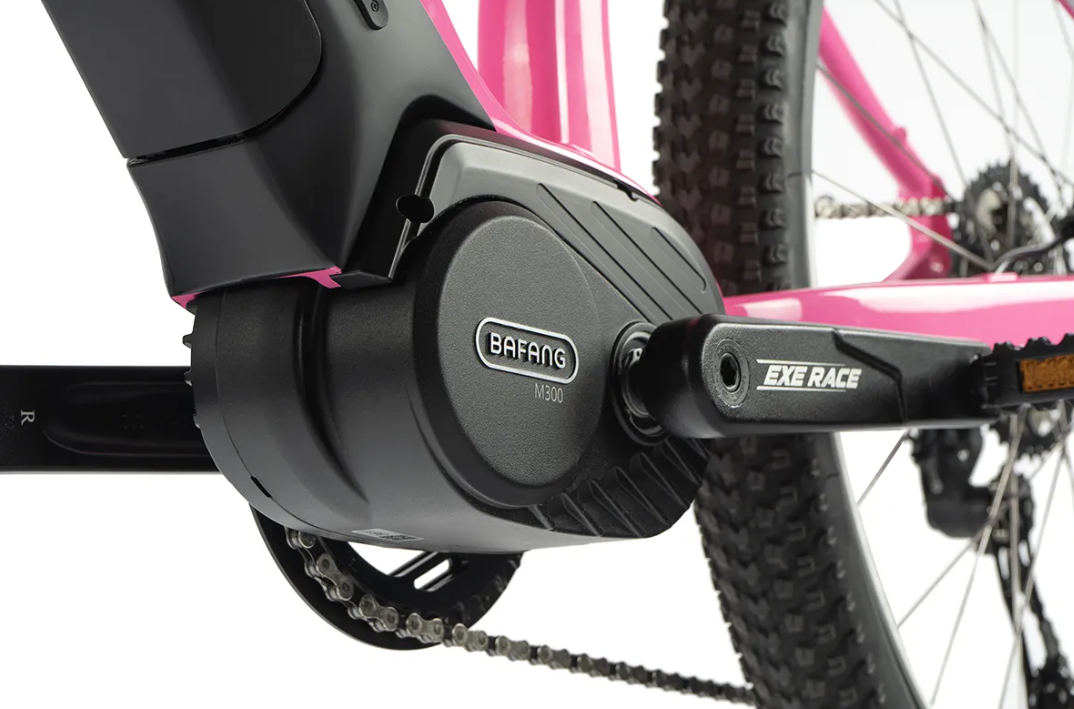

Motor Bafang M300
This is a more affordable version of the MAXDRIVE motor. A gear sensor can be mounted to the motor. This type of motor does not have a torsion (pressure) sensor. It is only equipped with an integrated speed sensor, which evaluates the pedal and speed signals from the center axis of the motor. Due to the absence of a torsion sensor, the dosing of power is not so smooth and the motor with its behavior is emotionally like as rear engine.
Battery LG 540 Wh
LG Li-Ion battery 540 Wh / 15 Ah. It is integrated into the frame of the e-bike and supplies energy to the entire system. Thanks to the central mounting, the e-bike is perfectly balanced, stable and easy to handle.
The battery is able to deliver an e-bike on a single charge up to a distance of 110 km (depending on the circumstances).
Of course, it is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it. You can fully charge a fully discharged battery in 5 hours.

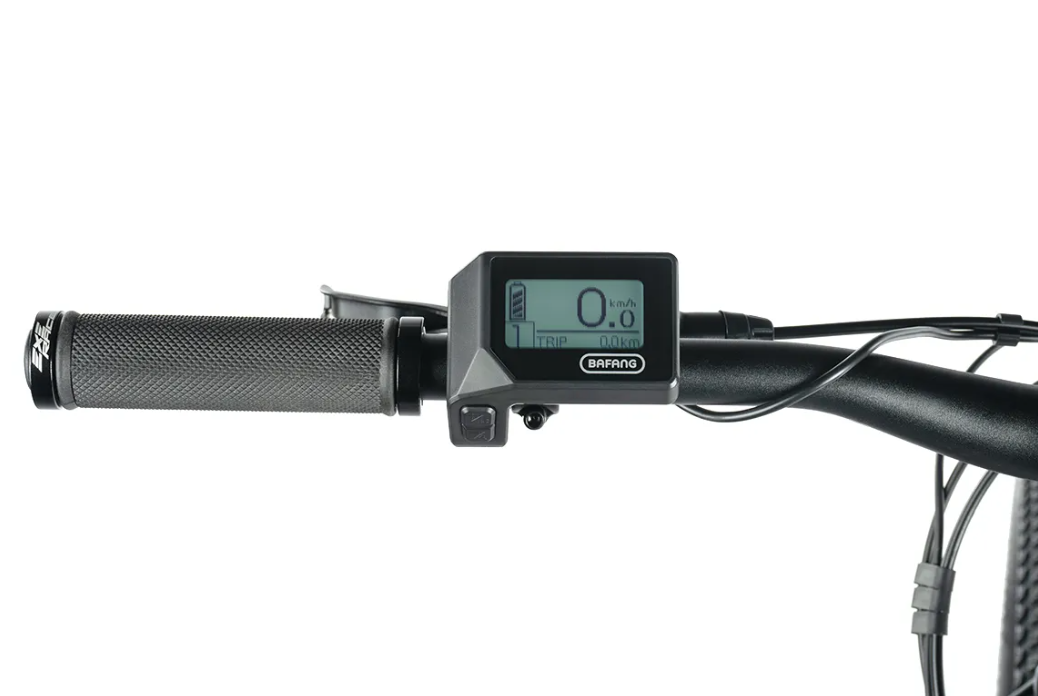

Display BAFANG DP C221
Bright LCD display BAFANG DP C221. Readable even in direct sunlight. Displays all important information about the e-bike, from current speed to battery status to total mileage. The integrated control buttons make it easy to operate the e-bike via the DP C221 display. You can easily switch between riding modes, control the lights or activate the riding assistance.
Compatible with all Bafang mid and rear hub motors
Display and control unit in one
Waterproof to IP X5
Bluetooth and compatible with the Bafang GO app
Dimensions: 74 x 59 x 51 mm (l x w x h)
LEADER FOX is one of the most popular brands of e-bikes and here at GREATEBIKE.EU we are the largest exporter of LEADER FOX electric bicycles for European market. The brand offers 40 models, from folding to urban touring to trekking. With full battery integration and the use of powerful mid and hub drives, LEADER FOX e-bikes are a great option for anyone looking for quality and design at a reasonable price. The design, preparation of production models and assembly all take place in a workshop situated in České Budějovice, in the Czech Republic
Parameters
General
| Model year | 2023 |
| Weight incl. battery | 26 kg |
| Brand | Leader Fox |
| Load capacity | 120 kg |
Motor
| Engine manufacturer | Bafang |
| Engine type | BAFANG M300 |
| Torque | 80 Nm |
| Centre engine | Yes |
Battery
| Battery capacity | 500 - 599 Wh |
| Charger | 42V/3A |
Suspension
| Front fork | Air, Stroke: 100 mm |
Components
| Saddle | Exerace |
| Handlebars | Alloy, bent:30 mm, width:740 mm |
| Coats | CST 27X2,35 |

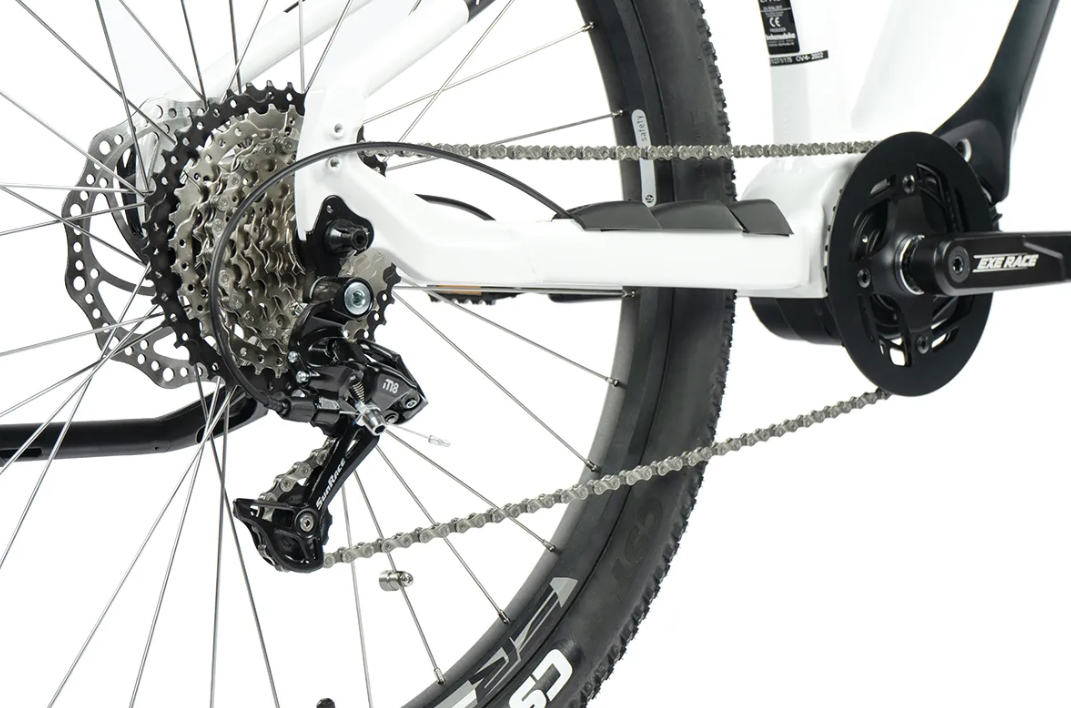

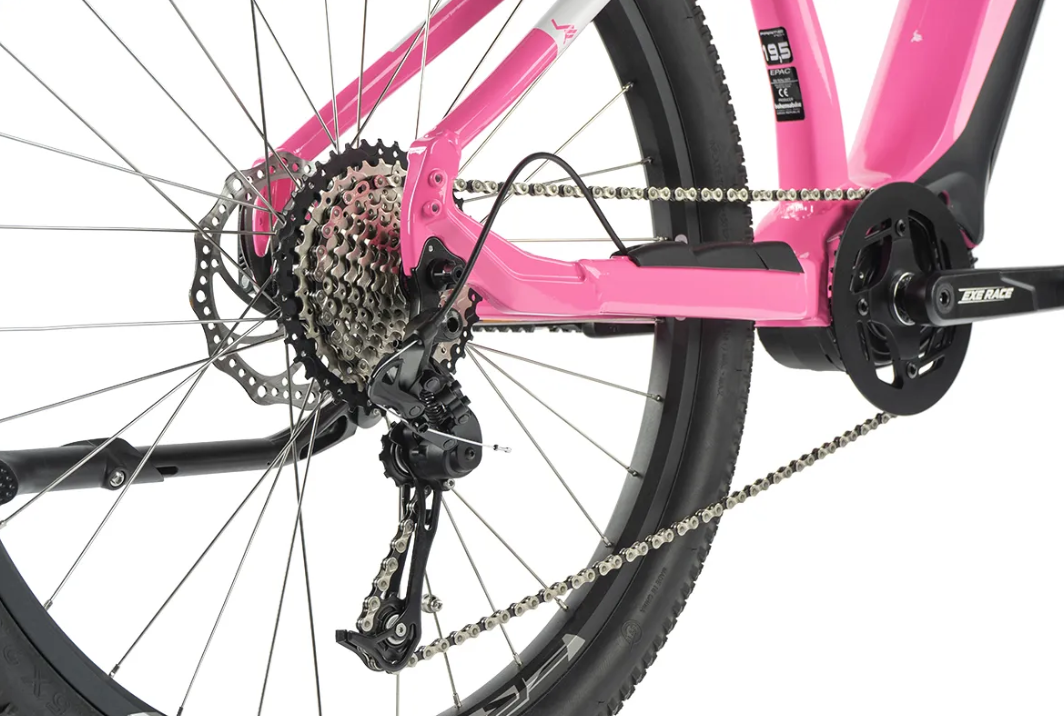

Transmission
| Number of gears | 1x9 |
| Sort by | S-Ride, SL-M300C, 9 speeds |
| Cassette | 9 speed 11-40t |
| Shifter | S-Ride RD-M300 |
Brakes
| Rear brakes | Tektro T875, hydraulic, 2 pistons |
| Front brakes | Tektro T875, hydraulic, 2 pistons |
