LEADER FOX Awalon 29"
The mountain e-bike features a Bafang M420 mid-motor and a fully integrated 720 Wh frame battery for a really long range. Aluminum frame, sporty design, suspension fork and other clever components ensure comfort on the trail.
Bafang M420
80 Nm
720 Wh
9 speed
29"
100 mm
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
LEADER FOX Awalon 29" mountain e-bike with aluminium frame, sporty design, suspension front fork, disc brakes and 29" wheels. The e-bike is equipped with a fully integrated frame battery with powerful LG cells with a capacity of 720Wh / 20Ah and a fast charger with a charging current of 3A to shorten the battery charging time, a Bafang M420 mid-motor with a nominal power of 250W and a max power of 550W. This motor boasts, among other things, a high torque that can reach up to 80 Nm and is equipped with a torsion sensor for pedalling force. This means that the more force the cyclist pedals with, the more force the motor assists.
The Bafang M420 electric motor is an established mid-motor with quality workmanship. It excels with very smooth running and above average performance on climbs. The system is controlled by a color LCD display and a push button controller located on the handlebars.
Range on a fully charged battery:
- 120 km average
- maximum up to 150 km
Are you struggling to find the perfect e-bike for you or have any other questions? Please, don't hesitate to get in touch with us as we are always happy to help.

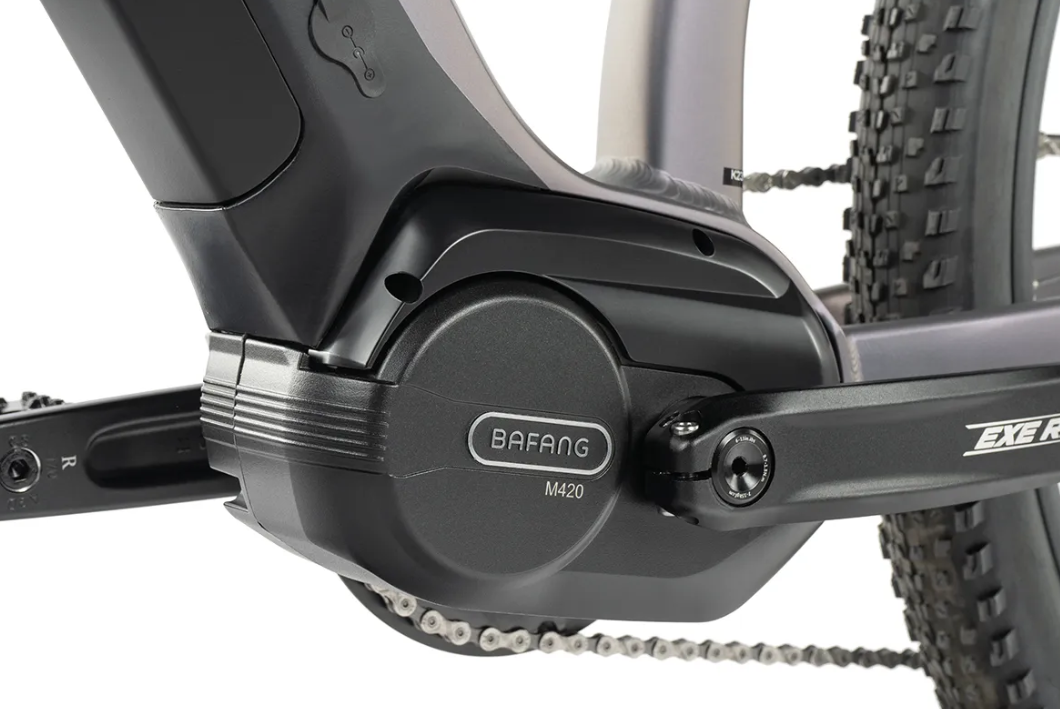

Bafang M420
Central motors are currently the most widely used drives in e-bikes, and although their introduction did not come until 2014, their advantages quickly gained great popularity. Central engines have almost pushed out the hub engines and are already found in almost all types of e-bikes.
Battery LG 720 Wh
High-capacity LG Li-Ion battery 720 Wh / 20 Ah. It is partially integrated into the frame of the e-bike and supplies energy to the entire system. Thanks to the central mounting, the e-bike is perfectly balanced, stable and easy to handle.
The battery is able to deliver an e-bike on a single charge up to a distance of 170 km (depending on the circumstances).
Of course, it is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it. You can fully charge a fully discharged battery in 5 hours.

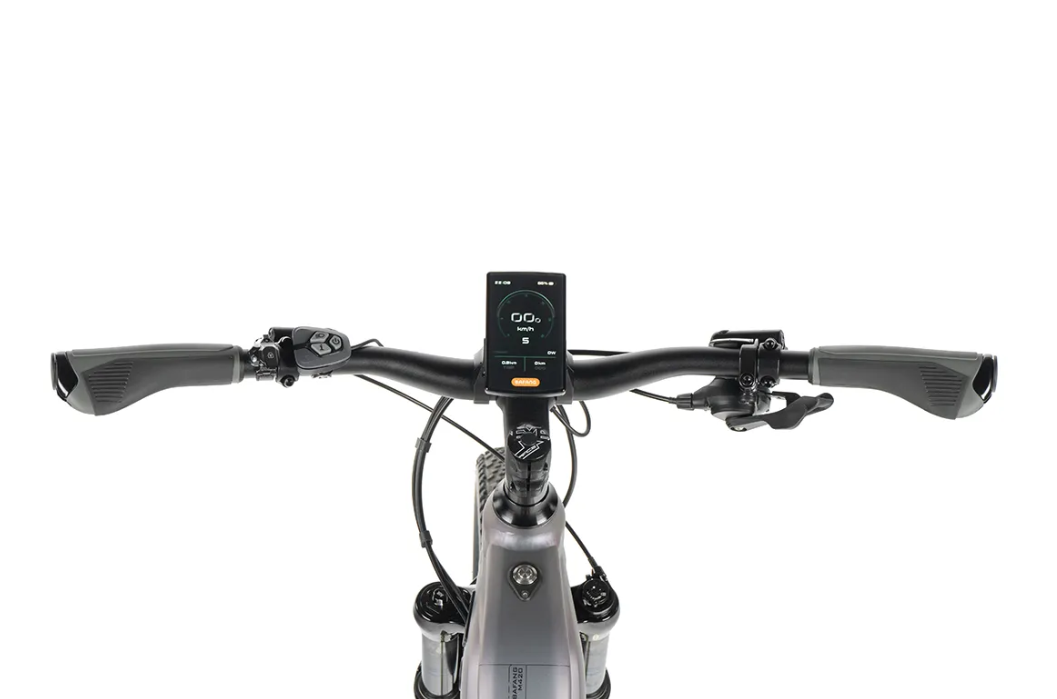

Display LCD DP C190
Modern Bafang LCD display DP C190.CAN. The case is made of ABS (acrylonitrile butadiene styrene), the transparent part is made of high strength acrylic with the rigidity of tempered glass. Can be used down to -20oC. CE / IP65 water proof / ROHS certification.
Battery power 36V
Battery capacity indicator
Rated operating current 40mA
Leakage current at tripping < 1 uA
CAN BUS protocol
USB port 5V 500mA
Maximum output current 100mA
Operating temperature -20 ~ 45°C
Storage temperature -20 ~ 60°C
LEADER FOX is one of the most popular brands of e-bikes and here at GREATEBIKE.EU we are the largest exporter of LEADER FOX electric bicycles for European market. The brand offers 40 models, from folding to urban touring to trekking. With full battery integration and the use of powerful mid and hub drives, LEADER FOX e-bikes are a great option for anyone looking for quality and design at a reasonable price. The design, preparation of production models and assembly all take place in a workshop situated in České Budějovice, in the Czech Republic
Parameters
General
Model year | 2023 |
Weight incl. battery | 27 kg |
Brand | Leader Fox |
Load capacity | 120 kg |
Motor
Engine manufacturer | Bafang |
Engine type | Bafang M420 |
Torque | 80 Nm |
Centre engine | Yes |
Battery
Battery capacity | 700 - 799 Wh |
Charger | 42V/3A |
Battery capacity | Extreme |
Suspension
Front fork | Air, Stroke: 120 mm |
Components
Saddle | Exerace |
Handlebars | Alloy, bent:30 mm, width:740 mm |
Coats | MAXXIS RECON RACE 29X2,25 |

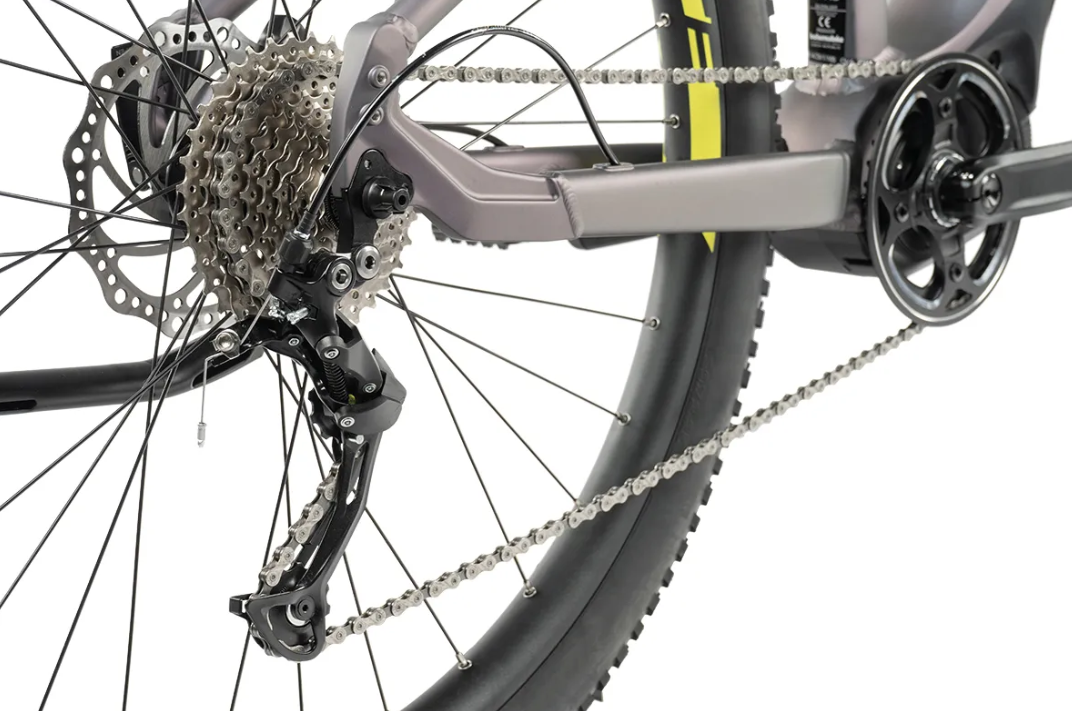

Transmission
Number of gears | 1x9 |
Sort by | Sunrace, DLM903 R9, 9 speed |
Cassette | 9 speed 11-36T |
Shifter | Shimano Altus RD-M370-L |
Brakes
Rear brakes | Tektro T875, hydraulic, 2 pistons |
Front brakes | Tektro T875, hydraulic, 2 pistons |
