CRUSSIS e-Largo 9.12-(1000)

This 29" aluminum hardtail electric mountain bike is a versatile machine for both challenging trips and everyday off-road riding. The 6061 aluminum alloy frame features highly precise craftsmanship with ground welds and internal cable routing, giving the structure a clean, almost carbon-fiber-like appearance and high rigidity.

Power is provided by a PANASONIC GXM mid-drive motor with torque of up to 110 Nm and maximum power of 700 W. A massive, removable LG battery with a capacity of 1000 Wh guarantees a range of up to 220 km. All parameters are clearly displayed on a PANASONIC color LCD screen, complemented by an ergonomic LED controller with a walk-assist function.

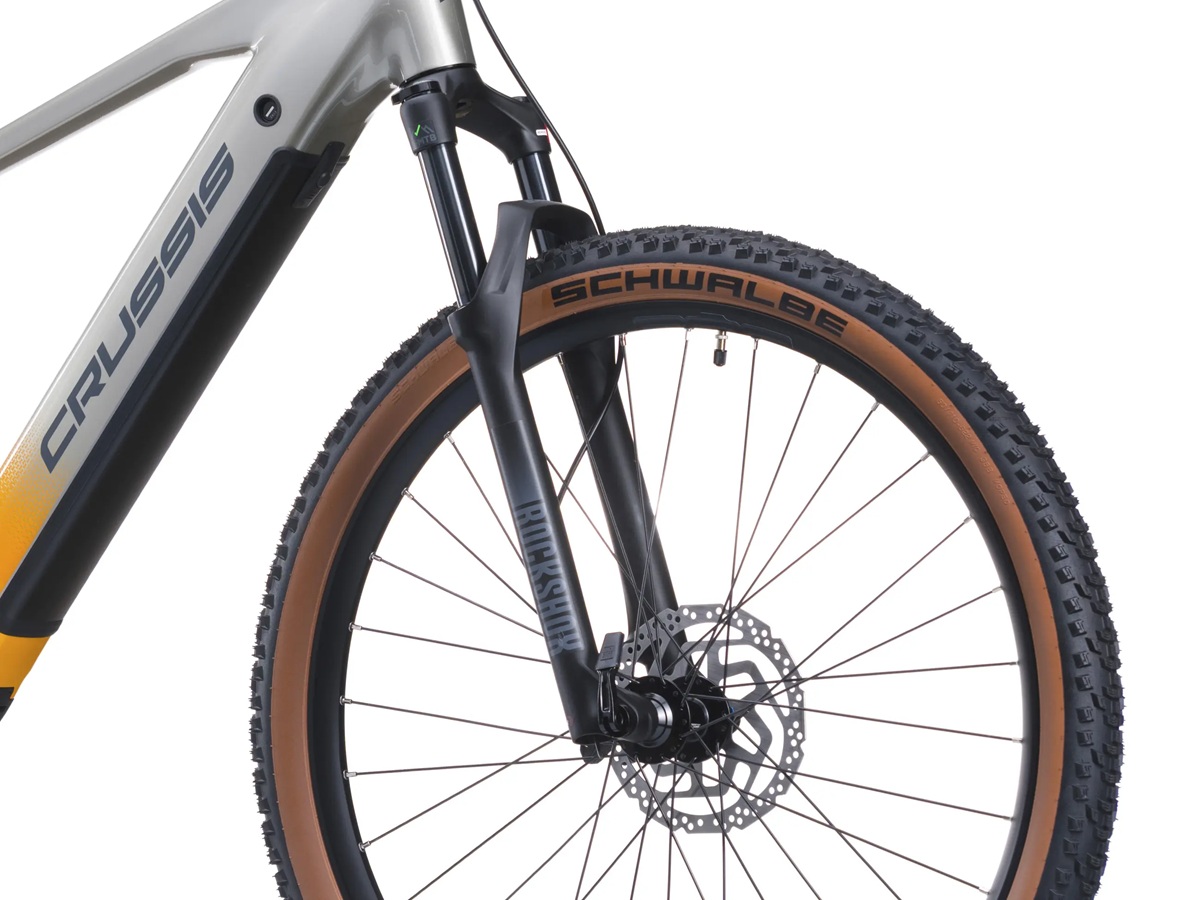

Riding on rough terrain is smoothed out by the ROCKSHOX Judy Silver TK Solo Air suspension fork with 120 mm of travel and a lockout. The durable 29-inch wheels on Crussis rims with solid BOOST axles are fitted with 2.35" wide SCHWALBE Smart Sam tires. Safe stopping power is provided by SHIMANO Deore BR-MT410 dual-piston hydraulic brakes with 180- and 160-mm rotors.

The drivetrain features a 12-speed SRAM S100 Eagle groupset with an 11-50-tooth cassette and Samox aluminum cranks. The cockpit features 780mm handlebars, a 50mm stem, and clamped grips. Comfort during longer rides is guaranteed by a SELLE ROYAL saddle mounted on an aluminum seatpost.

This model is the ideal choice for cyclists seeking extreme range, high torque, and a premium-quality aluminum frame for challenging bike paths and forest trails.

Need help choosing the right e-bike? Use our e-bike selection guide or contact us directly.

E-bike range calculator

Battery capacity: 500 Wh

300 Wh 600 Wh 900 Wh 1200 Wh

Rider weight: 75 kg

50 kg 80 kg 110 kg 140 kg

Assistance mode: 3

Min 2 3 4 Max

Route profile: Flat

Flat

Medium

Hills

The e-bike range is approximately

*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

Panasonic GXM 110 Motor

The Panasonic GXM 110 mid-drive motor is a versatile and durable drive of the new generation of GXM e-bike motors (“Great eXperience in eMotion”). It delivers up to 110 Nm of torque, features a robust aluminum casing weighing approximately 2.8 kg, and an open CAN-bus system compatible with third-party batteries. Supports OTA (Over-The-Air) updates via a mobile app. Ideal for a wide range of e-bikes, including e-MTB, SUV, and cargo models, providing smooth and powerful performance even in demanding terrain.

More information

LG Li-Ion 1000 Wh (27.85 Ah) Battery

An extreme energy reserve for the longest trips is provided by a high-capacity Li-Ion battery with premium LG cells rated at 1000 Wh (27.85 Ah). Thanks to this massive capacity, the e-bike can travel up to 200 km on a single charge. The actual range naturally depends on the route profile, the selected level of assistance, weather conditions, and riding style. The applied LG cell technology guarantees maximum stability, a long lifespan, and the trouble-free operation of the entire system even under heavy loads.

Panasonic GXM 801 Side Display

The Panasonic GXM Remote 801 is an intelligent control center for e-bikes featuring the Panasonic GXM system. It offers one of the largest and most readable color displays in its class, perfectly clear in any lighting conditions. Thanks to its sophisticated ergonomics, you can intuitively control all functions with your thumb without having to let go of the handlebars, ensuring maximum safety and comfort while riding. The control unit supports connections with the popular Komoot and Wahoo apps, offers full connectivity with the GXM App for individual assistance settings, and allows for wireless OTA software updates.

More information

Since its inception in 2012, CRUSSIS e-bikes have been among the best-selling e-bike models. Thanks to modern production, innovations (e.g., integrated batteries), colorful designs, and good marketing, it has become the dominant brand in the mid-range electric bike segment. The company prides itself on its strong price/performance ratio, stable production capacity, and wide range of accessories. CRUSSIS is currently collaborating with Czech cycling legend and three-time MTB World Champion Michal Prokop, who is involved in the development of new e-bike models.
