CRUSSIS e-Guera 7.7

Women's mountain e-bike with Bafang mid-motor, fully integrated 522 Wh battery, very modern geometry and timeless design. Built on comfortable 27.5" wheels. With a range of up to 130 km. Developed for trips of all kinds.


Choose your variant

Which frame to choose?

Rider height: 165 cm

150

210

Recommended size*:
17 - 18" (M)

*Suggested sizes are for guideline only.

Kdy ekolo dostanete?

Kdy ekolo dostanete?

Osobní odběr - Již zítra
Doručení domů - 07.12.2021

€ 1,880

€ 1,554 excl. VAT

Availability: In stock

Discount for purchasing 2 or more e-bikes: 5%

Why this e-bike?

Click to display the e-bike range calculator

E-bike range calculator

Total weight of rider (incl. equipment)
80
kg
Predominant route profile
Battery capacity
Range
For 80 kg riders, with a battery capacity of Wh when driving with average assistance after a predominantly , the range on this e-bike will be approximately
km
(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

The e-Guera 7.7 2022 Women's Mountain Electric Bike. Developed for all kinds of trips through nature, off-road, on flats, over hills and for wandering in the mountains, in places you may not have ventured before with your bike.

Thanks to its comfortable geometry, the aluminium frame is fully adapted to women's needs. The geometry of the frame ensures excellent stability, handling and reliability of the e-bike, which is mainly ensured by the BAFANG MAX drive (M400) central electric motor, rated at 250W (max 500W), with a torque of 80 Nm and a battery with Samsung 522 Wh (14.5 Ah) Li-Ion cells, which is fully integrated into the frame of the e-bike.

The use of a central electric motor in this model contributes greatly to the ideal balance of the e-bike - a modern solution used in higher-end e-bike ranges around the world.

The range of the e-bike is up to 130 km - of course, it always depends on the profile of the track and how the assistance is used, which in the case of this model is five-speed and controlled via an LCD display located on the handlebars. The colour display shows the battery level, the selected level of electric motor assistance, speed and distance travelled.

The Crussis e-Guera 7.7 is a practical and functional e-bike with a very pleasing design.

The e-bike is produced on 27.5" wheels, which are now a standard for mountain bikes, and in frame sizes 15", 17" and 19". Shifting is handled by a 9-speed Shimano Alivio or SRAM X5 derailleur and riding comfort is enhanced by Shimano BR-MT200 or SRAM Level hydraulic disc brakes, the Suntour XCM HLO DS 27.5" suspension fork is spring damped and has a travel of 100 mm. The wheels are shod with MAXXIS ARDENT 27.5 X 2.40 bike tyres, which take great care of the grip of the e-bike in the terrain.

The e-Guera 7.7 is supplied without mudguards, lighting, stand etc. However, these can be easily purchased and subsequently fitted to the e-bike. On the other hand, a USB connector for charging mobile devices is included.

The e-Guera 7.7 women's mountain e-bike is designed for off-road riding, but it can also handle the road or cycle path. It differs from the e-Fionna 7.7 in wheel size and comes on 27.5" wheels.

If you would like a model with a more powerful battery, there is the e-Guera 7.7-S/M/L or the e-Guera 8.7-S/M or the e-Guera 9.7-S/M, which also has a better Bafang M500 motor.

Centre drive system

Bafang M400



Center motor BAFANG Max Drive M400 has a very high torque - up to 80 Nm.

The motor has a pedalling sensor and torque sensor of pedalling force. The higher effort you put into pedalling the more powerful assistance you get, thanks to the intelligent drive unit, which is integrated into the motor body.



Drive unit Center
Rated power 250 W
Max. torque 80 Nm
Voltage 36/43/48 (DCV)
Motor efficiency ≥ 80%
Pedalling Sensor cadence sensor
Max. support Speed 25 km/h
Weight 3.6 kg
Operating temperature -20 - 45 ℃
Noise < 55 dB






Crussis Brand

CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.

They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr

Crussis E-bikes



Parameters

Drive type BAFANG MAX drive (M400), central, 250W (max 500W), 80 Nm
Control BAFANG LCD panel, color display
Capacity and battery type SAMSUNG Li-Ion 522 Wh / 14,5 Ah / 36V
Frame type and material Alloy 6061

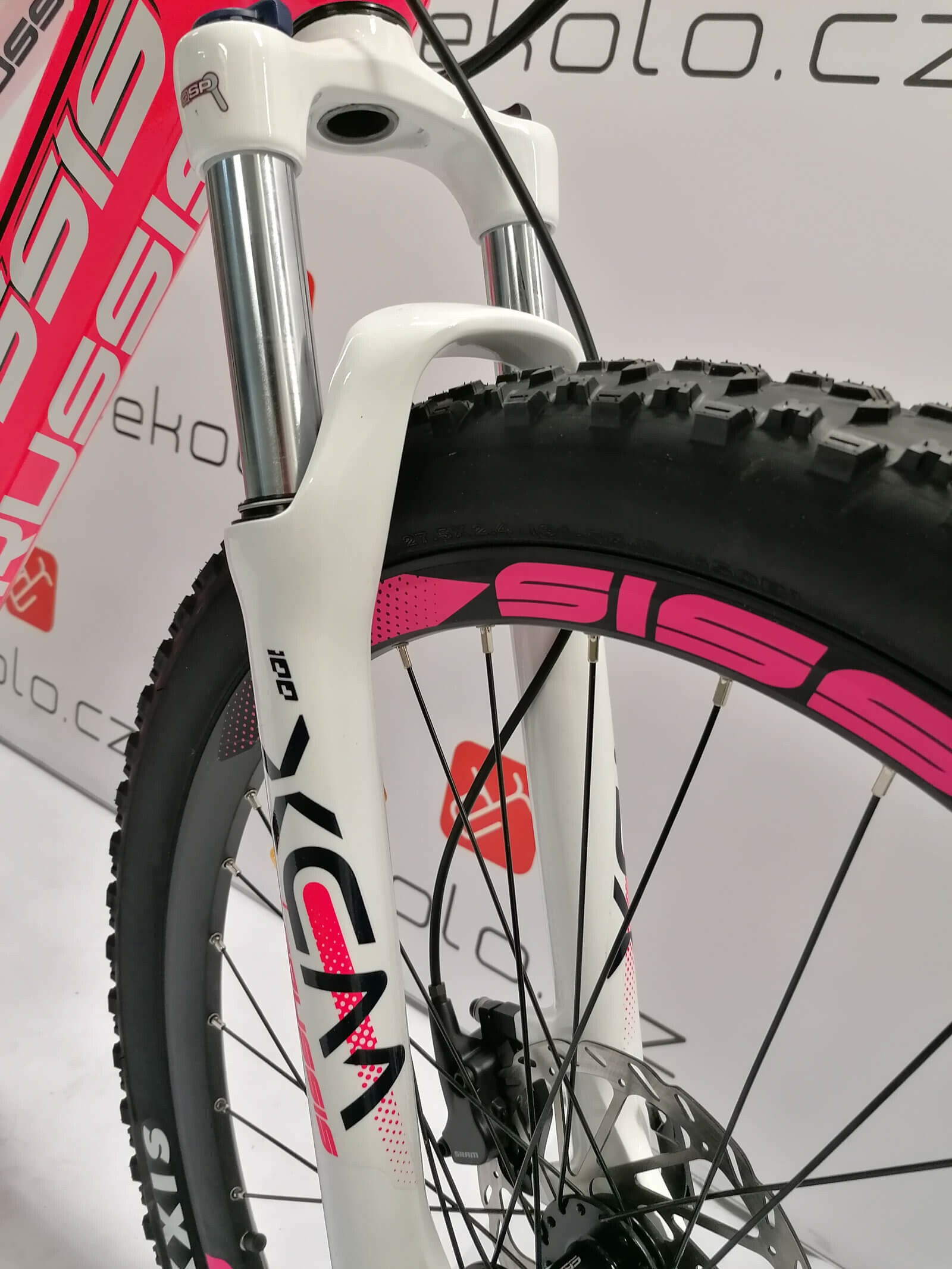

Front fork SUNTOUR XCM HLO DS 27,5", stroke 100 mm, lockable from fork
Number of gears 1 x 9
Shifters SHIMANO Alivio SL-M3100, or SRAM X5, 9 speeds
Derailleur SHIMANO Alivio RD-M3100-SGS, or SRAM X5, 9 speeds
Front brakes SHIMANO BR-MT200, or SRAM Level, hydraulic, rotor 180 mm
Rear brakes SHIMANO BR-MT200, or SRAM Level, hydraulic, rotor 160 mm
Crankset BAFANG, 170 mm
Cassette SHIMANO CS-HG200-9, or SRAM PG-920, 9 speeds
The stem CRUSSIS Al, 60 mm, fixed
Chain KMC X9
Handlebars CRUSSIS Al, 700 mm
Saddle Selle ROYAL
Seat post CRUSSIS with lock, 30,4 / 350 mm
Load capacity 120 kg
Rims CRUSSIS 27,5", 25mm
Front hub CRUSSIS disc, 32D
Rear hub CRUSSIS disc, 32D
Tyres MAXXIS Ardent 27,5 x 2,40
Pedály WELLGO
Grips CRUSSIS, 100% silicon
Head composition Semi 1 1/8
