BAFANG Max Drive M400
The motor has a pedal sensor and a torsional pedal force sensor. The more force the cyclist puts on, greater the force engine puts in thanks to the included smart control unit.

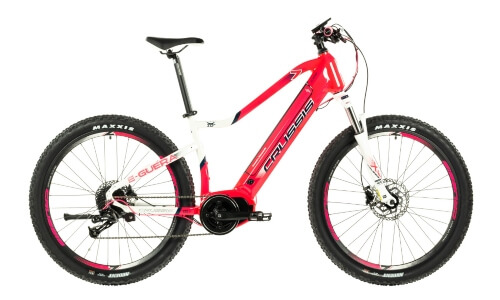

CRUSSIS e-Guera 7.6-M
Well-equipped women's mountain e-bike with modern design featuring high quality components such as Bafang central engine and 720 Wh battery while also having reliable brakes from Shimano. Together with the modern geometry and lightness of the frame, your ride will be incredibly comfortable wherever you go.
Why this e-bike?
- motor: Bafang M400, 80Nm
- battery: Samsung Li-Ion 720 Wh
- frame size: 17", 19"
- number of gears: 9
- display: Bafang M400 LCD

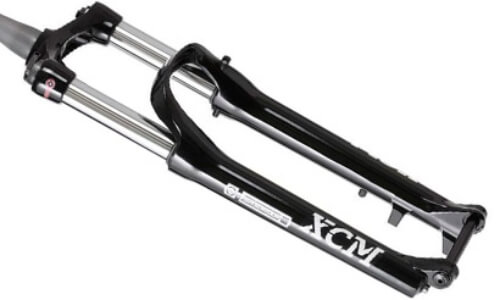

SUNTOUR XCM HLO DS 29" with 100mm of travel is very adaptable suspension. It can be easily adjusted to your comfort and it is designed to run smoothly across rough terrain while remaining very stable on a road. Suspension can also be easily locked.
Not only this e-bike features colour scheme that really stands out and great suspension to make rides smoother there is also an incredibly comfortable saddle from Italian designer brand Selle ROYAL which has been around since 1956 manufacturing bicycle seats from Vincenza, Italy. This is the right formula for ultimate comfort on any terrain.
Click to display the e-bike range calculator
E-bike range calculator
(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)
Female mountain bike e-Guera 7.6-M comes in frame sizes ranging from 17" to 19". The wheel size of 27.5" and the colour are the main differences from our e-Fionna 7.6-M model.

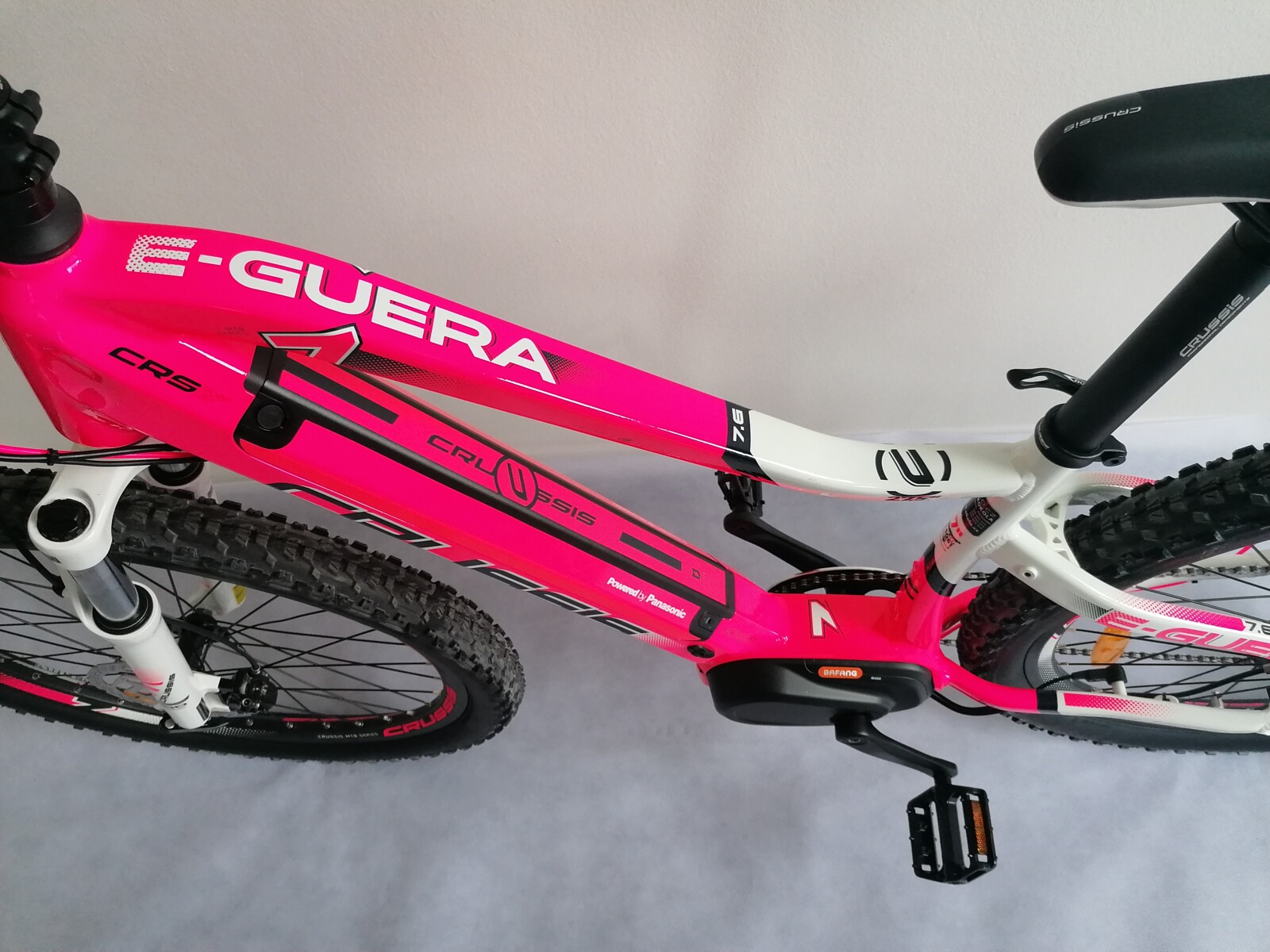

Aluminium frame design has now been improved for even more comfort and better handling regardles of terrain. Central Drive motor and battery fully integrated within the low frame tube it all contributes to perfect weight distribution.
The aluminium frame has been specificaly designed to provide excellent handling and stability on a road further enhanced by a complete integration of large Samsung 36V / 720 Wh (20 Ah) Li-Ion cells battery.
There is no question about this models capabilities and range while there is also a great focus on reliability. M400 is a centre motor from well knows brand BAFANG and while its nominal power output is rated at 250W (500W peak) the torque is 80 Nm. Being a crank drive further helps with weight distribution turning the e-bike into a perfect tool for any trip.
CRUSSIS e-Guera 7.6-M has range of up to 170km but please do bear in mind that actual range will always depend on riding style, level of boost, terrain and load / overall weight.
Wheels are 27.5" and frame sizes range from 17" to 19". Gear changes are taken care of by Shimano Alivio 1x9 and comfort is ensured by Suntour XCM HLO DS 27.5" (100 mm) while Shimano BR-MT200 hydraulic disc brakes are there for safe and reliable breaking performance.
Are you struggling to find the perfect e-bike for you or do you have any other questions? Please, don't hesitate to get in touch with us as we are always happy to help.
Display for Bafang Max Drive central drive (M400)
Motor assistance can be controlled using LCD screen located on handlebar just like it's on most e-bikes. The screen will display battery status choosen gear motor assistance speed and mileage.
CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
Parameters
| Drive type | BAFANG MAX drive (M400), 250W (max 500W), 80 Nm |
|---|---|
| Control | BAFANG LCD panel, 5 modes, colour screen |
| Capacity and battery type | SAMSUNG Li-Ion 720 Wh (20 Ah) |
| Frame type and material | Alu 6061 |
| Front fork | SUNTOUR XCM HLO DS 27,5", 100 mm stroke with lock |
| Number of gears | 1 x 9 |
| Shifters | SHIMANO Alivio SL-M3100 |
| Derailleur | SHIMANO Alivio RD-M3100-SGS |
| Shifters and derailleur | SHIMANO SL-M310 |
| Front brakes | SHIMANO BR-MT200, hydraulic, rotor 180 mm |
| Rear brakes | SHIMANO BR-MT200, hydraulic, rotor 160 mm |
| Cassette | SHIMANO CS-HG200-9, 9 speed, 11 - 36 notches |
| The stem | CRUSSIS Al, 60 mm, fixed |
| Chain | KMC X9 |
| Handlebars | CRUSSIS Al, 740 mm |
| Saddle | Selle ROYAL |
| Seat post | CRUSSIS with lock, 31,6 / 350 mm |
| Load capacity | 120 kg |
| Saddle and seat post | Selle ROYAL |
| Rims | CRUSSIS 27,5", dual layer with inserts, 25mm |
| Front hub | CRUSSIS disc, industrial bearings, 32D, fixed axis 15x100mm |
| Rear hub | CRUSSIS disc, industrial bearings, 32D, fixed axis 12x142mm |
| Tyres | MAXXIS Ardent 27.5 x 2,40 |
| Grips | CRUSSIS silicon |
| Weight including battery | 22,5 kg |
| Charger | 2 Ah |
