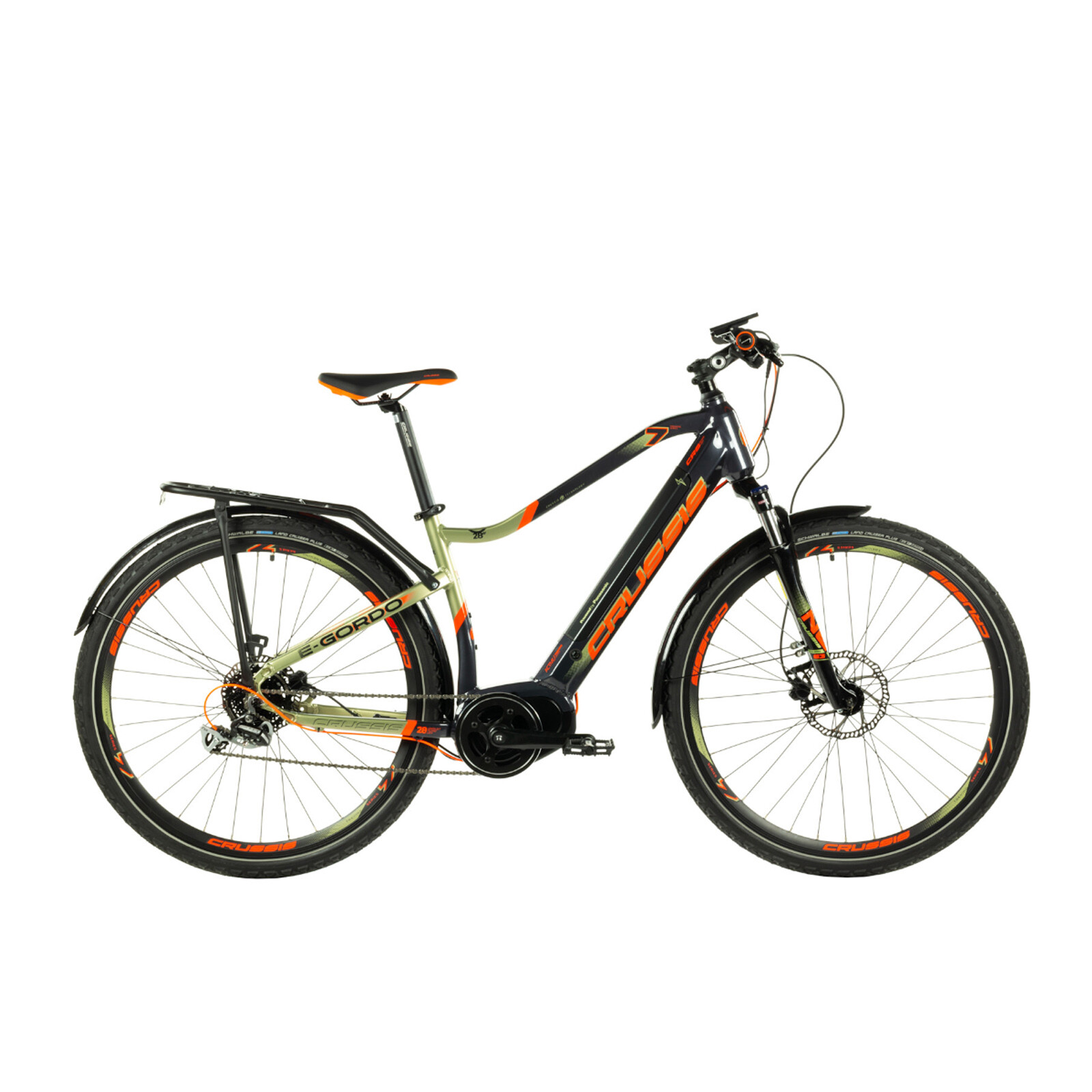

CRUSSIS e-Gordo 7.6-M
Travel e-bike with an extra strong 720 Wh battery, which will take care of a really long range. e-Gordo 7.6 is equipped with a quality Bafang engine, color LCD display located on the handlebars, carrier or fenders.
- motor: BAFANG MAX drive (M400)
- battery: SAMSUNG Li-Ion 720 Wh (20 Ah)
- frame size: 18", 20"
- number of gears: 8
- display: BAFANG LCD panel, 5 levels
- fork stroke: 63 mm

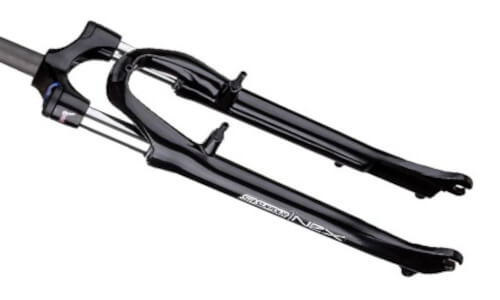

SUNTOUR NEX HLO DS 700c with 63mm of travel is a very adaptable suspension. It can be easily adjusted to your comfort and it is designed to run smoothly across rough terrain while remaining very stable on a road. Suspension can also be easily locked.

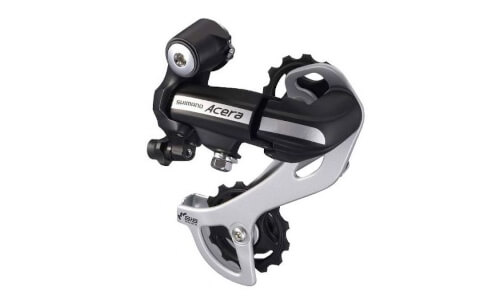

Shimano Acera RD-M360 with 8 speed gear shifter is equiped with SGS drive train and Advanced Light Action technology. Large drive train improves on durability and accuracy during gear changes while the reliability is enhanced by TOP NORMAL spring making it suitable for casual rides day in day out.
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

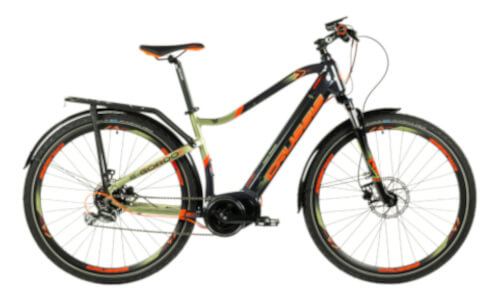

Geometry of aluminium frame on e-Gordo 7.6-M has now been adjusted to better suit demands of active male riders. The E-bike features excellent handling while maintaining great weight distribution and being very comfortable. Equipment starts with fully integrated extra large Samsung Li-Ion 720Wh battery combining sleek look with practicality.
Other key features of this e-bike are fantastic range and reliability. Centre drive electric motor BAFANG MAX drive (M400) with 250W of nominal power output (500W peak) and 80Nm of torque is the right choice for perfect weight distribution and this modern design is now used in all modern mainstream and high end electric bicycles around a world.
The included upmarket battery is rated for range of up to 170km depending on a usage, load and level of assistance having 5 boost levels available and controlled using easy to navigate LCD screen. This will display all the main data such as battery status, current assistance level, speed and trip distance while also providing free USB port for charging mobile devices on a go.
Wheels are 28" and frame sizes range from 18" to 20". Gear changes are taken care of by Shimano Acero 1x8 and comfort is ensured by Suntour NEX HLO DS 700c (63mm) while Shimano hydraulic disc brakes are there for safe and reliable breaking performance.
CRUSSIS e-Gordo 7.6-M is well equiped with rack and mudguards. If these are not needed then you may also consider e-Cross 7.6-M
Are you struggling to find the perfect e-bike for you or do you have any other questions? Please, don't hesitate to get in touch with us as we are always happy to help.
BAFANG Max Drive M400
The motor has a pedal sensor and a torsional pedal force sensor. The more force the cyclist puts on, greater the force engine puts in thanks to the included smart control unit.
Battery Samsung 720 Wh
High-capacity Samsung Li-Ion battery 720 Wh / 20 Ah. It is partially integrated into the frame of the e-bike and supplies energy to the entire system. Thanks to the central mounting, the e-bike is perfectly balanced, stable and easy to handle.
The battery is able to deliver an e-bike on a single charge up to a distance of 170 km (depending on the circumstances).
Of course, it is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it. You can fully charge a fully discharged battery in 5 hours.
Display for Bafang Max Drive central drive (M400)

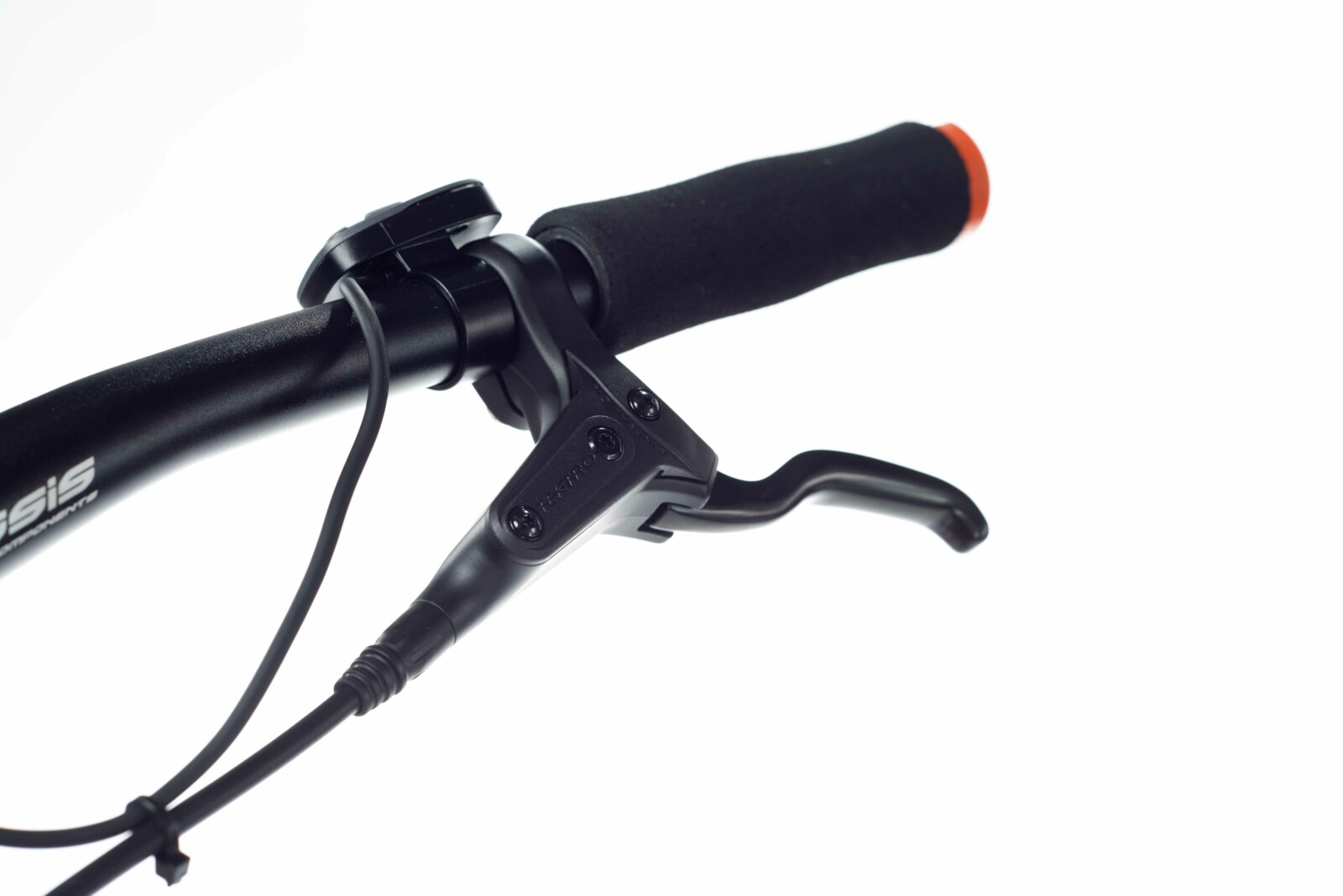

Motor assistance can be controlled using LCD screen located on handlebar just like it's on most e-bikes. The screen will display battery status choosen gear motor assistance speed and mileage.
CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
Parameters
General
| Load capacity | 120 kg |
Motor
| Centre engine | Yes |
Suspension
| Front fork | SUNTOUR NEX HLO DS 700c, 63 mm stroke, lockable from fork, |
Components
| Grips | CRUSSIS, 100% silicone |
| Rear hub | CRUSSIS disc, wreath bearing, 32D |
| Front hub | CRUSSIS disc, wreath bearing, 32D |
| Saddlebag | CRUSSIS se zámkem, 31,6, 350 mm |
| Saddle | Selle Royal |
| Racks | CRUSSIS 28", dvoustěnné, vložkované, 19mm |
| Handlebars | CRUSSIS Al, 700 mm |
| Extender | CRUSSIS Al, 105mm, stavitelný |
| Coats | SCHWALBE Land Cruiser Plus 28 x 1,75 |
Transmission
| Sorting | SHIMANO SL-M310 |
| Cassette | SHIMANO CS-HG31, 8 rychlostí, 11 - 34 zubů |
| Shifter | SHIMANO Acera RD-M360-L, 8 rychlostí |
| Number of gears | 1 x 8 |
Brakes
| Rear brakes | TEKTRO HD-M285, hydraulická, rotor 160 mm |
| Front brakes | TEKTRO HD-M285, hydraulická, rotor 180 mm |
