Elektrokola Crussis

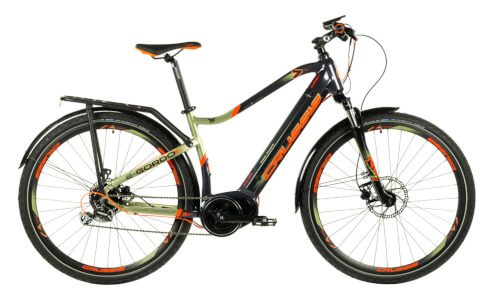

CRUSSIS e-Gordo 7.6

E-bike with comfortable geometry fully adapted for men. It is equipped with a central motor and a fully integrated battery, which makes it easy to control. With a 522 Wh battery, it will enchant those who are looking for a touring e-bike for shorter and longer trips.

Choose your variant

Which frame to choose?

Rider height: 165 cm

150

210

Recommended size*:
17 - 18" (M)

*Suggested sizes are for guideline only.

Kdy ekolo dostanete?

€ 1,676

€ 1,385 excl. VAT

Availability: IN STOCK WITH SUPPLIER

Discount for purchasing 2 or more e-bikes: 5%

Why this e-bike?

CRUSSIS e-Gordo 7.6
  • motor: BAFANG MAX drive (M400)
  • battery: PANASONIC Li-Ion 522 Wh
  • frame size: 18", 20"
  • number of gears: 8
  • display: BAFANG LCD panel, 5 levels
  • fork stroke: 63 mm
CRUSSIS e-Gordo 7.6

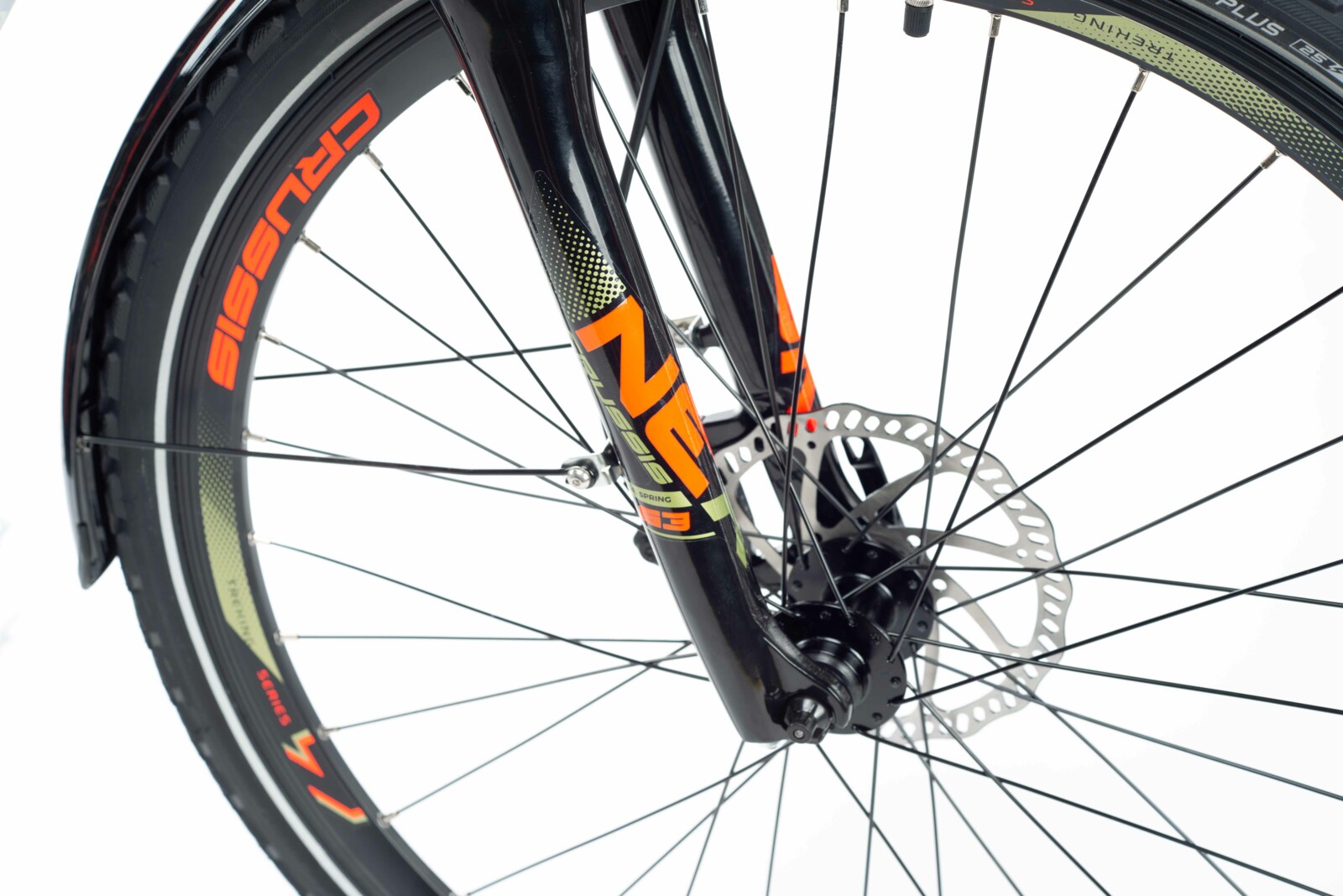

SUNTOUR NEX HLO DS 700c with 63mm of travel is a very adaptable suspension. It can be easily adjusted to your comfort and it is designed to run smoothly across rough terrain while remaining very stable on a road. Suspension can also be easily locked.

CRUSSIS e-Gordo 7.6

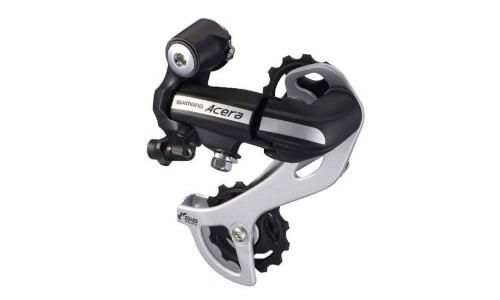

Shimano Acera RD-M360 with 8 speed gear shifter is equiped with SGS drive train and Advanced Light Action technology. Large drive train improves on durability and accuracy during gear changes while the reliability is enhanced by TOP NORMAL spring making it suitable for casual rides day in day out.

Click to display the e-bike range calculator

E-bike range calculator

Total weight of rider (incl. equipment)
80
kg
Predominant route profile
Battery capacity
Range
For 80 kg riders, with a battery capacity of Wh when driving with average assistance after a predominantly , the range on this e-bike will be approximately
km
(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

Geometry of aluminium frame on e-Gordo 7.6 has now been adjusted to better suit demands of active male riders. The E-bike features excellent handling while maintaining great weight distribution and being very comfortable. Equipment starts with fully integrated extra large PANASONIC Li-Ion 630 Wh battery combining sleek look with practicality.

Other key features of this e-bike are fantastic range and reliability. Centre drive electric motor BAFANG MAX drive (M400) with 250W of nominal power output (500W peak) and 80Nm of torque is the right choice for perfect weight distribution and this modern design is now used in all modern mainstream and high end electric bicycles around a world.

The included upmarket battery is rated for range of up to 130km depending on a usage, load and level of assistance having 5 boost levels available and controlled using easy to navigate LCD screen. This will display all the main data such as battery status, current assistance level, speed and trip distance while also providing free USB port for charging mobile devices on a go.

Wheels are 28" and frame sizes range from 18" to 20". Gear changes are taken care of by Shimano Acero 1x8 and comfort is ensured by Suntour NEX HLO DS 700c (63mm) while Shimano hydraulic disc brakes are there for safe and reliable breaking performance.

CRUSSIS e-Gordo 7.6 is well equiped with rack and mudguards. If these are not needed then you may also consider e-Cross 7.6

Are you struggling to find the perfect e-bike for you or do you have any other questions? Please, don't hesitate to get in touch with us as we are always happy to help.



Central drive BAFANG Max Drive M400

BAFANG Max Drive M400

The motor has a pedal sensor and a torsional pedal force sensor. The more force the cyclist puts on, greater the force engine puts in thanks to the included smart control unit.

Read more

Integrated battery Panasonic 522 Wh / 14,5 Ah

Battery Panasonic 522 Wh / 14,5 Ah

Li-Ion based cells in Panasonic 522 Wh / 14,5 battery are the heart of electric bike. The battery is integrated within e-bikes frame and when combined with centre drive motor it is a perfect harmony for great balance and handling while contributing to a very sleek look overall.

The battery is able to deliver an e-bike on a single charge up to a distance of 130 km. It always depends on the track profile and how the assistance is used.

The battery is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it.

Display for Bafang Max Drive central drive (M400)

Display for Bafang Max Drive central drive (M400)

Motor assistance can be controlled using LCD screen located on handlebar just like it's on most e-bikes. The screen will display battery status choosen gear motor assistance speed and mileage.

Crussis Brand

CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.

They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr

Crussis E-bikes

Parameters

Drive type BAFANG MAX drive (M400), 250W (max 500W), 80 Nm
Control BAFANG LCD panel, 5 modes, colour screen
Capacity and battery type PANASONIC Li-Ion 522 Wh (14,5 Ah)
Frame sizes 18", 20"
Frame type and material Alu 6061
Front fork SUNTOUR NEX HLO DS 700c, stroke 63 mm with lock
Number of gears 1 x 8
Shifters SHIMANO SL-M310, 8 speed
Derailleur SHIMANO Acera RD-M360-L, 8 speed
Front brakes TEKTRO HD-M285, hydraulic, rotor 180 mm
Rear brakes TEKTRO HD-M285, hydraulic, rotor 160 mm
Crankset BAFANG, 38 tines, 170 mm
Cassette SHIMANO CS-HG31, 8 speeds, 11 - 34 tines
The stem CRUSSIS Al, 105 mm, adjustable
Chain KMC X8
Handlebars CRUSSIS Al, 700 mm
Saddle Selle ROYAL
Seat post CRUSSIS with lock, 31,6 / 350 mm
Load capacity 120 kg
Rims CRUSSIS 28", dual layer with inserts 19mm
Front hub CRUSSIS disc, ring bearings, 32D
Rear hub CRUSSIS disc, ring bearings, 32D
Tyres SCHWALBE Land Cruiser Plus 28 x 1,75
Pedály WELLGO, aluminium
Grips CRUSSIS, 100% silicon
Head composition Semi 1 1/8
