ELEKTROKOLA CRUSSIS

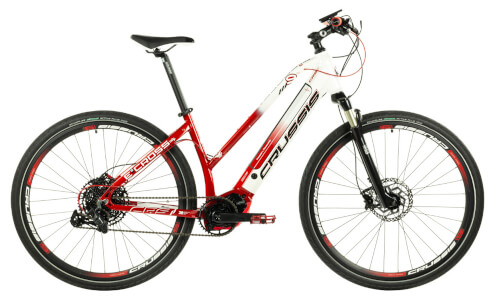

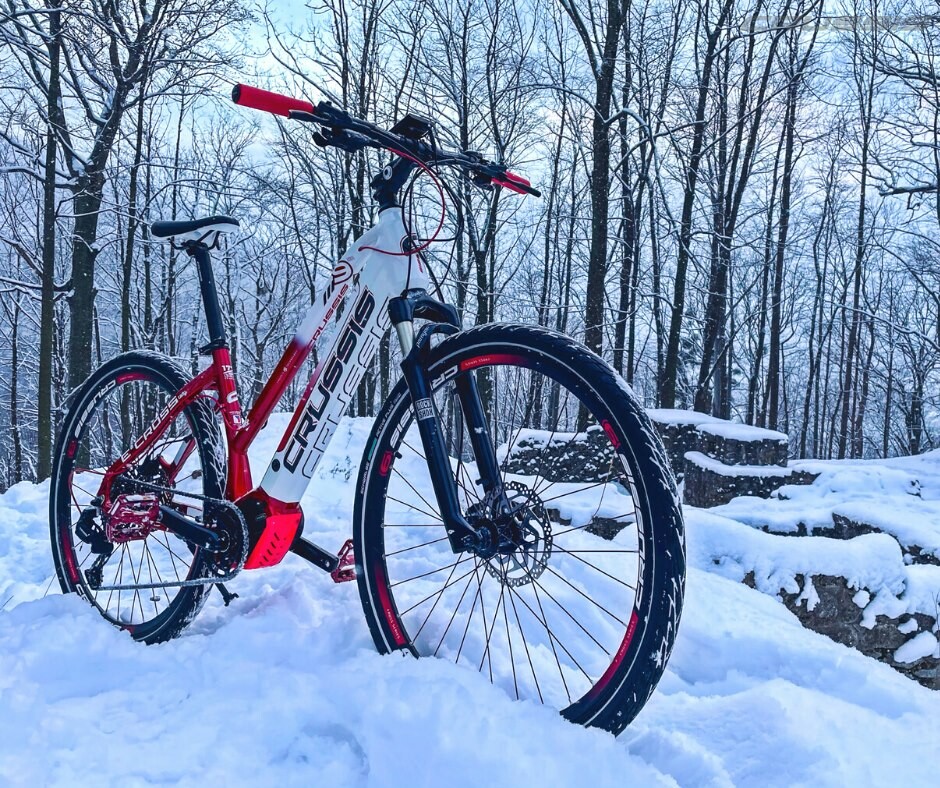

CRUSSIS e-Cross lady 9.6-M

Women's cross electric bike with a powerful Bafang engine and a battery with a capacity of 720 Wh designed for all kinds of trips.

Discount for purchasing 2 or more e-bikes: 5%

Choose from the variants: info

Why this e-bike?

ekolo.cz upozorňujeIn greatebike.eu, THE BATTERY AND CHARGER IS ALWAYS INCLUDED IN THE PRICE OF THE E-BIKE

Click to display the e-bike range calculator

E-bike range calculator

Total weight of rider (incl. equipment)
80
kg
Predominant route profile
Battery capacity
Range
For 80 kg riders, with a battery capacity of Wh when driving with average assistance after a predominantly , the range on this e-bike will be approximately
km
(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

Centre drive system

Bafang M500

For more than 10 years, Bafang has been one of the world's largest manufacturers of electric bicycle components. In Europe, its electric motors have become the de facto standard. In the last five years however, it has focussed intensively on the production of central motors. In 2014, it introduced an integrated centre drive with the official designation of MAX, which soon become generally known as MaxDrive. MaxDrive is used in many types of 250W / 36V electric bicycles. Bafang also manufactures hub (front and rear) motors, making it the long-term leader on the world market.









Motor type central
Power 250W
Max. torque 95Nm
Voltage 36/43/48 (DCV)
Motor efficiency ≥ 80%
Pedalling sensor integrated pressure sensor
Max. speed of assist 25 km/h
Weight 3.6 kg
Operating temperature -20 to 45 ℃
Noise < 55 dB



It is useful especially in the segments of mountain e-bikes and speed e-bikes, which are fully consistent with its parameters. The m500 is equipped with a torsion (pressure) sensor, the control unit evaluates the force of the rider's pedalling and regulates the motor's power accordingly. The electric motor offers a power output of 250 watts and a torque of 95 newton metres. As with the M420, the maximum speed is 25 km/h or 45 km/h, depending on the application and the applicable legislation. The motor is characterised by smooth and quiet operation, especially when changing gears, even when going uphill. The motor supports a Gear Sensor.





CRUSSIS Electrobikes has been an importer of its own brand of electric bicycles since 2012. Ekolo.cz offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.





These might interest you:



                      E-Bike Buyer's Guide    Everything about batteries

                      Delivery of your e-bike    Everything about e-bike motors









Parameters

Drive type BAFANG M500, central, 250W (max 500W), 95 Nm
Control BAFANG LCD panel
Capacity and battery type SAMSUNG Li-Ion 36V / 720 Wh (20 Ah)
Frame type and material Alu 6061

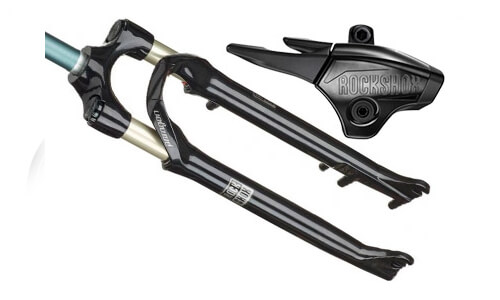

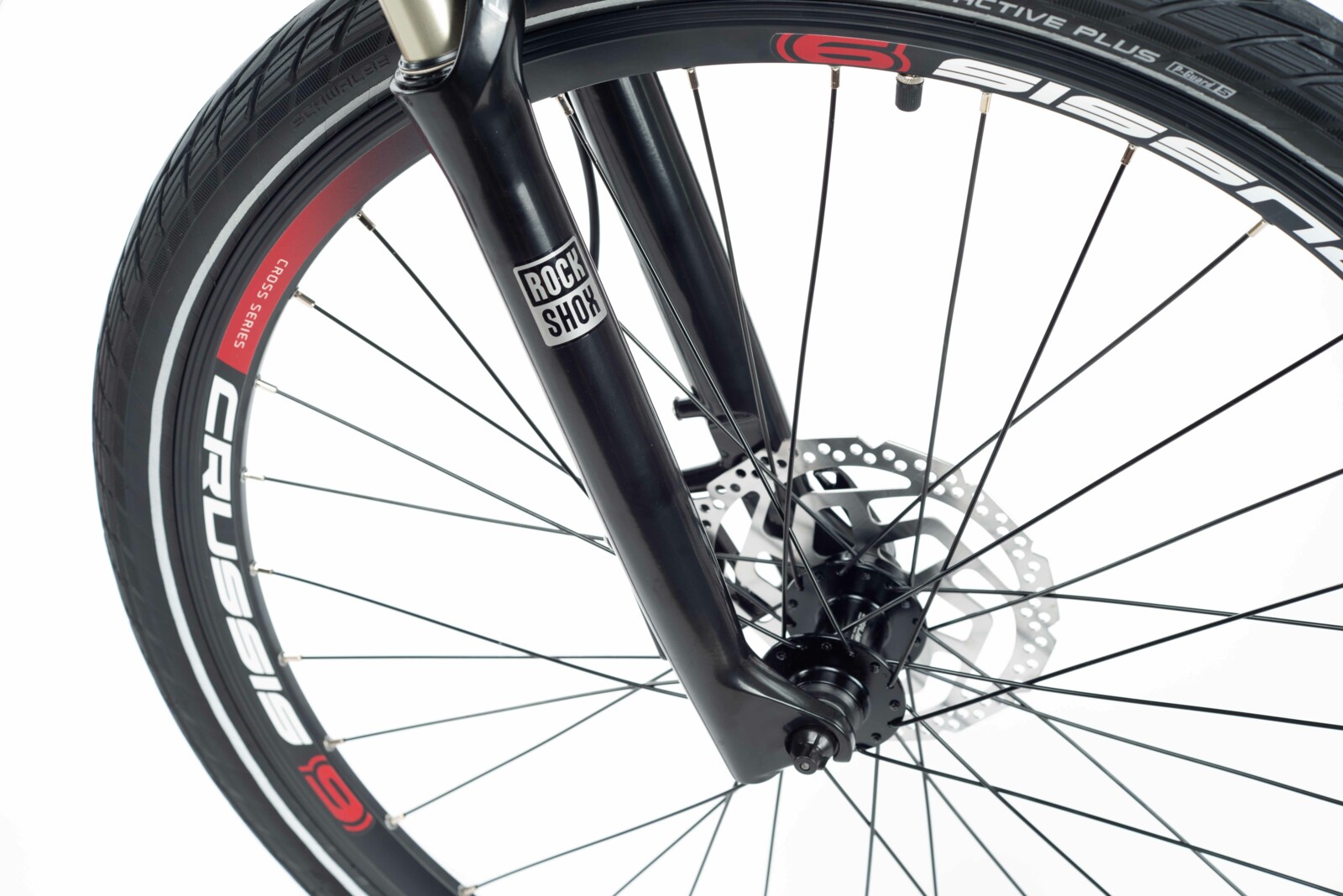

Front fork ROCKSHOX FS Paragon Gold RL R Solo Air 700c, stroke 65 mm
Number of gears 1 x 12

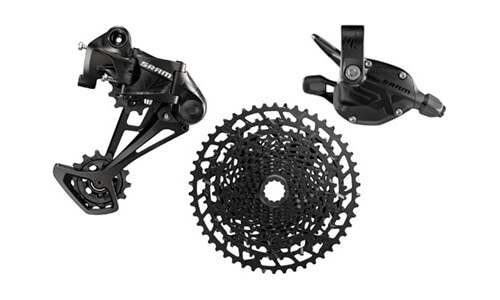

Shifters SRAM SX Eagle
Derailleur SRAM SX Eagle, 12 speeds
Front brakes SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm
Rear brakes SHIMANO Deore BR-MT410, hydraulic, rotor 160 mm
Crankset SRAM X-SYNC 2 38Z / BAFANG 170 mm
Cassette SRAM CS-PG1210 Eagle, 11-50z
The stem CRUSSIS Al, 105mm
Chain SRAM Eagle SX 12s
Handlebars CRUSSIS Al, 680 mm
Saddle Selle ROYAL
Seat post CRUSSIS se zámkem, 31,6 / 350 mm
Load capacity 120 kg
Rims CRUSSIS 28"
Front hub CRUSSIS disc
Rear hub CRUSSIS disc
Tyres SCHWALBE Energizer Active Plus 28 x 2,00
Pedály WELLGO
Grips CRUSSIS, 100% silikon
Head composition Semi 1 1/8
