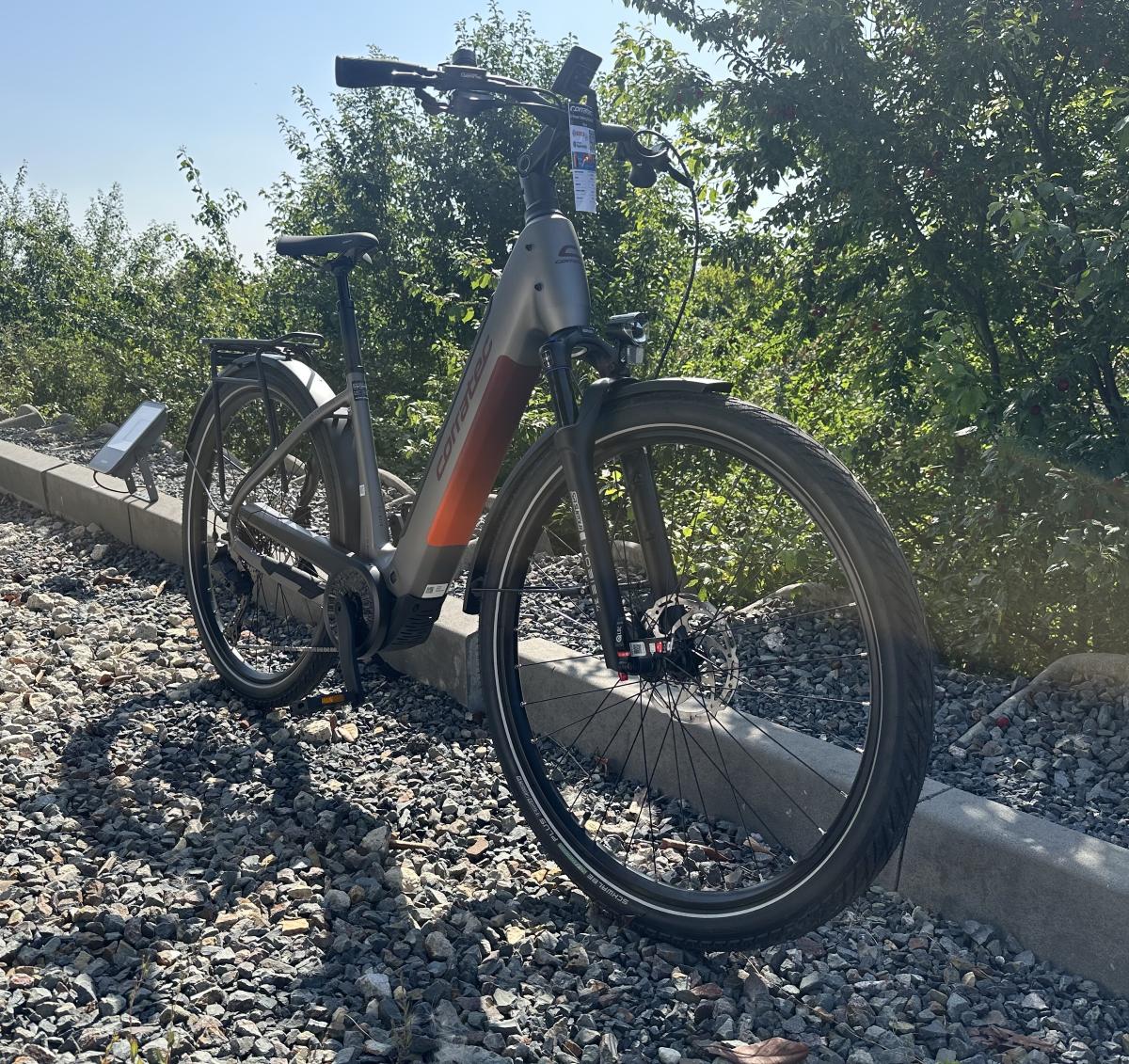

CORRATEC E-Power Trekking 28 CX8 12S Wave
Stylish Trekking companion with elegant design for long and short trips. The 5th generation BOSCH Performance Line CX Smart System motor, 800 Wh battery, suspension fork, 28" wheels and 11-speed Shimano CUES gearing will get you to your destination safely and relaxed.
Discount
when buying 2 or more e-bikes:
5%
Engine
BOSCH Performance Line CX Smart System
Engine power
85 Nm
Battery capacity
800 Wh
Gearbox
11 speeds
Wheels
28"
Shock absorber stroke
80 mm

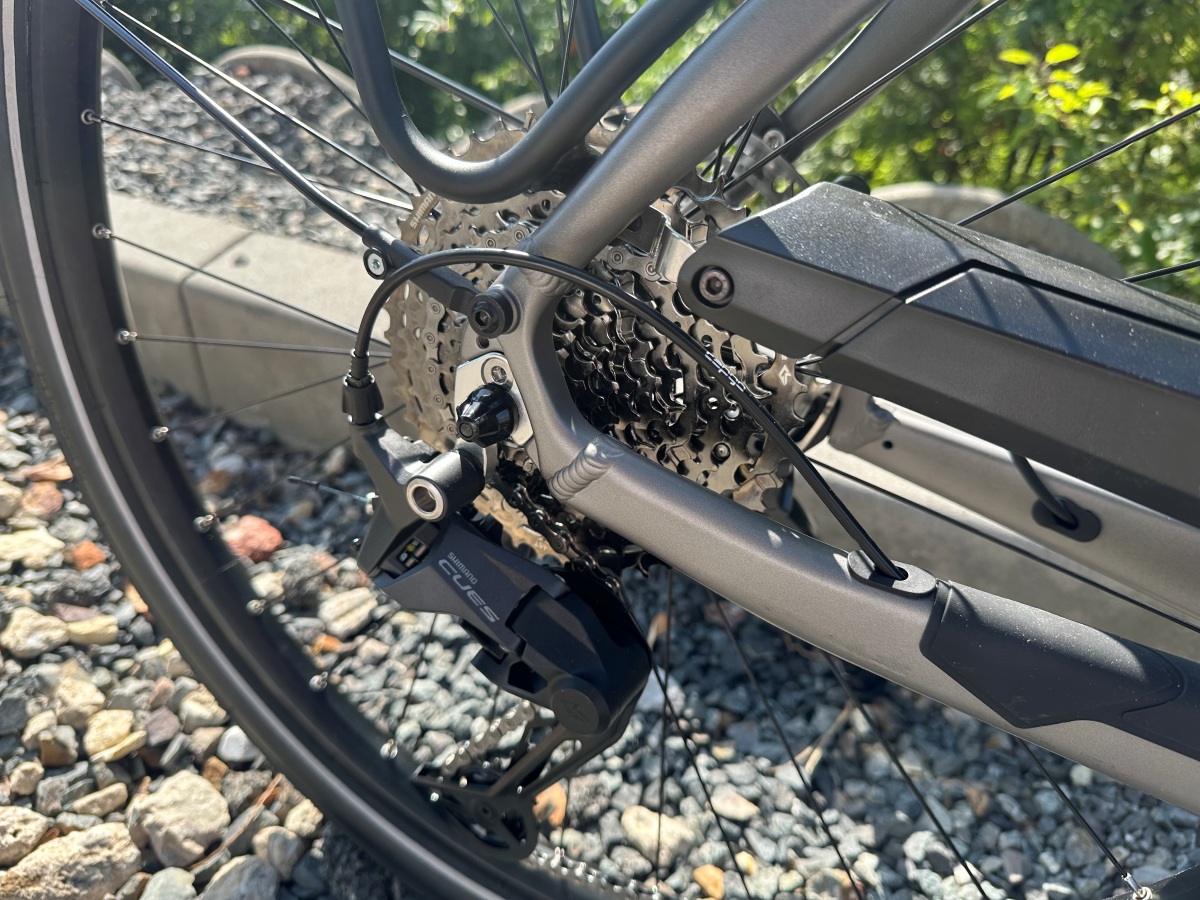

Shimano CUES shifting set (11 speed)
Shimano CUES is a modern, durable and reliable drivetrain designed for trekking and urban bikes. It uses LINKGLIDE technology to ensure smooth shifting and longer component life.
- Ergonomic shift leverdesign for comfortable operation
- Fast and precise shifting between 11 gears
- 11-45 tooth range for a wide range of terrains
- LINKGLIDE technology for smooth and durable shifting
- Long service life compared to conventional drives
- Designed for maximum durability and smooth operation
This kit is ideal for riders looking for reliable and durable components with smooth and precise shifting, suitable for both long trips and daily commuting.
Fork SR SUNTOUR NX1 AIR LO DS
Lightweight and powerful air suspension fork designed for trekking and cross bikes. Offers 80mm of travel, providing the ideal balance between comfort and riding efficiency on paved and lighter unpaved roads.
- Air suspension (AIR) - allows precise adjustment of stiffness to the rider's weight
- Lockout (LO) - locks the fork for more efficient pedaling on flat sections
- Damping System (DS) - provides smooth and controlled shock absorption
- 15x110 mm axle (Boost) - increases front wheel stiffness and stability
- 80 mm travel - ideal for trekking and cross bikes, provides comfort when riding over uneven terrain
This fork is a great choice for riders looking for a combination of comfort, reliability and light weight for their adventure rides and everyday use.
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
The CORRATEC E-Power T rekking bikes are characterised by their elegant design and high comfort. Practical features such as the Direct Mount rack with integrated rear light make both short commutes and long trips easy. Thanks to state-of-the-art technology and ergonomic geometry, you'll experience maximum comfort. Our main goal is to get you to your destination safely and with a sense of relaxation.

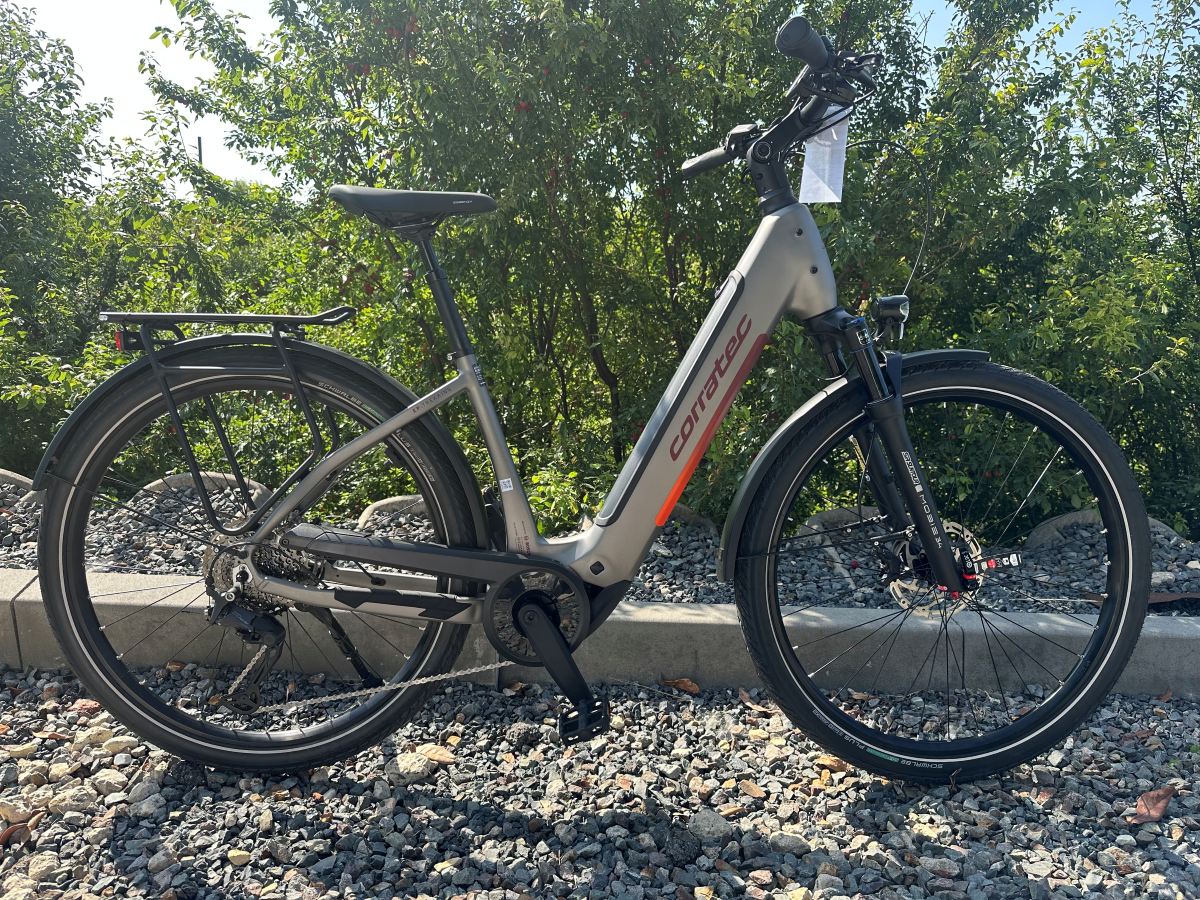

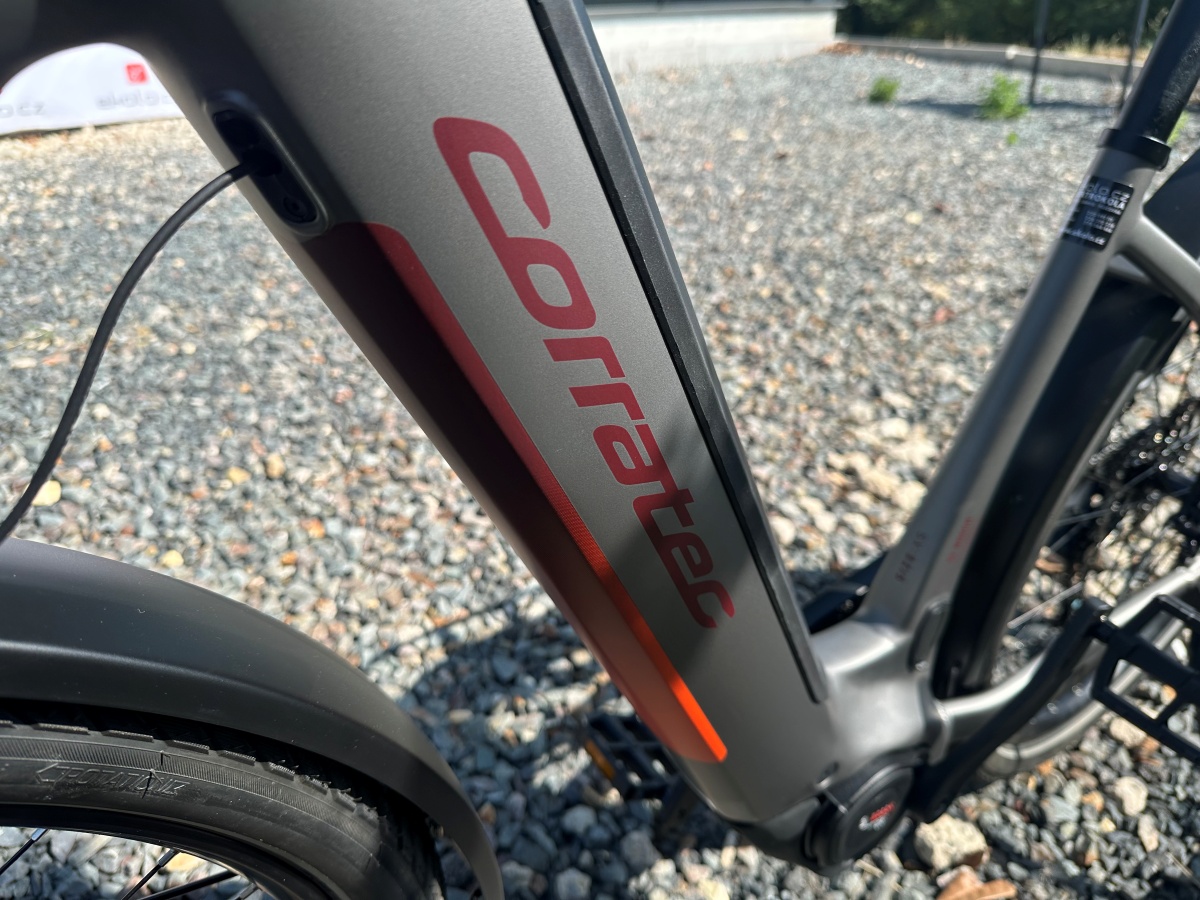

The Wave frame features a sleek design and low rise for easy mounting and dismounting. Thanks to Shadow Edge Tube 3.0 technology, the battery is fully integrated into the frame, improving stability and safety while maintaining a sleek look.

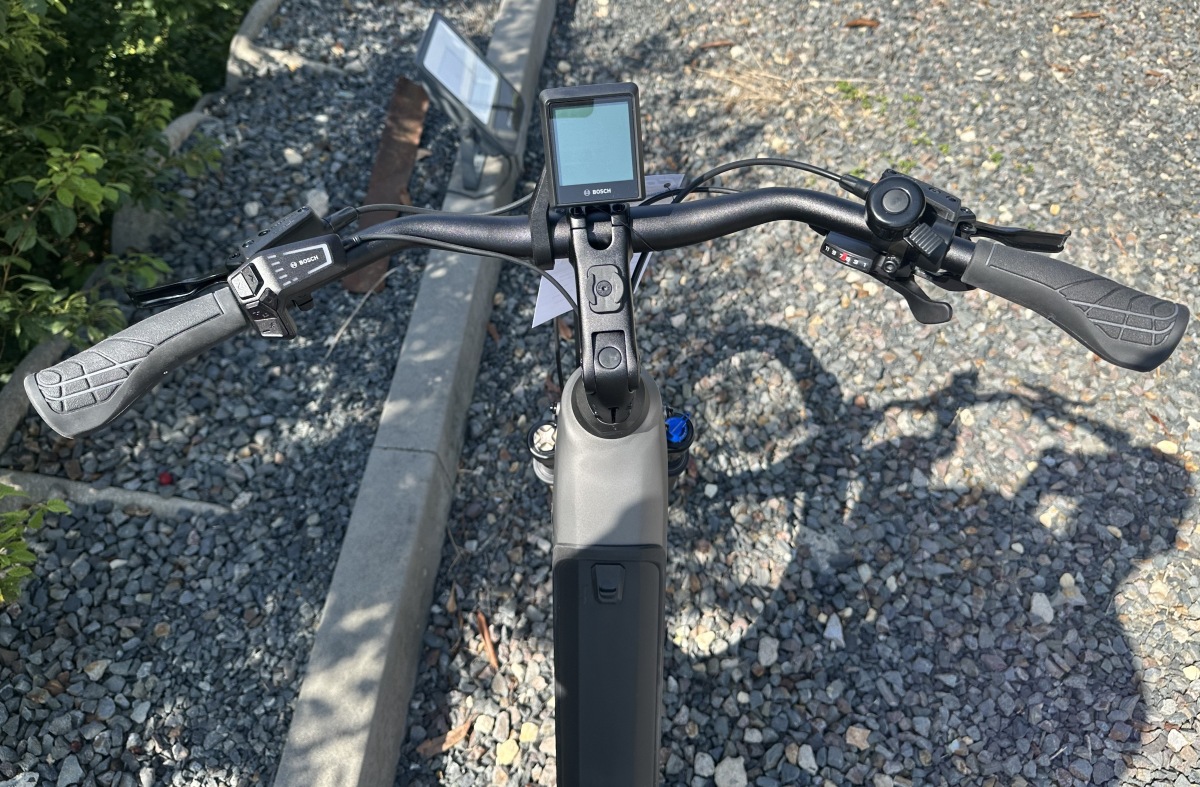

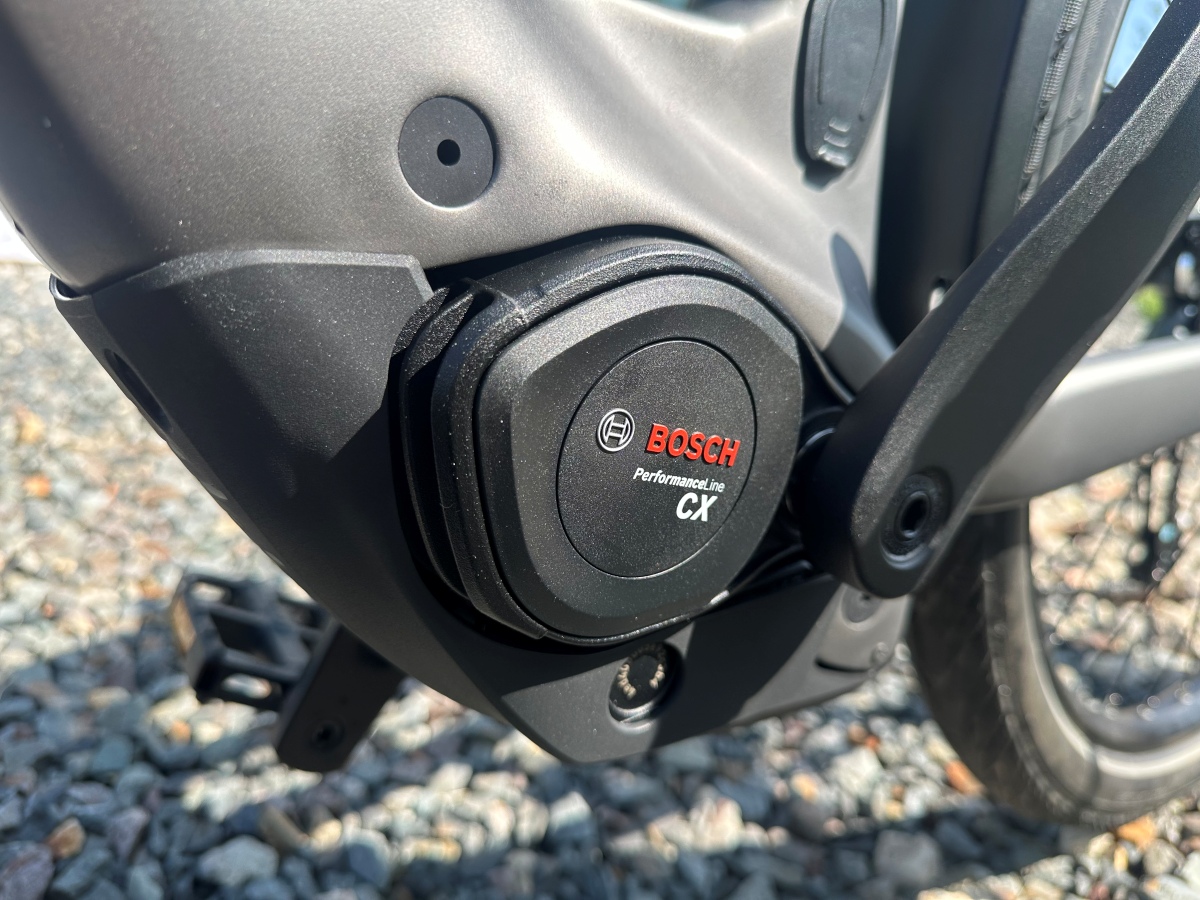

The excellent performance of the 5th generation Bosch Performance Line CX Smart System motor with 85 Nm of torque is accompanied by a capacious 800 Wh Bosch PowerTube battery and a clear Bosch Intuvia 100 display to show your activities.
Stopping power and its reliable delivery are delivered by TEKTRO HD M535 four-piston brakes with 180 mm discs. With SCHWALBE ENERGIZER ACTIVE PLUS tyres you can be sure of maximum control and comfort with minimum rolling resistance. Also contributing to comfort is the SR SUNTOUR NX1 AIR LO DS 29" 15x110mm suspension front fork boasting 80mm of smooth travel or the comfortable SELLE ROYAL ESSENZA Lady saddle perched on a suspension seatpost.
No hill will take you by surprise thanks to the durable Shimano CUES 11-speed shifting system and wide gear range. LINKGLIDE technology helps extend the life of the drivetrain so you can go further!

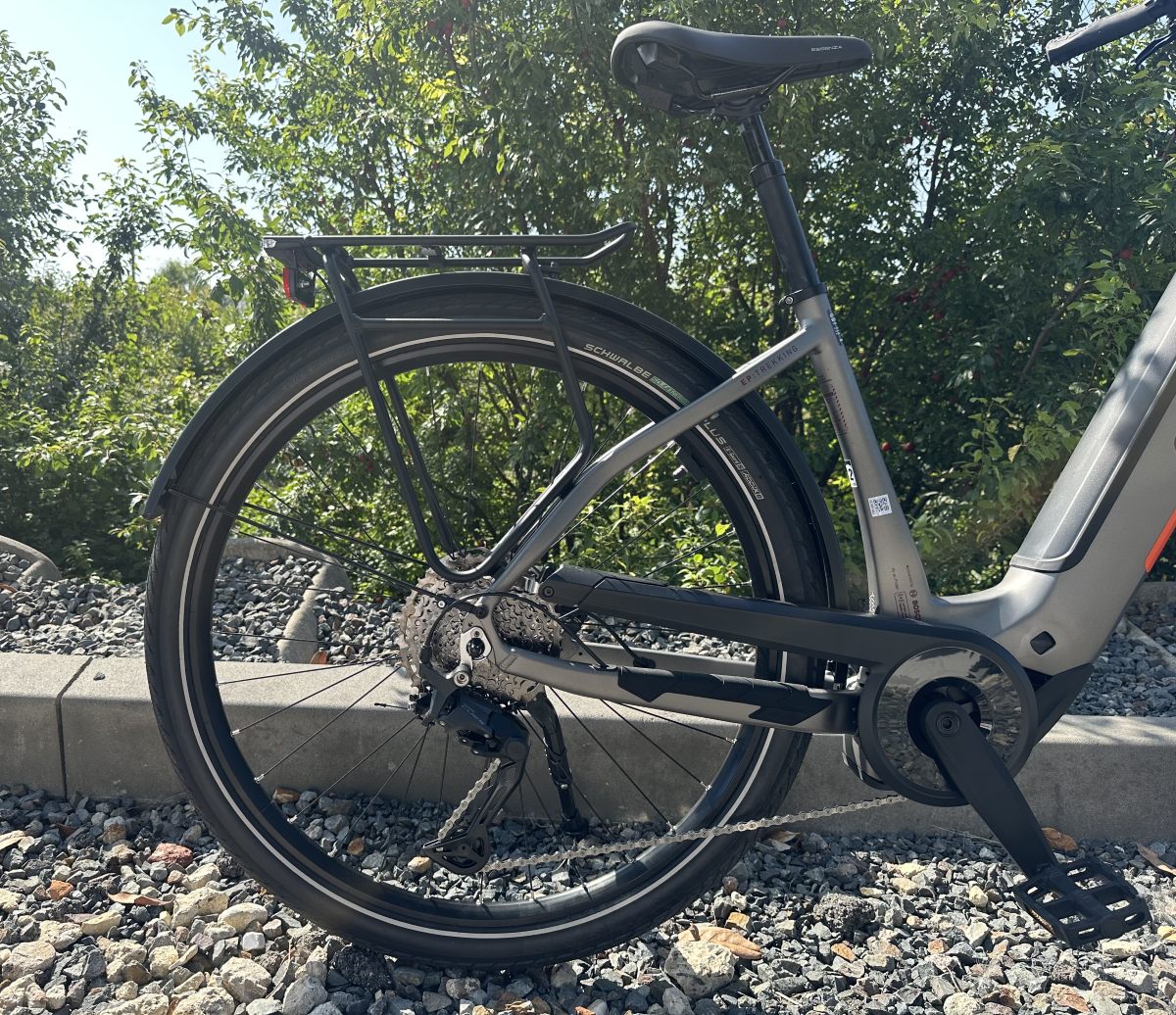

CORRATEC e-bikes are equipped with premium components. Unlike standard mountain e-bikes, the equipment here includes a luggage rack with direct mounting or front and rear lights.
Need help choosing the right e-bike? Use our guide to choosing an e-bike, or contact us directly.
[page-b991d268-073e-40f8-8339-ba62a85add3e]
Corratec has been around since 1970 and everytime a new model is released it goes through rigirous testing by the founder of Corratec - Konrad Irlbacher.
Products from this brand offer revolutionary technologies such as Bosch motors, Inside Link and Fusion Tube Edge to ensure Corratec e-bikes remain one the worlds best electric bicycle brands when it comes to balance, comfort and safety.
Parameters
General
| Model year | 2025 |
| Weight incl. battery | 28 kg |
| Brand | Corratec |
| Colour | Grey |
| Load capacity | 140 kg |
Motor
| Motor manufacturer | Bosch |
| Torque | 85 Nm |
| Centre engine | Yes |
Battery
| Exact capacity | 800 Wh |
| Battery capacity | 800 - 899 Wh, 700 - 799 Wh |
Suspension
| Front fork | SR SUNTOUR NX1 AIR LO DS 29“ 15x110mm, 80mm |
Components
| Saddle | SELLE ROYAL ESSENZA Lady |
| Handlebars | ALLOY, 31.8mm, 660mm, 29° Backsweep |
| Extender | ALLOY 0-90° adjustable, 31.8 90/105mm ICR SP Connect |
| Coats | SCHWALBE Energizer Active Plus |
Transmission
| Shifter | Shimano RD-U6020-11 CUES SGS |
| Sort by | Shimano SL-U6000-11R CUES |
| Cassette | Shimano CS-LG400-11 CUES, 11-45T |
| Number of gears | 1x11 |
Brakes
| Rear brakes | Tektro HD M535, 180 mm |
| Front brakes | Tektro HD M535, 180 mm |
