CANNONDALE Mavaro Neo 5 LSTH
A reliable, comfortable, powerful and practical electric bike for everyday commuting and recreation. With low entry, Bosch mid-motor, 500 Wh battery and front suspension. Mudguards, lighting and a 25 kg rack are standard.
Need help?
% Discount on purchase
Bosch Active Line
40 Nm
500 Wh
9 speeds
27.5" or 29"
63 mm
Shimano CUES 4000, 9-speed
Shimano CUES 4000 9-speed is a modern series of components designed for everyday riding, trekking, gravel, and e-bikes. Thanks to LINKGLIDE technology, the drivetrain offers significantly smoother and quieter shifting, as well as a cassette and chain that last several times longer than conventional systems. The nine-speed design provides sufficient gear range for city, bike paths, and light terrain. Shifting is precise and reliable even under load.
The low frame allows for comfortable mounting without having to lift your leg high.
Ideal for the city and frequent stops. When stopping, you can easily reach the ground with your feet, which increases stability and confidence when riding.
A great solution for seniors, people with limited mobility, smaller riders, and riders with back or knee pain.
Perfect for commuting to work, shopping, or recreational rides—often in combination with racks, baskets, and fenders.
Today's low-step e-bikes offer sturdy frames, sleek looks, and full-fledged performance.
The Cannondale Mavaro Neo 5 LSTH is a modern e-bike for 2024 that combines performance, comfort and reliability. With a maximum load capacity of 120kg and a robust design, it's the ideal choice for urban environments and lighter cross-country trails.
At the heart of the powertrain is a Bosch Active Line mid-motor with 40Nm of torque for smooth and efficient assistance during the ride. The e-bike is equipped with an integrated 500 Wh battery that provides ample range on a single charge. Charging is done via a Bosch 2A charger.
Riding comfort on uneven surfaces is provided by the SR Suntour Mobie A32 front suspension fork with 63 mm travel, adjustable spring preload, locking option and light mount.
Components include a 25mm wide, 32-hole, double-wall Alloy frame rim, Shimano MT400B fixed axle 15mm front hub and Shimano Nexus 7 rear hub with internal gearing. Ergonomic Cannondale Ergo Fitness Dual Density grips and a Selle Royal Vivo Active Ergo saddle contribute to a comfortable feel on longer rides.
The e-bike features a Shimano CUES 4000 9-speed derailleur, Shimano Cues 4020 derailleur and Shimano CUES 400 cassette. Reliable braking performance is provided by Shimano MT400 hydraulic disc brakes with 180mm discs front and rear.
The bike also includes a Cannondale 3 seatpost, Cannondale 3 alloy stem and Cannondale E-Series Alloy handlebars with 680mm width.
The Cannondale Mavaro Neo 5 LSTH is a great choice for those looking for a reliable and powerful e-bike for everyday commuting and leisure activities, thanks to its combination of cutting-edge technology and quality components.
Need help choosing the right e-bike? Use our guide to choosing an e-bike or contact us.
E-bike range calculator
Flat
Medium
Hills
The e-bike range is approximately
*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

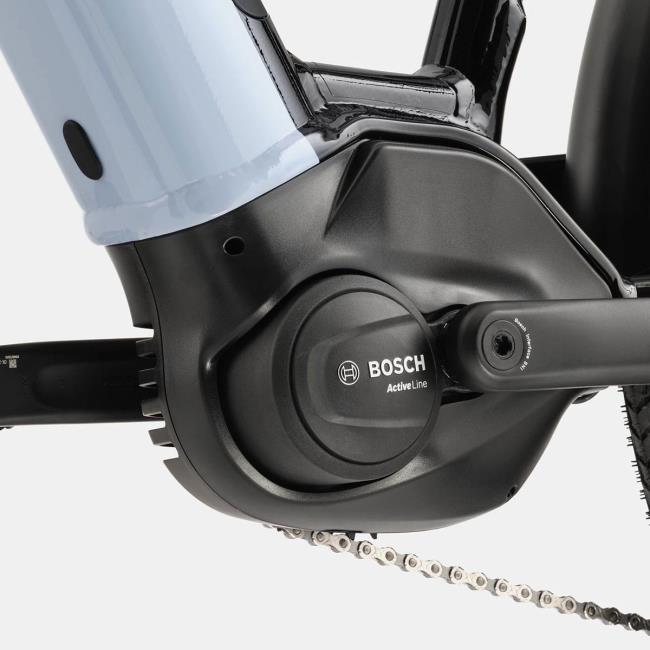

BOSCH Active Line
The Bosch Active Line - Quiet and natural drive for city and bike paths. It is designed to provide smooth and natural assistance that closely resembles the feeling of riding a conventional bike.
It offers torque of up to 40 Nm. Thanks to a sensitive pedal sensor, the assistance responds immediately and precisely to the force exerted by the rider. At speeds above 25 km/h, the motor disconnects completely, without any resistance when pedaling. It excels in low noise and refined operation, which increases comfort on every ride. The compact design of the motor contributes to good weight distribution and easy handling of the bike.
Battery Bosch PowerTube 500 Wh
The PowerTube 500 battery allows trekking and mountain e-bikes to take them long distances. Thanks to its compact size and minimalist design, the battery can be integrated into the e-bike to achieve the optimal effect. Sophisticated lithium-ion battery technology that can be integrated into the frame ensures a carefree driving experience. The safety latch prevents the battery from falling out even in difficult terrain. However, the batteries can still be easily removed.
BOSCH LED remote
Fully interconnected LED control unit. The LED remote control is also ready for demanding sports riders. It has all the classic functions you need. More flexibility, comfort and safety. The LED remote connects the e-bike to the eBike Flow app. This makes it possible to show all important riding data, such as ride length or distance travelled, via smartphone and share it. The LED remote control can be individually customised and, in addition to its attractive design, boasts optimal ergonomics and intuitive operation.
Cannondale is one of the most popular premium electric bike brands in the world. Its e-bikes feature modern geometry and a low centre of gravity, allowing for an unforgettable riding experience. Whether you're looking for a top quality touring or MTB e-bike, Cannondale is an excellent choice. What makes Cannondale even more special is that it is one of the few e-bike manufacturers to offer a lifetime warranty against manufacturing defects in materials
The exclusive distributor of Cannondale and GT e-bikes and replacement accessories and parts is ASPIRE SPORTS, s.r.o.
Contact: ASPIRE SPORTS, s.r.o., Jinacovice 514, 664 34 Kurim, Czech republic, e-mail: aspire@aspire.eu, phone: +420 532 199 550, web: www.aspire.eu
Parameters
General
| Model year | 2024 |
| Brand | Cannondale |
| Load capacity | 120 kg |
| Colour | Azure |
Motor
| Engine manufacturer | Bosch |
| Engine type | Bosch Active Line |
| Torque | 40 Nm |
| Centre engine | Yes |
Battery
| Battery capacity | 500 - 599 Wh |
| Charger | Bosch 2A |
| Precise capacity | 500 Wh |
Transmission
| Sort by | Shimano CUES 4000, 9-speed |
| Number of gears | 1x9 |
| Shifter | Shimano Cues 4020 |
| Cassette | Shimano CUES 400, 11-36, 9-speed |
Components
| Saddle | Selle Royal Vivo Active Ergo |
| Saddlebag | Cannondale 3, 6061 Alloy, 31.6x350mm |
| Front hub | Shimano MT400B, 110x15 mm thru-axle |
| Rear hub | Shimano Nexus 7, 7-speed internal gear hub |
| Grips | Cannondale Ergo Fitness Dual Density, Lock-on |
| Coats | Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584, Continental eContact Plus w/ reflective sidewalls 29x2.20" 55-622 |
| Racks | Alloy, double wall, 32 hole, 25 mm internal width, disc-specific |
| Extender | Cannondale 3, Alloy, 31.8mm clamp |
| Handlebars | Cannondale E-Series Alloy, ergo backsweep, 680mm |
Brakes
| Rear brakes | Shimano MT400, hydraulic disc, 180 mm |
| Front brakes | Shimano MT400, hydraulic disc, 180 mm |
Suspension
| Front fork | SR-Suntour Mobie A32, 63 mm travel, coil with preload adjuster, lockout, crown light mount, 44 mm offset |
