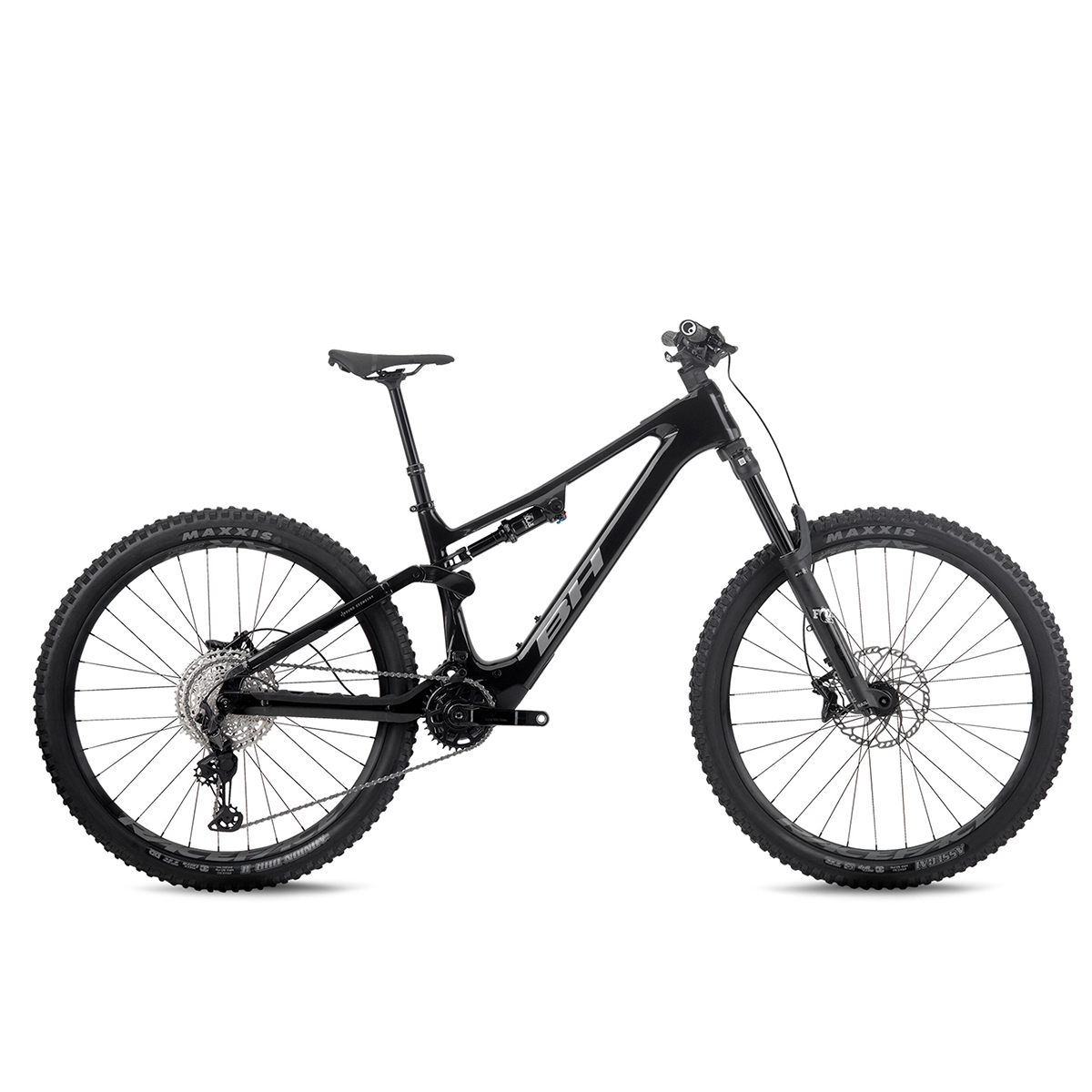

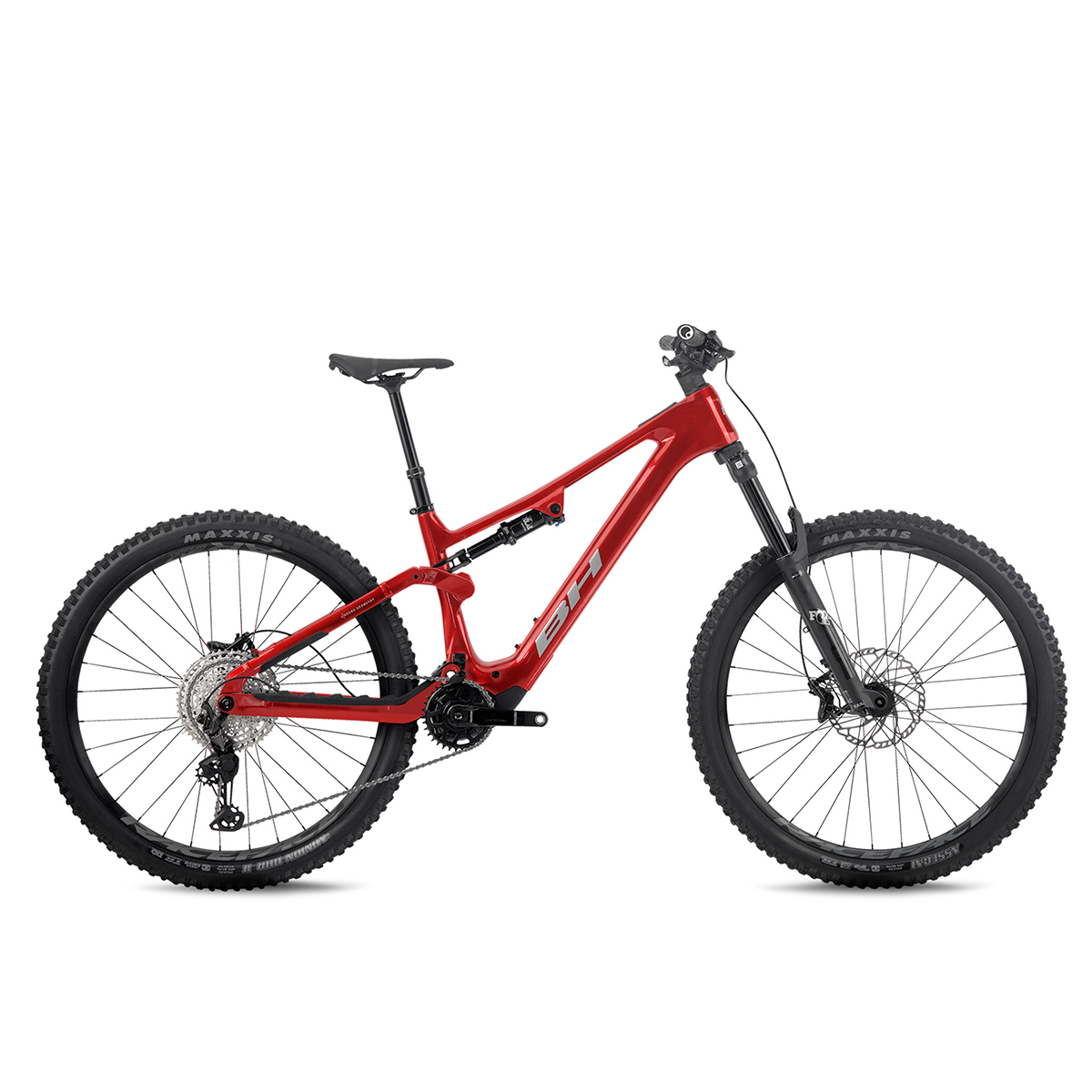

BH iLYNX+ DL Enduro Carbon 9.5

The BH iLYNX+ DL ENDURO CARBON 9.5 e-bike is the entry model in BH Bikes' line of high-end full suspension electric enduro bikes (2026/2027 model year). It is a full carbon version of the aggressive iLYNX+ DL platform with 170mm of travel, advanced geometry and the powerful DJI Avinox system.

At the heart of the e-bike is the powerful Avinox propulsion system . DJI Avinox M2S mid-motor - delivering up to 150 Nm of torque and up to 1,300 watts of peak power in Turbo mode. It is described as powerful, progressive, quiet and efficient. Paired with a large 800 Wh integrated battery (range up to ~157 km in favorable conditions).

Key features

• Purpose: Aggressive enduro riding - technical descents, jumps, rocky sections and steep climbs. Offers great control and stability over challenging terrain, while remaining relatively efficient when pedaling.

• Frame: Full carbon with Ballistic Carbon Layup (high impact resistance and optimal stiffness/weight). Hollow Core Internal Molding (HCIM) technology, clean internal cable routing, bottom bracket protection, BlockLock steering limiter and integrated charging port. Compatible with telescopic seatposts up to 200 mm. The down tube is slim but still accommodates a bidon.

• Suspension: 170 mm front and rear thanks to Split Pivot system (good anti-squat characteristics, traction under braking and comfortable damping). Usually FOX 38 fork and FOX Float X (or Rhythm) shock on the 9.5 in the more basic (Performance/Rhythm) version.

• Geometry (enduro oriented)
  • Head angle: 63.5° (free for confidence on descents)
  • Saddle angle: 77.5° (steep for efficient climbing)
  • Rear structure: 450 mm (compact and agile)
  • Available sizes: S, M, L, XL

• Cockpit and integration: integrated OLED display on the top tube + wireless controls on the handlebars. Compatibility with Avinox Ride app for setup and navigation.

• 29"wheels for better obstacle clearance and speed.

Who is the BH iLYNX+ DL Enduro 9.5 e-bike for?

• for experienced enduro and trail riders
• for technical mountain trails and bikepark
• for riders looking for a lightweight but powerful e-MTB
• for long alpine rides and day rides

E-bike range calculator

Battery capacity: 500 Wh

300 Wh 600 Wh 900 Wh 1200 Wh

Rider weight: 75 kg

50 kg 80 kg 110 kg 140 kg

Assistance mode: 3

Min 2 3 4 Max

Route profile: Flat

Flat

Medium

Hills

The e-bike range is approximately

*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

Carbon fibre

E-bikes that use carbon fiber are a common choice among amateur and professional cyclists. Previously, it was mainly road e-bikes, but today you can enjoy the benefits of carbon on almost any type of e-bike. It remains an ideal choice among lovers of fast driving and off-road driving. The main advantage of e-bikes with a carbon frame is exceptional shock and vibration damping, they resist corrosion and wear very well and, compared to other materials, they excel in their low weight.

Avinox M2S

A high-performance motor with 130 Nm of torque (150 Nm in Boost mode), a peak power output of 1500 W, and a lightweight design (2.59 kg). The second generation features flat-wire winding for higher efficiency, quiet helical gearing, and Dual Gear Engagement technology, which eliminates rattling during descents without assistance. Internal resistance has been reduced by 41%, ensuring a natural ride even with a depleted battery. Integrated sensors enable adaptive power control based on cadence and riding conditions. Intelligent electronics ensure lightning-fast pedal response and smooth power delivery that will support you even on the most demanding terrain.

More information

Avinox FS800 Battery

The Avinox Drive System battery with 800 Wh capacity offers long range and plenty of power. It is lightweight (3.74 kg), compact, and protected to IP56 standard. An intelligent health management system ensures long lifespan, retaining up to 80% capacity after 500 cycles. GaN fast charging recharges the 800 Wh battery to 75% in just 1.5 hours.

More information

Display Avinox DP100

The display is integrated into the frame of the e-bike. It has a 2" OLED touch panel with a resolution of 326 ppi and a brightness of up to 800 nits, which automatically adjusts to the ambient lighting. It features GPS sensors, a gyroscope, a barometer and support for Bluetooth 5.1, ANT+ and LTE-Cat.1. It allows you to track your route, speed, cadence and performance with 8 GB of internal memory and synchronisation via the app. Control is provided by one or two wireless controllers on the handlebars – the left one for setting the level of assistance and the right one for scrolling through the display (the right controller is only available on selected models). The USB-C port supports fast charging with a power output of up to 65 W.

More information

BH Bikes is a Spanish legend with over a century of tradition, ranking among the absolute pioneers in battery integration and the development of progressive geometry that has long defined industry standards. The combination of a rich racing heritage and a new strategic partnership with the technology giant Avinox reaffirms their position at the absolute forefront of innovation in the e-MTB segment.

The brand is built on a philosophy of perfect handling and functional design, where brutal motor power blends with natural riding dynamics. Thanks to the integration of the revolutionary Avinox drive system, BH Bikes offers bikes that break down the boundaries between categories.

Contact: BH BIKES EUROPE, S.L., P.I. Jundiz – Perretagana 10, 01015 Vitoria, Alava, Spain, email: info@bhbikes.com, phone: +34 945 13 52 02, website: www.bhbikes.com
