Apache Rio Grande MX3 - affordable and modern

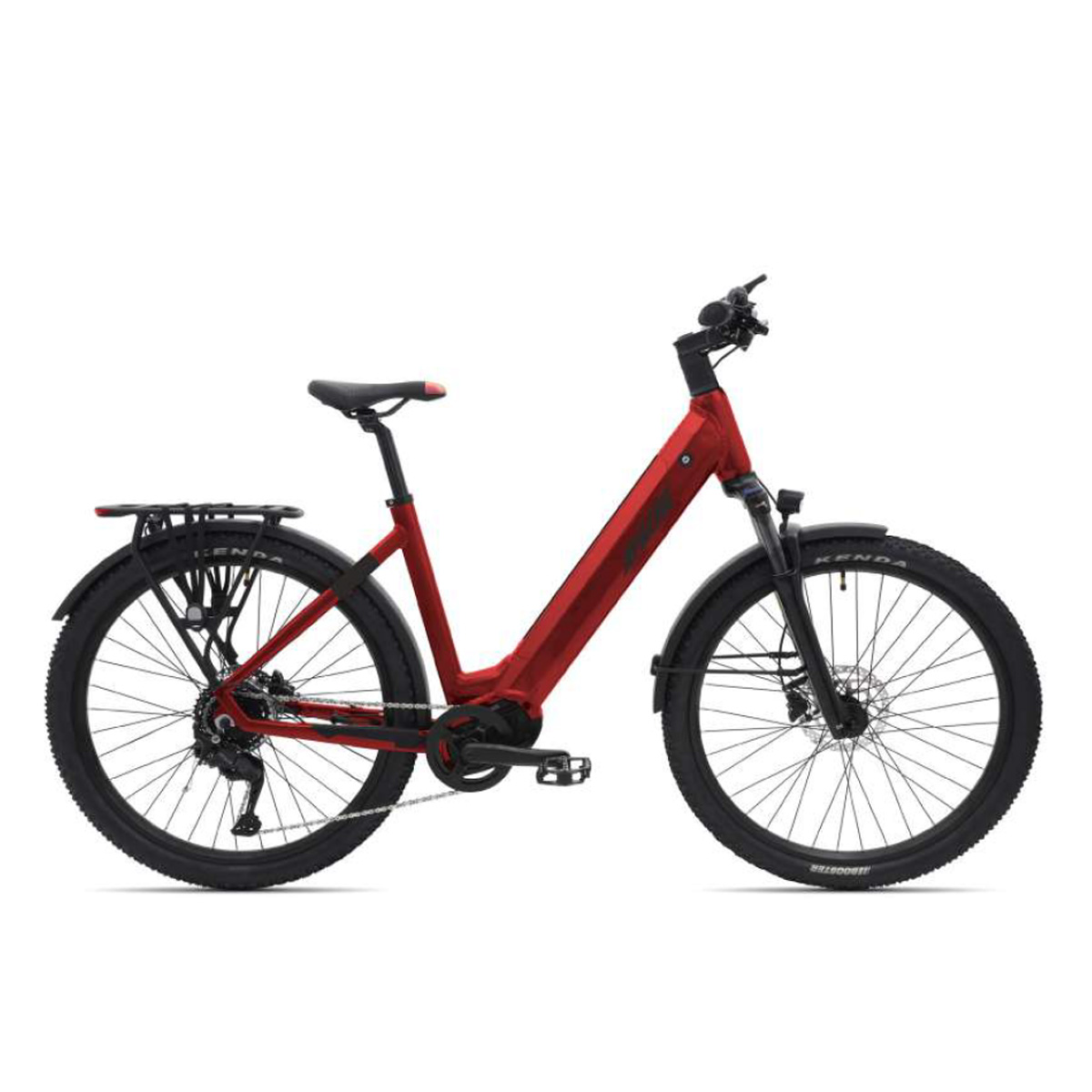

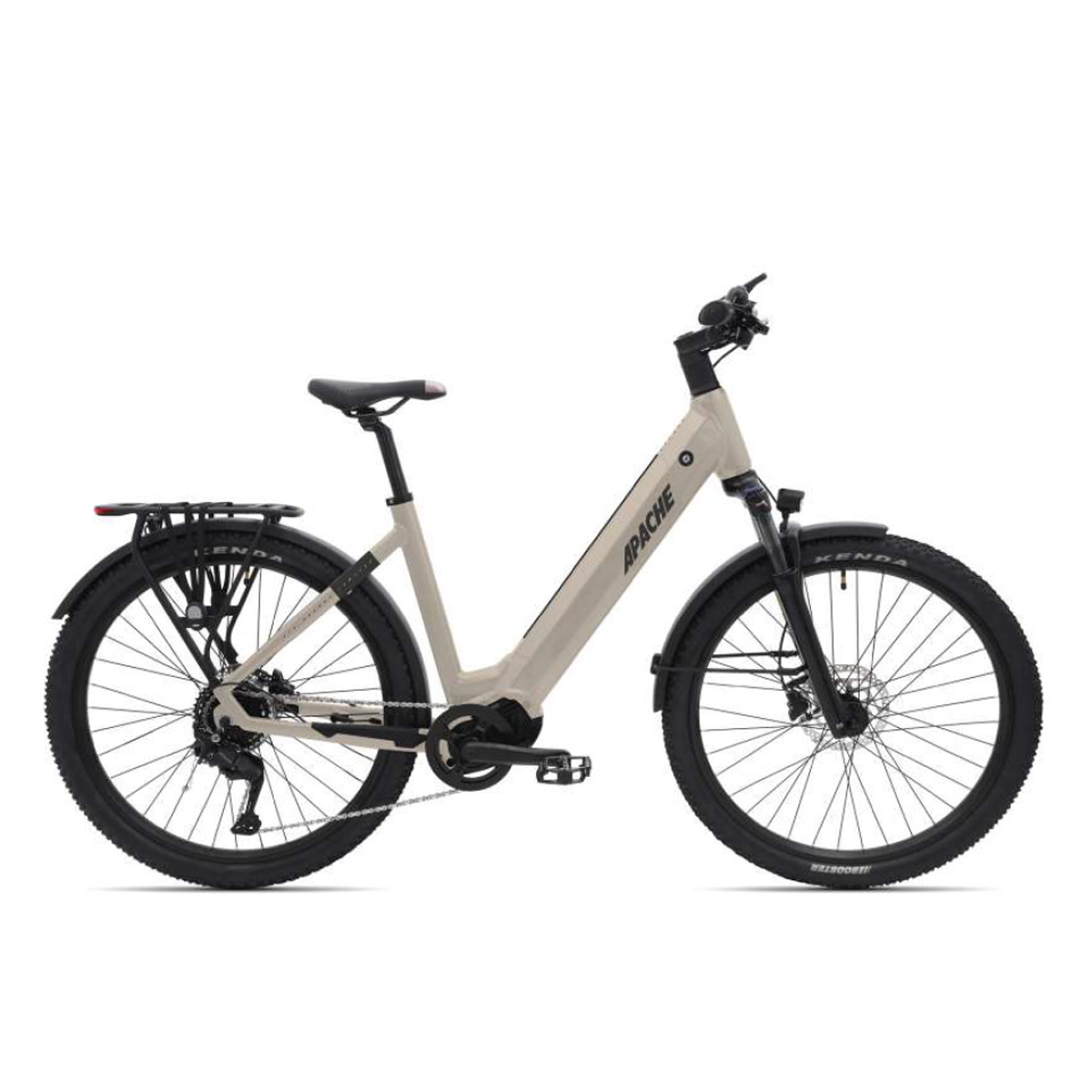

The Apache Rio Grande MX3 is a reliable and affordable e-bike designed for recreational and sporty riders looking for a combination of power, comfort and versatility. The sturdy aluminium frame is complemented by an SR Suntour XCM 32 spring fork with 100mm of travel, ensuring a comfortable ride even on rough forest and dirt roads.

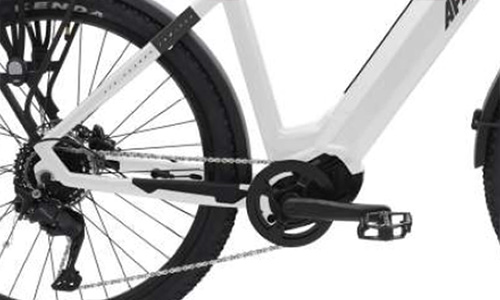

At the heart of the bike is the powerful Bafang M410 Heavy Duty (48V) mid-motor, which provides smooth and powerful pedaling assistance. It is powered by an integrated 720 Wh Samsung battery that lets you tackle long trips without worrying about running out of power. Controlling the drive is intuitive via the Bafang DP C020 display, which clearly displays all important data.

Shifting is handled by a 9-speed Shimano Cues drivetrain that offers smooth operation and enough gear range for a variety of riding conditions. The Shimano RD-U3020 derailleur is designed for reliable performance even under the higher loads typical of e-bikes.

Stopping power is provided by Shimano MT200 hydraulic disc brakes with 180/160mm discs, which provide confidence on descents and in the rain. Comfort on longer routes is supported by the Selle Royal Vivo saddle, ergonomic Velo grips and stable 700 mm Zoom handlebars.

The 27.5" diameter wheels with Kenda Small Block 8 tyres (27.5 x 2.1) offer the optimum combination of grip and speed on a variety of surfaces. Easy maintenance, high battery capacity and proven features make the Apache Rio Grande MX3 the ideal choice for anyone looking to explore the terrain or city with the support of modern electromobility.

Need help choosing the right e-bike for you? Take advantage of our guide to choosing an e-bike or contact us directly.

E-bike range calculator

Battery capacity: 500 Wh

300 Wh 600 Wh 900 Wh 1200 Wh

Rider weight: 75 kg

50 kg 80 kg 110 kg 140 kg

Assistance mode: 3

Min 2 3 4 Max

Route profile: Flat

Flat

Medium

Hills

The e-bike range is approximately

*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

Motor Bafang M410

The Bafang M410 mid-drive motor is designed mainly for eTour e-bikes that require robust and efficient assistance. It delivers a nominal output of 250 W and up to 550 W maximum power, with a torque of up to 90 Nm — providing plenty of strength exactly where you need it most. With a weight of only 3.3 kg and IPX6 water and dust resistance, it is an ideal companion for long rides and demanding terrain.

More information

Battery Samsung 720 Wh

High-capacity Samsung Li-Ion battery 720 Wh / 20 Ah. It is partially integrated into the frame of the e-bike and supplies energy to the entire system. Thanks to the central mounting, the e-bike is perfectly balanced, stable and easy to handle.

The battery is able to deliver an e-bike on a single charge up to a distance of 170 km (depending on the circumstances).

Of course, it is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it. You can fully charge a fully discharged battery in 5 hours.

We are specialists and we have a complete range of medium- and high-class e-bikes from the Czech brand APACHE BICYCLES. With each APACHE e-bike we offer a premium frame warranty, the first year of after-sales service for free, and perfect diagnostics for all drive technologies used. We are the main repair shop partner for APACHE BICYCLES. APACHE has a wide range of e-bikes for various uses, with several possible motor types - Bosch, Bafang and AP Silent. We also offer rebuilding and installation of hub and central sets and drives of the Apache Power System brand, including batteries and accessories.
