APACHE Hawk Bosch Performance
Please, look into the category, if you can't find one that may suit you, or call us on +420 777.797.011 and together we will come up with the best alternative.
Why this e-bike?

- motor: Bosch Performance 3 Gen.
- battery: Bosch Power Pack 500 Wh
- frame size: 16", 18", 19,5", 21"
- number of gears: 10
- display: LCD Purion
- fork stroke: 100 mm

The SHIMANO DEORE M5120 shifter uses SHIMANO SHADOW RD+ technology and delivers consistent performance even when shifting on rough terrain. The low-profile design prevents damage from flying rocks, while SHIMANO's chain stabilisation technology reduces the risk of chain drop and ensures a quiet drive in all gear positions.
- DEORE M4100 Series
- Type: RD-M5120-SGS
- Compatible chains: HG-X11 11S, HG-X10S
- Pulleys: 11 teeth

A bestseller with excellent all-round properties. For those who like to alternate between road and off-road. The modern, distinctive off-road profile features a compact centre tread that allows the tyre to roll comfortably with minimal vibration. At the same time, the outer edges guarantee optimum grip on the terrain.
- Dimension: 29x2.25
- Quality Line: Performance Line
- HS 476 wire tyre
- Maximum pressure: 1.8-3.7 BAR
- Weight: 810g
- Compound: ADDIX Performance
- EPI: 67
- Skin: Lite


E-bike range calculator

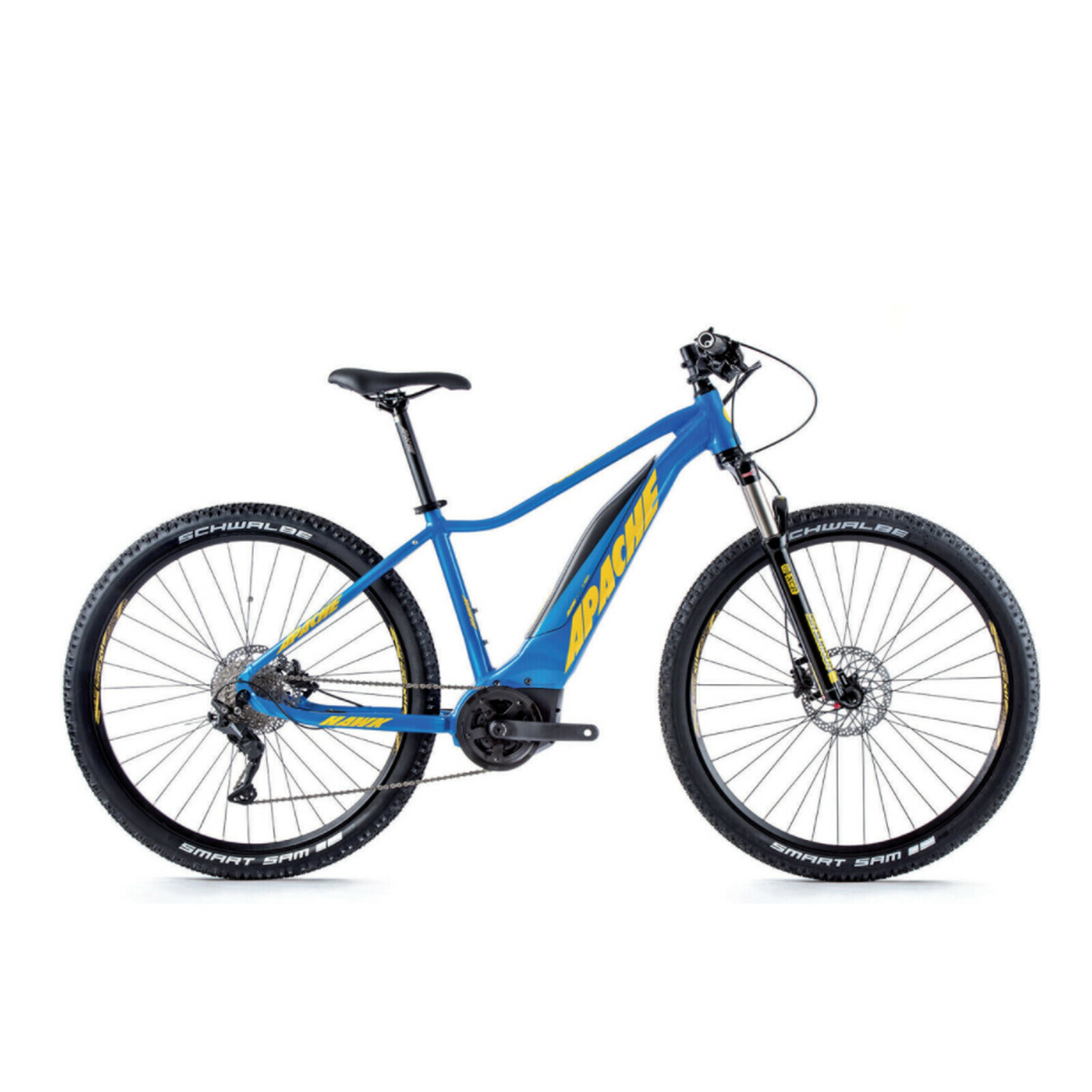

Hawk Bosch Performance mountain e-bike with high quality aluminium frame, Active Line Gen. 3 mid-motor, 500 Wh battery, Shimano 1 x 9 shifting and spring fork. Built on fast 29" wheels.
Designed for adventurous riders who are enchanted by electric bike touring and appreciate the comfort of wide mountain tires.
The Hawk's frame has a semi-integrated 500 Wh battery, giving it a visually slim line that doesn't interfere with protruding batteries.
With a seemingly solid downtube design and semi-integrated battery, this Universal 29er offers plenty of power thanks to the Bosch Performance drivetrain and the durability provided by the stronger front fork design.The versatile tyre pattern can handle both fast road riding and the rigours of wet terrain. The shorter stem and higher handlebar position with ergonomic grips only add to the overall comfortable feel.
The 2022 Apache models deliver great design, carefully selected and balanced components and an excellent price/performance ratio with Bosch and Bafang drivetrains. Apache e-bikes have been among the top Czech production bikes since 1998. Full range of Apache electric bikes.
Need help choosing the right e-bike? Use our guide to choosing an e-bike or contact us directly.

BONUS K TOMUTO E-KOLU: služba v ceně 2090 Kč nyní pouze za 490 Kč. U elektrokol nad 80.000 Kč doprava ZDARMA.
Elektrokolo vám expresně (cca do 3-5 dnů) dodáme a bude připravené k jízdě.
Kompletně seřízené a otestované elektrokolo doručí přepravní služba přímo až k Vám.
Zdarma od nás dostanete: Detailní předprodejní servis, zajetí kola mechanikem, kontrolu baterie a nabíječky.
Dopravu kompletně složeného elektrokola (vy si pouze našroubujete pedály) ve speciálním 5-ti vrstvém extra velikém kartónu. Tento doručovací box zasíláme výlučně spediční službou TOPTRANS. Kam si řeknete, v rámci Česka i Slovenska. I na dobírku.

Motor Bosch Performance Line CX
With a maximum torque of 75 Nm, the BOSCH Performance CX motor is the ideal drive for ambitious and demanding eBikers. In eMTB mode, you always get the energy you need - from Tour to Turbo. Up to 300% perfect support, incredible dynamics and unique grip provide the best possible support in all terrains, as well as a faster start of assistance. Gradual engine support automatically adapts to your driving style.

Battery BOSCH Power Pack 500 Wh
Bosch Power Pack 500 Wh high-capacity battery that brings new energy to e-bikes. Thanks to its location on the frame, it does not disturb the center of gravity and the e-bike has an ideal balance. The battery is equipped with a BMS board (Battery Management System), which protects the battery from overheating, short circuit or overcharging.
- the batteries have no memory effect - it can be charged even after a short drive or while driving
- battery life is 600 - 1000 full charge cycles
- battery life in km is around 15,000 - 25,000 or 5 - 9 years
- charging time to 80% capacity is about 2 hours (4A charger)
- the weight of the battery is approx. 2.5 kg
You can buy a new (replacement) battery here.

Bosch Purion Display
Purion is a minimalist on-board computer for anyone who demands sleek look of handlebar whether it is for City or off-road use . You can conveniently get all the important information at the touch of a button while riding with both hands remaining on handlebar. Five different riding modes give you the right support in every situation. The display is supplied with cabling, handlebar holder and is available in two colors.

We are specialists and we have a complete range of medium- and high-class e-bikes from the Czech brand APACHE BICYCLES. With each APACHE e-bike we offer a premium frame warranty, the first year of after-sales service for free, and perfect diagnostics for all drive technologies used. We are the main repair shop partner for APACHE BICYCLES. APACHE has a wide range of e-bikes for various uses, with several possible motor types - Bosch, Bafang and AP Silent. We also offer rebuilding and installation of hub and central sets and drives of the Apache Power System brand, including batteries and accessories.
Parameters
Drive type | Bosch Performance GEN 3 |
---|---|
Control | Bosch |
Capacity and battery type | Bosch 500 Wh |
Frame type and material | 2022 Apache Hawk Bosch AL |
Front fork | Suntour SR - XCR34 100 mm |
Number of gears | 1 x 10 |
Derailleur | Shimano Deore M5120 |
Shifters | Shimano Deore M4100 |
Type and brand of brakes | Shimano MT500 |
Crankset | FSA Bosch 170mm |
The stem | 31,8 x 60mm |
Handlebars | 31,8 x 780mm |
Saddle | Apache |
Seat post | 30,9 x 400mm |
Load capacity | 125 kg |
Rims | Remerx e-Rocky RX 3025 |
Front hub | Shimano MT400 |
Rear hub | Shimano HTX505 |
Tyres | Schwalbe Smart Sam Performance 57-622 |
Display | Bosch Purion |
