RAYMON Trailray 120

This bike is a strategic mix of performance and practicality. Suitable for riders who want a comfortable e-MTB with the ability to handle both urban commuting and lighter trails. The powerful Yamaha motor and 720Wh capacity battery give confidence in performance and range.

The RAYMON Trailray 120 is an e-bike designed for those who want to comfortably combine everyday riding with exploring lighter trails. With a clever mix of modern geometry, quality suspension and a powerful Yamaha motor, it's the ideal companion for both city and countryside riding.

Powerful Yamaha drive

At the heart of the bike is Yamaha's PW-S2 engine with 75Nm of torque, providing plenty of power for steep climbs and technical terrain. The fast response makes the ride feel natural and the motor will reliably help you through even the most challenging passages.

High-capacity battery for long range

The integrated 720 Wh battery lets you go on day-long trips without worrying about running out of power. It's housed in the downtube of the frame, lowering the bike's centre of gravity and improving riding stability.

Suspension for a comfortable ride

The bike is equipped with 120mm of suspension front and rear, which perfectly dampens bumps and adds confidence on the trail. Together with 29" wheels, you get a stable and balanced feel even when riding faster.

Reliable Shimano components

Shifting is handled by a 10-speed Shimano Deore groupset, which is renowned for its reliability and precision. A wide range of gears is available, so you can tackle steep hills and brisk descents.

Practicality and durability

The sturdy frame is built for more demanding riding while offering a modern design. With carefully routed wiring and durable components, the Trailray 120 looks clean and functional.

Need help choosing the right e-bike? Use our e-bike selection guide or contact us directly.

E-bike range calculator

Battery capacity: 500 Wh

300 Wh 600 Wh 900 Wh 1200 Wh

Rider weight: 75 kg

50 kg 80 kg 110 kg 140 kg

Assistance mode: 3

Min 2 3 4 Max

Route profile: Flat

Flat

Medium

Hills

The e-bike range is approximately

*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

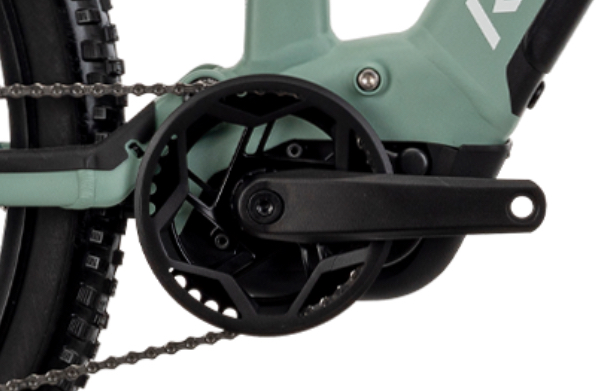

Centre motor Yamaha PW-S2

The Yamaha PW-S2 motor offers instant assistance, virtually maintenance-free operation, and an automatic assistance mode. Weighing just 2.85 kg and delivering 75 Nm of torque, the PW-S2 is 10% lighter than its predecessor and approximately 10% smaller. Its compact design gives e-bike manufacturers greater freedom in frame design, suspension, and ground clearance. The result is better handling and higher performance. Intelligent automatic assistance mode. Eco, Standard, and High Performance modes.

The Zero Cadence feature provides instant and natural assistance, making the PW-S2 ideal for everyday use and longer trips.

More info

Battery Li-Ion 720 Wh

High-capacity Li-Ion battery 720 Wh / 20 Ah. It is partially integrated into the frame of the e-bike and supplies energy to the entire system. Thanks to the central mounting, the e-bike is perfectly balanced, stable and easy to handle.

The battery is able to deliver an e-bike on a single charge up to a distance of 170 km (depending on the circumstances).

Of course, it is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it. You can fully charge a fully discharged battery in 5 hours.

Display Yamaha A2

Easy, simple, and versatile. The main feature of the A2 display is its large LCD screen, which is ideal for use in low visibility conditions. For greater durability in mud or gravel, there is a special scratch-resistant coating on the screen, and the casing material is made of durable PC resin. It displays speed, battery status, and assist mode, as well as optional total distance, trip distance, and range data, enhancing every ride. Equipped with newly designed assist mode and walk assist switches.

Raymon is a German brand of electric bikes led by the experienced duo Susanne and Felix Puello, pioneers of full suspension e-MTBs. With an emphasis on quality, innovation and top-of-the-line Bosch, Yamaha and ZF CentriX drivetrains (made in the Czech Republic), it is quickly making a name for itself across Europe. It offers precision-built models with excellent value for money - from the lightweight Airock to the trail-ready Tarok to the versatile Trailray. We are a dedicated Raymon e-bike shop and will be happy to advise you on your choice.
