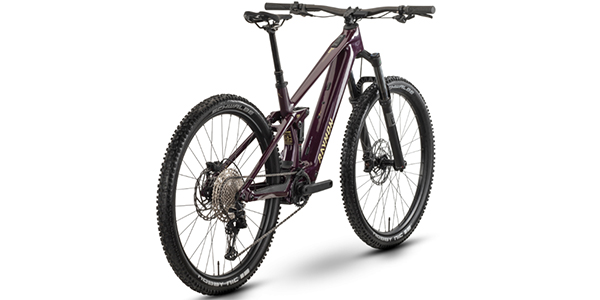

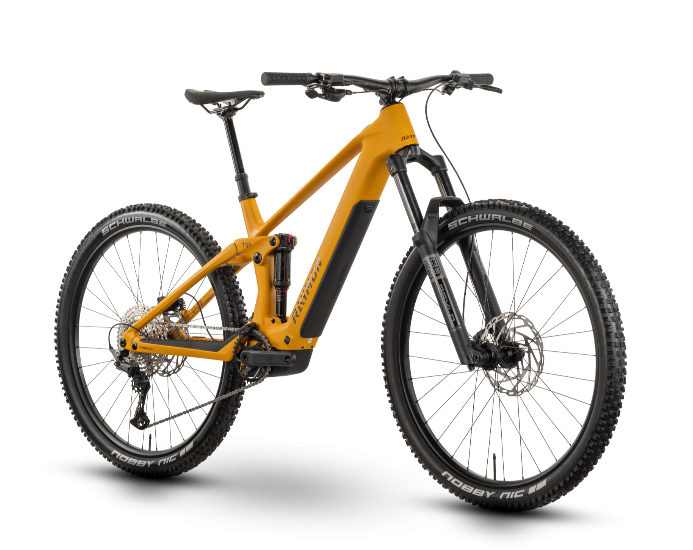

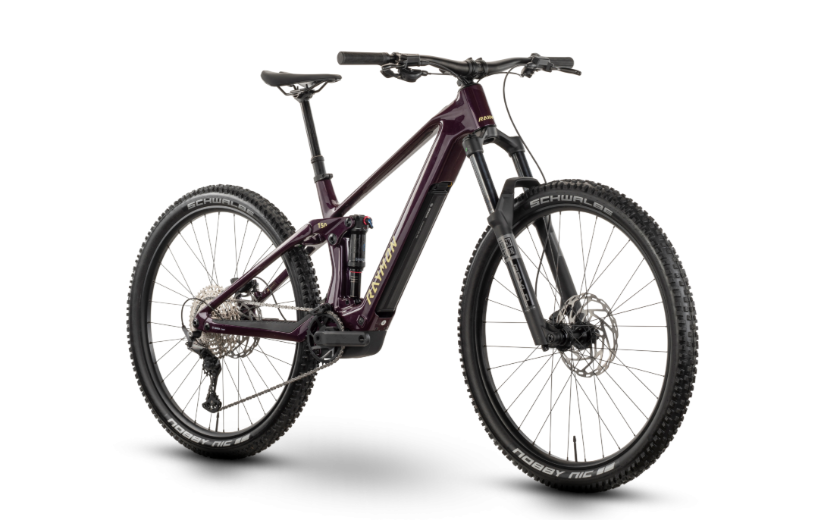

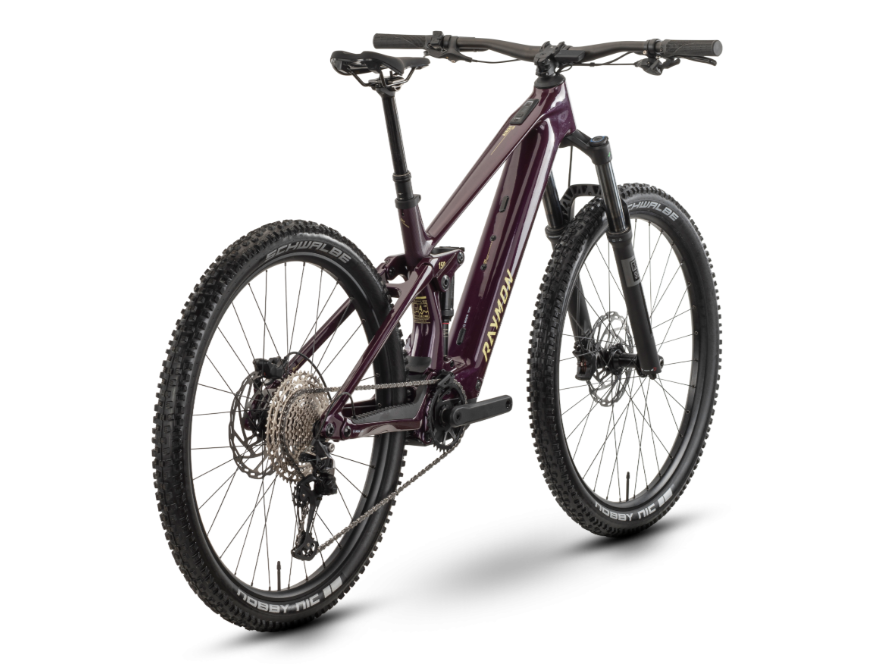

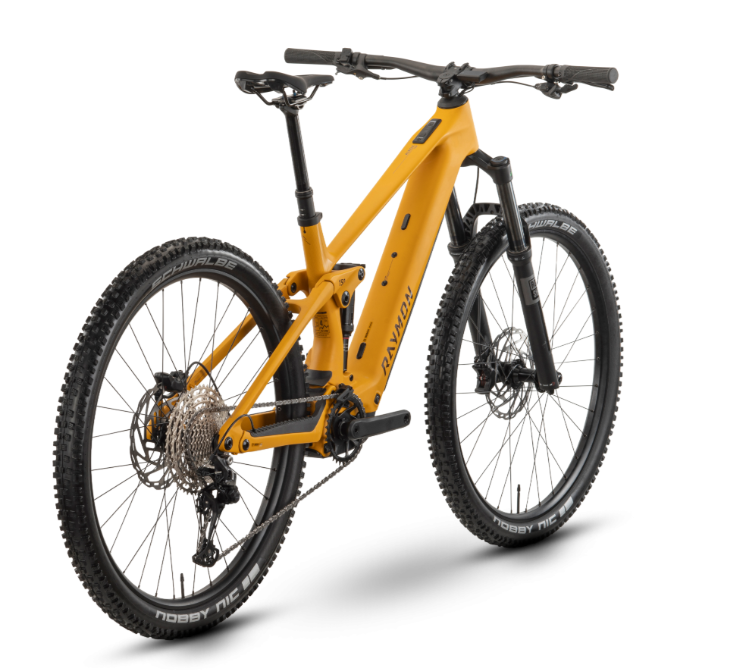

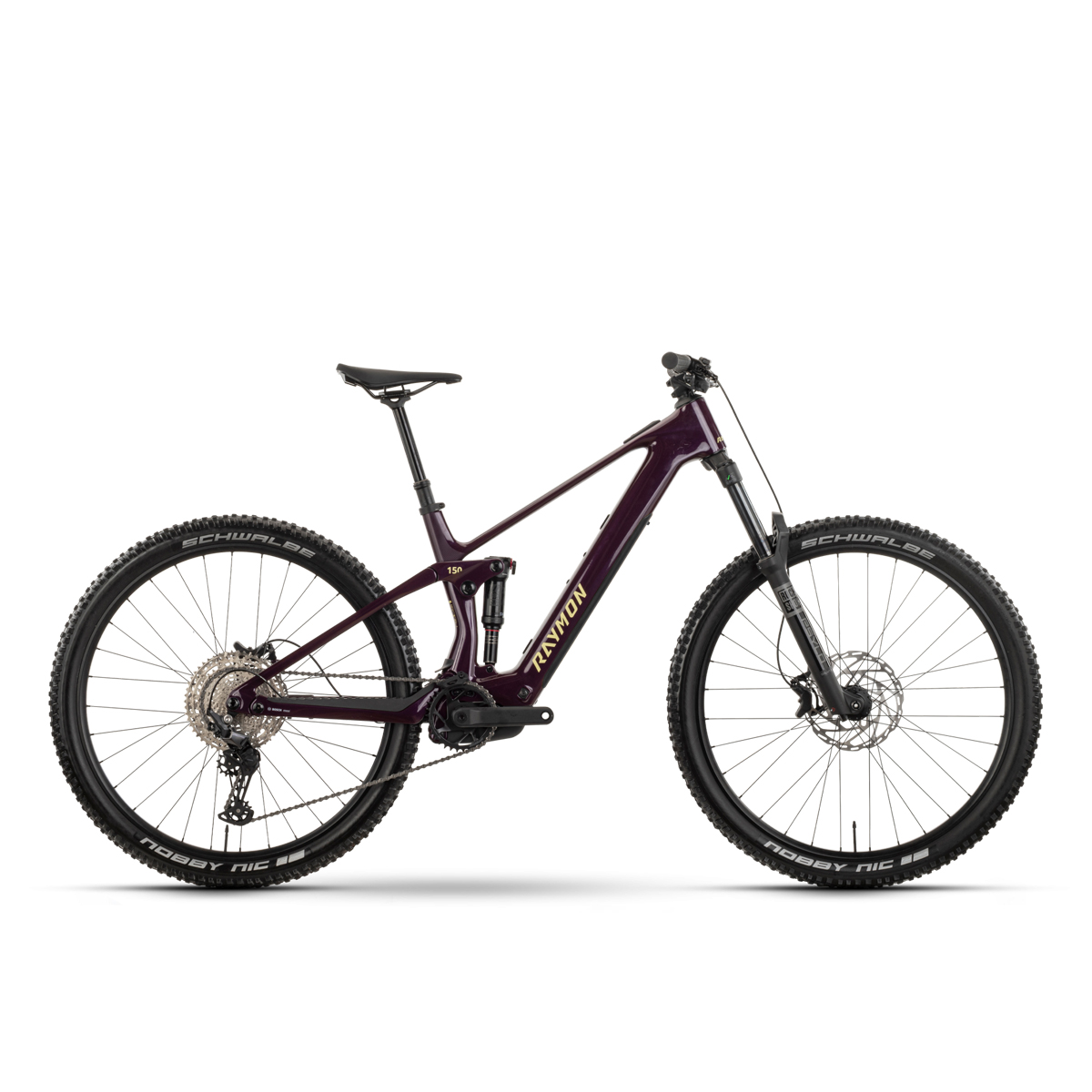

RAYMON Airok Comp
Full-suspension lightweight e-MTB. Carbon frame, compact Bosch Performance Line SX motor, and 400Wh battery. It’s one of the lightest e-MTBs in its category. It’s ideal for sporty trail riding, where you’ll appreciate its agility and natural ride feel.
Description
Bosch Performance Line SX
60 Nm
400 Wh
12 speeds
29"
150 mm
RockShox Super Deluxe Ultimate 205×65 mm – a top-of-the-line air shock
It offers exceptionally responsive handling, high stability on rough terrain, and a wide range of adjustment options. The advanced damping system effectively absorbs both small and large bumps, ensures excellent traction, and keeps the rear wheel in contact with the ground even during technical sections. The air spring allows for easy adjustment of sag and progressiveness. Consistent performance even under prolonged load.

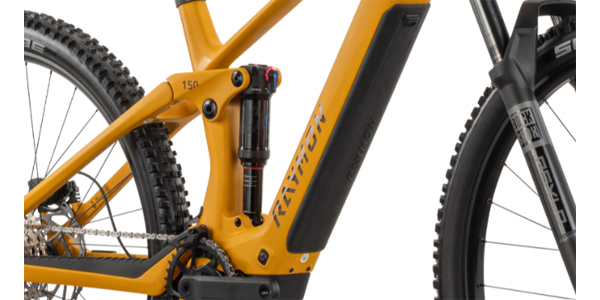

The modern HSC Composite carbon frame for 29" e-bikes combines low weight, high stiffness, and the durability needed for sporty riding on challenging terrain. The design is optimized for 150 mm of rear suspension travel. The frame features the Boost system, which increases the stiffness of the rear end of the bike. A practical feature is the removable battery. Stable and precise handling.
RAYMON Airok Comp – a lightweight, agile, and fun e-MTB
A lightweight full-suspension e-bike for sporty off-road riding that combines low weight, a carbon frame, and a natural-feeling Bosch Performance Line SX electric drive. It’s designed for riders who want an agile e-MTB with a riding feel close to that of a classic mountain bike, but who also appreciate electric assistance on climbs. The Airok is built on an HSC Composite carbon frame weighing approximately 2.5 kg with 150 mm of travel.
At the heart of the bike is the Bosch Performance Line SX, a compact, lightweight motor with up to 55 Nm of torque and up to 600 W of power. The motor responds to pedaling intensity and offers natural assistance that’s ideal for both brisk climbs and technical ascents. Thanks to the drive unit’s light weight, the Airok remains agile and easy to handle even when riding without assistance.
The integrated 400 Wh Bosch CompactTube battery keeps the frame lightweight and clean-looking. The battery is removable and can be charged both on and off the bike. For longer rides, the system can be supplemented with the optional Bosch PowerMore 250 Wh Range Extender, which significantly increases the power reserve without requiring a larger main battery.
Suspension is provided by a RockShox Psylo Silver RC air fork with 150 mm of travel and a RockShox Deluxe Select 205 × 65 mm rear shock. This combination provides ample comfort, traction, and control when riding over roots, rocks, and other uneven terrain. The geometry is designed for stable descents while maintaining good pedaling efficiency on climbs. The large 29" wheels also make it easier to clear obstacles and provide stability at higher speeds.
Shifting is handled by a Shimano Deore 1×12 drivetrain with a 10–51-tooth cassette, which offers a wide range of gears for steep climbs and fast riding on flat terrain. Tektro Gemini SL four-piston hydraulic brakes with 203 mm rotors provide ample stopping power and precise modulation when riding on more challenging terrain.
The DT Swiss H 1900 Spline wheels are fitted with Schwalbe Nobby Nic Performance 29 × 2.40" tires, which offer a versatile combination of traction, stability, and low rolling resistance. The RAYMON dropper seatpost allows for quick seat height adjustment before technical descents and gives the rider more freedom to actively control the bike. The bike’s total weight capacity is 130 kg, while the bike itself weighs approximately 20.1 kg.
The RAYMON Airok Comp is the ideal choice for athletic riders looking for a lightweight and agile full-suspension e-bike with a carbon frame, a Bosch Performance Line SX motor, and high-quality RockShox suspension. It offers an excellent balance between low weight, a natural riding feel, and the capabilities of a modern trail e-MTB.
E-bike range calculator
Flat
Medium
Hills
The e-bike range is approximately
*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
Carbon fibre
E-bikes that use carbon fiber are a common choice among amateur and professional cyclists. Previously, it was mainly road e-bikes, but today you can enjoy the benefits of carbon on almost any type of e-bike. It remains an ideal choice among lovers of fast driving and off-road driving. The main advantage of e-bikes with a carbon frame is exceptional shock and vibration damping, they resist corrosion and wear very well and, compared to other materials, they excel in their low weight.
BOSCH Performance Line SX
Bosch Performance Line SX. Powerful and dynamic motor for intuitive handling and a unique driving experience. Innovative body and software. Although the motor has less torque - 55 Nm - it can deliver up to 600 W of power, the best value in the most compact design. The weight of the motor is limited to just 2 kg.
Modes and level of assistance: Turbo: 340 %; eMTB: 140–340%; AUTO: až 340%; SPRINT: 60-280%; TOUR+: 60-340%; TOUR: 140% Eco: 60 %
Baterie Bosch Compact Powertube 400 Wh
A high-performance battery designed for electric bikes that provides riders with reliable, long-lasting power. The Compact Powertube 400 Wh battery offers the perfect combination of energy density, compact design and durability.
One of the key features of the battery is its integrated design, which allows the battery to be seamlessly integrated into the frame of the e-bike. This integration improves the aesthetics of the bike, but also contributes to a cleaner and sleeker look. It also helps protect the battery from external influences such as water, dust and impact, ensuring long-term reliability and durability.
The Bosch Compact Powertube 400Wh battery is equipped with high-quality lithium-ion cells.
Bosch Top-tube System Controller w/ mini remote
Control unit for e-bikes with intelligent system. The range of functions and information is limited - so you have a quick overview that won't distract you while you ride. Integrated into the top tube - it's hardly noticeable and ideal for sporty trips and design-oriented e-bike fans.
LEDs indicate the riding mode and battery charge level in different colours. Made of durable material and protected from bumps and scratches. With just two buttons you can control the most important functions of your e-bike - switch on, switch off and change the riding mode. With the Mini Remote you can operate the control unit even more safely and conveniently. With the Mini Remote on, you can also control the display or use your smartphone as a display.
Raymon is a German brand of electric bikes led by the experienced duo Susanne and Felix Puello, pioneers of full suspension e-MTBs. With an emphasis on quality, innovation and top-of-the-line Bosch, Yamaha and DJI Avinox drivetrains, it is quickly making a name for itself across Europe. It offers precision-built models with excellent value for money - from the lightweight Airock to the trail-ready Tarok to the versatile Trailray. We are a dedicated Raymon e-bike shop and will be happy to advise you on your choice.
Contact: RAYMON Bicycles GmbH, Rudolf-Diesel-Straße 35, 97424 Schweinfurt Germany, e-mail: info@raymon.com, phone: +49 9721 539 35 96 20, website: www.raymon-bicycles.com
Parameters
General
| Model year | 2026 |
| Brand | Raymon |
| Colour | Yellow, Violet |
| Frame size | Frame L, Frame S, Frame XL, Frame M |
Motor
| Centre engine | Yes |
| Engine manufacturer | Bosch |
Battery
| Precise capacity | 800 Wh |
| Charger | 4 A |
