LEADER FOX Barnet 28" men

Experience the ultimate ride with the Bafang M510 engine and 95 Nm of torque for optimum performance. With a long range and modern design, you'll be comfortable on every journey. Ideal for the discerning cyclist, ready for any challenge off-road or on the bike path.

Rider's height: 165 cm

150

210

Recommended size *:
17 - 18" (M)

*The values provided are only indicative.

Price before discount: 2 155 €

2 155 €

You save 0 €

1 796 € excluding VAT
Poradce

Need help?
Lukas is at your service!

Discount when buying 2 or more e-bikes: 5%
Motor

Bafang M510

Motor power

95 Nm

Capacity battery

720 Wh

Shifter

9 speeds

Wheels

28"

Fork travel

100 mm

LEADER FOX Barnet 28"

E-bike range calculator

500 Wh
300 Wh 650 Wh 1000 Wh
75 Kg
50 Kg 95 Kg 140 Kg

Dominant route profile:

Flat

Flat

Medium

Medium

Hills

Hills


The e-bike range is approximately

*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

The LEADER FOX Barnet 28" Men's is the premium model of 2025, combining cutting-edge technology and sleek design for the discerning cyclist. This e-bike is designed for performance and comfort, making it the perfect choice for any terrain and long trips. The e-bike is equipped with a powerful Bafang M510 electric motor with 95Nm of torque, providing exceptional power and excellent acceleration. The central motor and integrated battery ensure optimal weight distribution and long range.

The model has a load capacity of up to 120 kg and the weight of the bike including the battery is 27 kg. The powerful Bafang motor with 95 Nm of torque ensures optimal weight distribution and stability when riding. The fully integrated 720 Wh battery and 42V/3Ah charger provide plenty of power for long trips without the need for frequent recharging.

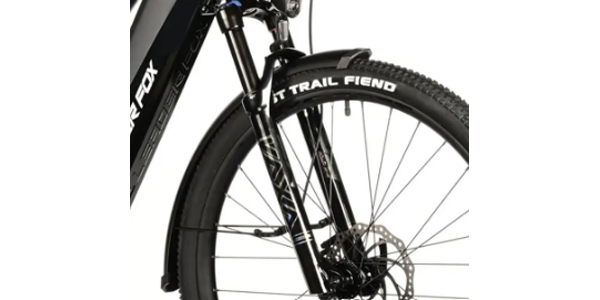

The Zoom Waxa 860 air front suspension fork with 100mm of travel ensures a comfortable ride even on rough terrain. The Exerace hubs provide reliability and robustness on every ride, whether it's rough terrain or smooth bike trails. The Selle Royal Moderate Exploria saddle and Alloy handlebars with a 30mm drop and 640mm width bring maximum comfort and ergonomics for long rides.

The CST 29x2.35 tyres provide excellent grip and stability on any terrain, allowing for a safe and comfortable ride. The S-Ride RD-E600C derailleur, along with the S-Ride SL-E600 derailleur and Shimano Cues cassette, offers a wide gear range, making it easy to ride on all types of terrain.

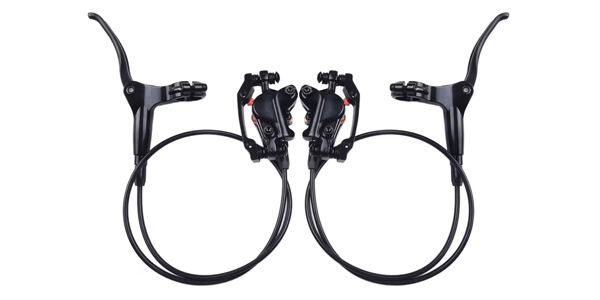

Riderever hydraulic brakes with 4 pistons and 160mm (rear) and 180mm (front) rotors provide excellent braking performance and safety in all conditions. The lightweight and robust frame ensures low weight and high strength, while the modern geometry delivers stability and comfort.

The LEADER FOX Barnet 28" Men's is the ideal partner for those who want to explore new paths and achieve new goals. Thanks to its cutting-edge features and modern technology, it will provide you with an unforgettable riding experience. With this bike, you'll be ready for any challenge, whether you take on adventure trails or leisurely trips on bike paths.

Need help choosing the right e-bike? Use our e-bike selection guide or contact us directly.

Středový motor BAFANG M510

BAFANG M510

The new M510 mid-motor is designed especially for high-performance e-bikes. Torque is essential for dynamic riding, up to 95 Nm in this motor, which can estimate the right amount of power according to the rider's pedalling force and dial in the appropriate assistance.

The M510 is half a kilogram lighter and weighs only 2.9 kg. The weight saving is the result of several design changes, the main one being the new magnesium housing.

The M510 mid-engine is a revolutionary upgrade to the powerful eMTB engine. Maximum cadence support is extended up to 120 rpm.

More information

Integrated battery LG 720 Wh

Battery LG 720 Wh

High-capacity LG Li-Ion battery 720 Wh / 20 Ah. It is partially integrated into the frame of the e-bike and supplies energy to the entire system. Thanks to the central mounting, the e-bike is perfectly balanced, stable and easy to handle.

The battery is able to deliver an e-bike on a single charge up to a distance of 170 km (depending on the circumstances).

Of course, it is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it. You can fully charge a fully discharged battery in 5 hours.

Manufacturer Leader Fox

LEADER FOX is one of the most popular brands of e-bikes and here at GREATEBIKE.EU we are the largest exporter of LEADER FOX electric bicycles for European market. The brand offers 40 models, from folding to urban touring to trekking. With full battery integration and the use of powerful mid and hub drives, LEADER FOX e-bikes are a great option for anyone looking for quality and design at a reasonable price. The design, preparation of production models and assembly all take place in a workshop situated in České Budějovice, in the Czech Republic

Leader Fox E-bikes





These might interest you:













Parameters

arrow

General

Model year 2025
Weight incl. battery 27 kg
Brand Leader Fox
Colour Blue, Silver
Load capacity 120 kg
arrow

Motor

Engine manufacturer Bafang
Engine type Bafang M510
Torque 95 Nm
Centre engine Yes
arrow

Battery

Charger 42V / 3Ah
Precise capacity 720 Wh
arrow

Suspension

Front fork Zoom Waxa 860 air, stroke:100 mm
arrow

Components

Saddle Selle Royal Moderate Exploria
Front hub Exerace
Rear hub Exerace, Boost
Handlebars Alloy, bend: 30mm, width: 640mm
Coats CST, 29x2,35
arrow

Transmission

Cassette Shimano Cues 9 speed 11-46T
Sorting S-Ride, SL-E600, 9 speeds
Shifter S-Ride RD-E600C
Number of gears 1x9
arrow

Brakes

Rear brakes Riderever 4 piston, hydraulic, rotor 160 mm
Front brakes Riderever 4 piston, hydraulic, rotor 180 mm
