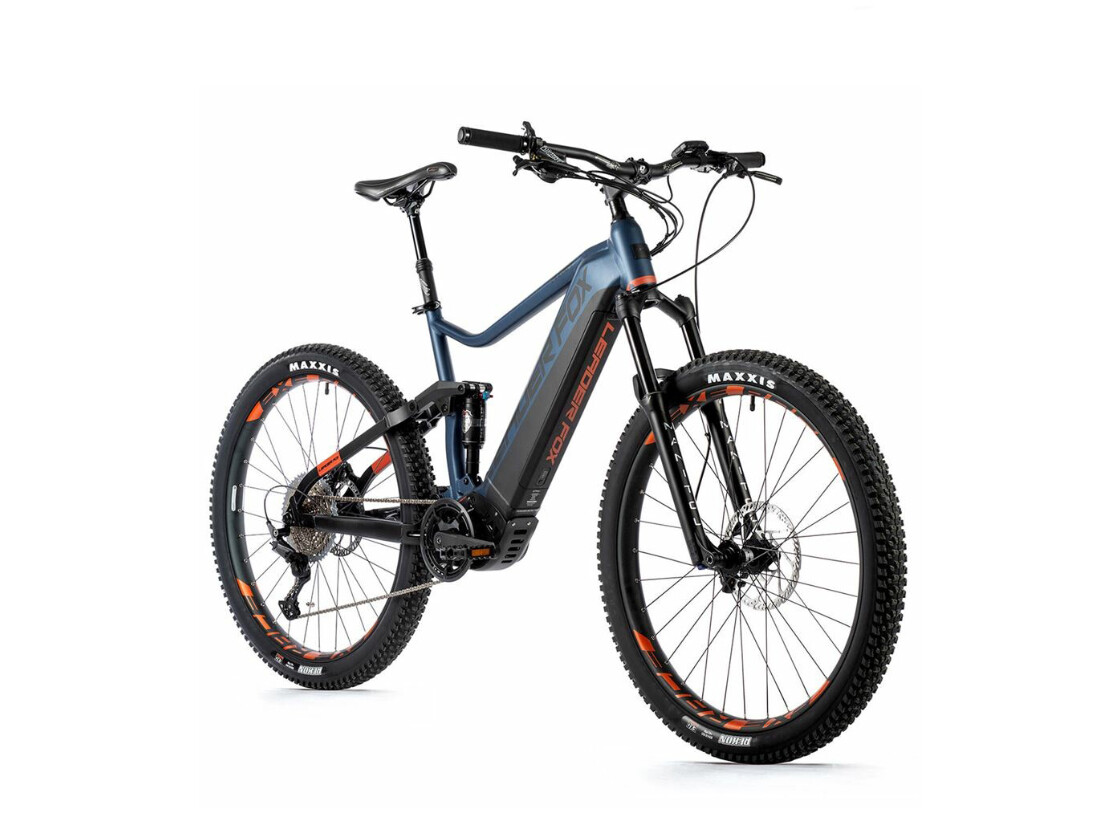

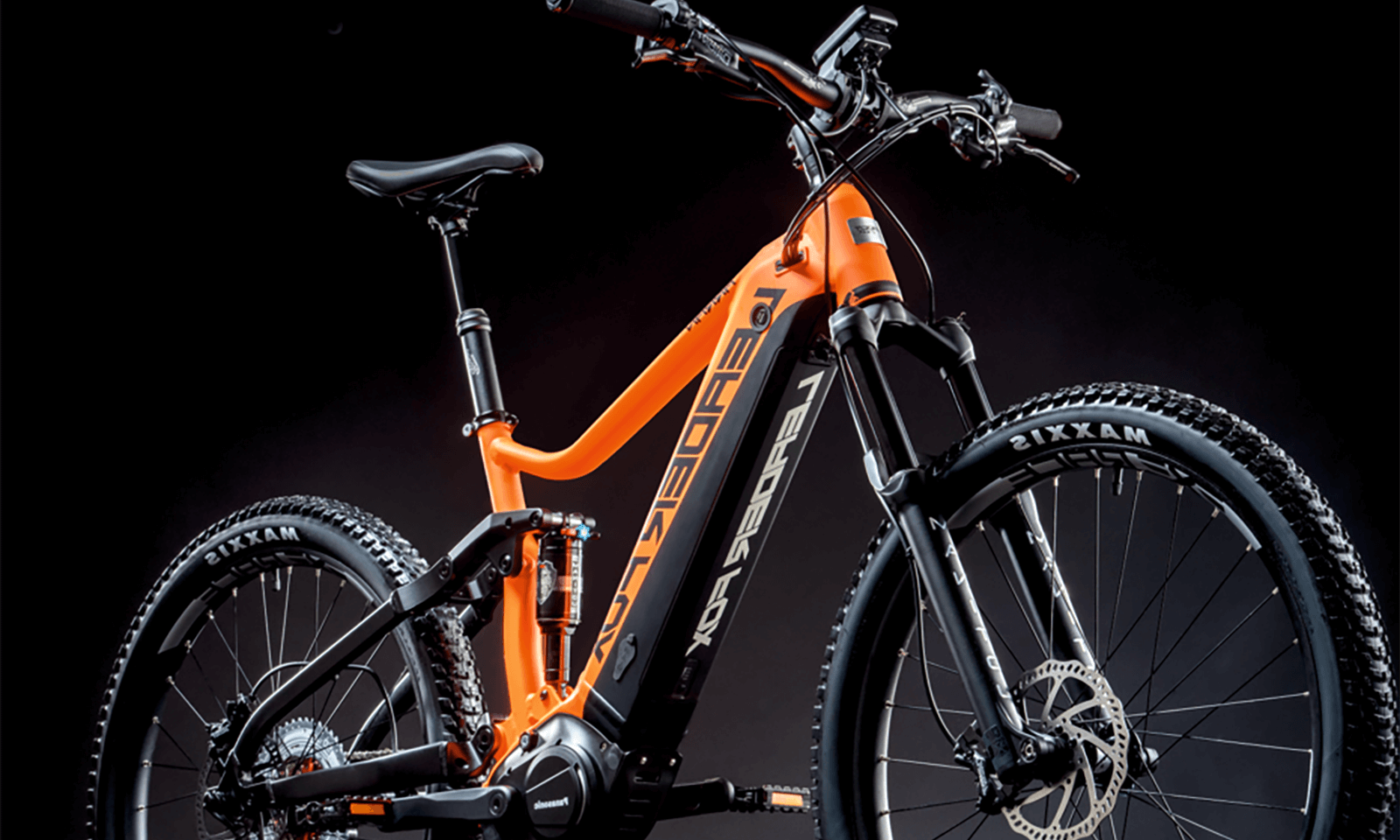

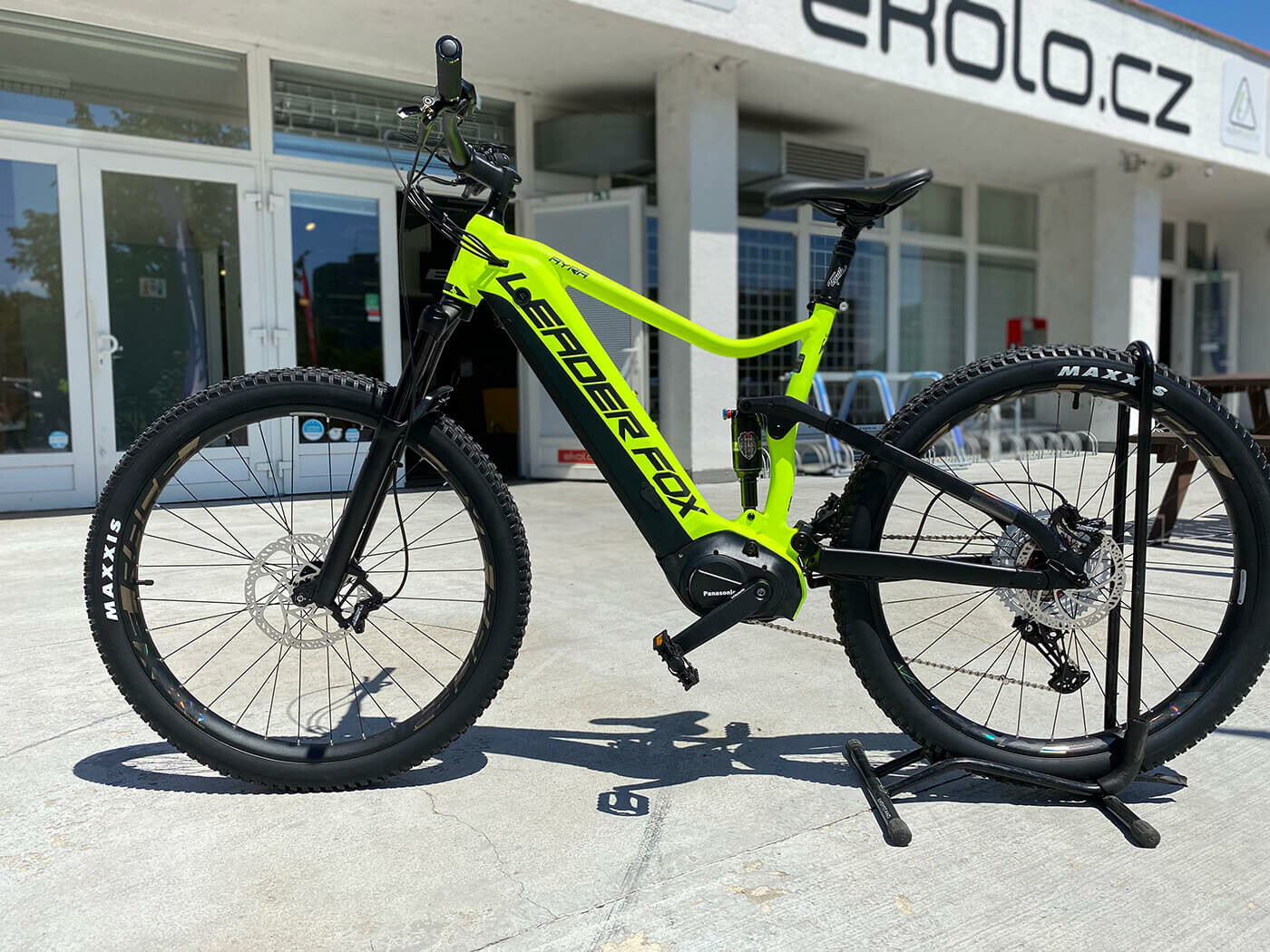

LEADER FOX Ayra 29"

All-suspension mountain e-bike with Panasonic GX Ultimate mid-motor, extra strong 720 Wh battery and clear LCD display. Built on 29" wheels with a range of up to 150 km. Ready to ride up mountains and high hills.

Contact us for an alternative
  • motor: PANASONIC GX ULTIMATE 250 W
  • battery: Li-Ion 720 Wh
  • frame size: 17,5", 19,5", 21,5"
  • number of gears: 11

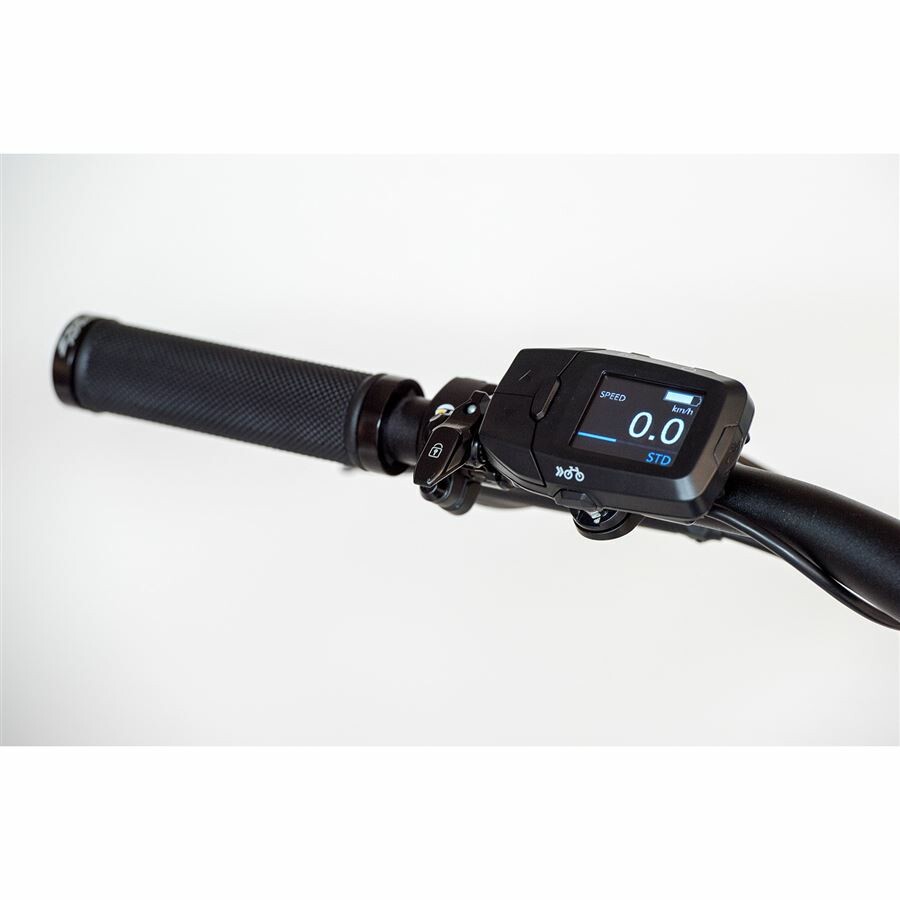

  • display: PANASONIC LCD
  • fork stroke: 130 mm

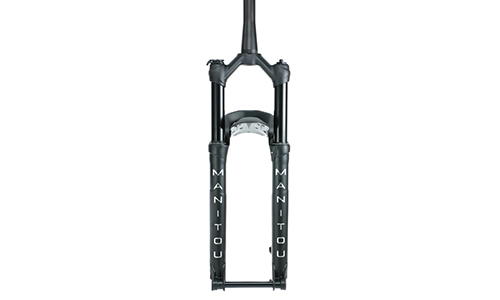

Odpružená vidlice Manitou Machete 27,5+/29" se zdvihem 130 mm. Machete je účelově vytvořená pro sjíždění trailů! Přepínač Kwik Toggle, které vychází z kompresního tlumiče Absolute+, v lehkém rámu. Nastavení lockoutu a odskoku tvoří správnou kombinaci nastavitelnosti a jednoduchosti.

  • Tapered - 51 mm
  • Offset - 15x110 mm
  • 32 mm hliníkové vzpěry
  • lehká dutá kovaná korunka
  • vzduchová pružina TS

Plášť MTB Maxxis Rekon Race Exo 29x2,25, Tubeless ready, kevlar. Semisliková XC závodní guma s nejnižším profilem běhounu v naší řadě XC. Přidaná vrstva extrémně odolného materiálu proti prodření a proříznutí pláště.

  • rozměr 29x2,25
  • patka skladácí
  • tpi 120
  • směs dual
  • hmotnost 670g
  • technologie Exo Protection

E-bike range calculator

500 Wh
300 Wh 650 Wh 1000 Wh
75 Kg
50 Kg 95 Kg 140 Kg

Dominant route profile:

Flat

Flat

Medium

Medium

Hills

Hills


The e-bike range is approximately

*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

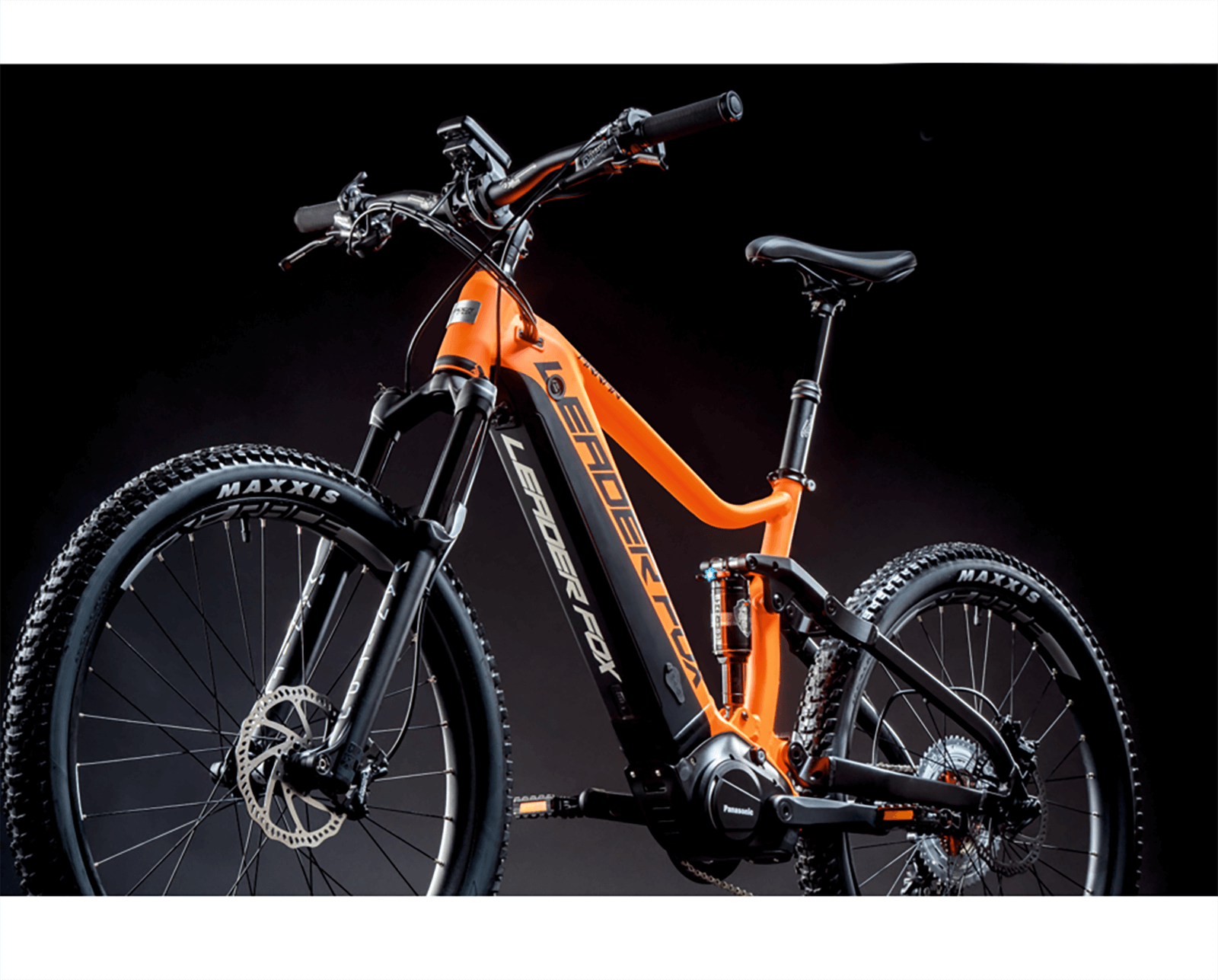

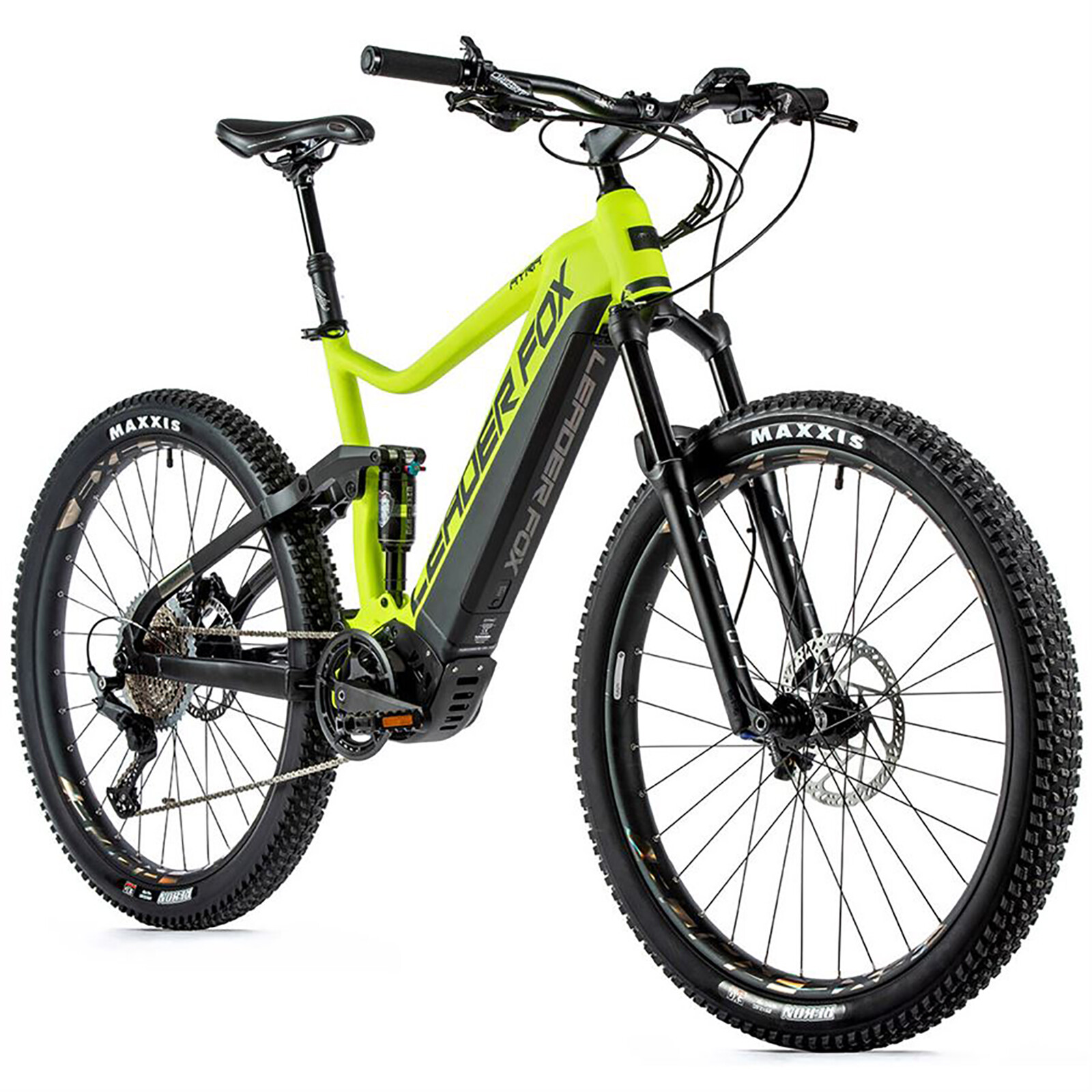

The Ayra 29 2022 all-suspension mountain bike with aluminium frame, sporty design, suspension front fork and Manitou rear shock, disc brakes and 29" wheels.

New integrated frame battery with powerful LG cells with a capacity of 720 Wh / 20Ah. Another plus is the new fast charger with a charging current of 3A (previously 1.8A). Thanks to which the battery charging time is significantly reduced. The e-bike is equipped with a Panasonic GX Ultimate center motor with a nominal power of 250W. This motor boasts, among other things, a high torque that can reach up to 90 Nm and is equipped with a torsion sensor for pedaling force. This means that the more force the cyclist pedals with, the more force the motor assists. The motor excels with very smooth running, above-average performance on climbs and quiet operation. The system is controlled by an LCD display and a push-button controller located on the handlebars.

Range on a fully charged battery:
- 120 km on average
- maximum up to 150 km

Accessories:
Charger and battery included.

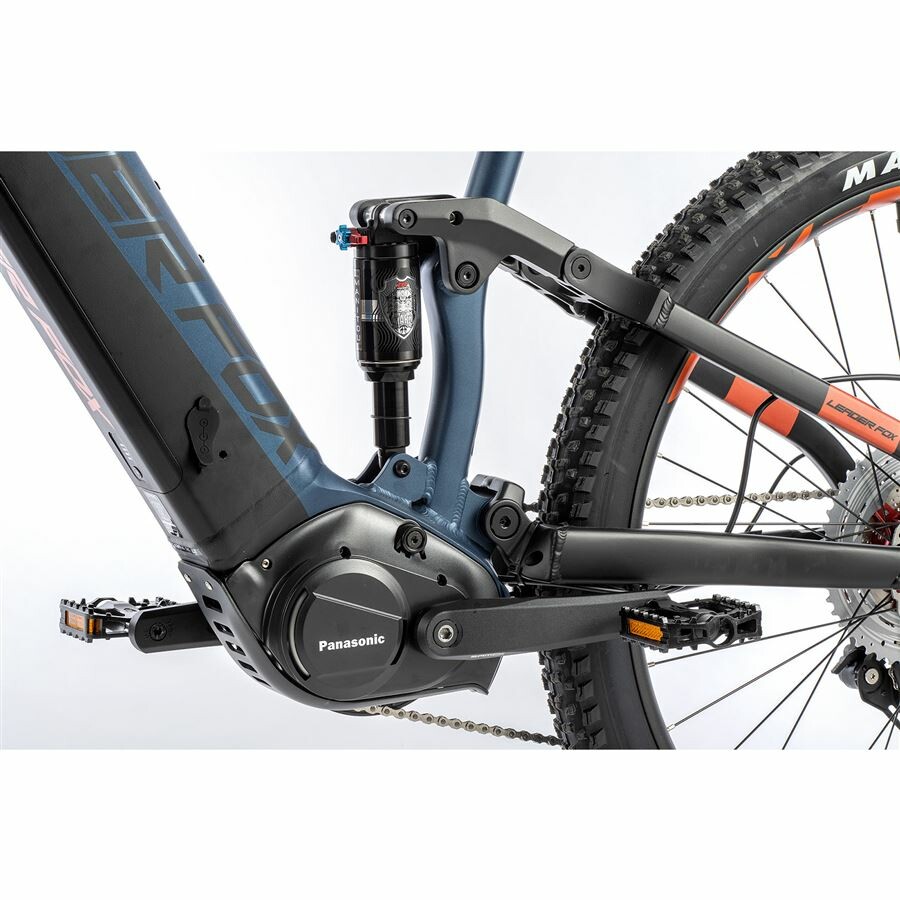

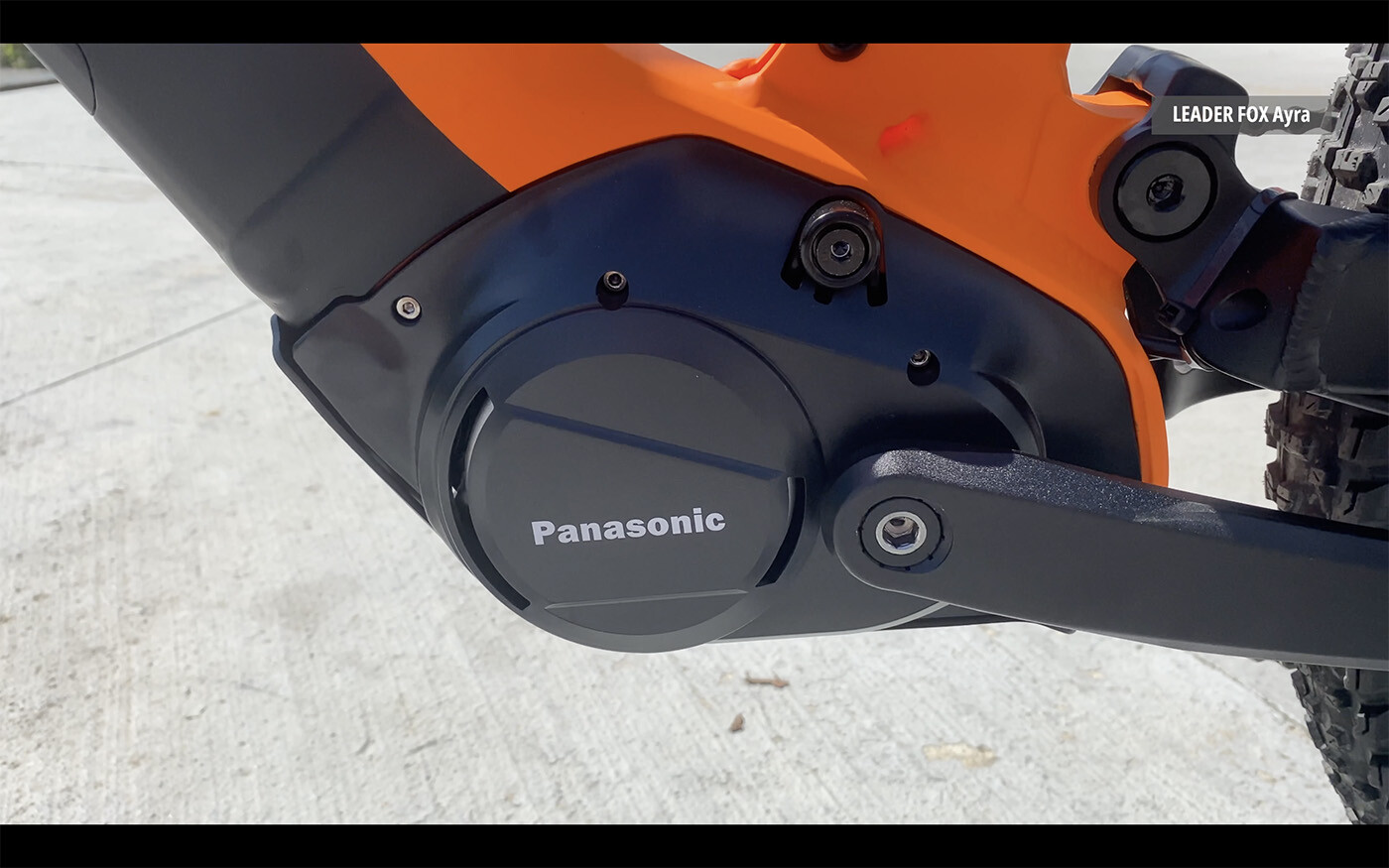

\Central motor Panasonic GX ULTIMATE

Motor Panasonic GX ULTIMATE

To maximize your e-MTB driving pleasure, here is the best motor in its class with 95 Nm of torque and a weight of just 2,95 kg, which will allow you to reach the toughest goals.

Even at low cadence, the motor unit provides a constant and powerful output of 95 Nm, thanks to which the GX Ultimate is one of the most powerful motor units in its class and supports you even in the most demanding conditions.

More informations

Manufacturer Leader Fox

LEADER FOX is one of the most popular brands of e-bikes and here at GREATEBIKE.EU we are the largest exporter of LEADER FOX electric bicycles for European market. The brand offers 40 models, from folding to urban touring to trekking. With full battery integration and the use of powerful mid and hub drives, LEADER FOX e-bikes are a great option for anyone looking for quality and design at a reasonable price. The design, preparation of production models and assembly all take place in a workshop situated in České Budějovice, in the Czech Republic

Leader Fox E-bikes



Parameters

arrow

General

Load capacity 130 kg
arrow

Motor

Centre engine Yes
arrow

Suspension

Front fork MANITOU MACHETTE, stroke: 130 mm, air lock from handlebars
arrow

Components

Rear hub FORMULA148S BOOST, 4x zapouzdřené ložisko, hliníková, osa 12 mm
Front hub FORMULA DC511 BOOST, 2x ZAPOUZDŘENÉ LOŽISKO, HLINÍKOVÁ, 15 mm OSA
Saddlebag EXERACE D: 30,9 mm, zdvih: 100m m

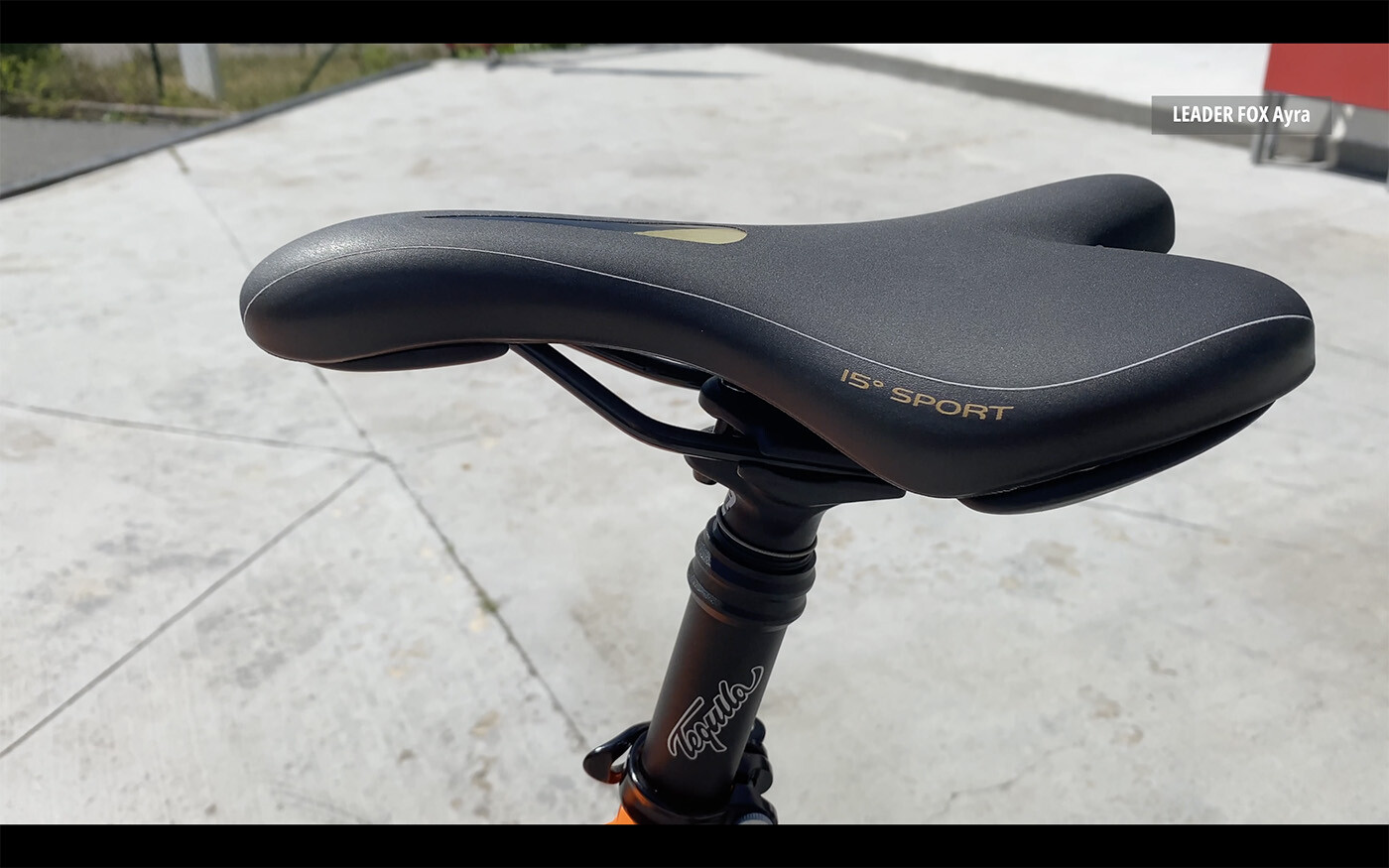

Saddle Selle Royal
Extender EXERACE, hliníkový, délka: 70mm
Coats MAXXIS REKON RACE 29 x 2,60
arrow

Transmission

Sorting SHIMANO DEORE 11 SPEED
Shifter SHIMANO DEORE
