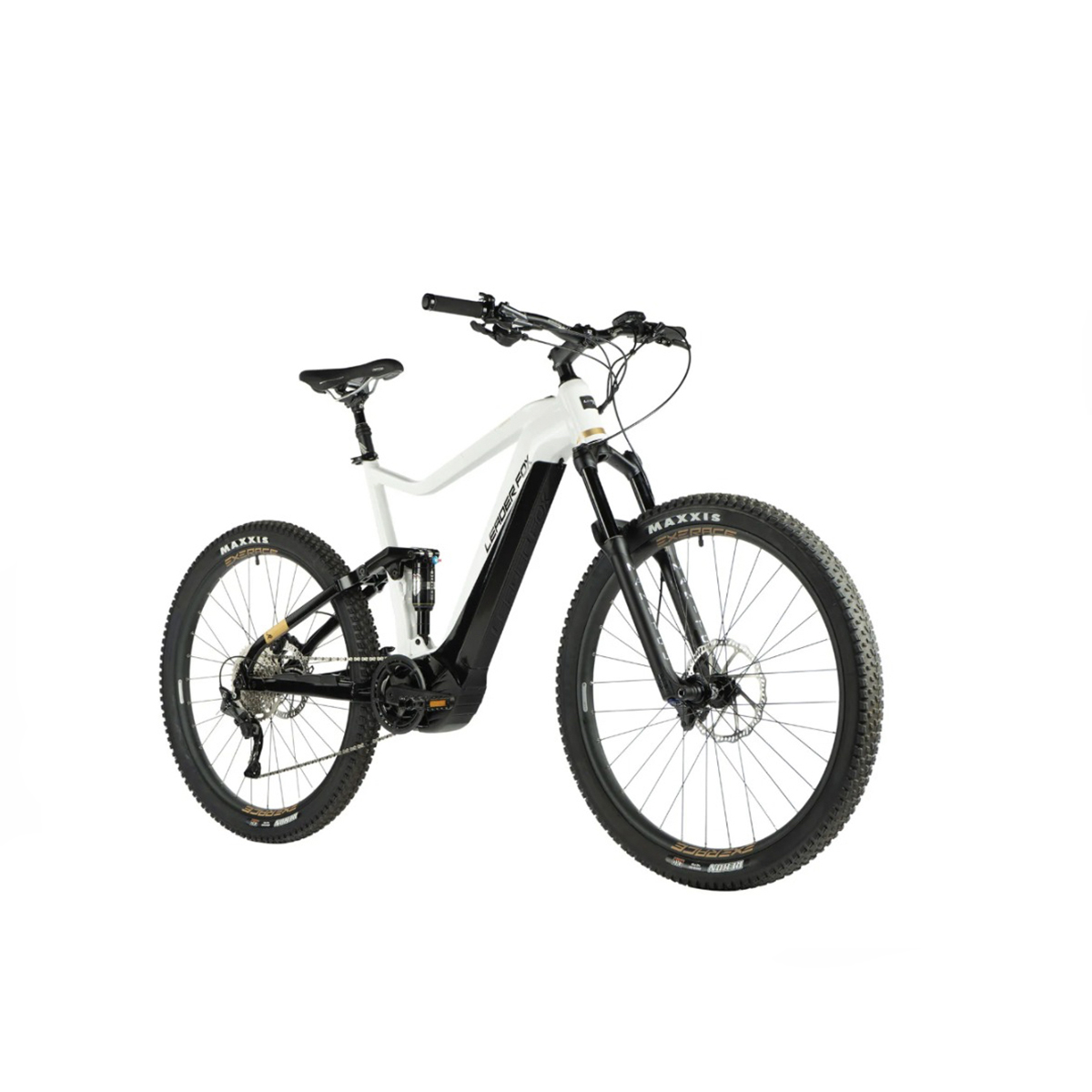

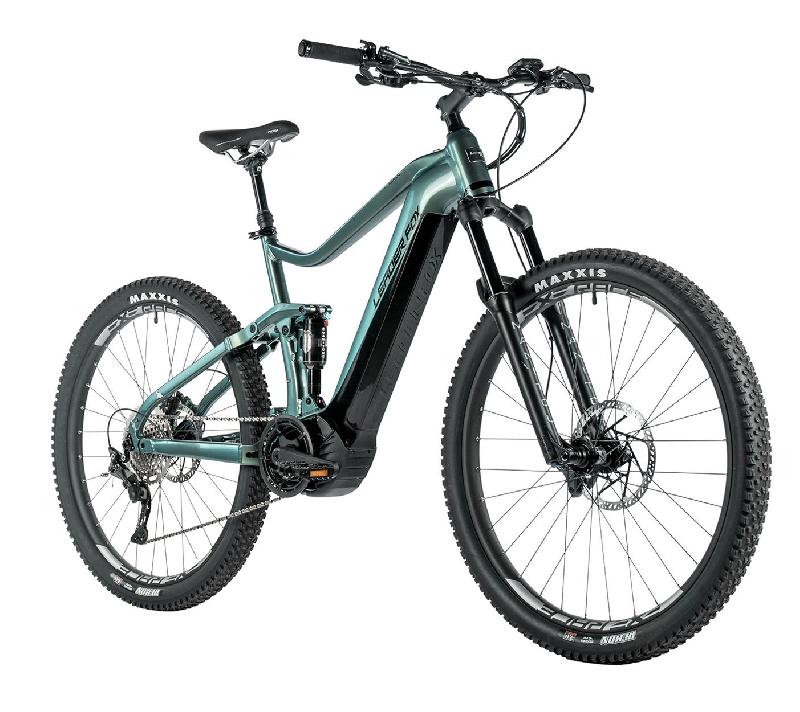

LEADER FOX Arran 29"
All-suspension mountain e-bike with a modern sporty design. Equipped with PANASONIC GX ULTIMATE motor, integrated 720 Wh battery, LCD display with push-button controller, Manitou rear shock absorber and quick charger.
Discount
when buying 2 or more e-bikes:
5%
Motor
Panasonic GX Ultimate
Motor power
90 Nm
Battery capacity
720 Wh
Shifter
10 speed
Wheels
29"
Shock travel
130 mm
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
Explore the world beyond the limits with the LEADER FOX ARRAN 29" full-suspension mountain e-bike . Its lightweight aluminium frame with a modern sporty design provides the perfect balance between performance and elegance. The Manitou front fork and rear shock, together with disc brakes and 29" wheels, ensure an unrivalled riding experience on any terrain.
This e-bike is equipped with a top-of-the-line Panasonic GX Ultimate mid-motor rated at 250W. Its high torque of up to 95Nm, coupled with a torsional pedal force sensor, means that every pedal is accompanied by a dynamic motor response. What's more, you can enjoy smooth and quiet operation even on demanding climbs thanks to the motor's above-average power. Operation is intuitive thanks to the LCD display and push-button controls on the handlebars.
A unique novelty is the fully integrated frame battery with powerful LG cells with a capacity of 720 Wh / 20 Ah. Are you looking forward to the charging time? With the new fast charger with a charging current of 3A (previously 1.8A), charging time is significantly reduced, which means more time for adventure and less waiting.
In terms of range, you can expect an average of 120km on a fully charged battery, with a maximum range of up to 150km. Enjoy endless miles with the confidence that the LEADER FOX Arran 29" 2023 electric bike will never let you down.
Need help choosing the right e-bike? Use our guide to choosing an e-bike or contact us directly .
Motor Panasonic GX ULTIMATE
To maximize your e-MTB driving pleasure, here is the best motor in its class with 90 Nm of torque and a weight of just 2,95 kg, which will allow you to reach the toughest goals.
Even at low cadence, the motor unit provides a constant and powerful output of 90 Nm, thanks to which the GX Ultimate is one of the most powerful motor units in its class and supports you even in the most demanding conditions.
Battery Li-Ion 720 Wh
High-capacity Li-Ion battery 720 Wh / 20 Ah. It is partially integrated into the frame of the e-bike and supplies energy to the entire system. Thanks to the central mounting, the e-bike is perfectly balanced, stable and easy to handle.
The battery is able to deliver an e-bike on a single charge up to a distance of 170 km (depending on the circumstances).
Of course, it is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it. You can fully charge a fully discharged battery in 5 hours.
Side display Panasonic
The side colour display is relatively small and compact and is located to the left of the handlebar grip. Its screen has a diagonal of about 4.5 cm. It offers a clear and crisp overview of all the necessary driving information. The display is also connected to Bluetooth™, which allows the use of smartphone apps such as "Komoot" and "Strava".
The side colour display is very clear overall. The screen is on the right and on the left are two large arrow keys and a narrow vertical key that functions as a menu. The control unit is IPX5 rated against water and dust.
Functions: speedmeter, maximum speed, average speed, odometer, remaining riding distance, riding distance, assist mode, assist power indication, waterproof after IPX5, state of battery charge, 10 languages selectable etc...
LEADER FOX is one of the most popular brands of e-bikes and here at GREATEBIKE.EU we are the largest exporter of LEADER FOX electric bicycles for European market. The brand offers 40 models, from folding to urban touring to trekking. With full battery integration and the use of powerful mid and hub drives, LEADER FOX e-bikes are a great option for anyone looking for quality and design at a reasonable price. The design, preparation of production models and assembly all take place in a workshop situated in České Budějovice, in the Czech Republic
Parameters
General
| Model year | 2023 |
| Brand | Leader Fox |
Motor
| Engine manufacturer | Panasonic |
| Engine type | Panasonic GX Ultim. |
| Torque | 90 Nm |
| Centre engine | Yes |
Battery
| Battery capacity | 700 - 799 Wh |
| Charger | 42V/3Ah |
Suspension
| Front fork | MANITOU MACHETTE AIR, ZDVIH:130mm |
Components
| Coats | MAXXIS RECON RACE 29,5X2,60 |
Transmission
| Number of gears | 10 |
| Sort by | SHIMANO DEORE, 10 speeds |
| Shifter | SHIMANO DEORE |
