LEADER FOX Arran 27,5"

Click to display the e-bike range calculator

E-bike range calculator

We are sorry :(

Because of a technical issue we were unable to calculate the range. Please, try it again later.

Total weight of rider (incl. equipment)

80

kg

Predominant route profile

•

  Plane
•

  Terrain
•

  Hill

Battery capacity

Range

For 80 kg riders, with a battery capacity of Wh when driving with average assistance after a predominantly , the range on this e-bike will be approximately

km

(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

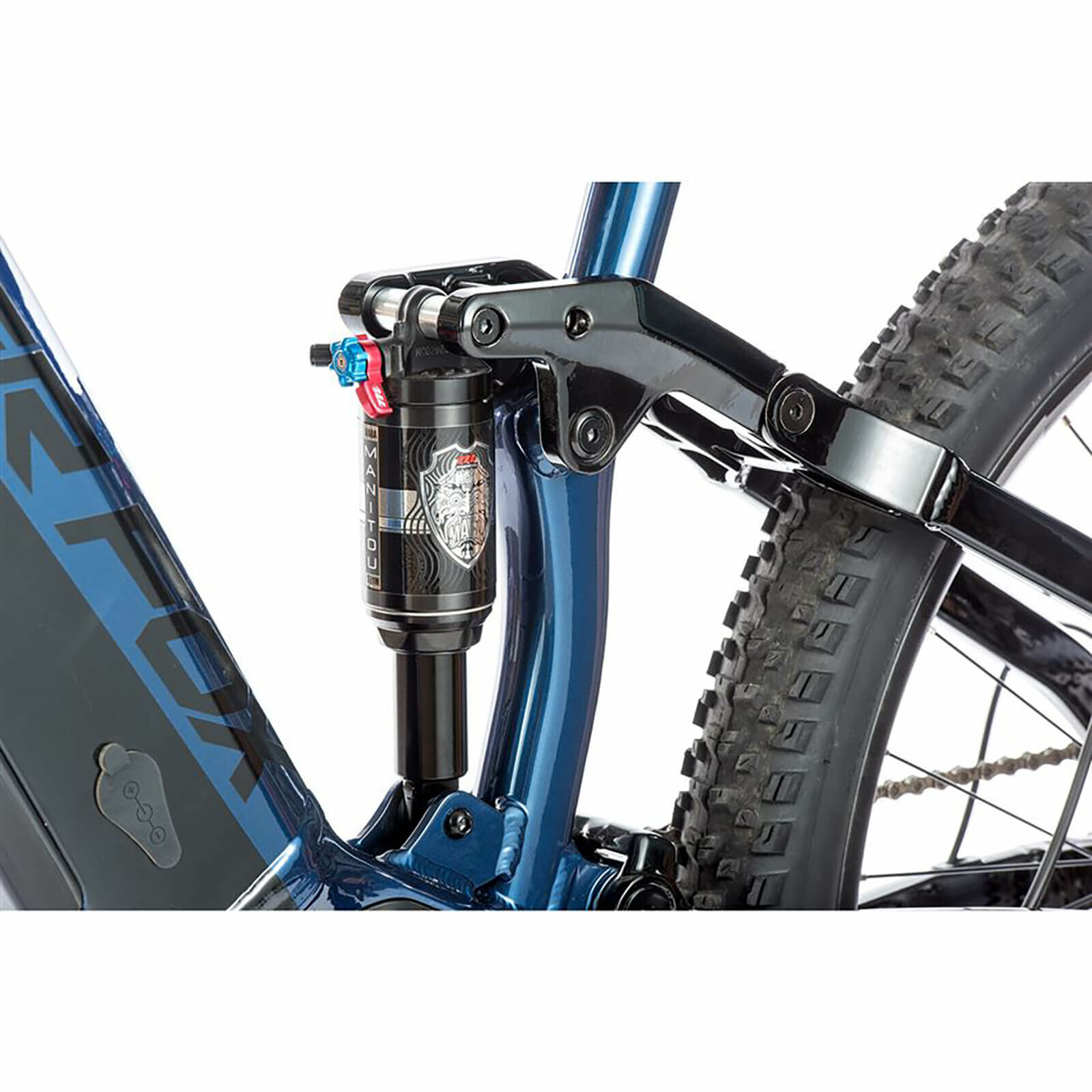

New for the 2021 season, the Arran 27.5 2021 all-suspension mountain bike with aluminium frame, sporty design, suspension front fork and Manitou rear shock, disc brakes and 27.5" wheels.

Another new feature is the integrated frame battery with powerful LG cells with a capacity of 720 Wh / 20Ah. Another plus is the new fast charger with a charging current of 3A (previously 1.8A). Thanks to which the battery charging time is significantly reduced. The e-bike is equipped with a Panasonic GX Ultimate center motor with a nominal power of 250W. This motor boasts, among other things, a high torque that can reach up to 90 Nm and is equipped with a torsion sensor for pedaling force. This means that the more force the rider pedals with, the more force the motor helps with.The motor excels with very smooth running, above-average power on climbs and quiet operation. The system is controlled by an LCD display and a push-button controller located on the handlebars.

Range on a fully charged battery:

• 120 km on average
• maximum up to 150 km

Panasonic's clear LCD display shows functions:

• selection of 3 assistance modes + automatic mode
• WALK function (walking speed - use e.g. when leading the bike up a steep hill)
• display of current, maximum and average speed
• kilometres travelled: single ride/total distance travelled
• day and night mode (display backlight)
• battery charge indicator

Accessories:

• Charger and battery included.

LEADER FOX is one of the most popular brands of e-bikes and here at GREATEBIKE.EU we are the largest exporter of LEADER FOX electric bicycles for European market. The brand offers 40 models, from folding to urban touring to trekking. With full battery integration and the use of powerful mid and hub drives, LEADER FOX e-bikes are a great option for anyone looking for quality and design at a reasonable price. The design, preparation of production models and assembly all take place in a workshop situated in České Budějovice, in the Czech Republic
