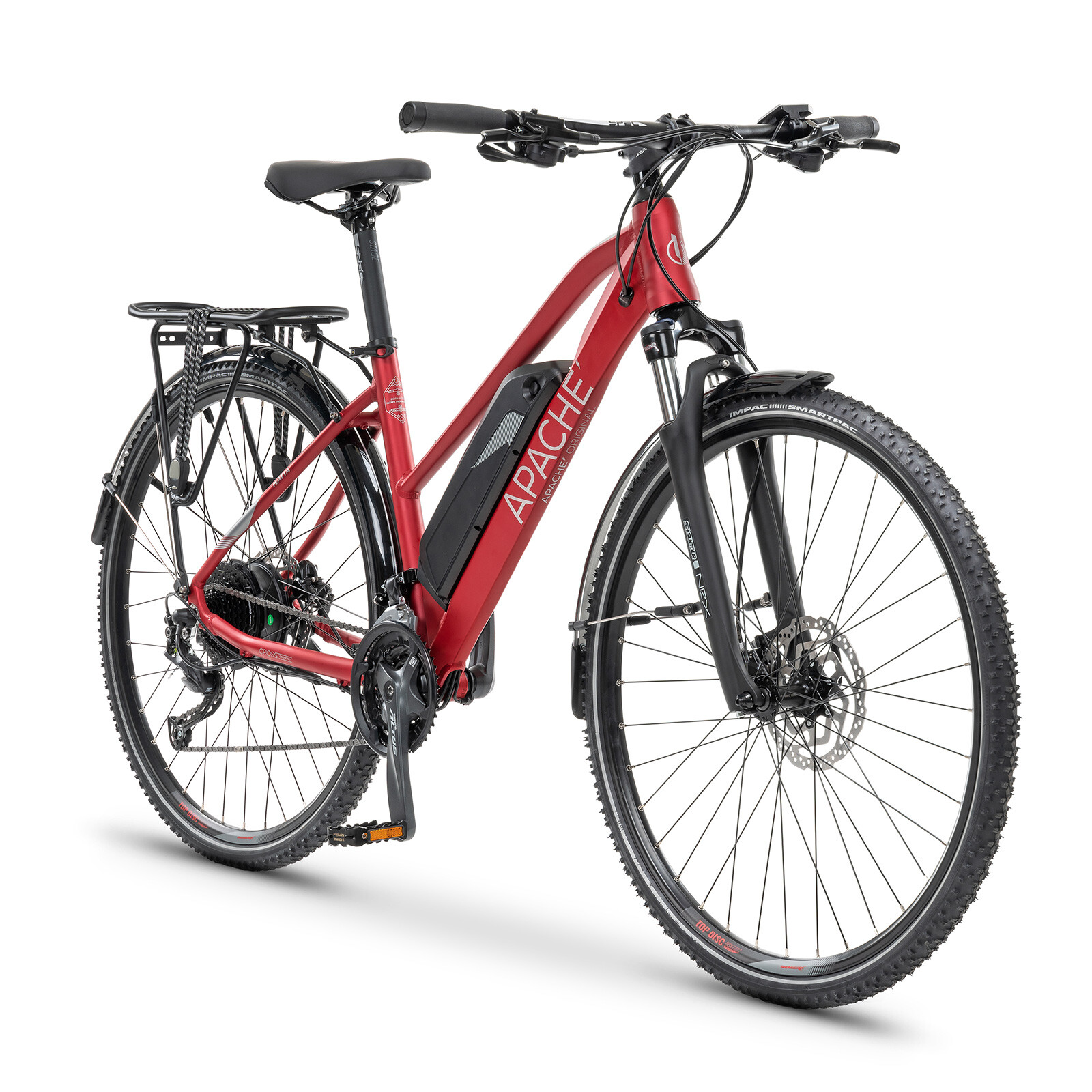

APACHE Matta Tour E4

Choose from the variants:

×

Volba velikosti rámu pro elektrokolo

Rider height in cm	Frame size in inches	Stated size
148 - 158	13 - 15	XS
158 - 165	15 - 17	S (SM)
160 - 175	17 - 18	M (MD)
175 - 185	19 - 20	L (LA)
185 - 200	21 - 22	XL

The frame size is given in inches. It is the distance between the centre of the pedal axis and the end of the seat tube.

For some models, manufacturers state another type of sizing similar to a clothing size chart:

As you can see, the e-bike assortment will satisfy primarily riders with a height of between 165 and 200 centimetres. But don't worry, we can customise any e-bike for you; just let us know!

• Info
• Parameters
• Range

Why this e-bike?

• Powerful Apache Power Silent drive system with Bafang hub motor, nominal power of 250W and maximum torque up to 32Nm.

• Li-ion frame battery with 470Wh capacity.
• Quality components of the Shimano brand.

• Innovated aluminium frame with sporty geometry and wider bottom tube for even more elegant battery connection.

• Shimano nine-speed derailleur with three-speed cranks and cassette with 11-36 t.

• SR Suntour NEX HLO suspension fork with 63 mm travel and a crown lock.

• Sturdy 28" wheels.



The Bafang electric motor is mounted on the rear hub and uses the Apache Power Silent propulsion system. This system, which uses sinusoidal control technology, is notable for its quiet operation and optimal use of energy, allowing the e-bike to run longer on a single charge. A smart control system prevents the battery from overheating, short circuiting or overcharging. The battery can hold a charge for up to 100 km.

An Apache Power Codac LCD display is mounted on the left handlebar. Its compact size reduces the risk of damage when cycling or handling the e-bike. The display allows you to select the degree of battery assist and allows you to toggle between the functions of the computer. The display also shows you the speed, distance travelled, degree of battery assist and most importantly, the amount of charge remaining in the battery.

This e-bike is also equipped with fenders, front and rear lights and a rack mounted over the rear wheel, for even better cycling!

Click to display the e-bike range calculator

E-bike range calculator

We are sorry :(

Because of a technical issue we were unable to calculate the range. Please, try it again later.

Total weight of rider (incl. equipment)

80

kg

Predominant route profile

•

  Plane
•

  Terrain
•

  Hill

Battery capacity

Range

For 80 kg riders, with a battery capacity of Wh when driving with maximum assistance after a predominantly , the range on this e-bike will be approximately

km

(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

Rear motor Bafang

This motor is ideal for touring and trekking e-bikes. The main advantage — ideal transfer of torque, so there is no slippage in the terrain. It is lightweight and has a maximal continous power rating of 250W and a peak of over 500W.

---

We are specialists and we have a complete range of medium- and high-class e-bikes from the Czech brand APACHE BICYCLES. With each APACHE e-bike we offer a premium frame warranty, the first year of after-sales service for free, and perfect diagnostics for all drive technologies used. We are the main repair shop partner for APACHE BICYCLES. APACHE has a wide range of e-bikes for various uses, with several possible motor types - Bosch, Bafang and Shimano. We also offer rebuilding and installation of hub and central sets and drives of the Apache Power System brand, including batteries and accessories.





These might interest you:















Parameters

Drive type	Silent Plus 250 W with hall senzors
Capacity and battery type	470Wh (13Ah/36V), Li-Ion, frame
Control	Apache Power Codac LCD
Frame sizes	18"
Frame type and material	Alloy 6061
Front fork	SR Suntour NEX HLO (with crown lockout)
Number of gears	3 x 9
Shifters and derailleur	Shimano Altus M2010, Shimano Altus M2000
Front derailleur	Shimano Altus M2000 (175 mm, 40 / 30 / 22 t.)
Type and brand of brakes	Shimano MT200 (disc 180 mm)
Cassette	Shimano Deore HG200 (11 - 36 t.)
The stem	Spec Stage 31,8 x 60 mm (17"), 80 mm (19" / 21")
Chain	KMC X9 / KMC HV500
Handlebars	Spec Phase 31,8 x 680 mm
Saddle and seat post	Spec Sport; Spec Phase 30,9 x 400 mm
Tyres	Impac Smartpac 28 x 1,60" (42 - 622)
