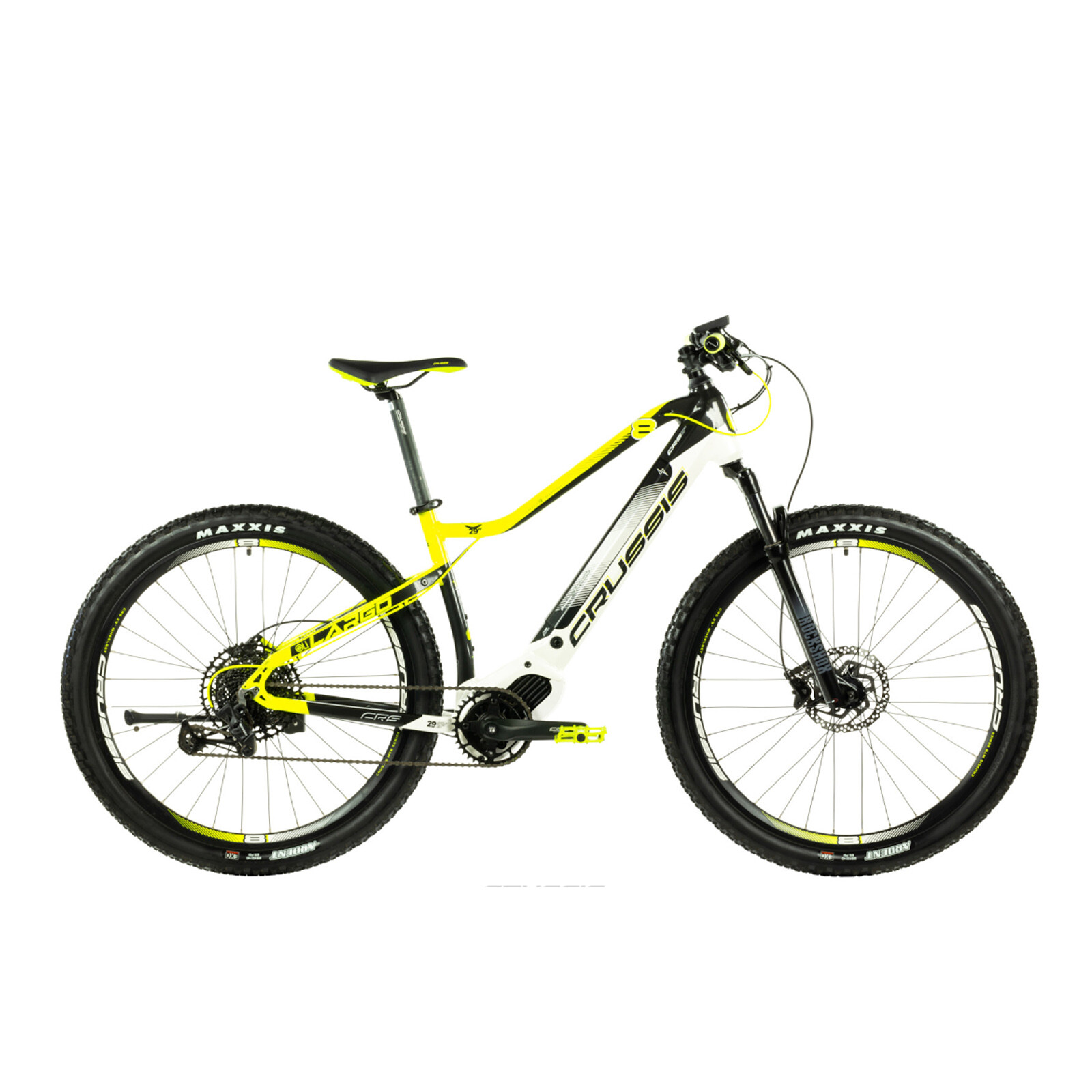

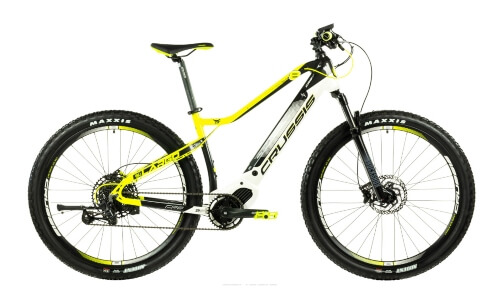

CRUSSIS OLI Largo 8.6-M
Well equipped mountain e-bike with OLI SPORT central motor and Samsung 720 Wh battery, Rockshox suspension forks and other reliable components that will ensure maximum comfort on your journeys everywhere you go.
- motor: OLI SPORT, 83 Nm
- battery: Samsung Li-Ion 720 Wh
- frame size: 18", 20", 22"
- number of gears: 12
- display: OLI SPORT LCD panel
- fork stroke: 100 mm

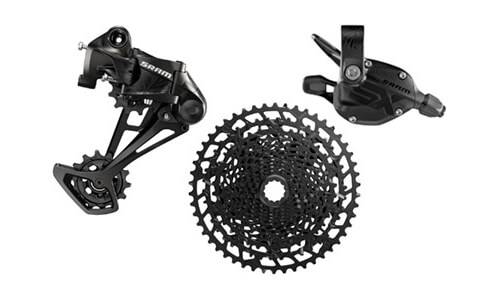

Eagle™ technology brings in new more accurate and smooth gear changes with excellent reliability, It offers a single-gear drive and features high endurance easy control and low weight. The new derailleur X Eagle™ is designed using famous SRAM 1x system code named X-HORIZON™

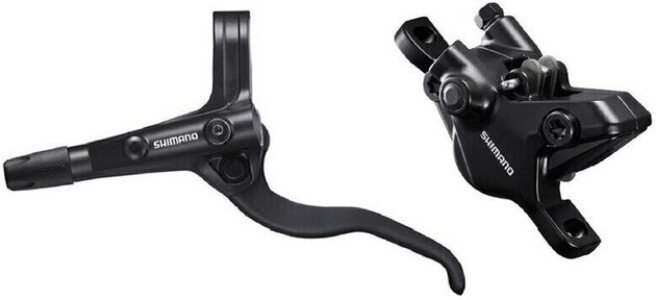

Hydraulic disc brakes SHIMANO BR-MT410 offer excellent performance at reasonable cost. MT410 discs deliver great endurance, quick and easy installation and low noise levels. Pads on this module are attached to 2 piston calipers with quick piston retraction design.
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
Our e-Atland OLI 8.6-M model is a very popular mens e-bike for its extra large capacity battery perfect for long and demanding trips across countryside as well as on country roads. It does feature 29" wheels but should there be a preference for 27.5" then please consider our e-Largo 8.6-L model too.
The aluminium frame has been specificaly designed to provide excellent handling and stability on a road further enhanced by a complete integration of the powerful Li-Ion cells Samsung 36V / 900 Wh (25 Ah) battery.
There is no question about this models capabilities and range while there is also a great focus on reliability. OLI SPORT is a centre motor with nominal power output is rated at 250W (700W peak) the torque is 83 Nm. It represents fantastic value for the permormance it delivers and being a crank drive further helps with weight distribution turning the e-bike into a perfect tool for any trip.
CRUSSIS e-Atland 9.6-M is one of the bikes proudly featured in our high range category and with up to 170km but please do bear in mind that actual range will always depend on riding style, level of boost, terrain and load / overall weight.
Frame range is from 18" to 22" and standing on 29" wheels we find SRAM Eagle SX 12s gear changer and SHIMANO Deore BR-MT410 hydraulic disc brakes. There is a ROCKSHOX FS Judy Silver TK R Solo Air 29" (100mm) suspension above front tyre which is known for its grat balance of comfort while maintaning good handling abilities.
MAXXIS ARDENT 29 X 2,40 tyres provide good grip regardless of weather conditions and there is a USB port for charging mobile devices on a go also included but this being a mountain bike there is no mudguards, support stand or lights fitted although these can be purchased seperately.

OLI SPORT motor
The electric motor is equipped with a torsional pedal force sensor. The motor power is regulated by a control unit, which constantly evaluates the force with which the rider steps on the pedals. Simply put, everything works so that the more power you drive while pedaling, the more boost this engine provides.

Battery Samsung 720 Wh
High-capacity Samsung Li-Ion battery 720 Wh / 20 Ah. It is partially integrated into the frame of the e-bike and supplies energy to the entire system. Thanks to the central mounting, the e-bike is perfectly balanced, stable and easy to handle.
The battery is able to deliver an e-bike on a single charge up to a distance of 170 km (depending on the circumstances).
Of course, it is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it. You can fully charge a fully discharged battery in 5 hours.

Display for OLI SPORT motor
The clear color LCD display screen will always keep you up to date with informations such as battery status and level of assistance, also other data concerning driving (speed, distance traveled, etc.).
The electric motor itself (selection of the assistance rate) is then controlled via buttons plus, minus (on / off) located on the handlebars next to the front brake lever. How simple, convenient and safe.

CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
Parameters
General
Load capacity | 120 kg |
Motor
Centre engine | Yes |
Suspension
Front fork | ROCKSHOX FS Judy Silver TK Solo Air 29", stroke 100 mm, lockable from the fork |
Components
Grips | CRUSSIS silikonové |
Rear hub | Crussis disc, industrial bearings, 32D, fixed axle 12x142 mm |
Front hub | Crussis disc, industrial bearings, 32D, fixed axle 15x100mm |
Saddlebag | CRUSSIS with lock, 31,6, 350 mm |
Saddle | Selle Royal |
Racks | Crussis 29", dvoustěnné, vložkované, 25mm |
Handlebars | CRUSSIS Al, 740 mm |
Extender | CRUSSIS Al, 60 mm, fixed |
Coats | Maxxis Ardent 29 x 2,40 |
Transmission
Number of gears | 1 x 12 |
Brakes
Front brakes | SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm |
Rear brakes | SHIMANO Deore BR-MT410, hydraulic, 160 mm rotor |
