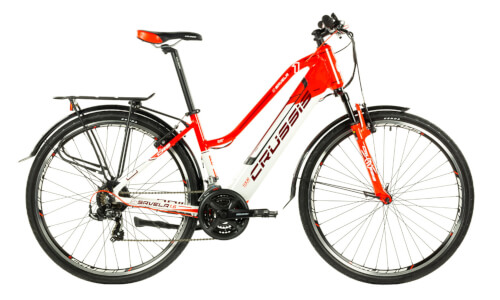

CRUSSIS e-Savela 1.6

Choose from the variants:

×

Volba velikosti rámu pro elektrokolo

Rider height in cm	Frame size in inches	Stated size
148 - 158	13 - 15	XS
158 - 165	15 - 17	S (SM)
160 - 175	17 - 18	M (MD)
175 - 185	19 - 20	L (LA)
185 - 200	21 - 22	XL

The frame size is given in inches. It is the distance between the centre of the pedal axis and the end of the seat tube.

For some models, manufacturers state another type of sizing similar to a clothing size chart:

As you can see, the e-bike assortment will satisfy primarily riders with a height of between 165 and 200 centimetres. But don't worry, we can customise any e-bike for you; just let us know!

• Info
• Parameters
• Range
• Manual

Why this e-bike?

In greatebike.eu, THE BATTERY AND CHARGER IS ALWAYS INCLUDED IN THE PRICE OF THE E-BIKE

Click to display the e-bike range calculator

E-bike range calculator

We are sorry :(

Because of a technical issue we were unable to calculate the range. Please, try it again later.

Total weight of rider (incl. equipment)

80

kg

Predominant route profile

•

  Plane
•

  Terrain
•

  Hill

Battery capacity

Range

For 80 kg riders, with a battery capacity of Wh when driving with maximum assistance after a predominantly , the range on this e-bike will be approximately

km

(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

Rear motor Bafang

This motor is ideal for touring and trekking e-bikes. The main advantage — ideal transfer of torque, so there is no slippage in the terrain. It is lightweight and has a maximal continous power rating of 250W and a peak of over 500W.

---

CRUSSIS Electrobikes has been an importer of its own brand of electric bicycles since 2012. Ekolo.cz offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.





These might interest you:















Parameters

Drive type	BAFANG 250W (MAX 500W), v rear gear

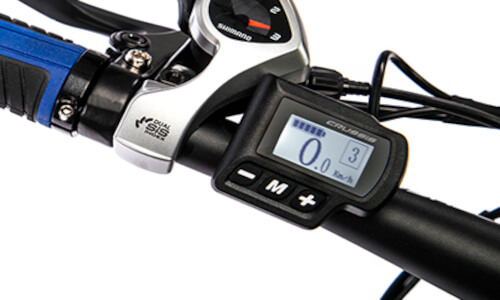

Control	BAFANG LCD panel
Capacity and battery type	Li-Ion 36V / 468 Wh (13 Ah)
Frame sizes	17", 19"

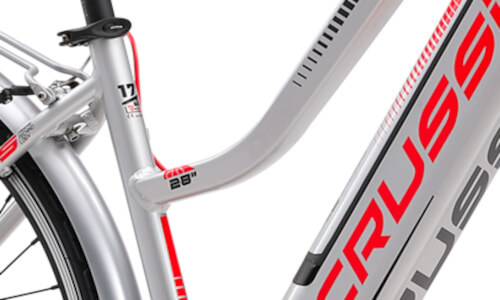

Frame type and material	Alu 6061
Front fork	ZOOM 420E 700C no lock
Number of gears	3 x 7
Shifters	SHIMANO Tourney SL-TX50, 21 rychlostí
Derailleur	SHIMANO Tourney RD-TY300, 7 speed
Front derailleur	SHIMANO Altus FD-M313
Front brakes	TEKTRO V-Brake
Rear brakes	TEKTRO V-Brake
Type and brand of brakes	TEKTRO V-Brake
Crankset	CRUSSIS 48/38/28 tines, 170 mm
Cassette	SHIMANO MF-TZ500-7, 14-28 tines
The stem	CRUSSIS Al, 60 mm
Chain	KMC Z7
Handlebars	CRUSSIS AL 31,8mm, width 620 mm
Saddle	Selle ROYAL
Seat post	CRUSSIS with lock, 31,6 / 350 mm
Load capacity	120 kg
Rims	CRUSSIS 28", 19 mm
Front hub	CRUSSIS, 36D
Rear hub	BAFANG with motor
Tyres	KENDA 700x45
Grips	CRUSSIS
Extras	fenders, stand, carrier, headlight
Head composition	Semi 1 1/8
