BAFANG Max Drive M400
The motor has a pedal sensor and a torsional pedal force sensor. The more force the cyclist puts on, greater the force engine puts in thanks to the included smart control unit.
Why this e-bike?
- motor: BAFANG MAX drive (M400)
- battery: SAMSUNG Li-Ion 720 Wh
- frame size: 18", 20"
- number of gears: 9
- display: BAFANG LCD panel, 5 stupňů asistence
- fork stroke: 100 mm
Click to display the e-bike range calculator
E-bike range calculator
(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

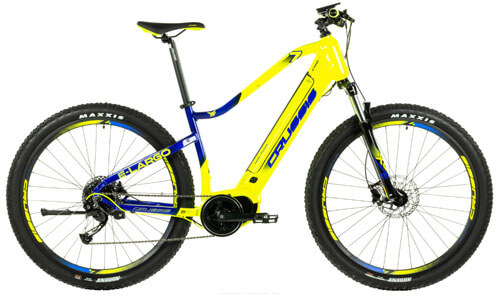

The e-Largo 7.6-M mountain bike is designed for off-road riding, but it can also handle the road or bike path without any problems. It's up to you. It differs from its fellow e-Atland 7.6-M in wheel size - it comes on 29" wheels.
The geometry of the aluminium frame ensures great stability and handling of the e-bike, which is also helped by the battery with Samsung 720 Wh / 20 Ah Li-Ion cells. It is fully integrated into the frame of the e-bike. Practical, functional and with an eye-pleasing design.
The range and reliability is ensured by the BAFANG MAX drive (M400) central electric motor, rated at 250W (max 500W), with a torque of 80 Nm. The use of a central electric motor in this model contributes greatly to the ideal balance of the e-bike - a modern solution used in higher-end e-bike ranges around the world.
The range of the e-bike is 170 km - it depends on the profile of the track and how the assistance is used, which in the case of this model is five-speed and is controlled via an LCD display located on the handlebars. The colour display shows the battery level, the selected level of electric motor assistance, speed and distance travelled.
The e-bike is produced on 29" wheels, which are now a standard for mountain bikes, and in 18" and 20" frame sizes. Shimano Alivio 9-speed derailleur takes care of shifting and Shimano BR-MT200 hydraulic disc brakes make your ride more comfortable, Suntour XCM HLO DS 29" suspension fork is equipped with spring damping and has a travel of 100 mm.
The wheels are shod with MAXXIS ARDENT 29 X 2.40 bike tyres, so you don't have to worry about the off-road grip of the e-bike not being taken care of.
The e-bike is delivered without mudguards, lighting, stand etc. However, these can be easily purchased and subsequently mounted to the bike. On the other hand, a USB connector for charging mobile devices is included.
Battery Samsung 720 Wh
High-capacity Samsung Li-Ion battery 720 Wh / 20 Ah. It is partially integrated into the frame of the e-bike and supplies energy to the entire system. Thanks to the central mounting, the e-bike is perfectly balanced, stable and easy to handle.
The battery is able to deliver an e-bike on a single charge up to a distance of 170 km (depending on the circumstances).
Of course, it is equipped with a BMS board (Battery Management System), which protects it from overheating, short circuit or overcharging. You can charge the battery directly on the bike carrier or it can be removed to charge it. You can fully charge a fully discharged battery in 5 hours.
Display for Bafang Max Drive central drive (M400)
Motor assistance can be controlled using LCD screen located on handlebar just like it's on most e-bikes. The screen will display battery status choosen gear motor assistance speed and mileage.
CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.
They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr
Parameters
| Drive type | BAFANG MAX drive (M400), 250W (max 500W), 80 Nm |
|---|---|
| Control | BAFANG LCD panel, 5 modes, colour screen |
| Capacity and battery type | SAMSUNG Li-Ion 720 Wh (20 Ah) |
| Frame type and material | Alu 6061 |

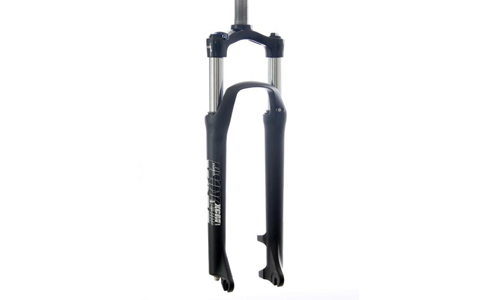

| Front fork | SUNTOUR XCM HLO DS 29", stroke 100 mm with lock |
| Number of gears | 1 x 9 |
| Shifters | SHIMANO Alivio SL-M3100 |
| Derailleur | SHIMANO Alivio RD-M3100-SGS |

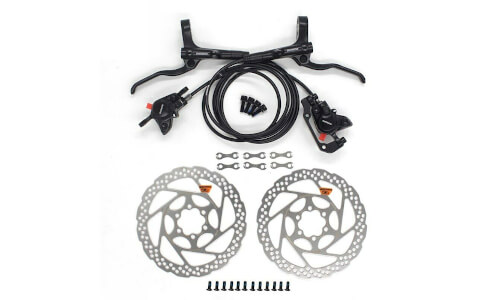

| Front brakes | SHIMANO BR-MT200, hydraulic, rotor 180 mm |
| Rear brakes | SHIMANO BR-MT200, hydraulic, rotor 160 mm |
| Cassette | SHIMANO CS-HG200-9, 9 speed, 11 - 36 notches |
| The stem | CRUSSIS Al, 60 mm, fixed |
| Chain | KMC X9 |
| Handlebars | CRUSSIS Al, 740 mm |
| Saddle | Selle ROYAL |
| Seat post | CRUSSIS with lock, 31,6 / 350 mm |
| Load capacity | 120 kg |
| Rims | CRUSSIS 29", dual layer with inserts, 25mm |
| Front hub | CRUSSIS disc, industrial bearings, 32D, fixed axis 15x100mm |
| Rear hub | CRUSSIS disc, industrial bearings, 32D, fixed axis 12x142mm |
| Tyres | MAXXIS Ardent 29 x 2,40 |
| Grips | CRUSSIS silicon |
