CRUSSIS e-Atland 7.6-L

A mountain e-bike that attracts with its modern design, high-quality Bafang drive and an extra strong battery with an output of 900 Wh, which is fully integrated into the frame of the e-bike. Thanks to other reliable components, your trips will be a great experience.

Contact us for an alternative
  • motor: BAFANG MAX drive (M400)
  • batéria: SAMSUNG Li-Ion 900 Wh
  • frame size: 18", 20"
  • number of gears: 9
  • display: BAFANG LCD panel
  • fork stroke: 100 mm

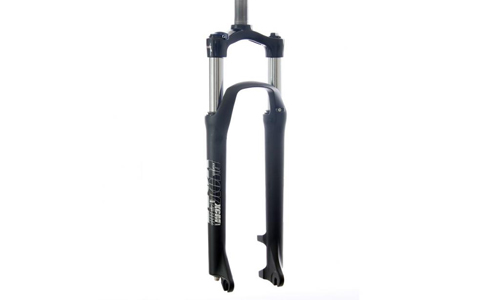

Model e-Atland 7.6-L je vybaven odpružením SR Suntour XCM HLO DS s 100 mm zdvihu. To samo o sobě dělá elektrokolo neuvěřitelně pohodlným bez ohledu na to, jak drsný je terén. Vidlici je možno uzamknout z korunky. Pružení: pružina. Tlumení: olejová patrona. Skvěle zvládně asfalt i štěrk na trase a to bez námahy při zachování skvělých schopností a ovladatelnosti.

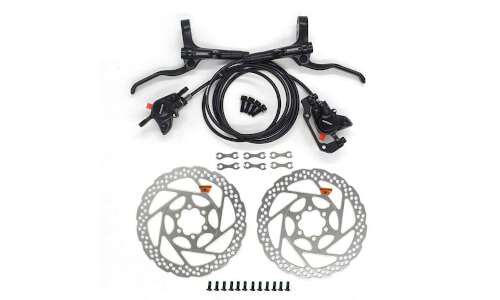

Hydraulické brzdy Shimano BR-MT 200 se pyšní skvělou brzdnou silou a vynikající nastavitelností páky tak, aby vám při jízdě vždy sedla. Má lehkou konstrukci vhodnou pro eMTB. Páka samotná je na tři prsty a třmeny jsou 2pístkové. Brzdy jsou spojené, naplněné, odvzdušněné a připravené k 100% použití.

E-bike range calculator

500 Wh
300 Wh 650 Wh 1000 Wh
75 Kg
50 Kg 95 Kg 140 Kg

Dominant route profile:

Flat

Flat

Medium

Medium

Hills

Hills


The e-bike range is approximately

*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

[dojezd-200-[{"watth":"900"}]]

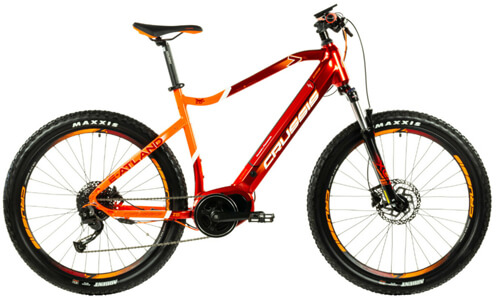

The men's e-Atland 7.6-L mountain e-bike with a stronger battery is designed for off-road riding, but it can handle the road or bike path without any problems. It's up to you. It differs from its fellow e-Largo 7.6-L by the size of the wheels - it comes on 27.5" wheels.

The geometry of the aluminium frame ensures great stability and handling of the e-bike, which is also helped by the battery with Samsung 36V / 900 Wh (25 Ah) Li-Ion cells. It is fully integrated into the frame of the e-bike. Practical, functional and with an eye-pleasing design. What more could you ask for?

Perhaps range and reliability. This is ensured by the BAFANG MAX drive central electric motor (M400), rated at 250W (max 500W), with a torque of 80 Nm. The use of a central electric motor in this model contributes greatly to the ideal balance of the e-bike - a modern solution used in higher-end e-bike ranges around the world.

The range of the e-bike is 200 km - it always depends on the profile of the track and how the assistance is used, which in the case of this model is a five-speed. And how do you actually operate the assistance? As with most e-bikes, via the LCD display on the handlebars. The colour display shows the battery level, the selected level of electric motor assistance, speed and distance travelled.

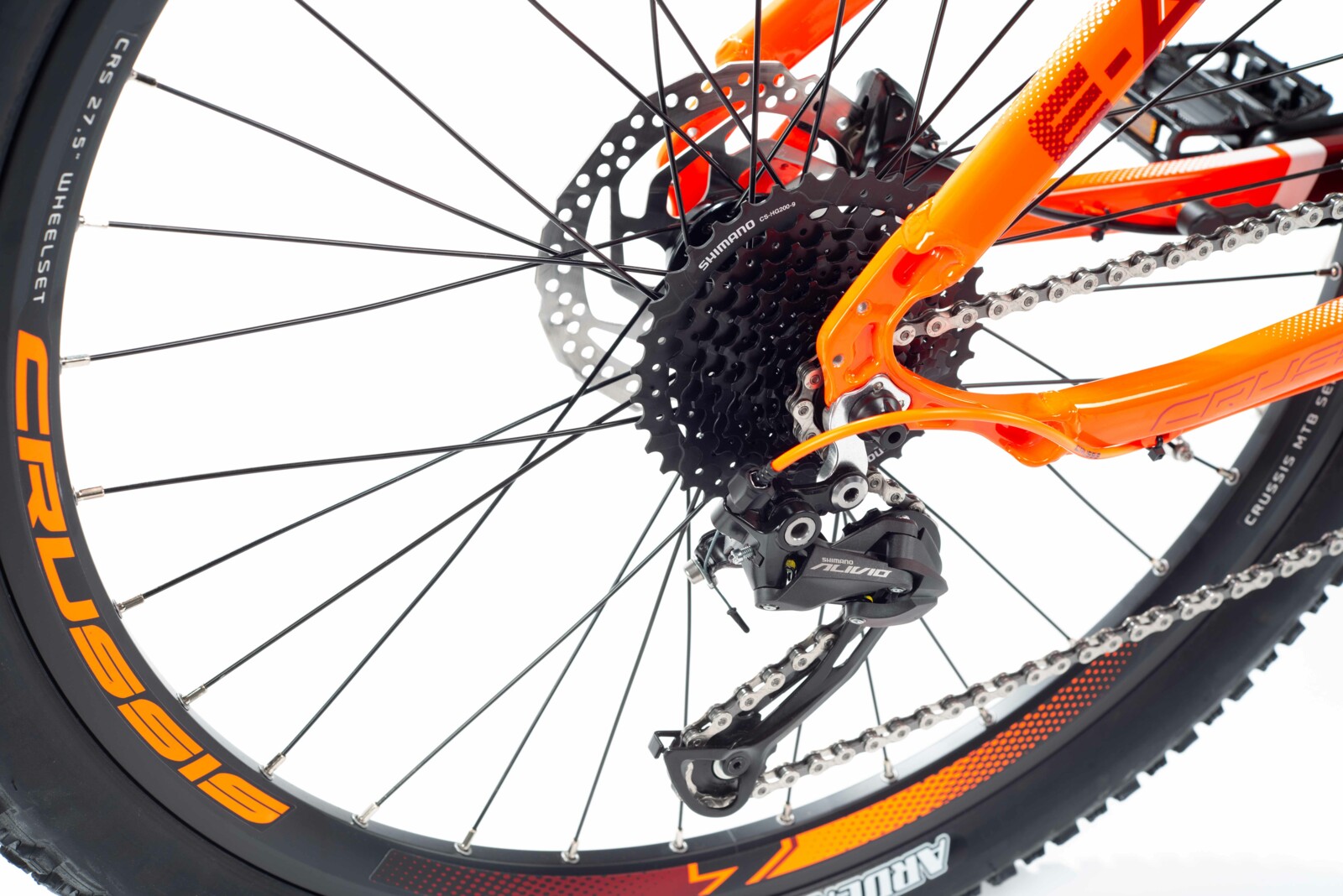

The e-bike is produced on 27,5" wheels, which are nowadays a necessary standard for mountain bikes, and in 18" and 20" frame sizes. Shimano Alivio 9-speed derailleur takes care of shifting and Shimano BR-MT200 hydraulic disc brakes make your ride more comfortable, Suntour XCM HLO DS 27.5" suspension fork is equipped with spring damping and has a travel of 100 mm.

The wheels are shod with MAXXIS ARDENT 27.5 X 2.40 bike tyres, so you don't have to worry about the off-road grip of the bike.

The e-bike is delivered without mudguards, lighting, stand etc. However, these can be easily purchased and subsequently mounted to the bike. On the other hand, a USB connector for charging mobile devices is included.

Central drive BAFANG Max Drive M400

BAFANG Max Drive M400

The motor has a pedal sensor and a torsional pedal force sensor. The more force the cyclist puts on, greater the force engine puts in thanks to the included smart control unit.

Read more

Integrated battery Samsung 900 Wh / 25 Ah

Battery Samsung 900 Wh / 25 Ah

Samsung battery with an extreme capacity of 900 Wh / 25 Ah, which is fully integrated into the frame of the e-bike. Designed especially for those who require the longest possible range on a single charge. In this case, the range is up to an incredible 200 km (always depending on the circumstances of the ride and the use of assistance).

Made from Samsung cells. The protection by BMS control electronics with all necessary protections. The battery box is made of lightweight and high quality plastic. Combined with the central electric motor, thi is a well-equipped, stable and easy to handle e-bike.

Display for Bafang Max Drive central drive (M400)

Display for Bafang Max Drive central drive (M400)

Motor assistance can be controlled using LCD screen located on handlebar just like it's on most e-bikes. The screen will display battery status choosen gear motor assistance speed and mileage.

Crussis Brand

CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.

They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr

Crussis E-bikes

Parameters

arrow

General

Load capacity 120 kg
arrow

Suspension

Front fork SUNTOUR XCM HLO DS 27,5", stroke 100 mm, lockable from the fork
arrow

Components

Extender CRUSSIS Al, 60 mm, fixed
Grips CRUSSIS silikonové
Rear hub Crussis disc, industrial bearings, 32D, fixed axle 12x142 mm
Front hub Crussis disc, industrial bearings, 32D, fixed axle 15x100mm
Saddlebag CRUSSIS with lock, 31,6, 350 mm
Saddle Selle Royal
Racks CRUSSIS 27,5", dvoustěnné, vložkované, 25mm
Handlebars CRUSSIS Al, 740 mm
Coats Maxxis Ardent 27,5 x 2,40
arrow

Transmission

Sorting Shimano Alivio SL-M3100
Cassette Shimano CS-HG200-9, 9 speeds, 11 - 36 teeth
Shifter Shimano Alivio RD-M3100-SGS
Number of gears 1 x 9
arrow

Brakes

Rear brakes Shimano BR-MT200, hydraulic, 160 mm rotor
Front brakes Shimano BR-MT200, hydraulic, rotor 180 mm
