CORRATEC E-Power Trekking 28 PX7 Belt Wave
The Corratec E-Power Trekking 28 PX7 Belt Wave city and trekking e-bike combines a low-step frame with a maintenance-free Gates CDX belt drive. A powerful Bosch PX motor (90 Nm), a 720 Wh battery, hub gears, and a wide range of features ensure a clean and comfortable ride without getting dirty from the chain.
BK32314
Description
BOSCH Performance Line PX Smart System
90 Nm
720 Wh
5 speeds
28"
80 mm

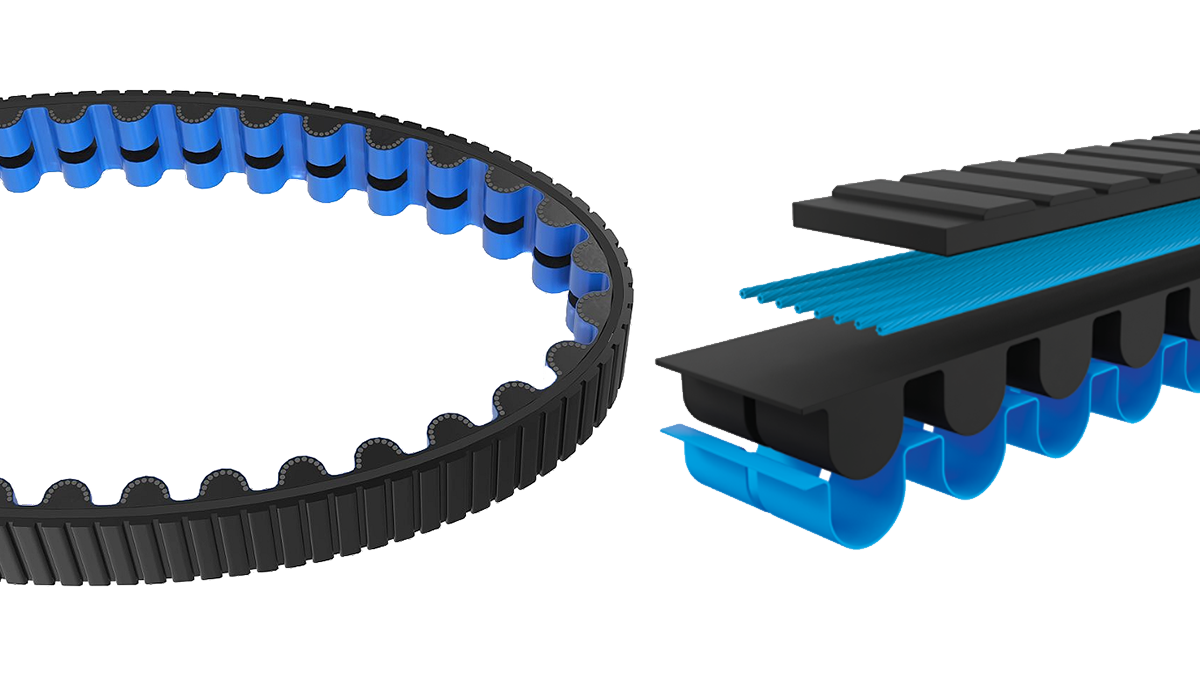

Maintenance-free drivetrain: Shimano Nexus (5-speed) and Gates CDX belt
The combination of the 5-speed Shimano Nexus internal hub gear and the Gates CDX carbon belt is the ideal choice for clean, quiet, and completely maintenance-free operation. The belt requires no oil lubrication, doesn’t stain your clothes, and lasts several times longer than a traditional chain, while the hub gear system allows for easy shifting even when stopped at an intersection.
Complete touring gear for everyday use
Practical features make this e-bike a versatile companion for both travel and commuting. The sturdy MIK HD rack, with a load capacity of up to 27 kg, easily carries panniers and a child seat. The powerful Herrmans MR8 headlight (180 lm) and BL-21 Plus taillight with brake light function ensure maximum safety on the road. Durable fenders add to year-round comfort.
BK30 ICR (Internal Cable Routing)
ICR offers significant advantages by routing all cables internally through the frame and cockpit, ensuring a clean and aerodynamic design. The cables run through the head tube for a sleek look.
MY C-FINDER Tracker
An integrated Corratec e-bike tracker that pairs easily with the Apple Find My app, allowing you to track your bike’s location at any time. Simple, secure, and at no extra cost.
The CORRATEC E-Power Trekking 28 PX7 Belt Wave is a premium electric trekking bike designed for the smoothest, quietest, and most maintenance-free ride possible. The aluminum Wave-style frame with a low step-through design and large 28" wheels makes it easy to get on and off the bike, which you’ll appreciate during your daily commute to work as well as on long weekend trips.
The main highlight of this model is the clean and quiet Gates CDX toothed belt, which completely replaces the traditional chain. It requires no lubrication, doesn’t stain your clothes, and has a lifespan several times longer than a chain. The belt works in tandem with a reliable 5-speed planetary gearbox in the Shimano Nexus rear hub with a classic freewheel, which allows for easy and smooth shifting even when stationary at an intersection.
The drive system is powered by a powerful Bosch Performance Line PX Smart System motor with 90 Nm of torque, powered by a fully integrated 720 Wh Bosch PowerTube battery. Ride information is displayed on the easy-to-read Bosch Intuvia 200 display with an LED Controller. Vibration absorption on rough pavement or dirt roads is handled by the SR Suntour NVX32 suspension fork with 80 mm of travel, combined with a suspension aluminum seatpost and a Selle Royal Look-In Evo gel saddle.
You can easily adjust the riding position thanks to the adjustable stem (0–90°). Shimano MT220 hydraulic disc brakes ensure safe stopping power. The bike is fully equipped for both everyday use and travel: it features a sturdy MIK HD rear rack with a load capacity of up to 27 kg, fenders, a kickstand, and an extra-bright Herrmans MR8 front LED light (180 lm), complemented by a rear light with a brake light function.
Key features:
- Maintenance-free belt drive: The Gates CDX carbon belt eliminates the need for lubrication, doesn’t get dirty, and offers exceptional durability.
- Shimano Nexus hub gears: The 5-speed hub gear system with freewheel allows for easy and smooth gear shifting, even when stationary.
- Comfortable Wave frame: Low step-through design on 28" wheels for easy mounting and high stability.
- Powerful Bosch PX motor (90 Nm): High torque combined with a 720 Wh PowerTube battery and Intuvia 200 display.
- Dual suspension for comfort: The Suntour SR suspension fork (80 mm) combined with a suspension seatpost effectively absorbs bumps.
- Top-of-the-line touring equipment: MIK HDrack with a 27 kg load capacity, adjustable stem, and extra-bright Herrmans MR8 light (180 lm) with a brake light function.
Need help choosing the right e-bike? Use our e-bike selection guide or contact us directly.
E-bike range calculator
Flat
Medium
Hills
The e-bike range is approximately
*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
BOSCH Performance Line PX
The Bosch Performance Line PX is a new, powerful, yet quiet mid-engine for trekking e-bikes. Basically, it offers 600 W of peak power with a torque of 85 Nm - enough power for a comfortable ride even up steeper hills, without growling or jerking. Thanks to the eBike Flow app, you can increase the power up to 700 W and 90 Nm for a more demanding ride. Assistance reaches up to 340%, or up to 600% after setting in the app. The engine weighs only approx. 2.9 kg and is compatible with functions such as eShift (automatic shifting), eBike ABS (for safer braking), and offers smooth running and minimized resistance when coasting without assistance.
Bosch PowerTube 720 Battery
The Bosch PowerTube 720 is designed for demanding cyclists who need a range of up to 185 km. With a high capacity of 720 Wh (19.4 Ah) and a weight of 3.9 kg, it provides reliable power for long rides and off-road terrain. The battery works with the Bosch Smart System and enables the use of DualBattery technology for extreme range on multi-day expeditions.
When charging with the 4A Charger, you can reach 50% charge in 2.3 hours and 100% in 6 hours. With the 2A Charger, charging to 50% takes approximately 5.3 hours, and to 100% takes a full 11 hours.
Bosch Intuvia 200 Display
The Bosch Intuvia 200 is a compact 2.4" display for the Bosch Smart System, permanently mounted on the handlebars for maximum theft protection. The grayscale IPS display with Optical Bonding technology and IP55 protection ensures excellent readability in sunlight and resistance to rain and dust. It is safely controlled via a separate unit on the handlebars. It offers customizable data display (speed, range, cadence), light/dark mode, and support for smart features such as the Hill Hold assist. The ideal choice for a clear, distraction-free ride.
Extended 6-year warranty on Corratec frames
Corratec offers an above-standard extended warranty on frames for a total of 6 years. This benefit is intended exclusively for the first owner and is not transferable to other persons.
The basic condition is online registration within 14 days of purchasing the bike. If you do not register in time, only the standard two-year warranty applies.
For the warranty to be valid, follow the instructions and avoid racing or extreme loads unless the bike is specifically designed for them.
The brand has been around since 1970. Corratec GmbH represents a combination of German craftsmanship, engineering precision and cycling passion. From racing MTBs to high-performance e-bikes with technology like the Shadow Edge Tube, Fusion Tube and ABS Pro, every e-bike is the result of precision work and strict quality. Thanks to manufacturing in Europe, it offers not only cutting-edge technology but also an environmentally responsible approach. The brand is true to the philosophy of „Passion of Cycling“ – the best bikes have been focused on innovation, tradition and quality from the very beginning. CORRATEC e-bikes are world leaders in stability, comfort and safety.
Contact: iko Sportartikel Handels GmbH, Kufsteiner Strasse 72, 83064 Raubling, Germany, e-mail: info@corratec.com, phone: +49 8035 87070, web: www.corratec.com
Parameters
General
| Model year | 2027 |
| Load capacity | 140 kg |
| Brand | Corratec |
| Colour | Grey |
| Frame size | Frame XS, Frame M, Frame S |
Motor
| Centre engine | Yes |
| Engine manufacturer | Bosch |
| Engine type | Bosch Performance Line PX |
| Torque | 90 Nm |
Battery
| Battery capacity | 700 - 799 Wh |
| Precise capacity | 720 Wh |
Transmission
| Number of gears | 1 x 5 |
Suspension
| Fork travel | 80 mm |
