ELEKTROKOLA APACHE

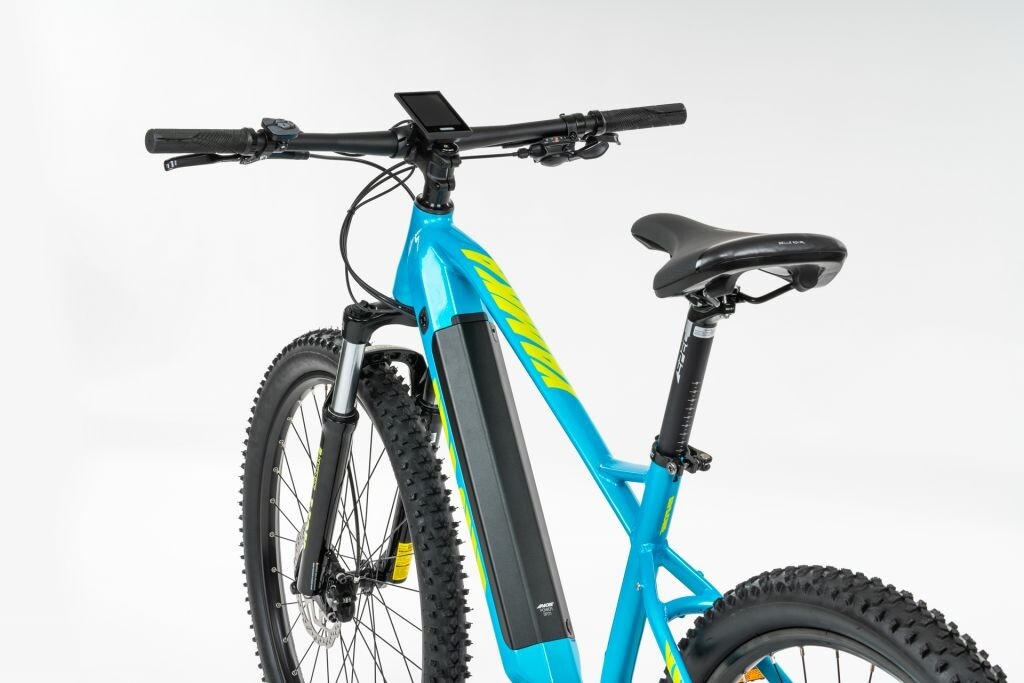

APACHE Yamka MX5

The Yamka MX5 e-bike with 27.5" wheels is designed for adventurous riders who love cycling.

Choose your variant

Which frame to choose?

Rider height: 165 cm

150

210

Recommended size*:
17 - 18" (M)

*Suggested sizes are for guideline only.

€ 1,720

€ 1,421 excl. VAT

Availability: Not in stock info

Discount for purchasing 2 or more e-bikes: 5%

Why this e-bike?

APACHE Yamka MX5
  • motor: Bafang M400
  • battery: LG 468 Wh
  • frame size: 16", 18"
  • number of gears: 9
  • display: Bafang C18
  • fork stroke: 100 mm
APACHE Yamka MX5

APACHE Yamka MX5 is equiped with SR Suntour XCM HLO DS Suspension with a whoping 100mm of travel! This in itself makes the bike incredibly comfortable no matter how rough the terrain is. Tarmac, gravel or even hill climbing in a country it is all comletely effortless while still maintaining great abilites and handling.

APACHE Yamka MX5

Apache Yamka MX5 is equiped with Shimano Altus M2000 and M2010 for ultimate stability and reliability when changing gears. This new 2000 Series of components have been re-designed for perfect fit and smooth operation.

Click to display the e-bike range calculator

E-bike range calculator

Total weight of rider (incl. equipment)
80
kg
Predominant route profile
Battery capacity
Range
For 80 kg riders, with a battery capacity of Wh when driving with average assistance after a predominantly , the range on this e-bike will be approximately
km
(Setting specific assistant mode, electro-technical state, battery age, ambient temperature, aerodynamics and driving technique could affect the overall range)

  • Electric bike Yamka MX5 with 27.5" wheels is  purposely built for active riders who dont shy away from all day trips specificaly for those that prefer smaller wheel diameter.

  • MX5 series from our Apache range have built in internal battery which is popular not only for it's sleek design but this integration also enhances overall endurance and durability and raises load rating up to 140kg.

  • It's centrally located Bafang MaxDrive motor with 80Nm of torque13Ah battery and with 100mm suspension flex, reliable Shimano Altus 1x9 gear shifter and 180mm brake discs provides peace of mind and enjoyable on and off road experience.



Central drive BAFANG Max Drive M400

BAFANG Max Drive M400

The motor has a pedal sensor and a torsional pedal force sensor. The more force the cyclist puts on, greater the force engine puts in thanks to the included smart control unit.

Read more

Integrated battery Apache Power I5 (SP2.1)

Battery Apache Power I5 (SP2.1)

Integrated Apache Power I5 (SP2.1) battery into the frame of the e-bike. In combination with the central electric motor, it means only one thing - a perfectly balanced, stable and easy to handle e-bike, which has a nice geometry.

The battery is equipped with a BMS system (Battery Management System) that protects it from overheating, short-circuiting or overcharging. The battery can be charged directly in the e-bike or removed for charging - so it can be charged at home using the included charger in any standard socket.

You can purchase a new (replacement) battery directly here.

Display for Bafang Max Drive central drive (M400)

Display for Bafang Max Drive central drive (M400)

Motor assistance can be controlled using LCD screen located on handlebar just like it's on most e-bikes. The screen will display battery status choosen gear motor assistance speed and mileage.

Apache Brand

We are specialists and we have a complete range of medium- and high-class e-bikes from the Czech brand APACHE BICYCLES. With each APACHE e-bike we offer a premium frame warranty, the first year of after-sales service for free, and perfect diagnostics for all drive technologies used. We are the main repair shop partner for APACHE BICYCLES. APACHE has a wide range of e-bikes for various uses, with several possible motor types - Bosch, Bafang and AP Silent. We also offer rebuilding and installation of hub and central sets and drives of the Apache Power System brand, including batteries and accessories.

Apache E-bikes



Parameters

Drive type Bafang M400
Control Bafang
Capacity and battery type LG 468 Wh / 13 Ah Li-Ion
Frame sizes 16", 18"
Frame type and material Alu 6061
Front fork SR Suntour XCM HLO DS (with lock)
Number of gears 1 x 9
Shifters Shimano Altus M2010
Derailleur Shimano M2000
Type and brand of brakes Shimano MT200 (disc 180 mm)
Cassette Shimano HG200 (11 - 36 z.)
The stem Spec Phase 31,8 x 60 mm
Chain KMC X9
Handlebars Spec Phase 31,8 x 720 mm
Saddle Selle Royal 1216 DRN
Seat post Spec Phase 30,9 x 350 mm
Load capacity 140 kg
Rims Remerx Rocky disc
Front hub Shimano TX505
Rear hub Shimano TX505
Tyres Impac Smartpac 27,5 x 2,25"
Display Bafang C18
