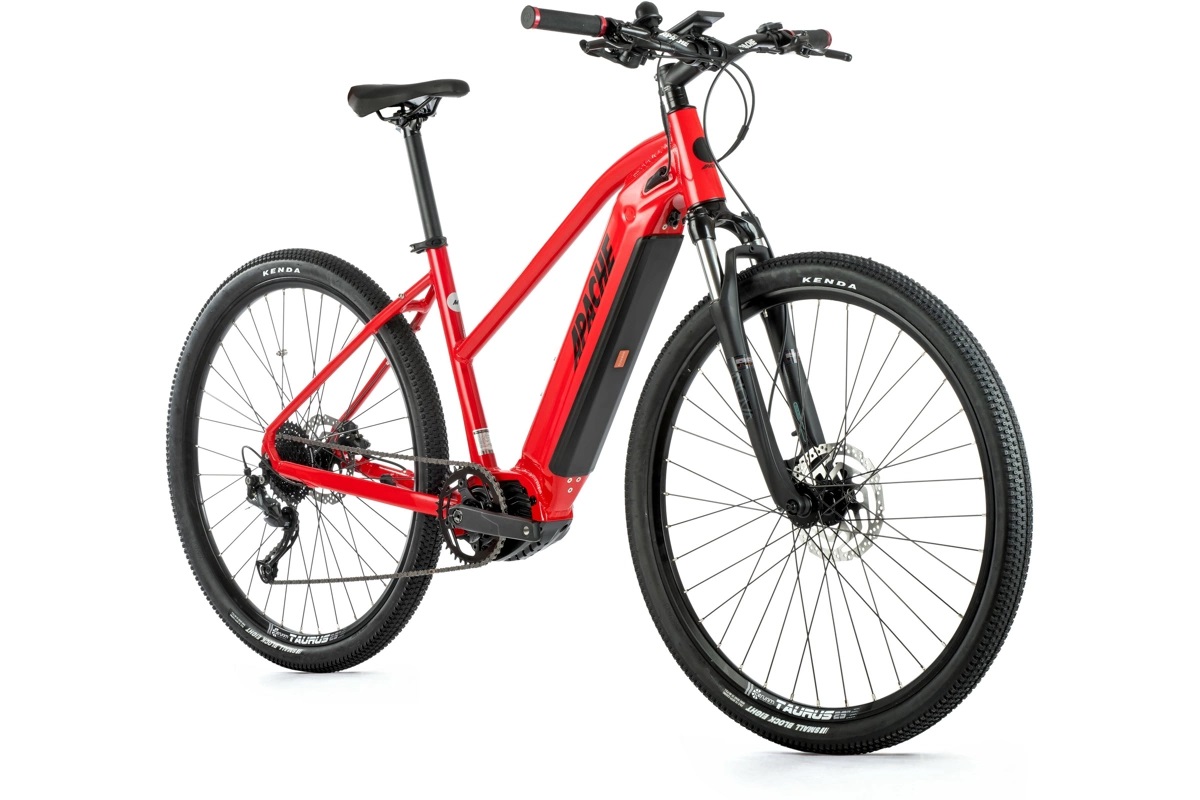

APACHE Matta MX 510
Modern cross e-bike with Bafang M510 mid-motor, 655 Wh battery, Shimano brakes and shifting and clear LCD display. Built on comfortable 29" wheels.
Bafang M510
95 Nm
655 Wh
9 speeds
29"
60 mm
Shimano MT200 hydraulic disc brakes with BL-MT201 levers and 180/160 mm discs offer reliable braking performance and confidence in all conditions.
A reliable 9-speed Shimano drivetrain with Altus derailleur and Acera Rapidfire Plus shifters ensures smooth and precise shifting on any terrain.
The Apache Matta MX 510 is a high-performance electric bike with a lowered frame, designed for comfortable and efficient riding even on challenging terrain. At the heart of the bike is a top-of-the-line Bafang M510 mid-motor with an extra strong 95Nm of torque, providing plenty of power for steep climbs without sacrificing comfort.
The integrated 655 Wh Bafang battery ensures a long range and can be easily removed and charged off the bike. The entire electrical system is a closed Bafang solution - motor, battery, display and charger work perfectly together for stable and powerful operation.
The RST Nova LO front suspension fork with 60mm travel and locking option adds to the riding comfort, while the Shimano MT200 hydraulic disc brakes with 180/160mm discs make sure you stop safely.
The Bafang LCD C18' s clear colour display provides important riding information, plus USB charging for mobile devices. The bike is equipped with a reliable Shimano 9-speed groupset (Acera derailleur, Altus derailleur) and 29" wheels with Kenda Small Block Eight universal tyres.
With its comfortable geometry, powerful engine and carefully selected equipment, the Apache Matta MX 510 is a great choice for recreational and sport riding, both on paved roads and in light off-road terrain.
Apache models bring great design, carefully selected and balanced components and an excellent price/performance ratio. Apache e-bikes have been among the top Czech production since 1998.
Need help choosing the right e-bike? Use our guide to choosing an e-bike or contact us directly.
E-bike range calculator
The e-bike range is approximately
*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique
BAFANG M510
The new M510 mid-motor is designed especially for high-performance e-bikes. Torque is essential for dynamic riding, up to 95 Nm in this motor, which can estimate the right amount of power according to the rider's pedalling force and dial in the appropriate assistance.
The M510 is half a kilogram lighter and weighs only 2.9 kg. The weight saving is the result of several design changes, the main one being the new magnesium housing.
The M510 mid-engine is a revolutionary upgrade to the powerful eMTB engine. Maximum cadence support is extended up to 120 rpm.
We are specialists and we have a complete range of medium- and high-class e-bikes from the Czech brand APACHE BICYCLES. With each APACHE e-bike we offer a premium frame warranty, the first year of after-sales service for free, and perfect diagnostics for all drive technologies used. We are the main repair shop partner for APACHE BICYCLES. APACHE has a wide range of e-bikes for various uses, with several possible motor types - Bosch, Bafang and AP Silent. We also offer rebuilding and installation of hub and central sets and drives of the Apache Power System brand, including batteries and accessories.
Parameters
General
| Model year | 2023 |
| Brand | Apache |
| Load capacity | 120 kg |
Motor
| Engine manufacturer | Bafang |
| Engine type | Bafang M510 |
| Torque | 95 Nm |
| Centre engine | Yes |
Battery
| Battery capacity | 600 - 699 Wh |
| Charger | Bafang 3.0 A |
Suspension
| Front fork | Rst Nova LO, 60 mm, spring |
Components
| Grips | Herrmans LR |
| Saddlebag | Apache Al, solid, 30,9x350 mm |
| Saddle | Selle Royal Vivo Ergo |
| Handlebars | Apache Al 31,8x680 mm, 25 mm rise |
| Extender | Apache Al 31,8 x 80 mm, 7° |
| Coats | Kenda Small Block Eight 29 x 2,1 |
Transmission
| Shifter | Shimano Altus RD-M2000-SGS, Shadow |
| Sorting | Shimano Acera SL-M3000, Rapidfire Plus |
| Cassette | Shimano CS-HG200, 11-36 z. |
| Number of gears | 1x9 |
Brakes
| Rear brakes | Shimano SM-RT26, hydraulic, rotor 160 mm |
| Front brakes | Shimano SM-RT26, hydraulic, rotor 180 mm |
