4EVER Esword SUV 835

4EVER Esword SUV 835 - a versatile e-bike for everyday comfort and longer trips

the 4EVER Esword SUV 835 is an e-bike that combines the comfort of a trekking bike, the practicality of an urban e-bike and the stability of a mountain model. The SUV concept makes it the ideal choice for those who want one bike for everything from daily commuting to weekend trips in the countryside. The robust frame with comfortable geometry provides a comfortable seating position and confident handling even on longer rides.

At the heart of the model is the reliable BAFANG M510 engine, which boasts smooth engagement and plenty of power up hills. Combined with the integrated 835Wh battery, you get generous range so you can take on even the most demanding routes without worry. Quality Shimano BR-MT200 hydraulic brakes ensure safe stopping, while the suspension fork and wider tyres ensure comfort on cycle paths, cobbles and paved roads.

Components that don't shy away from the terrain

• Suntour XCM34 BOOST fork with 120 mm of travel to absorb bumps
• Shimano CUES 1×10 derailleur with enough range for hilly terrain and fast riding
• Brakes: Shimano BR-MT200 hydraulic disc brakes for sure and safe stopping
• Wheels: 29″ Schwalbe Smart Sam tyres for good grip and acceptable rolling resistance
• Display: Bafang DP C080 with clear controls and advanced features.

The e-bike is factory fitted with a full touring accessory package - mudguards, lighting, rack and stand. This makes it ready to go immediately, whether you're heading to work, shopping or on a day trip.

the 4EVER Esword SUV 835 is a great choice for cyclists looking for a versatile, comfortable and durable e-bike they can rely on in any situation.

E-bike range calculator

Battery capacity: 500 Wh

300 Wh 600 Wh 900 Wh 1200 Wh

Rider weight: 75 kg

50 kg 80 kg 110 kg 140 kg

Assistance mode: 3

Min 2 3 4 Max

Route profile: Flat

Flat

Medium

Hills

The e-bike range is approximately

*Factors affecting total range include technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

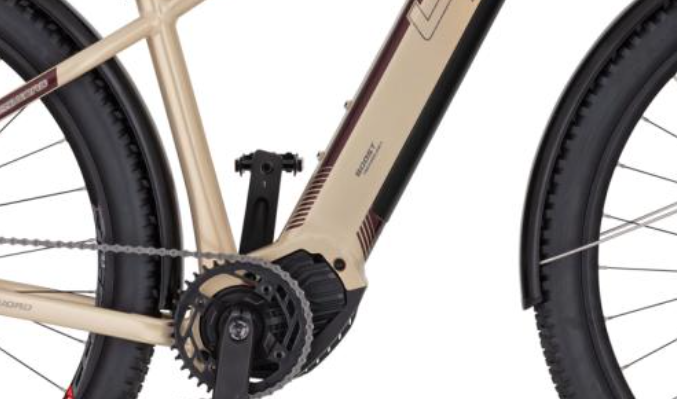

BAFANG M510

The new M510 mid-motor is designed especially for high-performance e-bikes. Torque is essential for dynamic riding, up to 95 Nm in this motor, which can estimate the right amount of power according to the rider's pedalling force and dial in the appropriate assistance.

The M510 is half a kilogram lighter and weighs only 2.9 kg. The weight saving is the result of several design changes, the main one being the new magnesium housing.

The M510 mid-engine is a revolutionary upgrade to the powerful eMTB engine. Maximum cadence support is extended up to 120 rpm.

More information

Battery Li-Ion LG 835 Wh / 23,2 Ah

The LG Li-ion battery with a capacity of 835 Wh / 23.2 Ah is a powerful and reliable battery. It provides long range and stable performance. Designed especially for those who require the longest possible range. The integrated battery management system (BMS) prevents overcharging, overheating and deep discharge. Lithium-ion technology - High energy density, low self-discharge and long service life. Reliable LG cells - Known for their safety, long life and efficiency. Ensures high endurance and efficient power distribution.
